Region 8 - Macaque Corpus Callosum G-Ratio Analysis

Slice 01¶

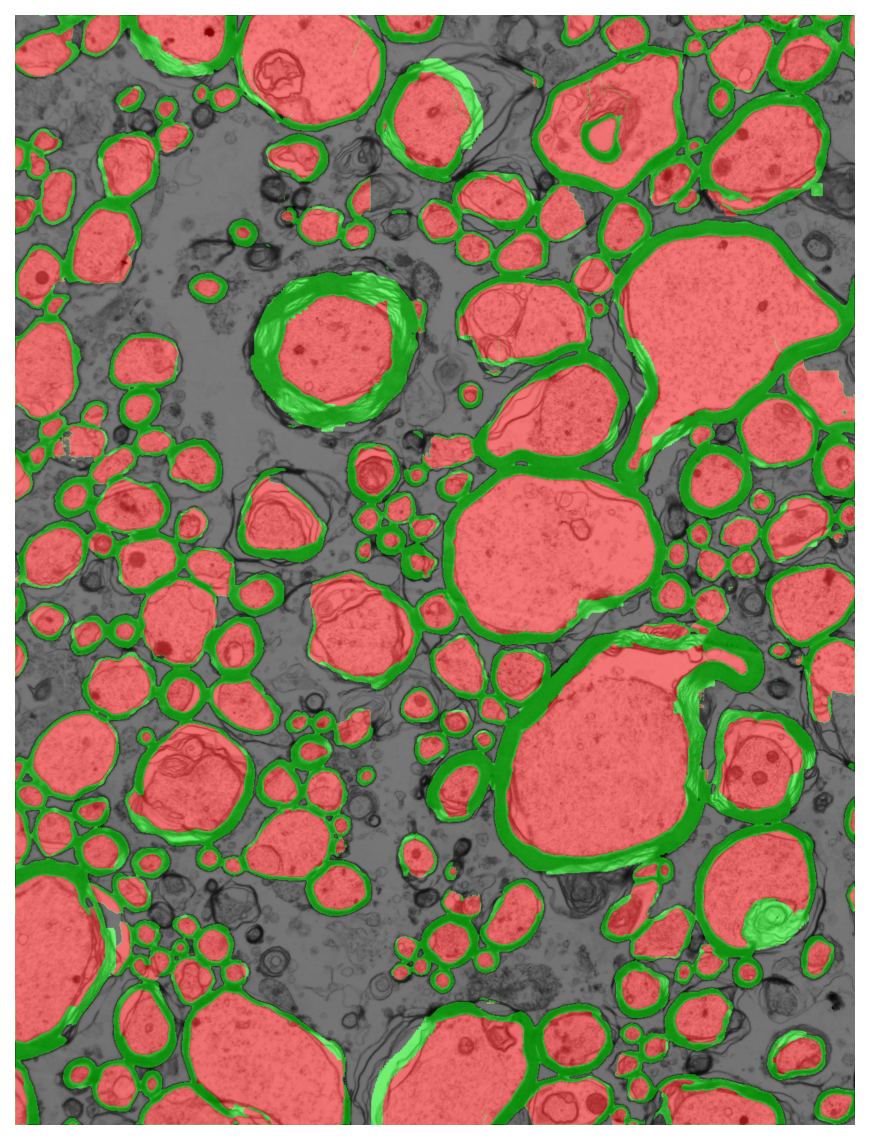

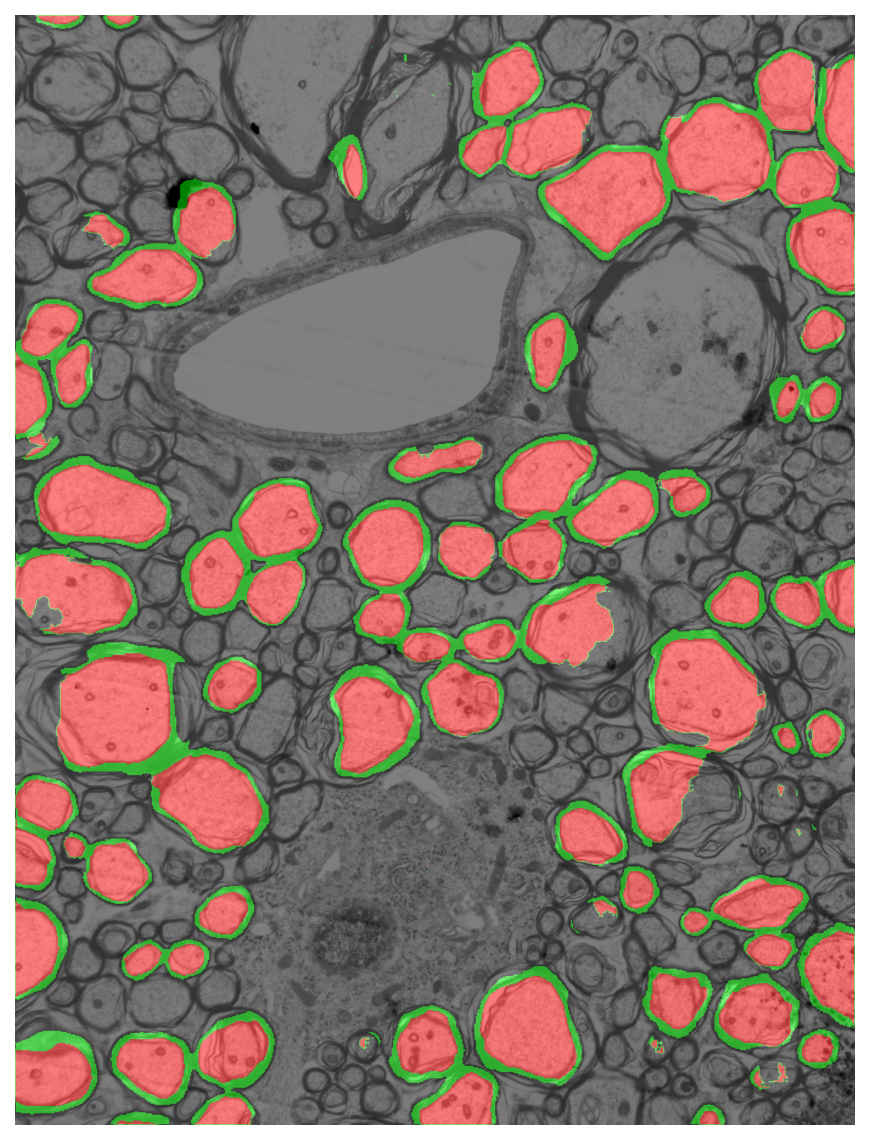

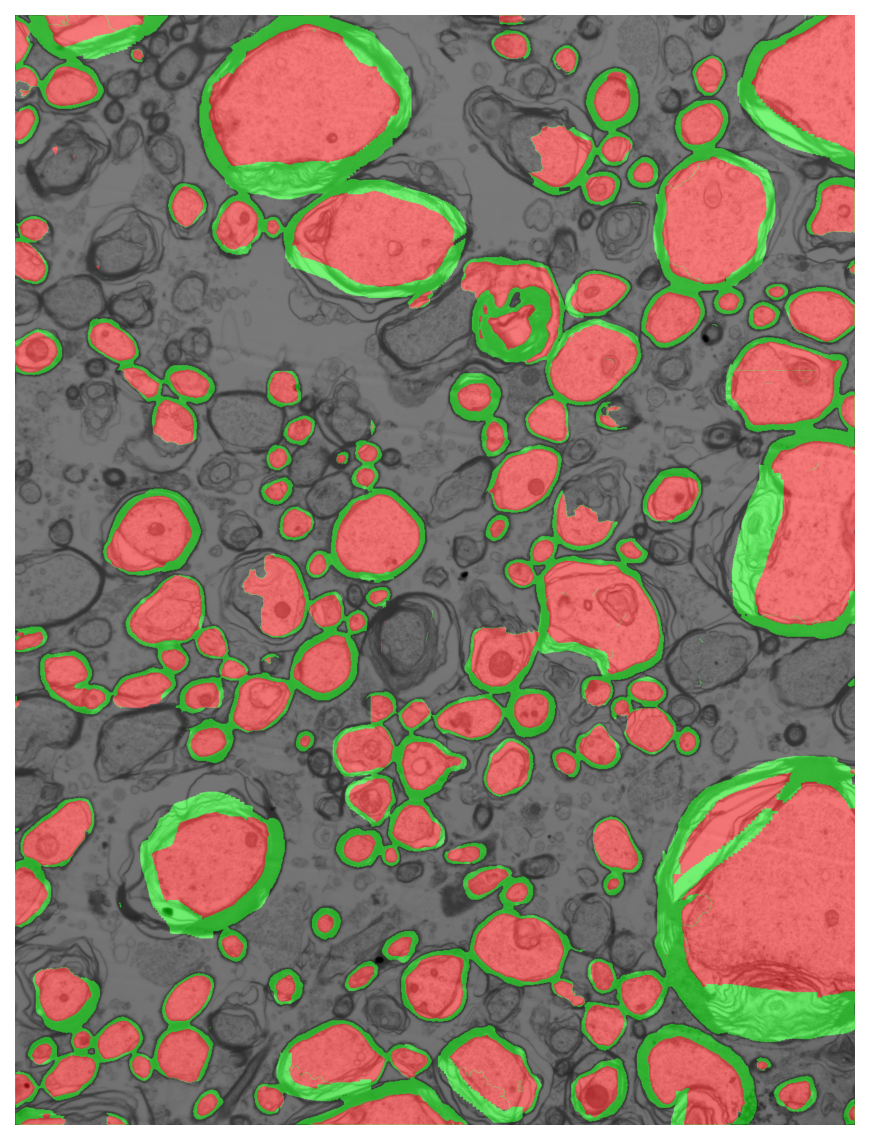

Segmentation overlay¶

Summary¶

Total axons: 195
Excluded: 68 (34.9%)
Retained: 127

Exclusions by category¶

artifact: 21
border: 29
invalid: 6
merge_error: 4
myelin_dominant: 8

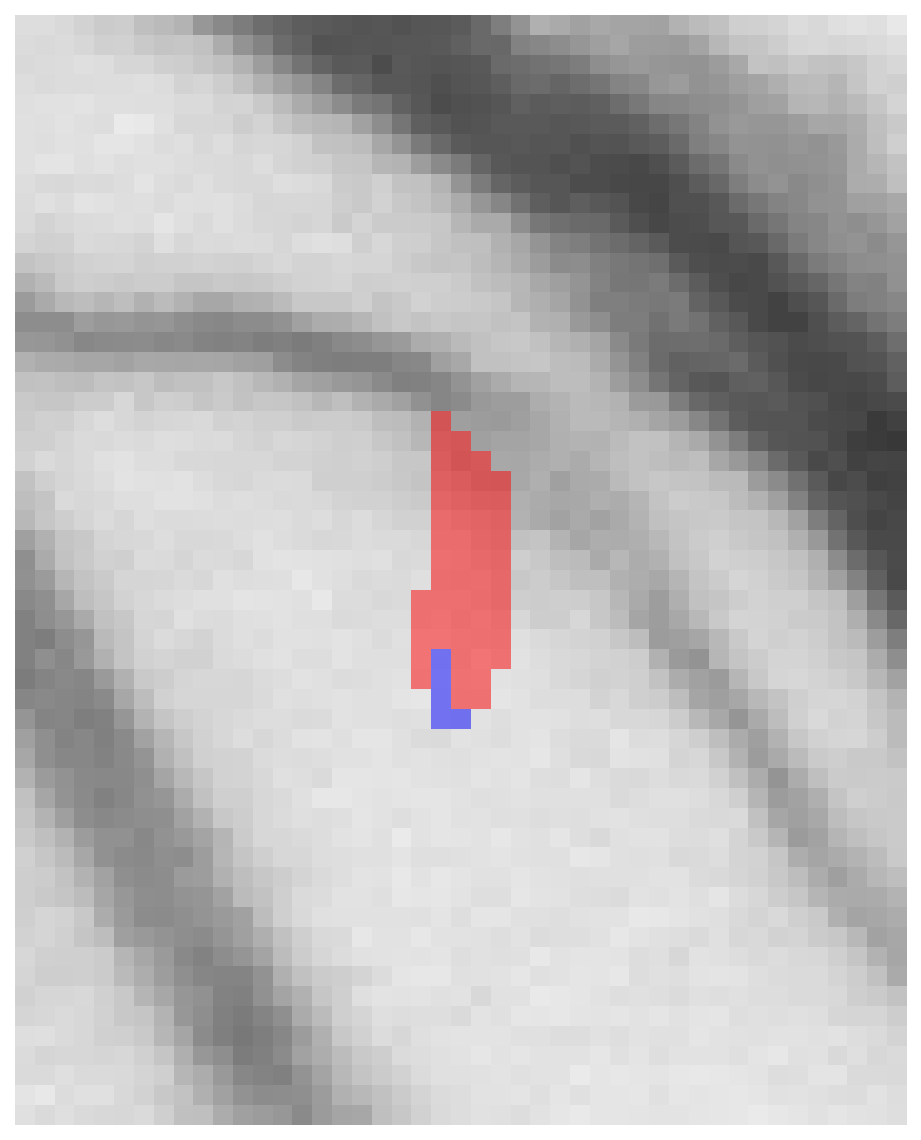

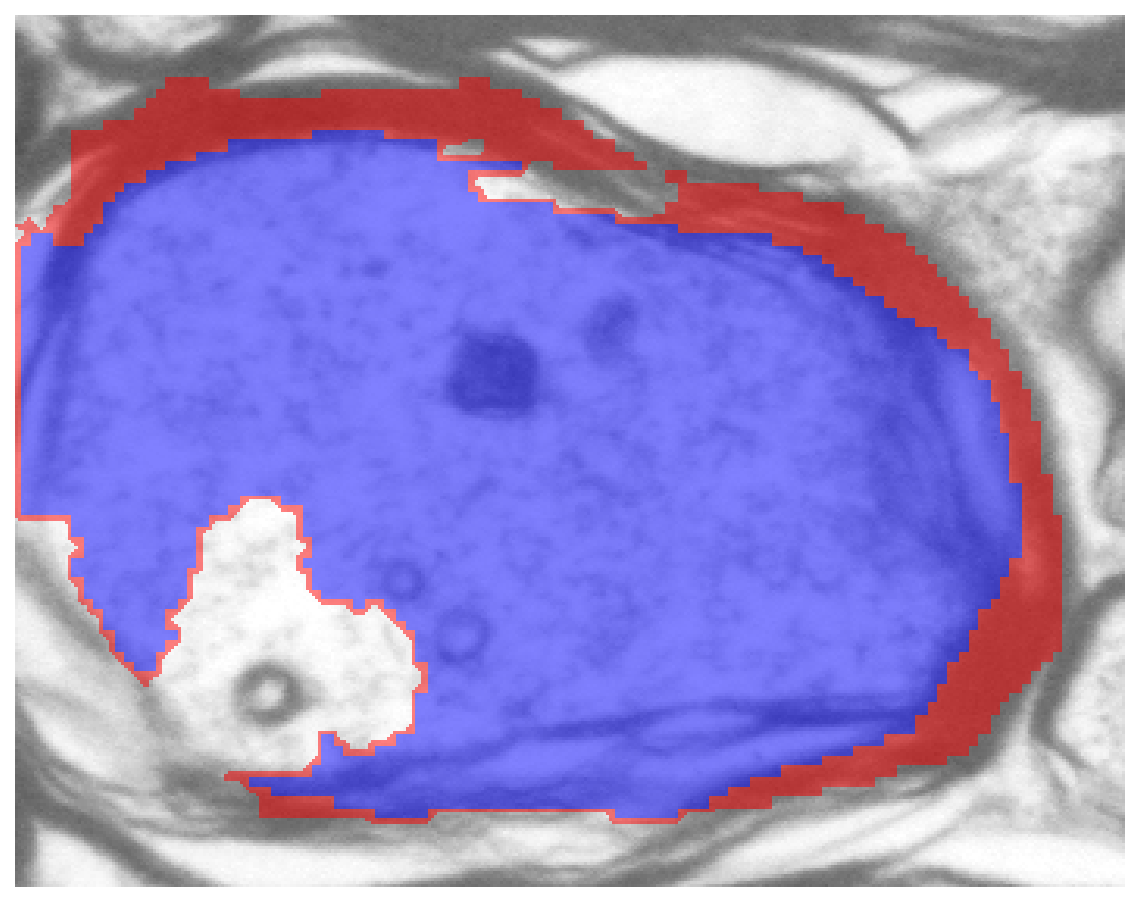

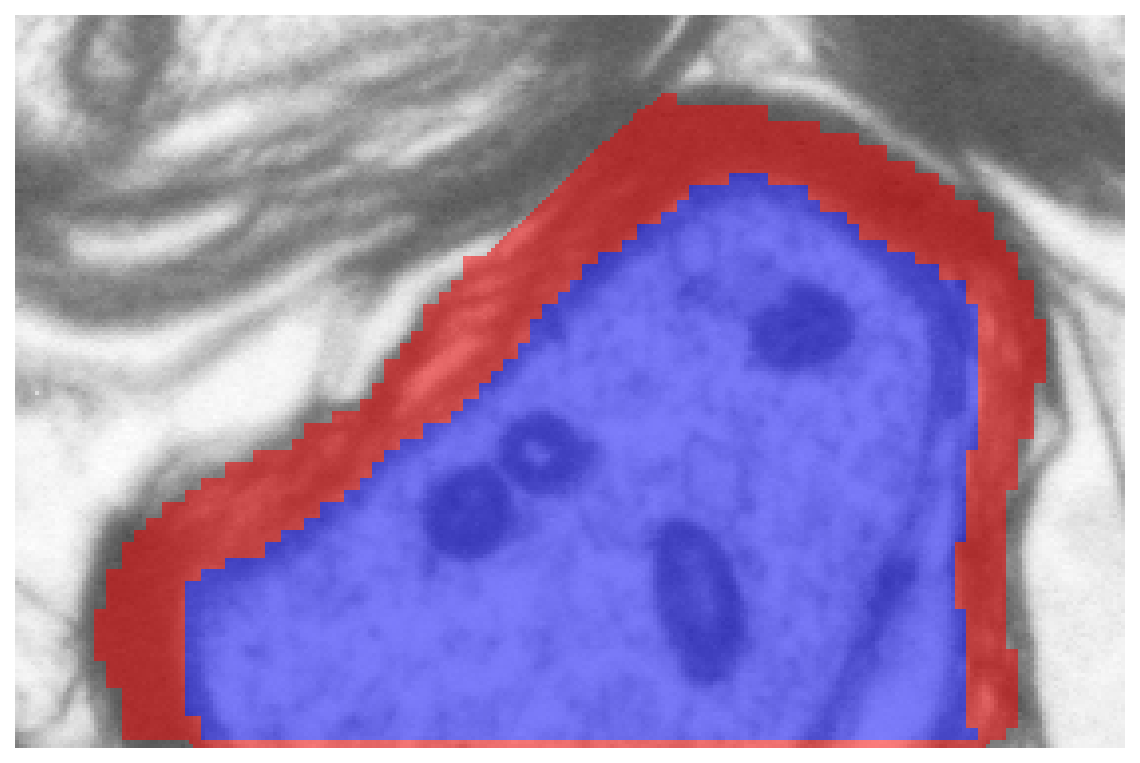

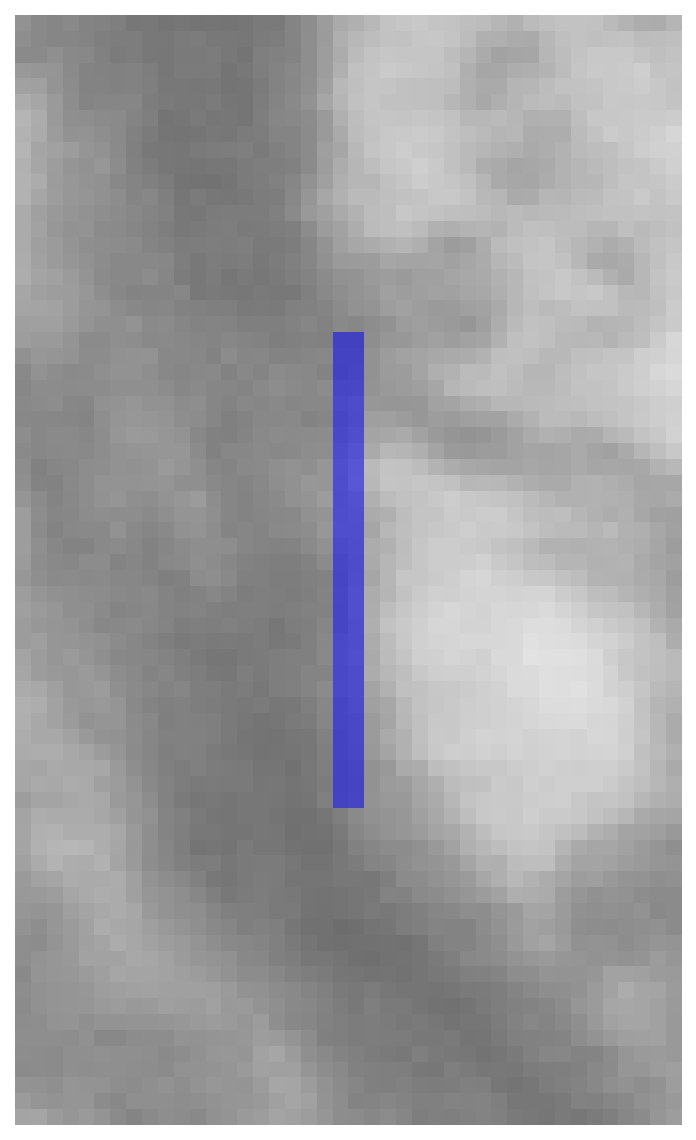

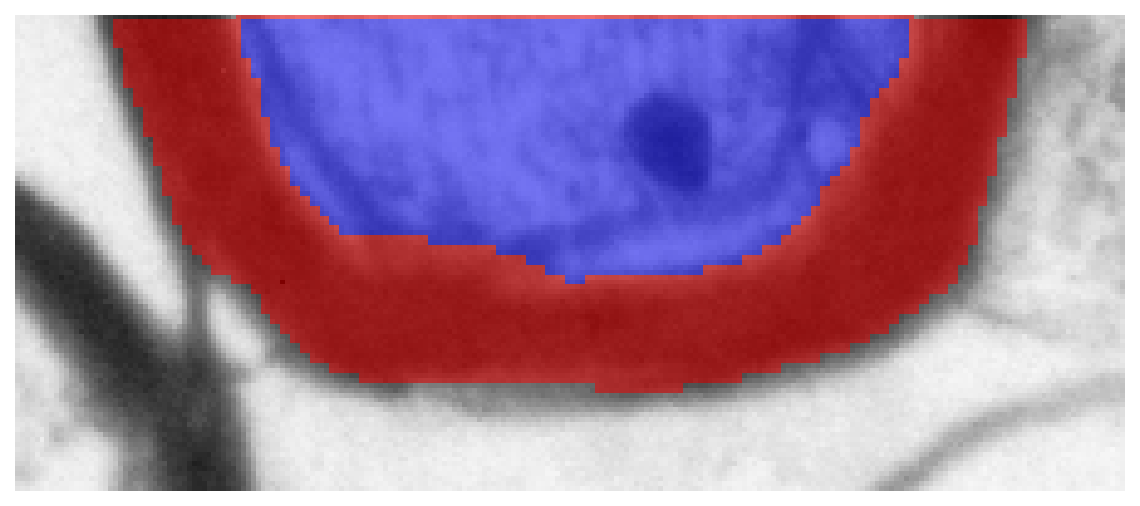

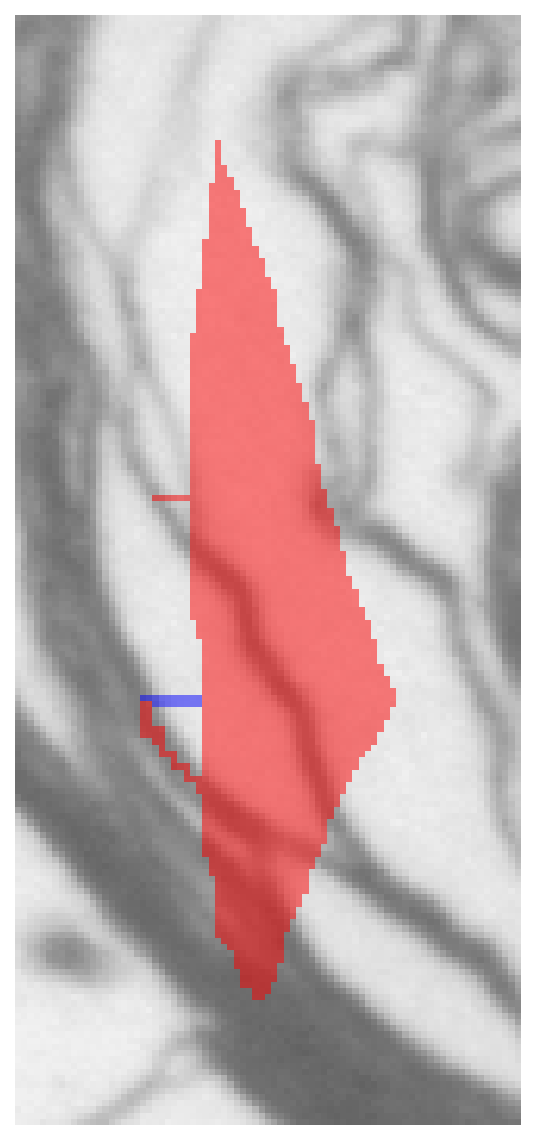

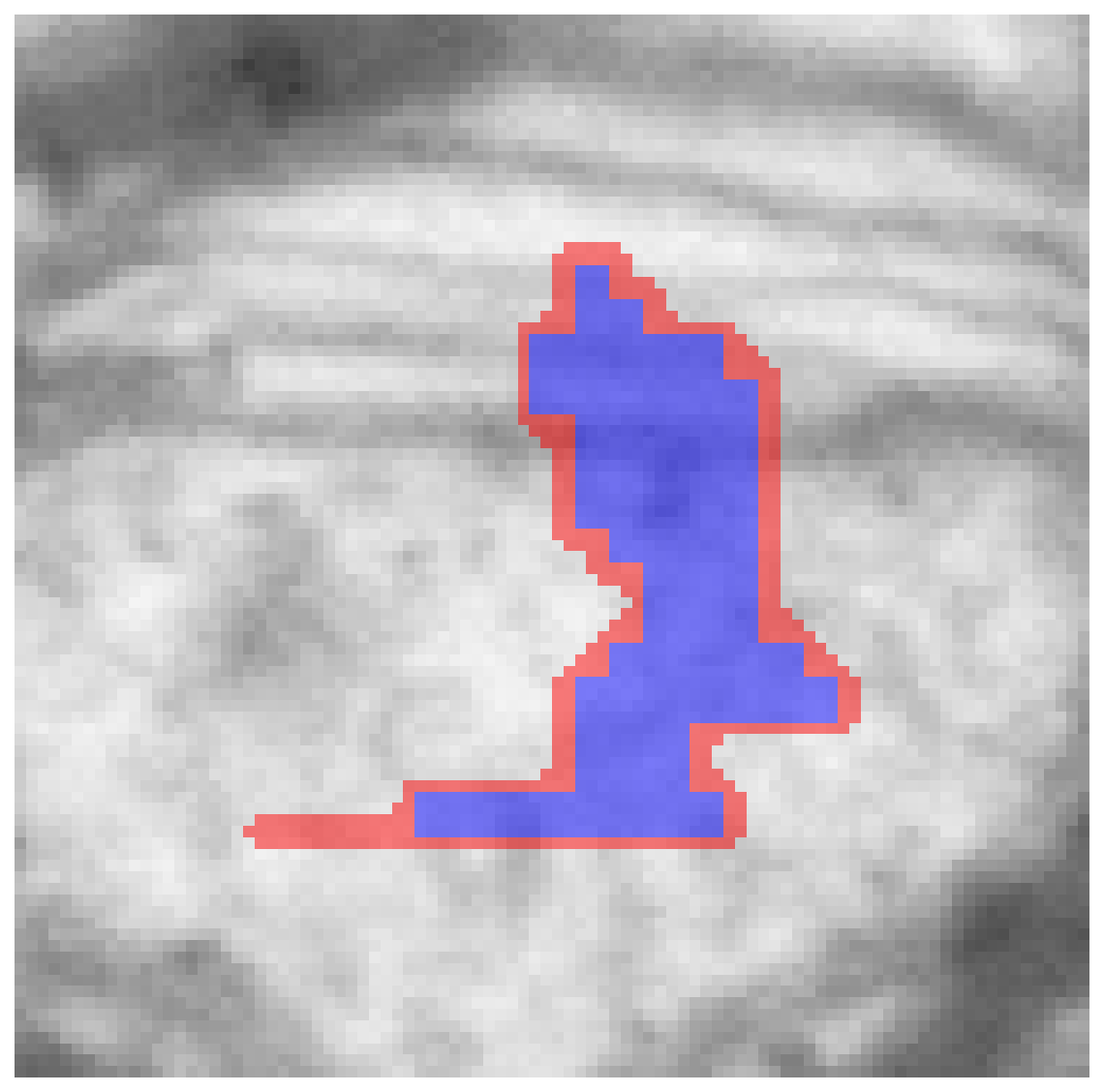

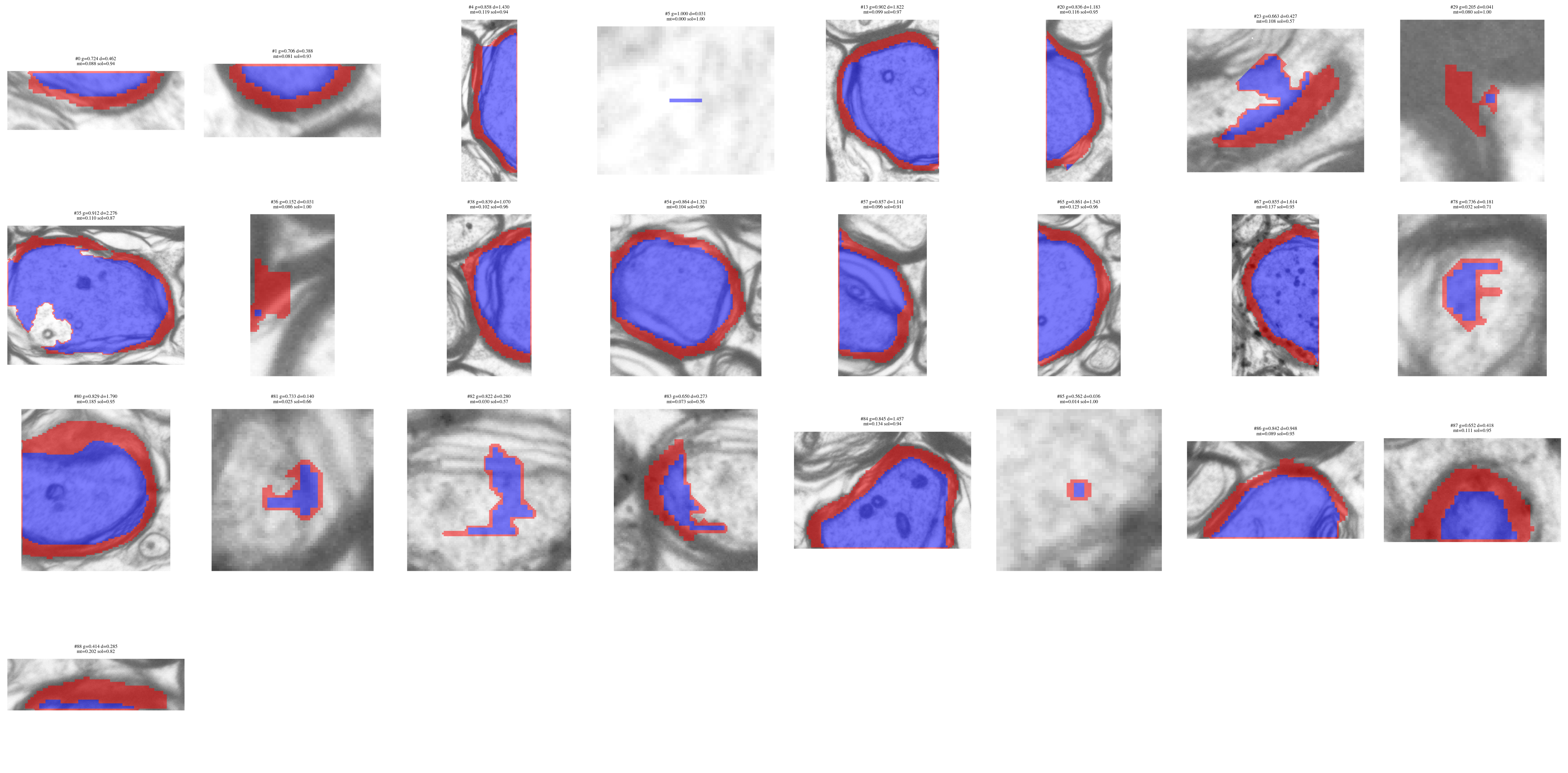

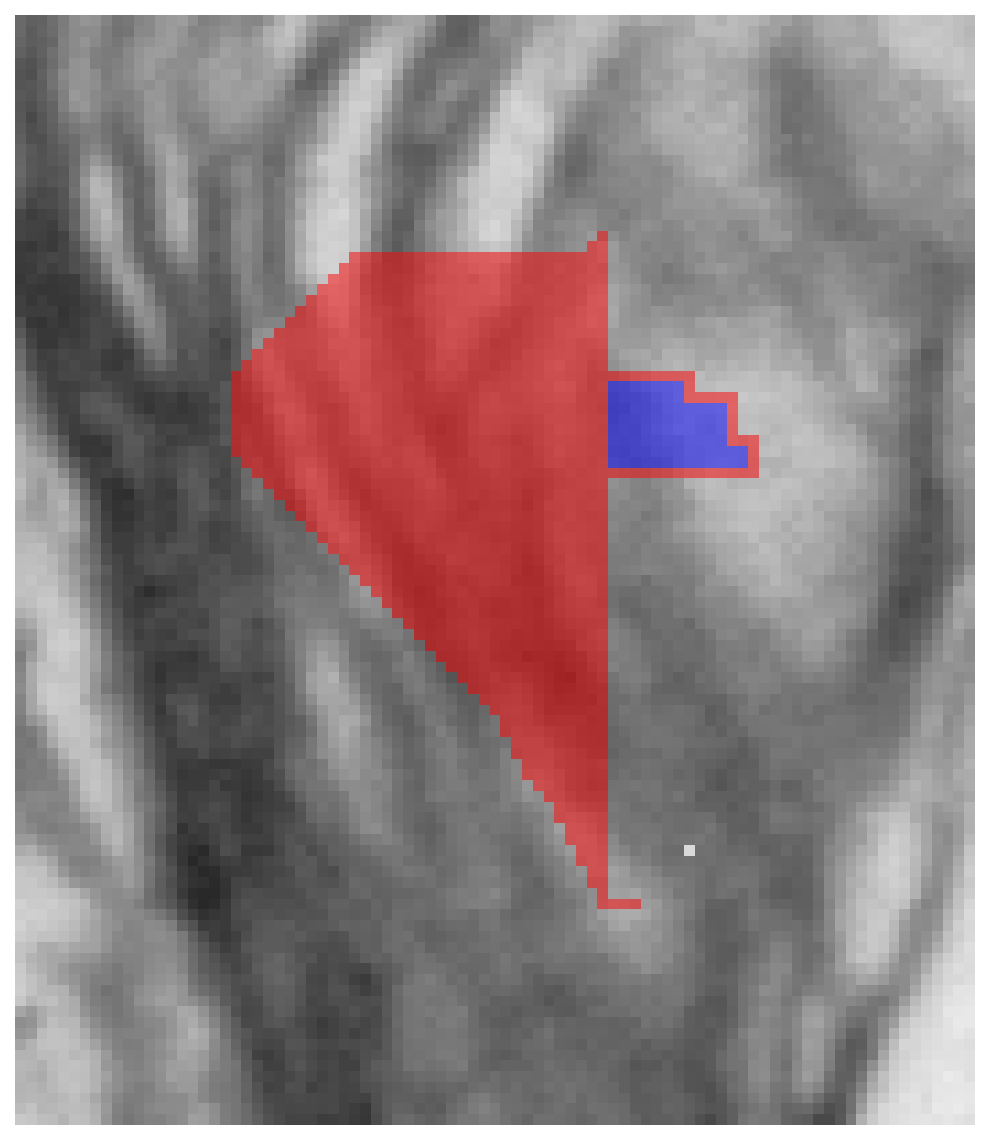

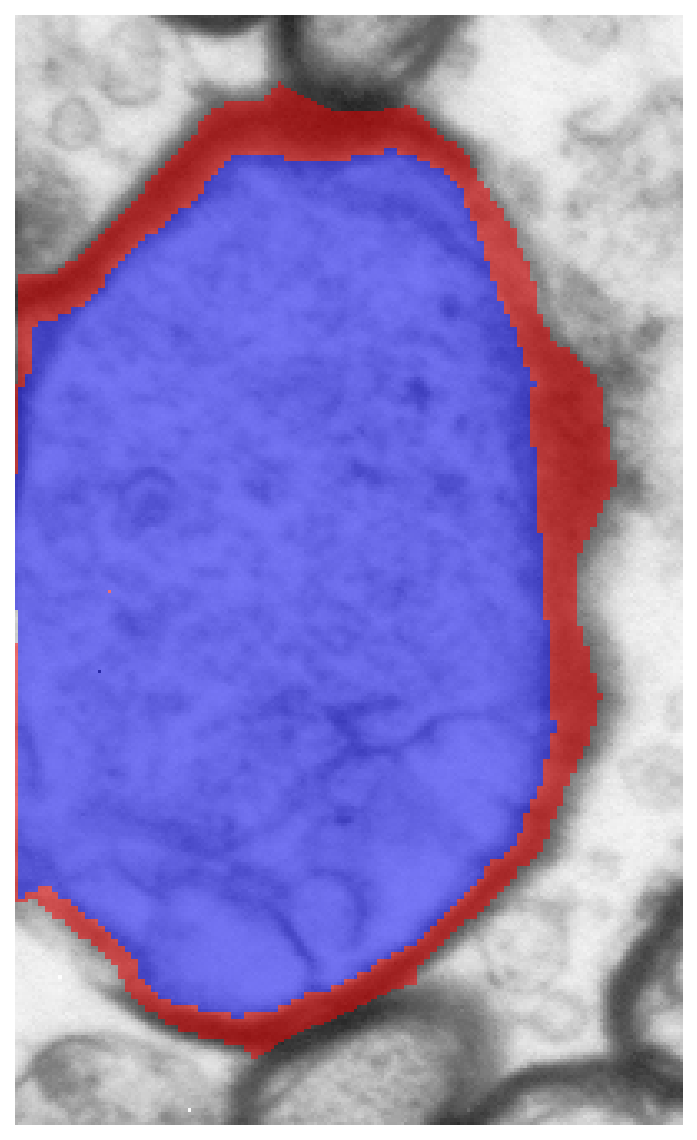

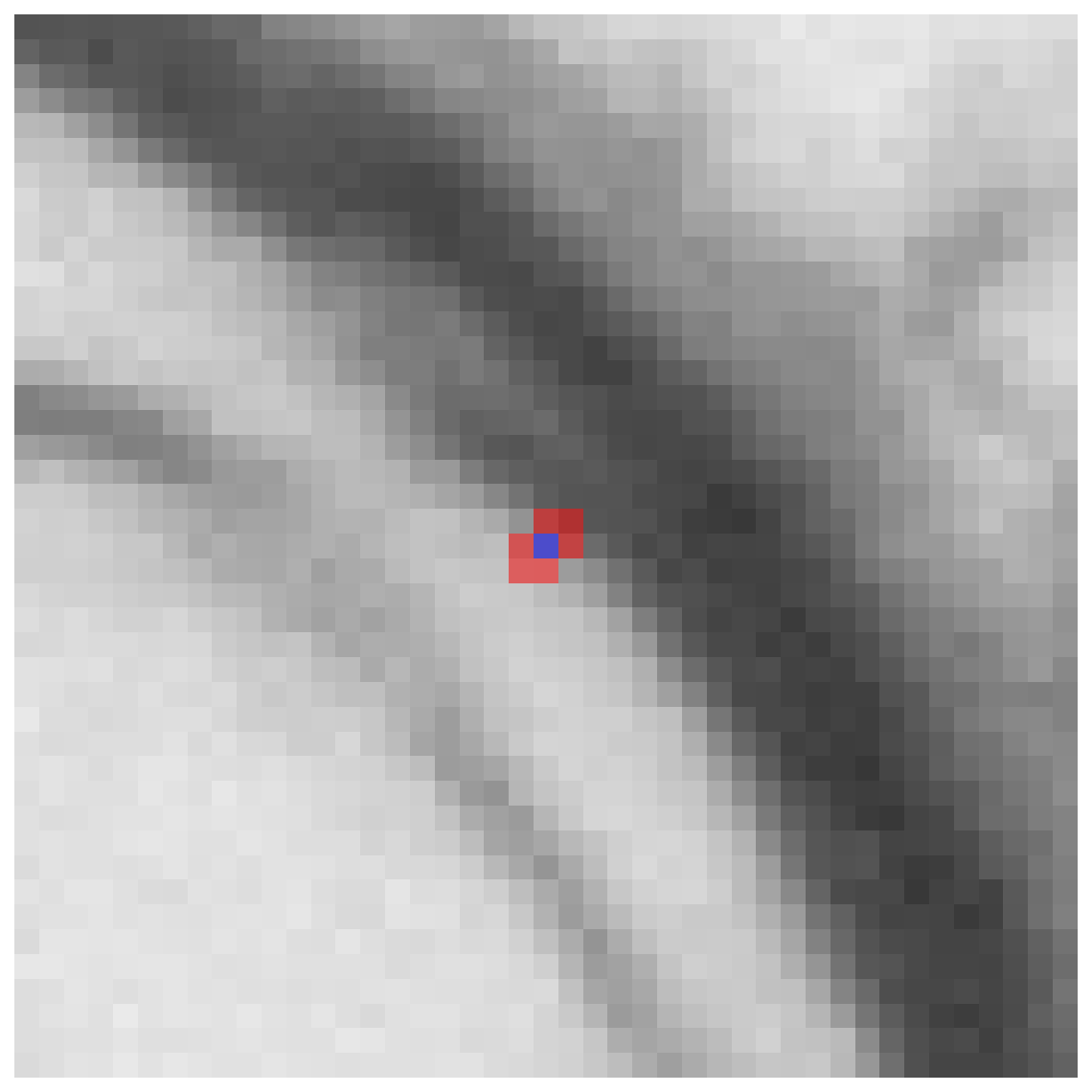

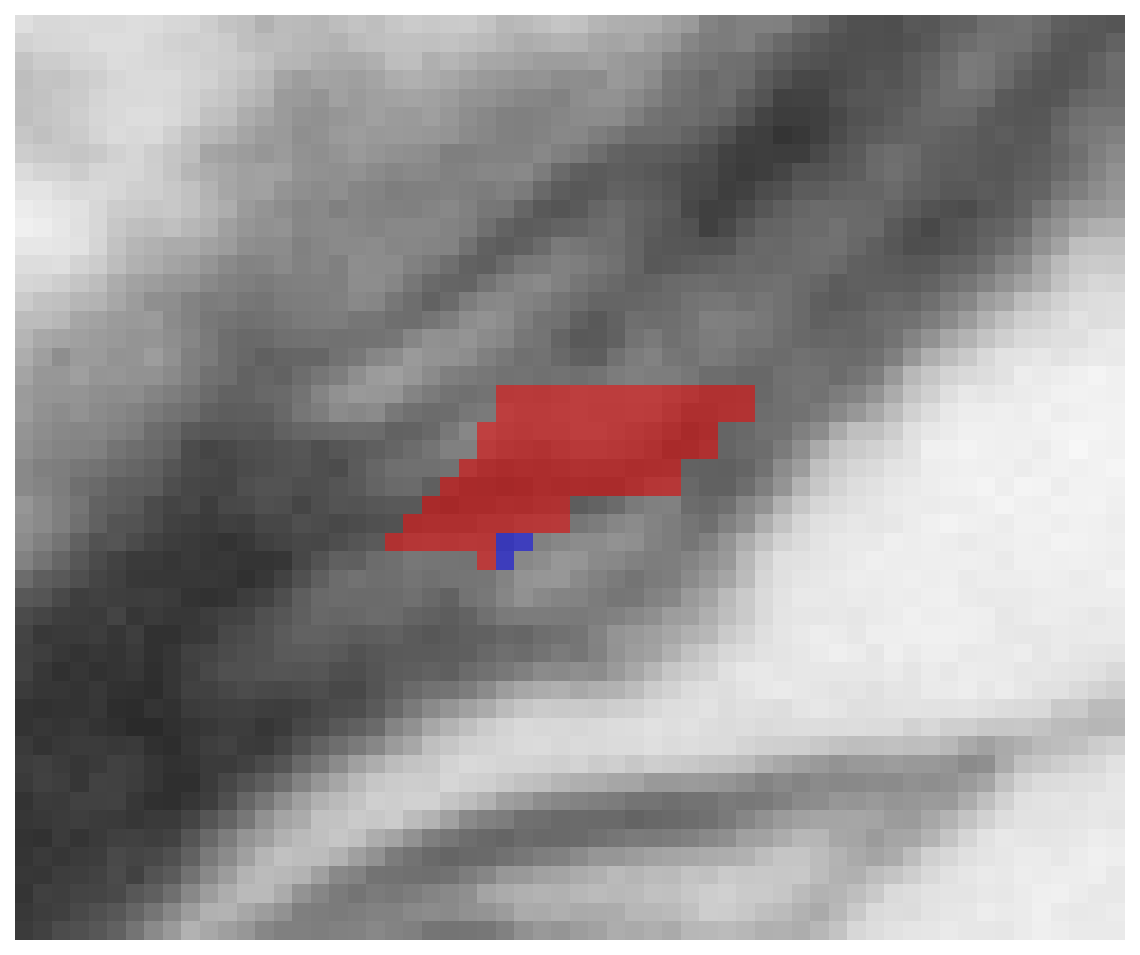

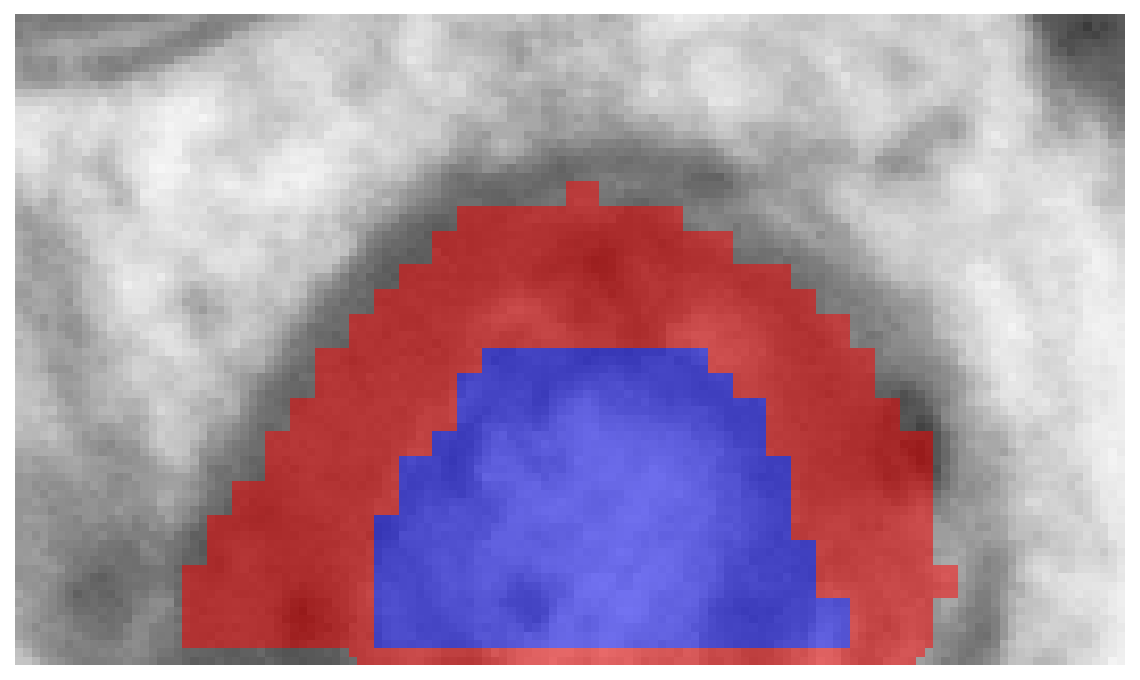

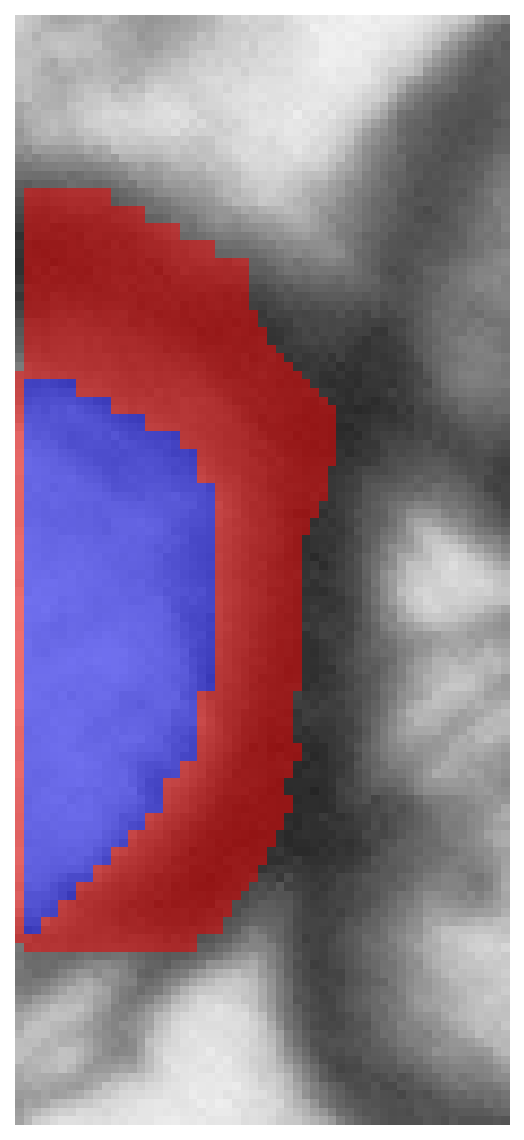

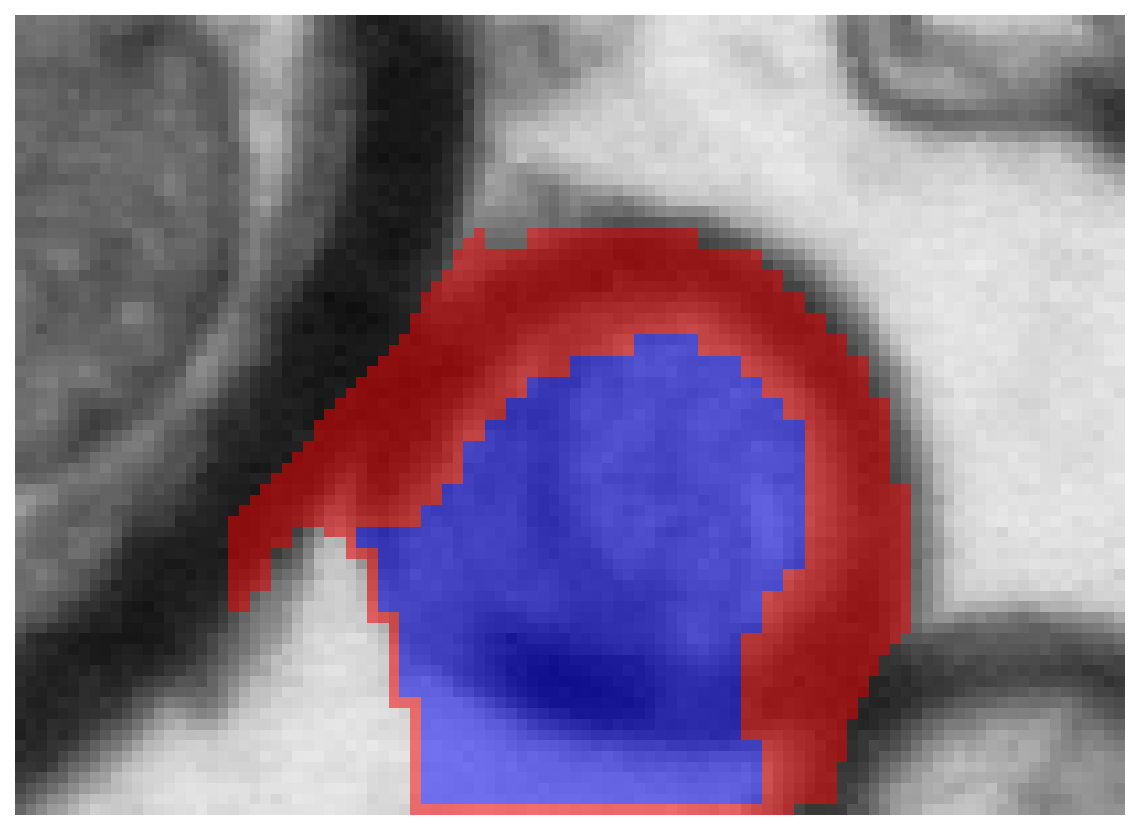

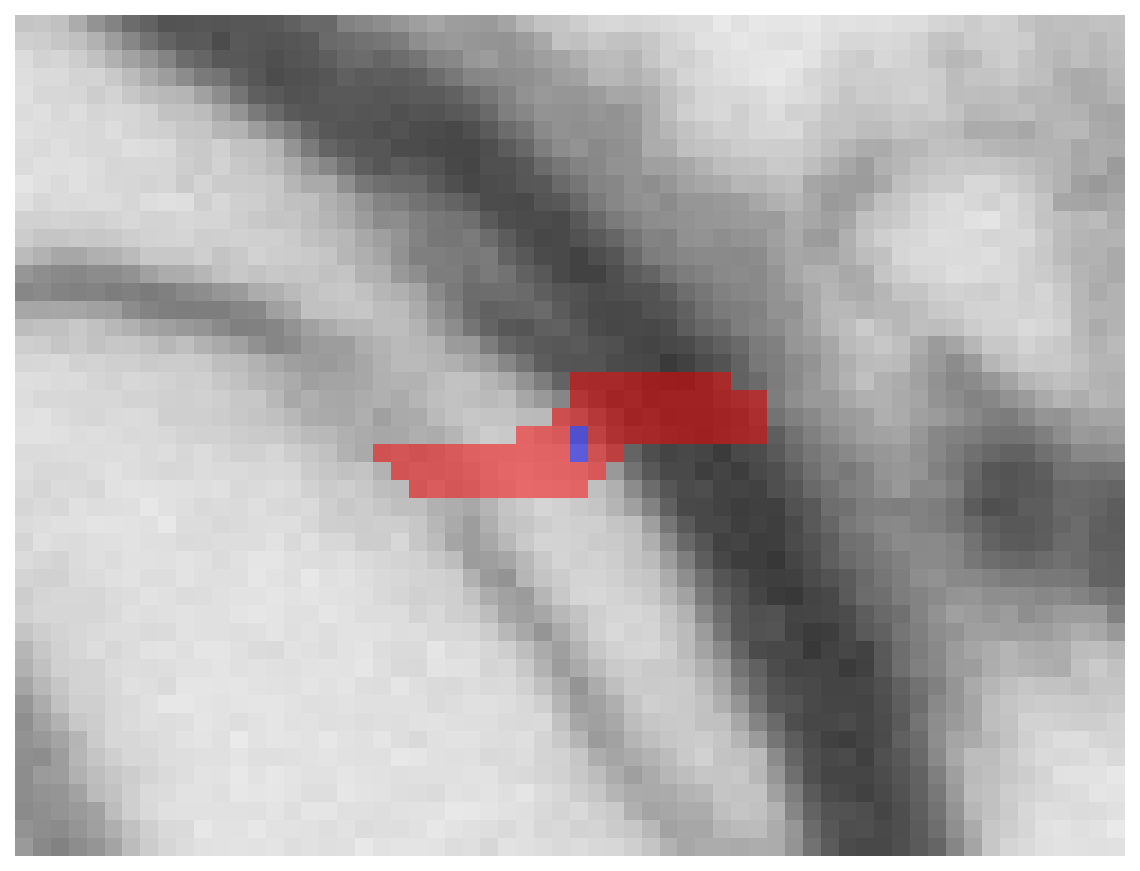

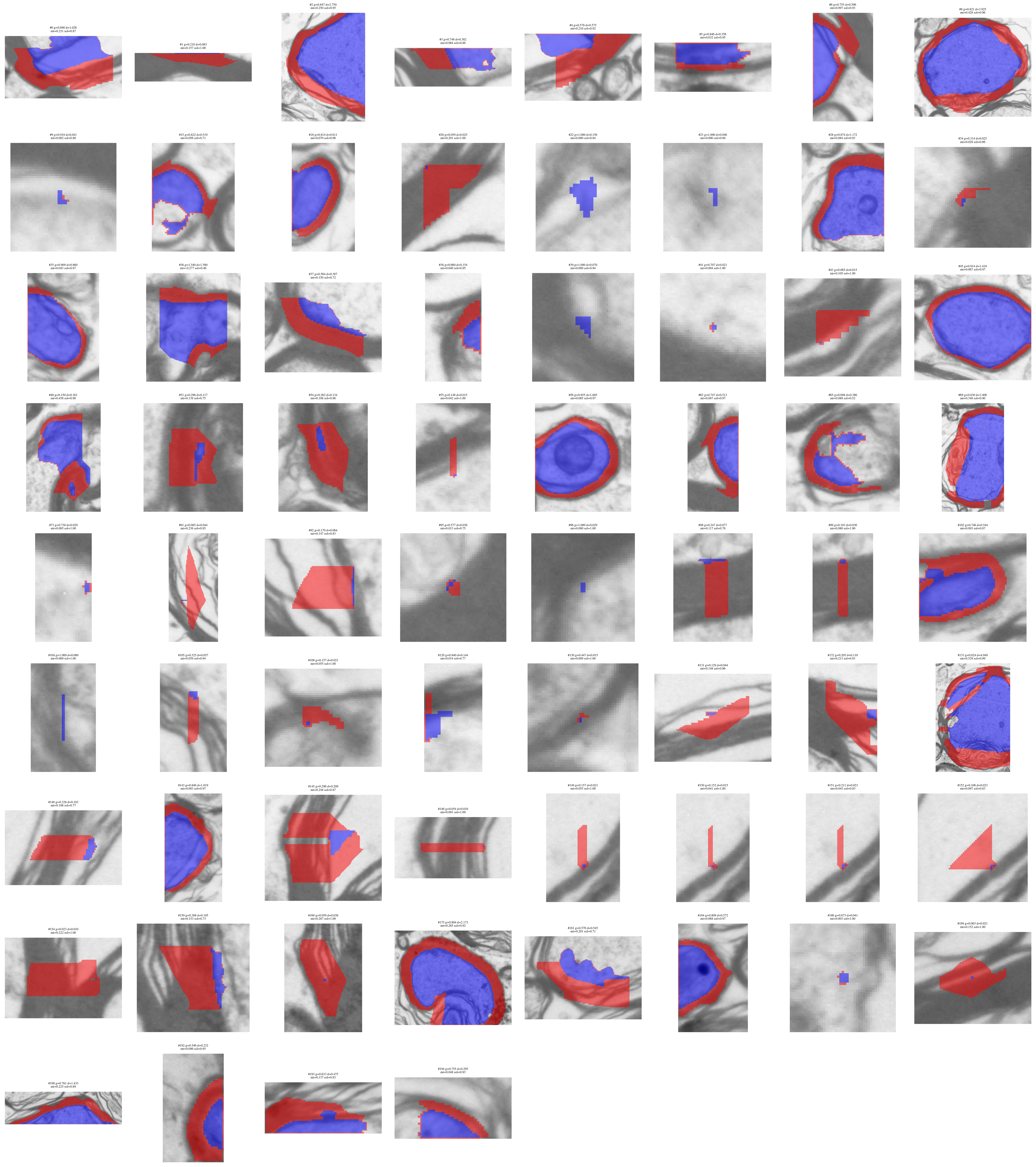

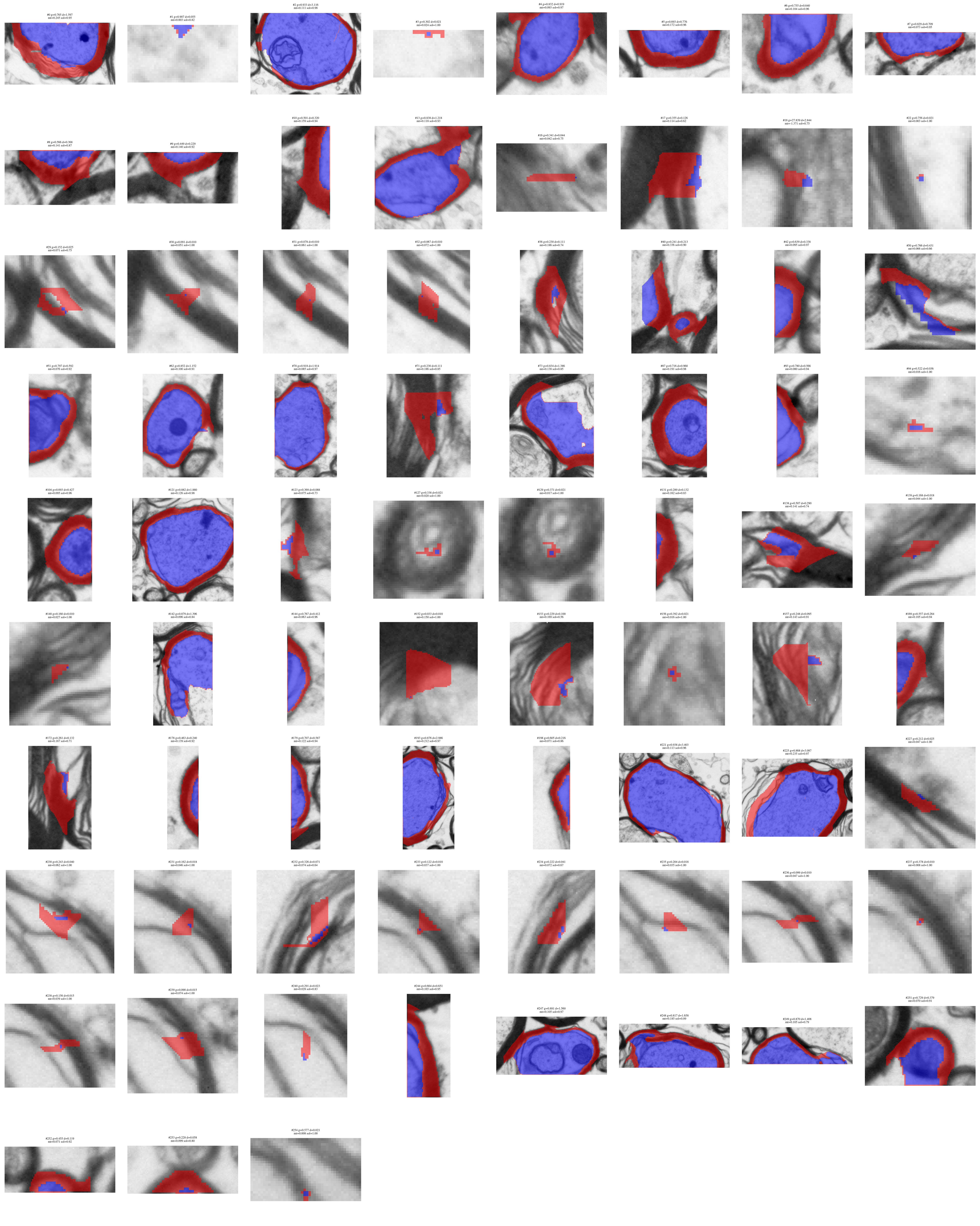

Flagged axons (visual review)¶

Exclusion details¶

Axon ID	Category	G-ratio	Axon diam (um)	Myelin thickness (um)	Solidity	Reasons	Closeup

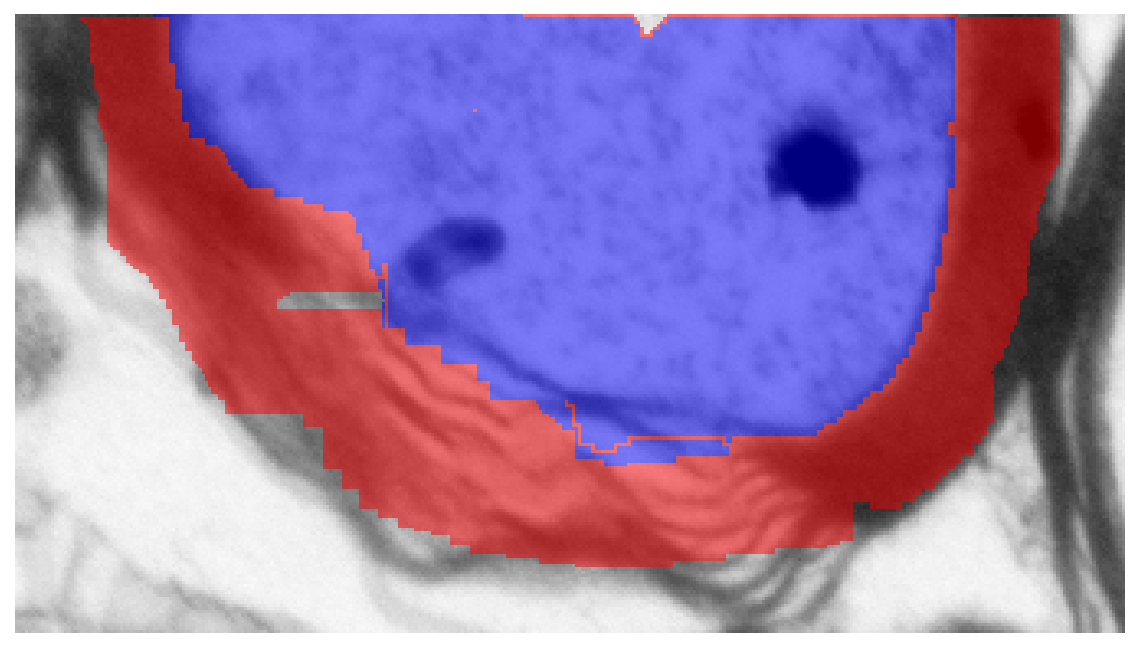

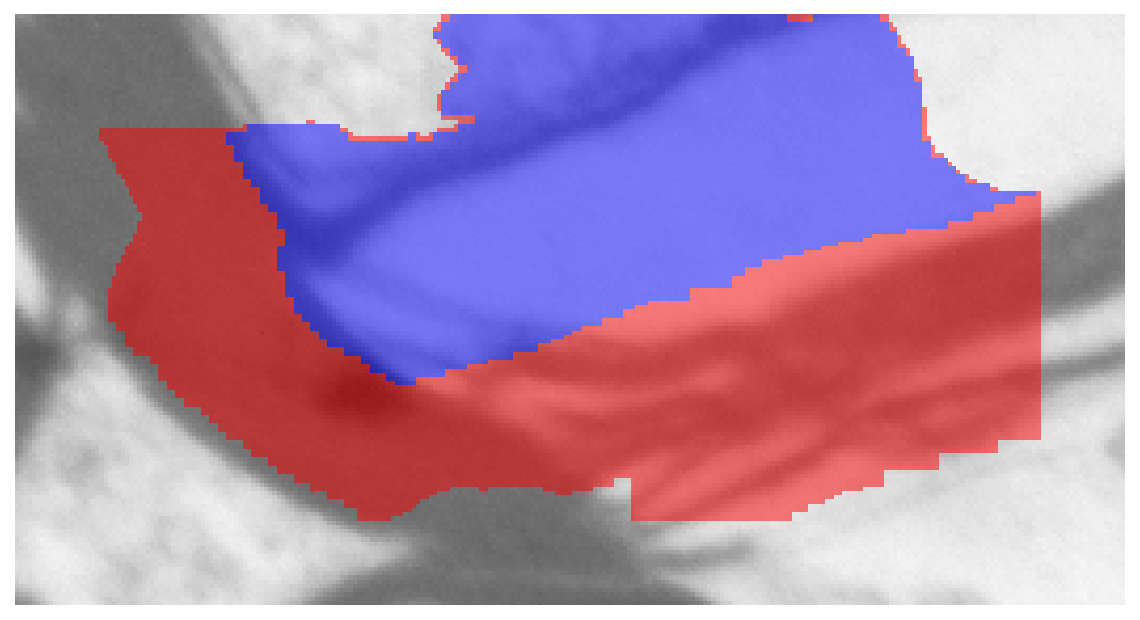

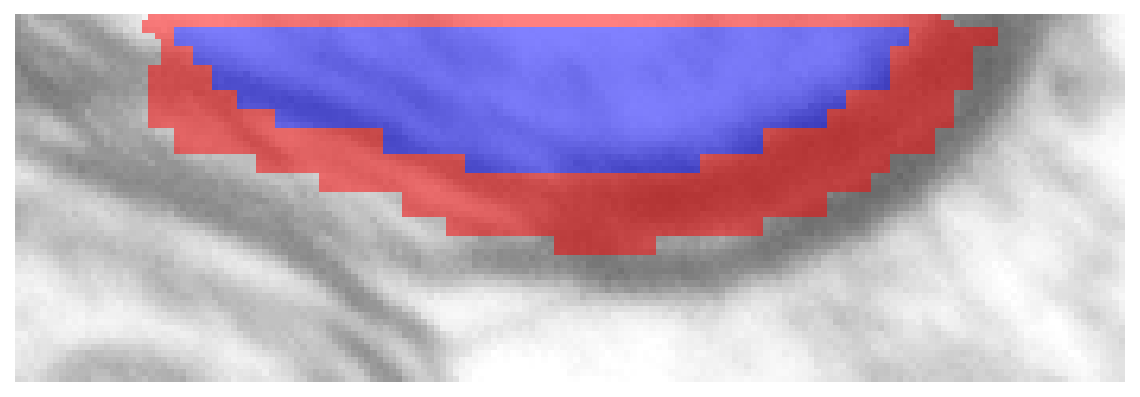

0	border	0.690	1.0256	0.2306	0.865	border-touching	view

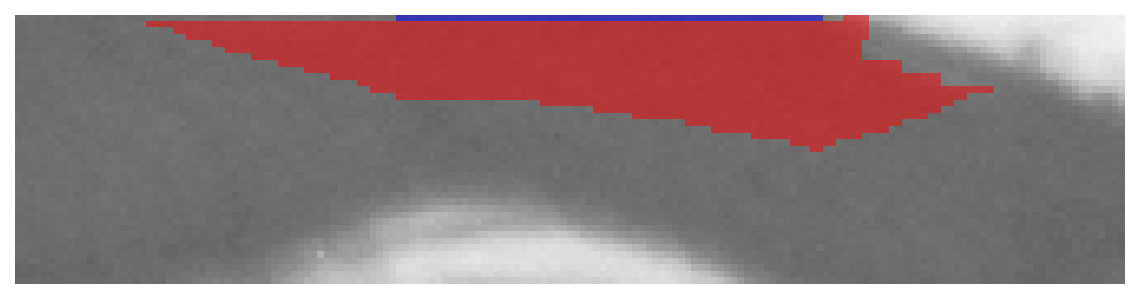

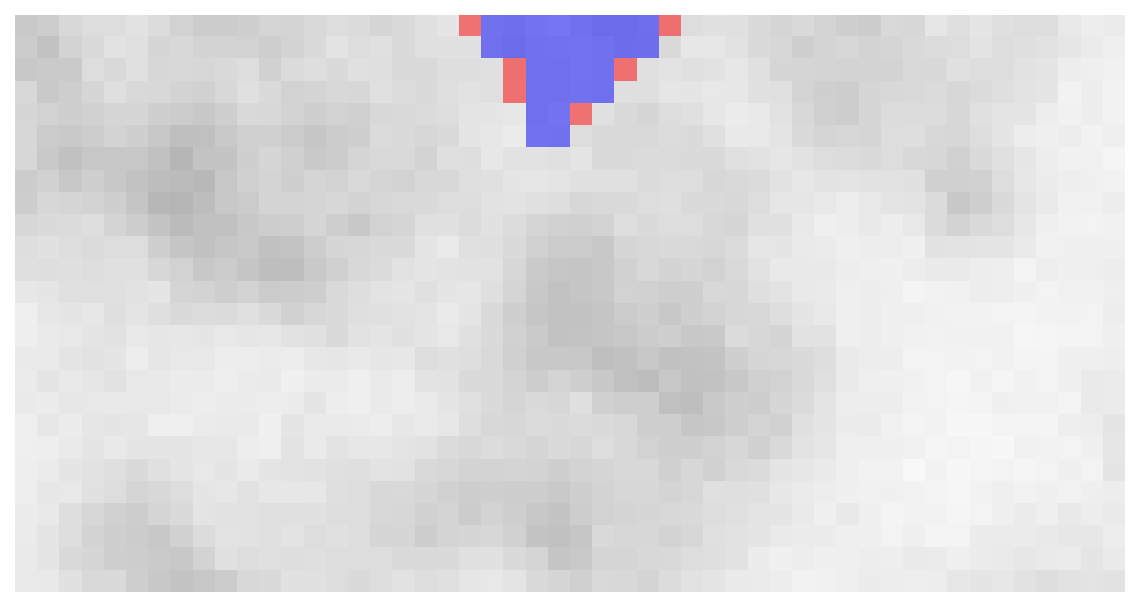

1	border	0.210	0.0832	0.1565	1.000	border-touching; very low gratio (0.210); myelin>>axon (mt/ad=1.88)	view

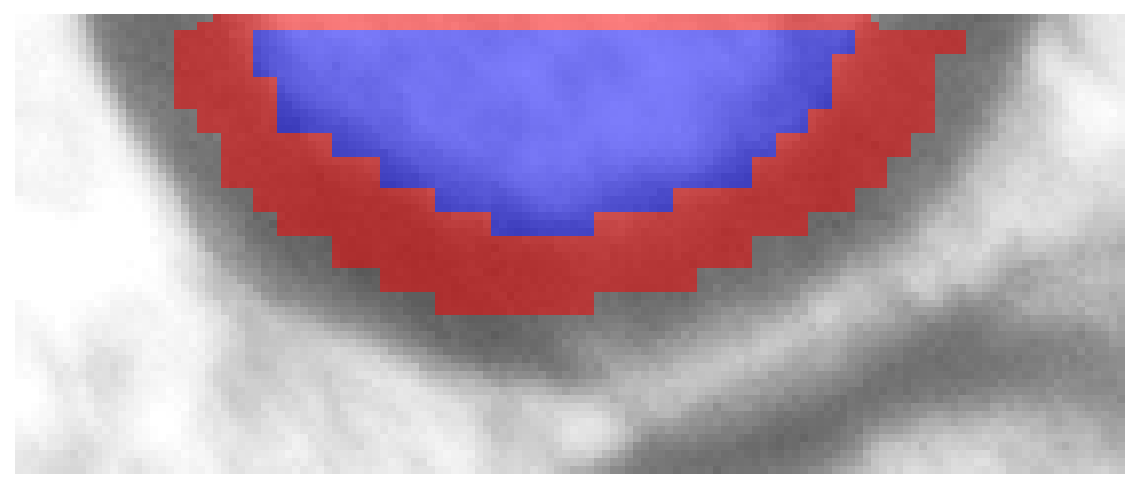

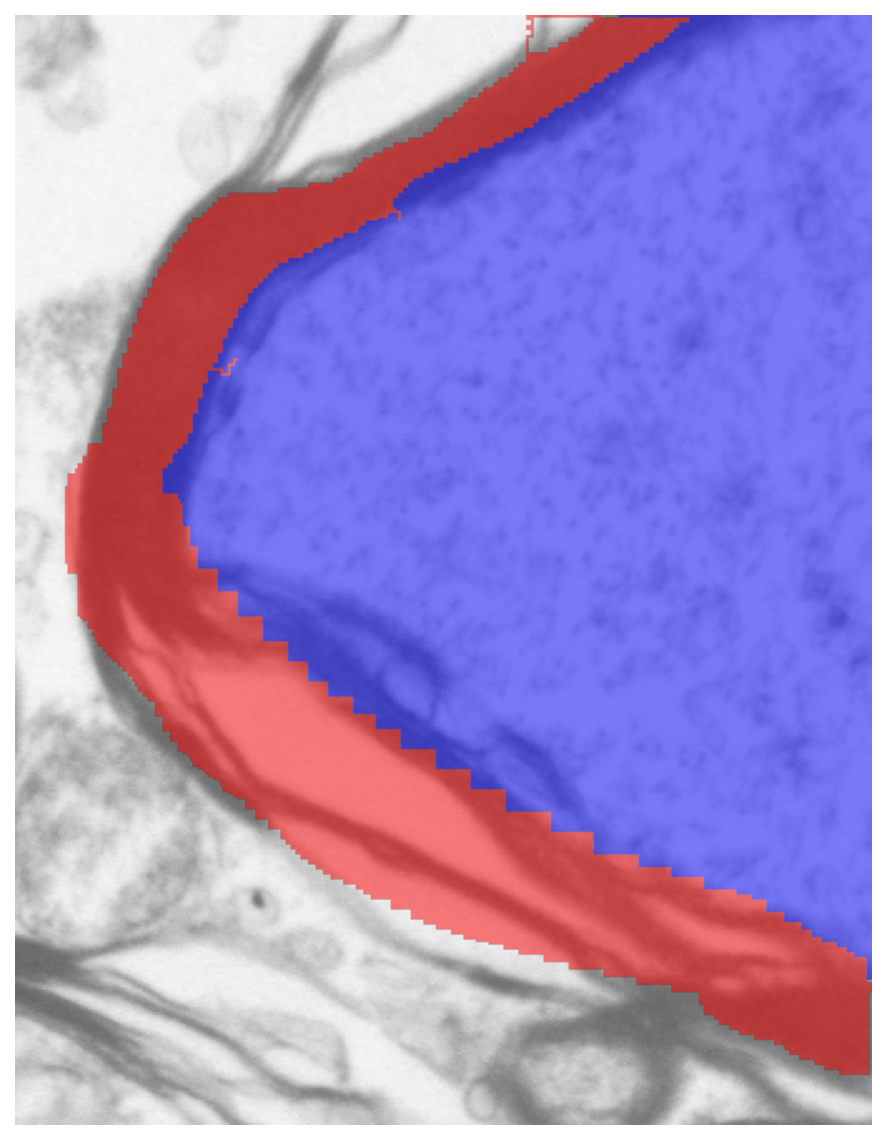

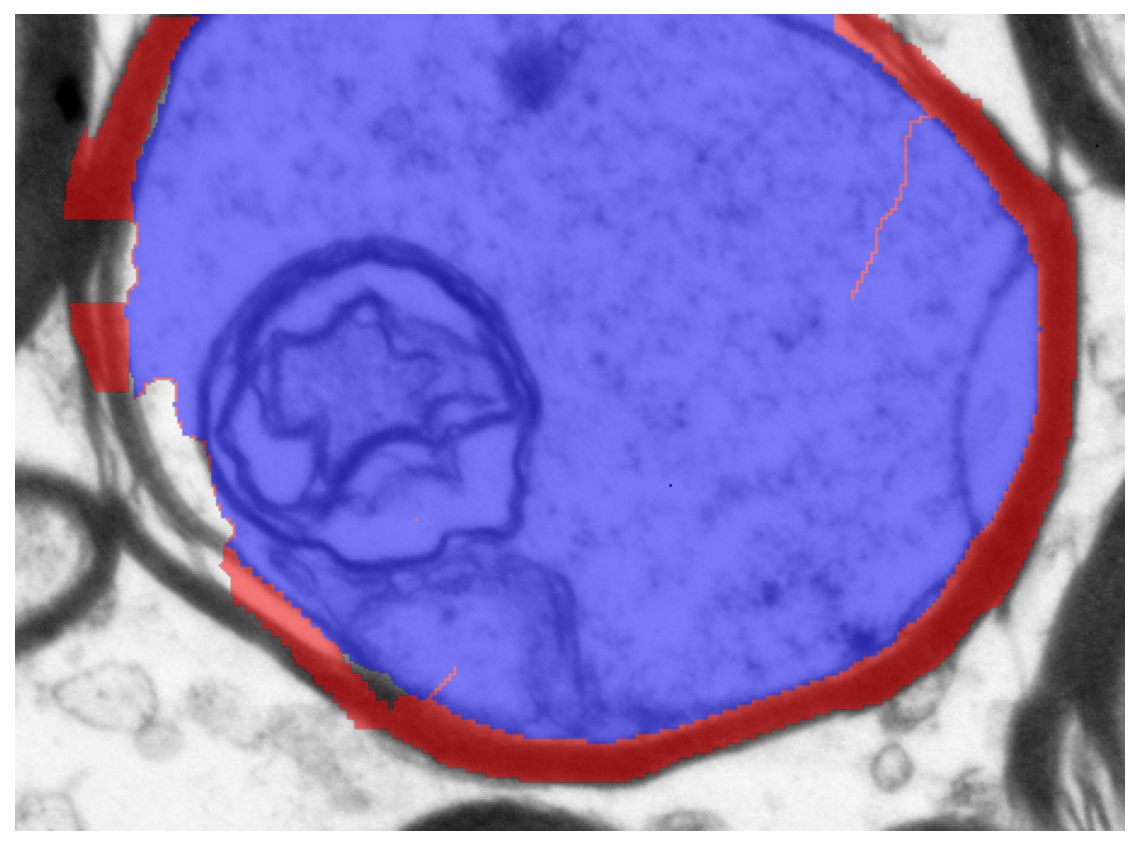

2	border	0.847	2.7591	0.2496	0.951	border-touching	view

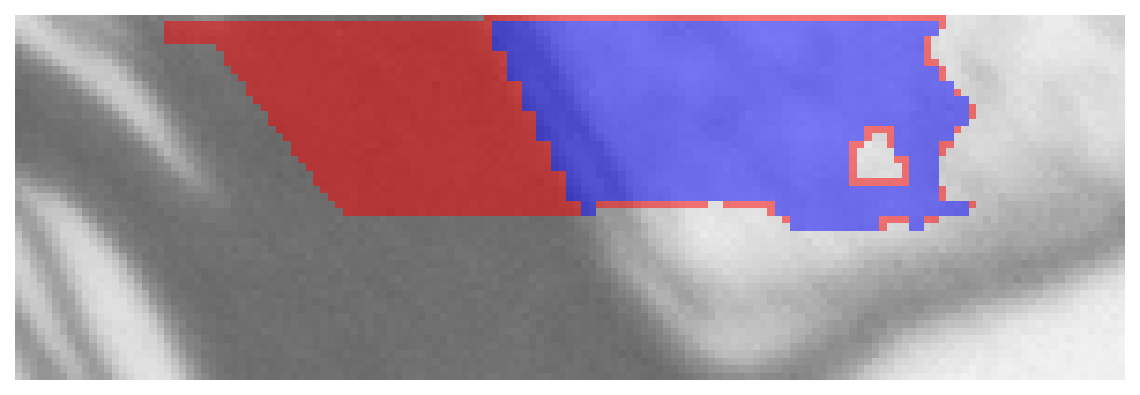

3	border	0.748	0.3816	0.0642	0.861	border-touching	view

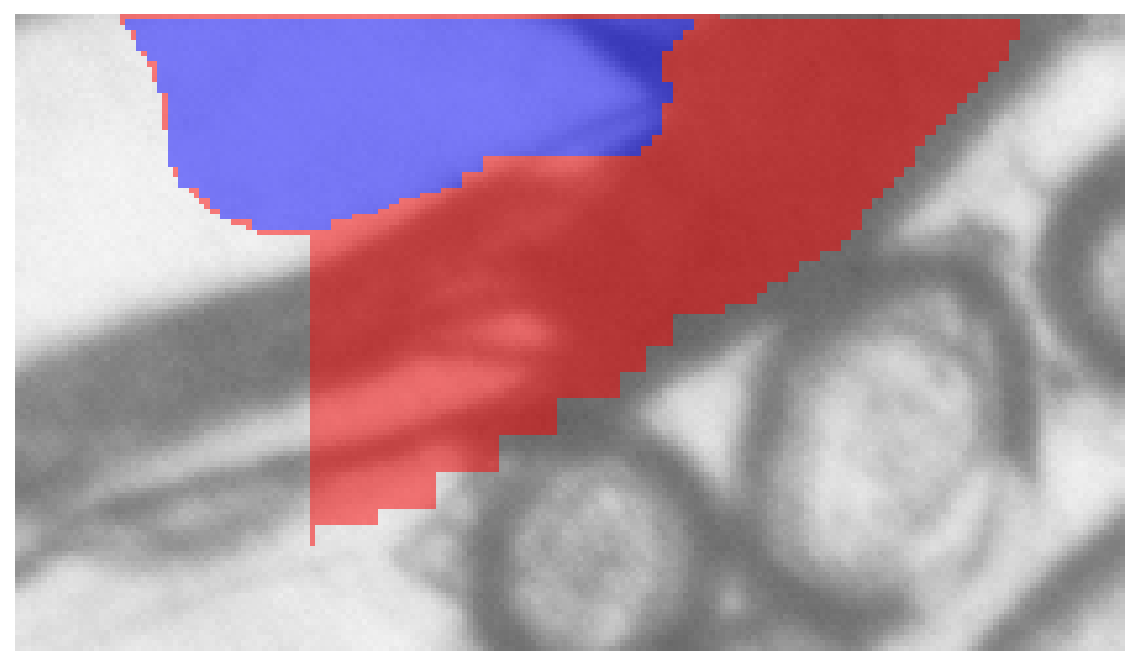

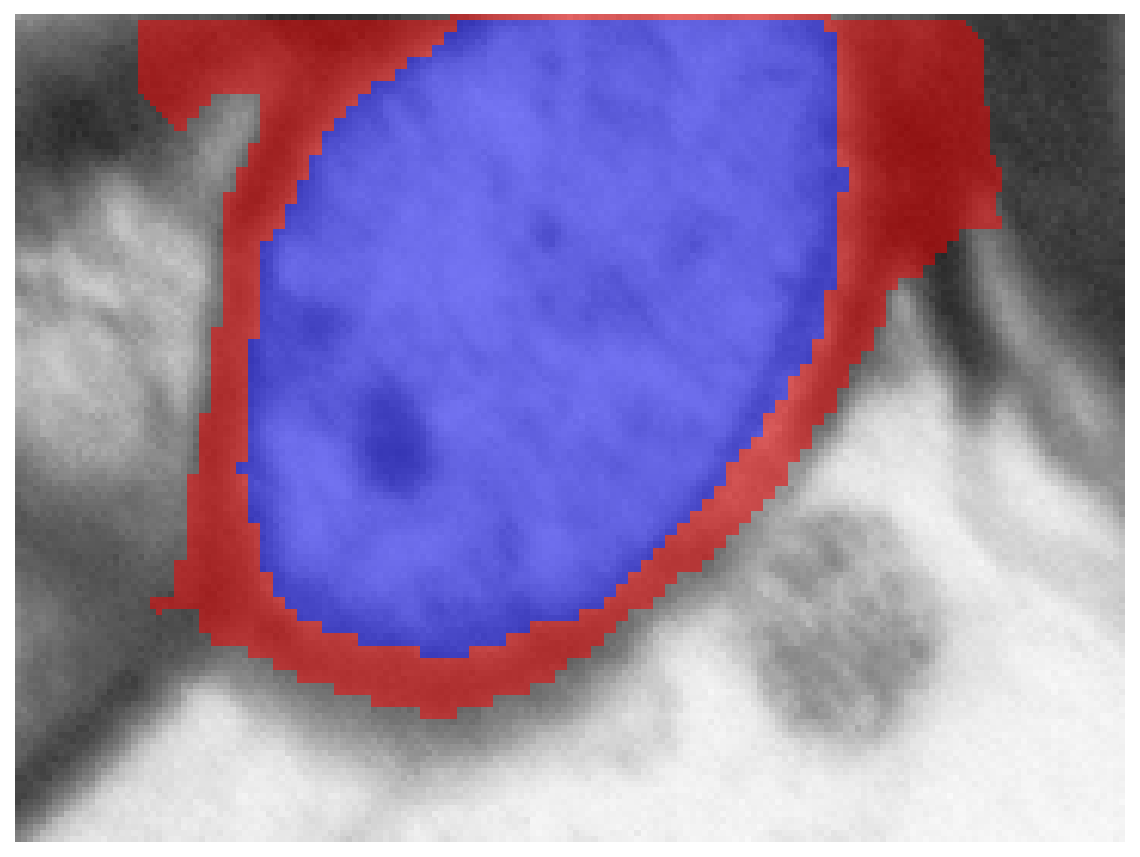

4	border	0.578	0.5751	0.2104	0.916	border-touching	view

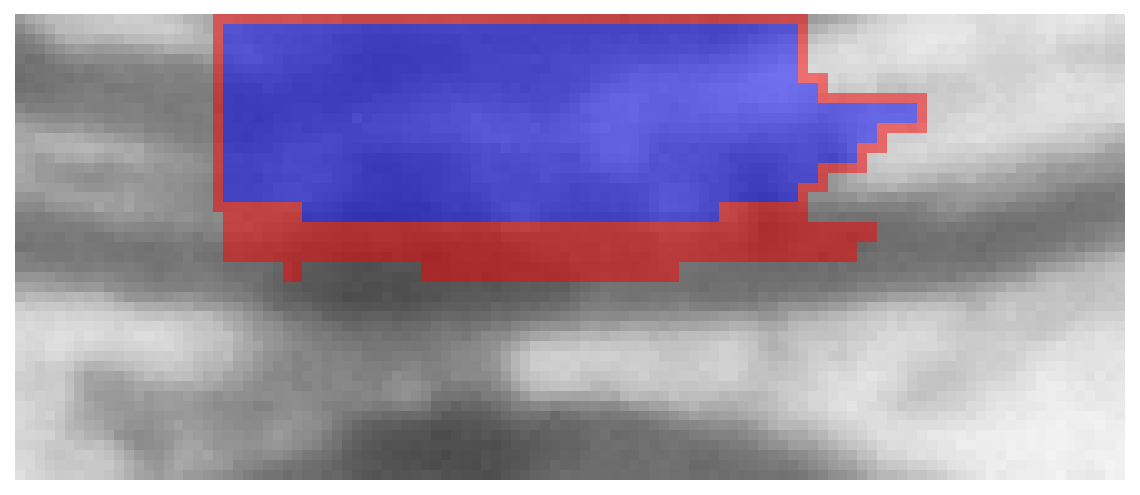

5	border	0.846	0.3556	0.0323	0.946	border-touching	view

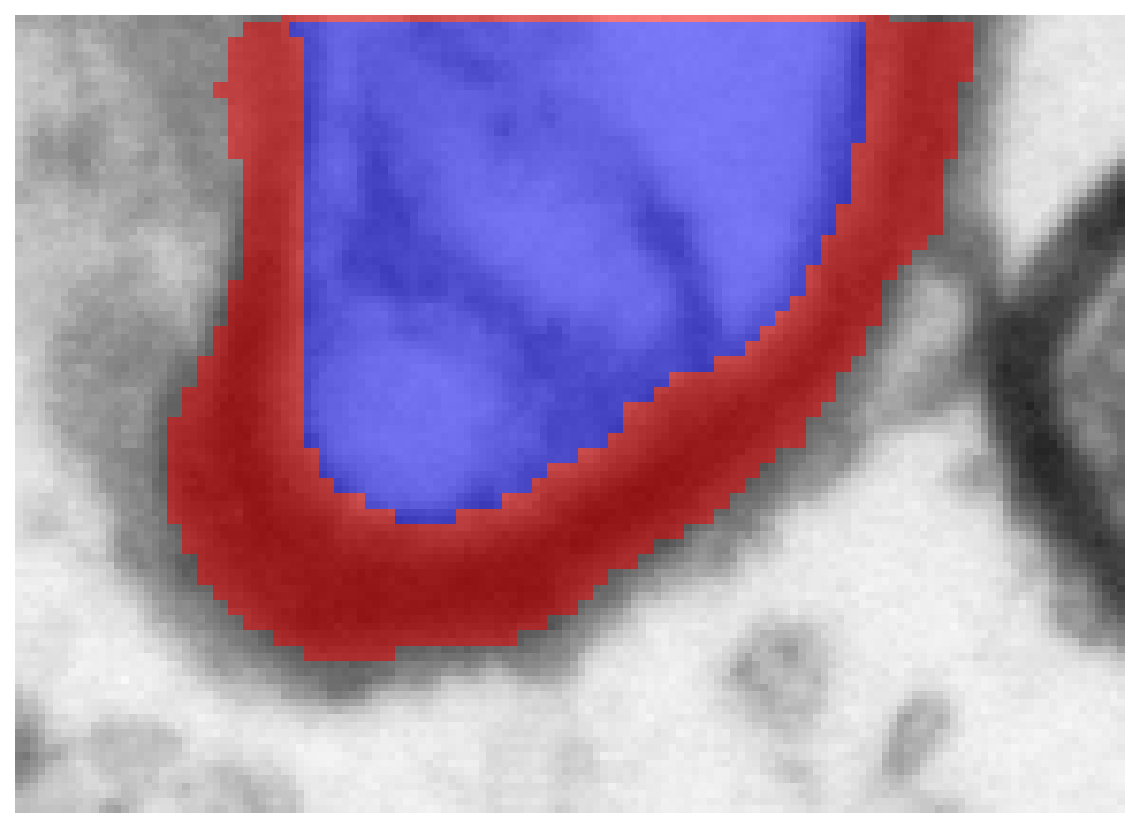

6	border	0.755	0.5956	0.0969	0.933	border-touching	view

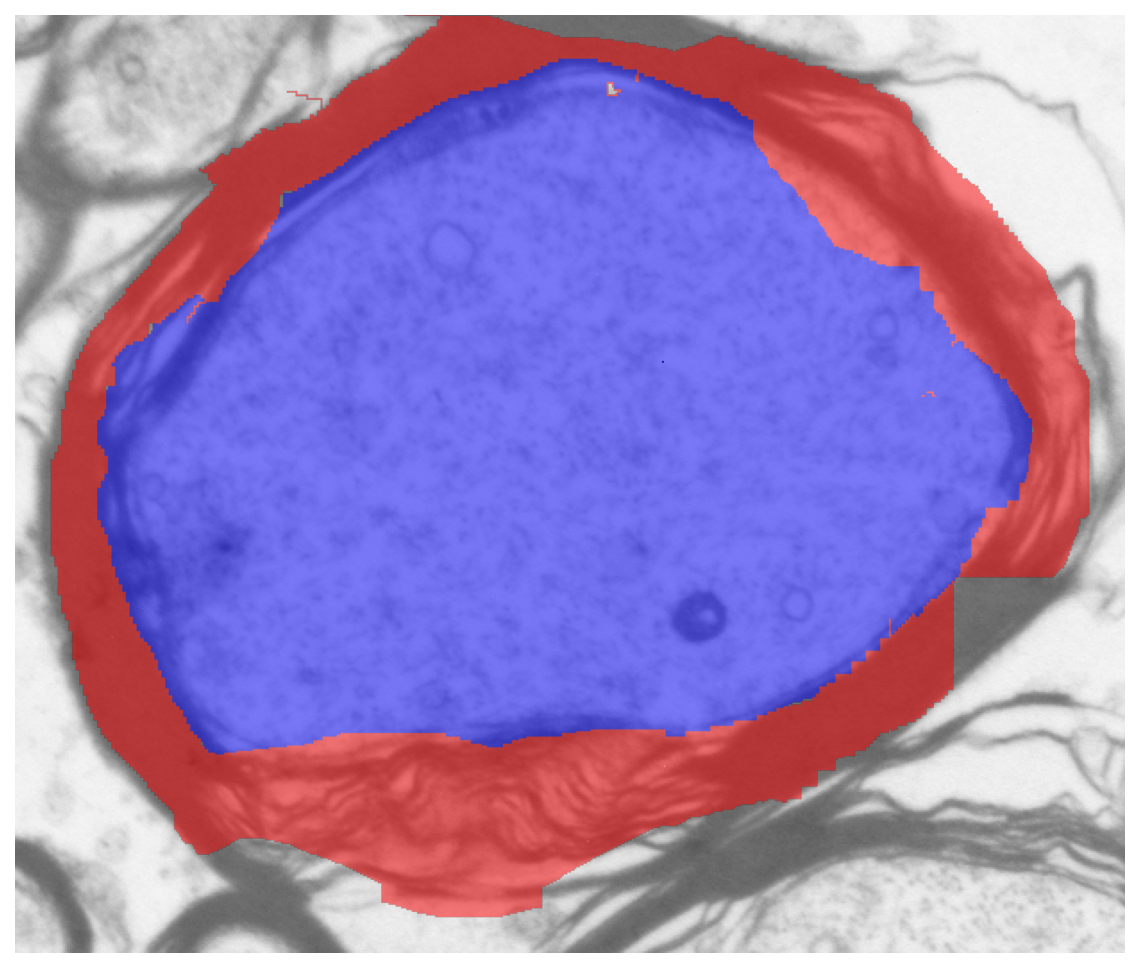

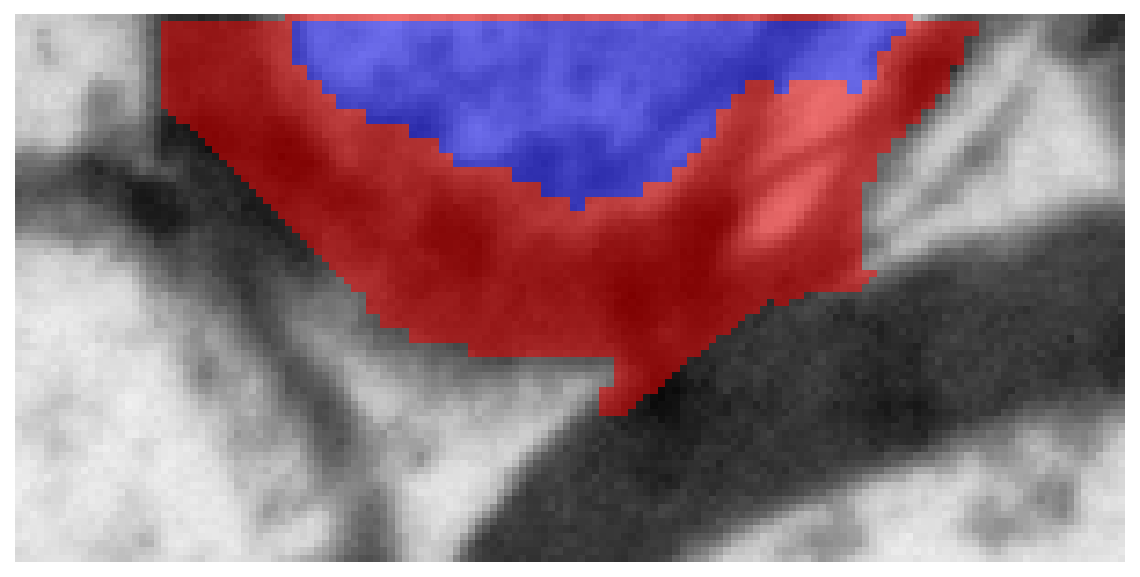

8	border	0.821	3.9245	0.4281	0.959	border-touching	view

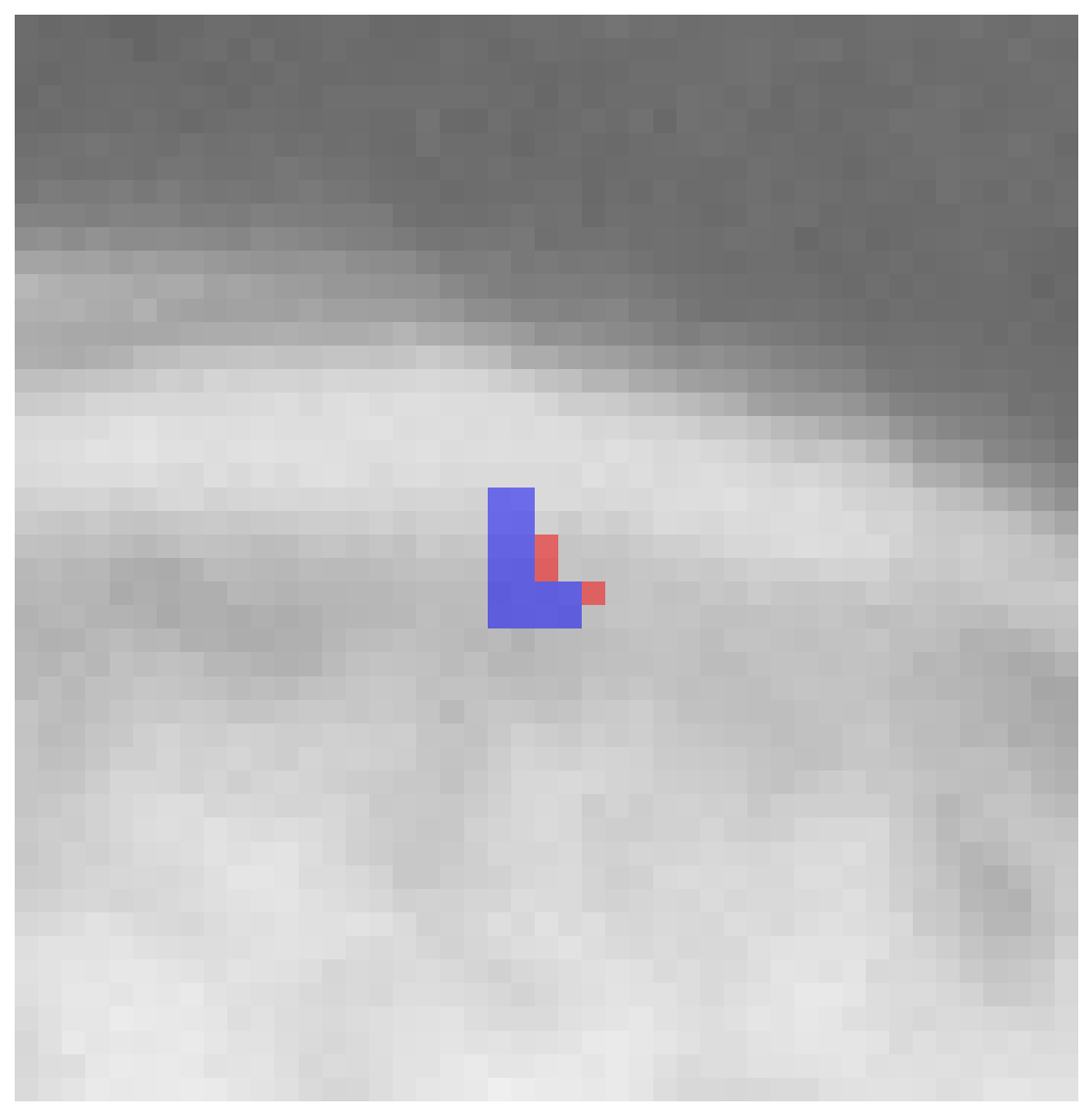

9	artifact	0.918	0.0413	0.0019	0.800	tiny axon (0.0413 um)	view

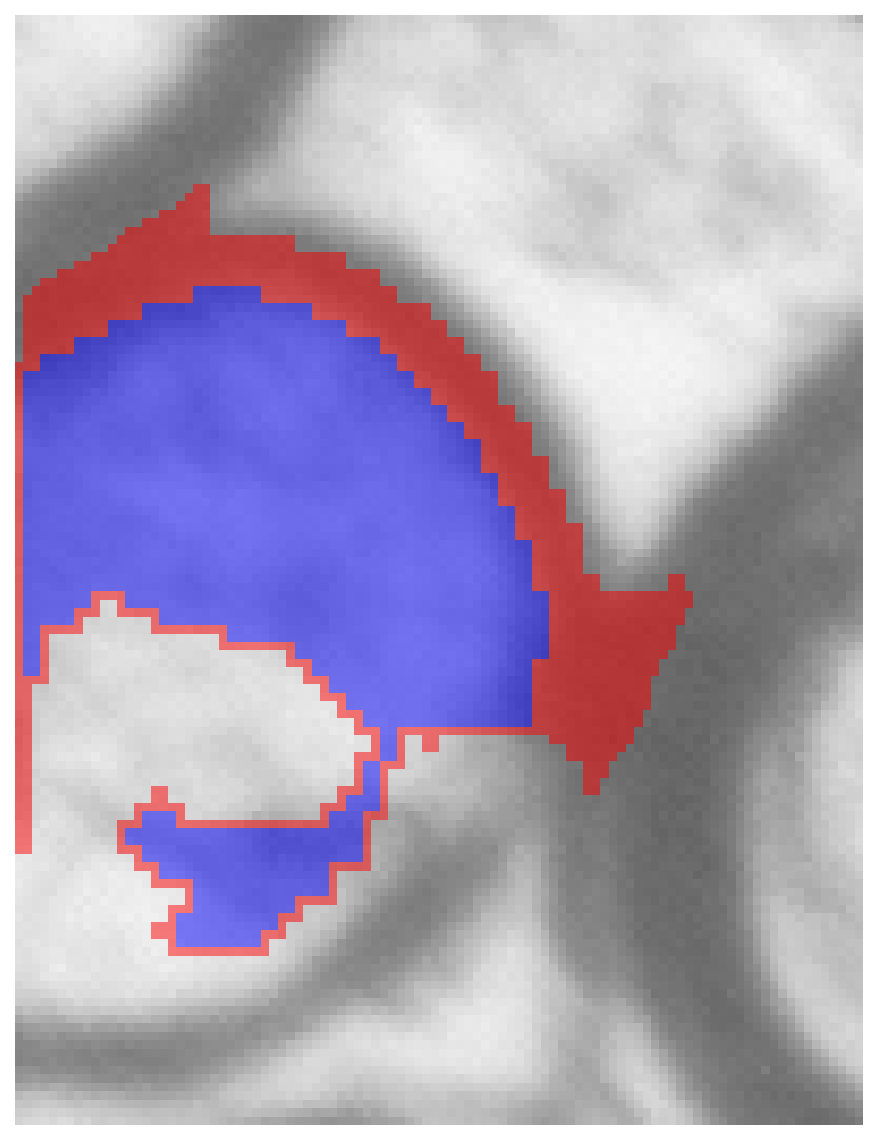

15	border	0.822	0.5192	0.0563	0.708	border-touching; low solidity (0.708)	view

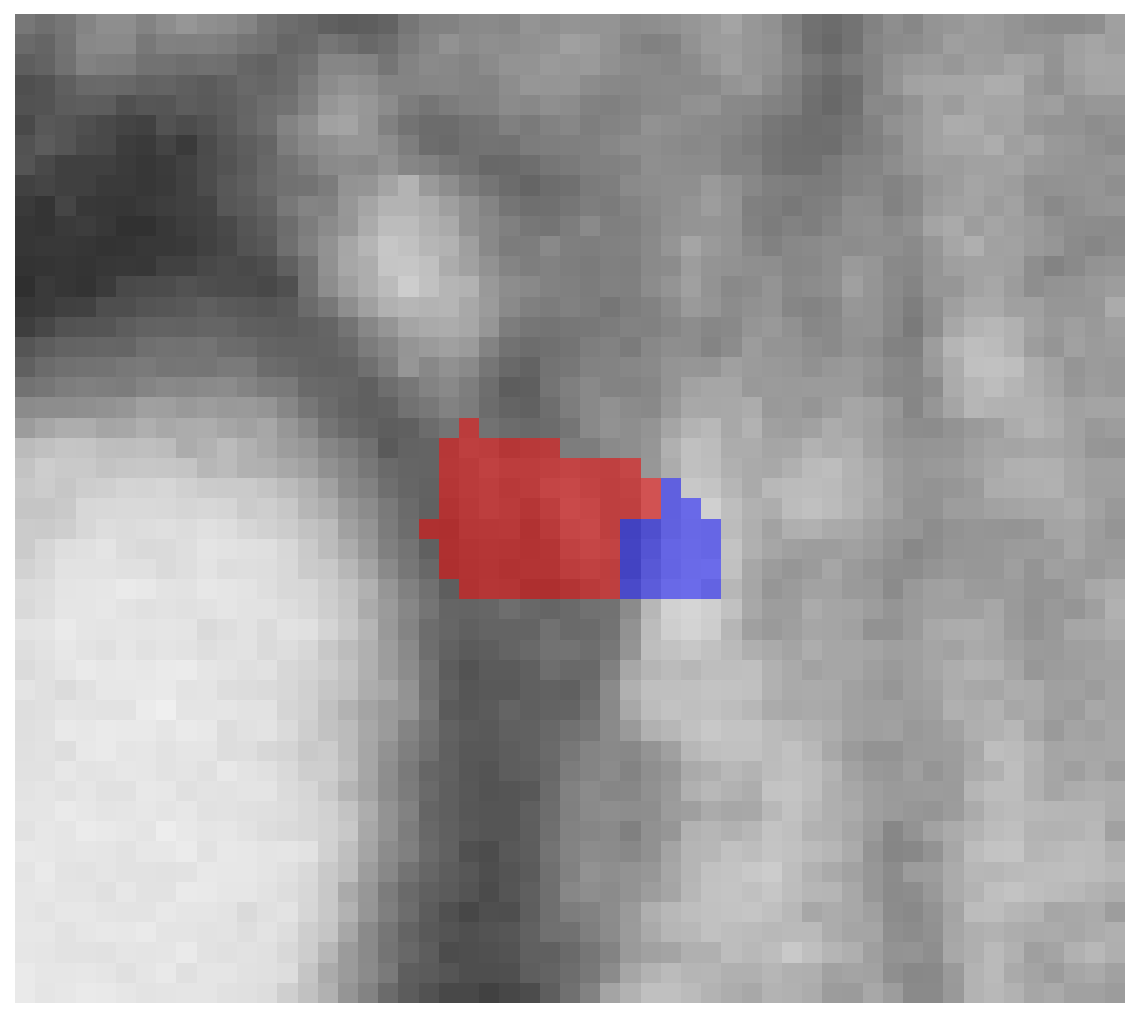

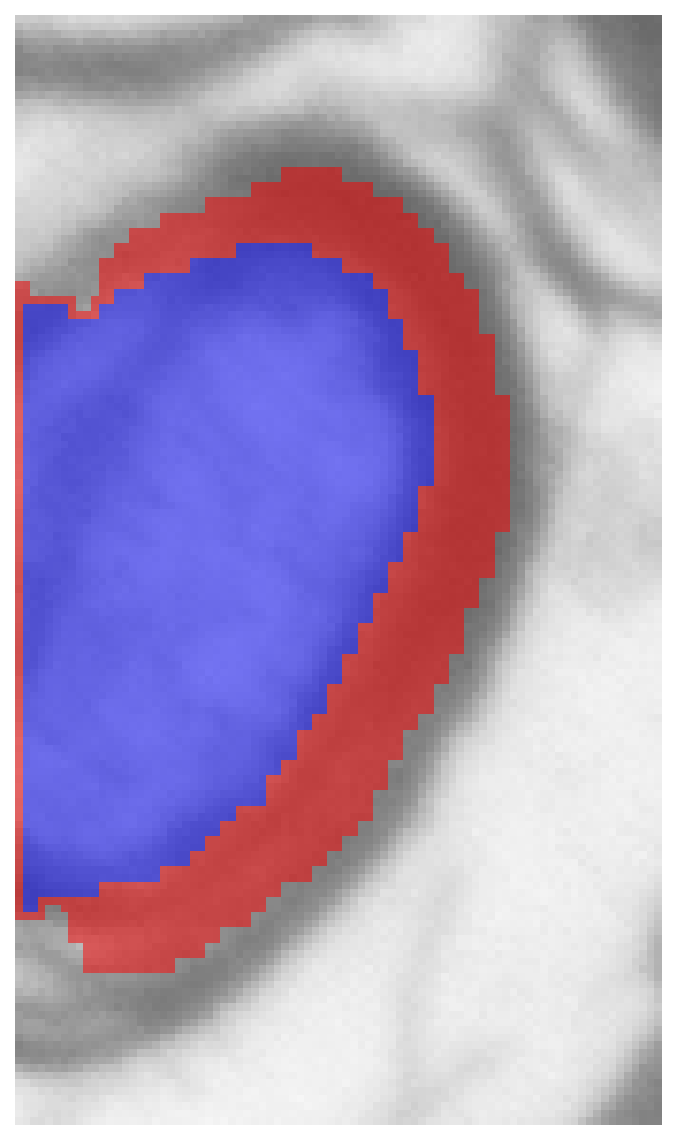

18	border	0.814	0.6111	0.0696	0.961	border-touching	view

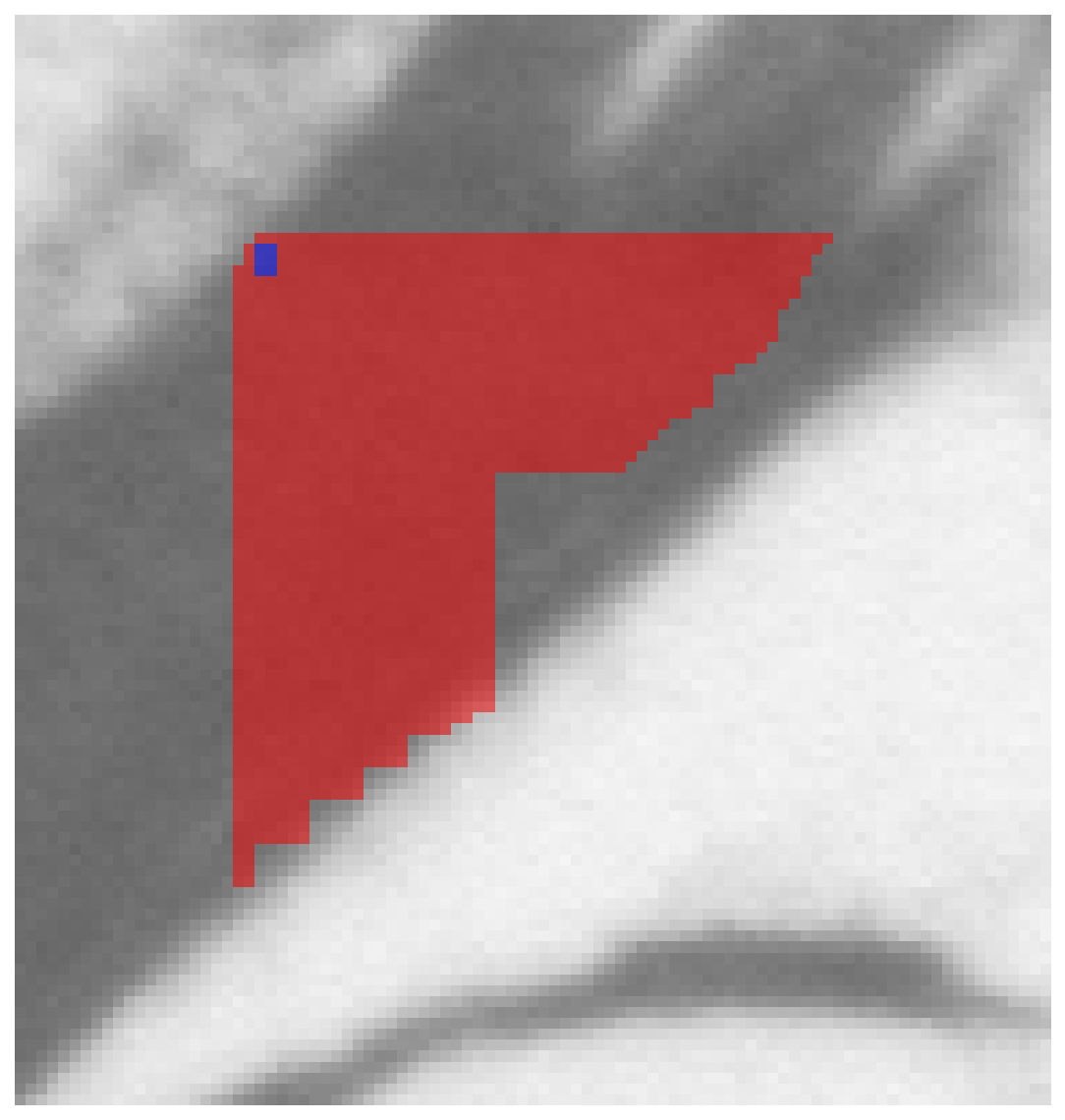

20	artifact	0.059	0.0253	0.2009	1.000	tiny axon (0.0253 um); very low gratio (0.059); myelin>>axon (mt/ad=7.95)	view

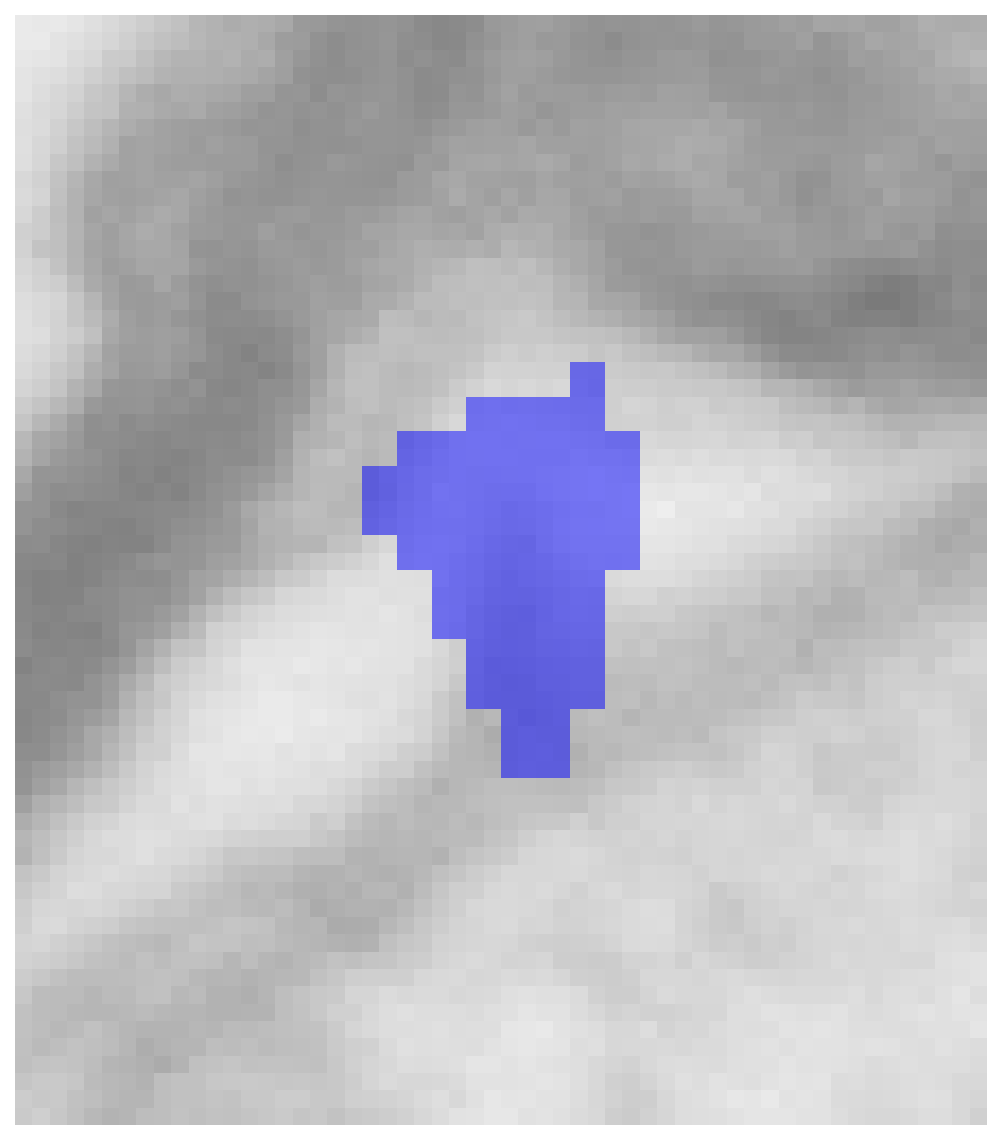

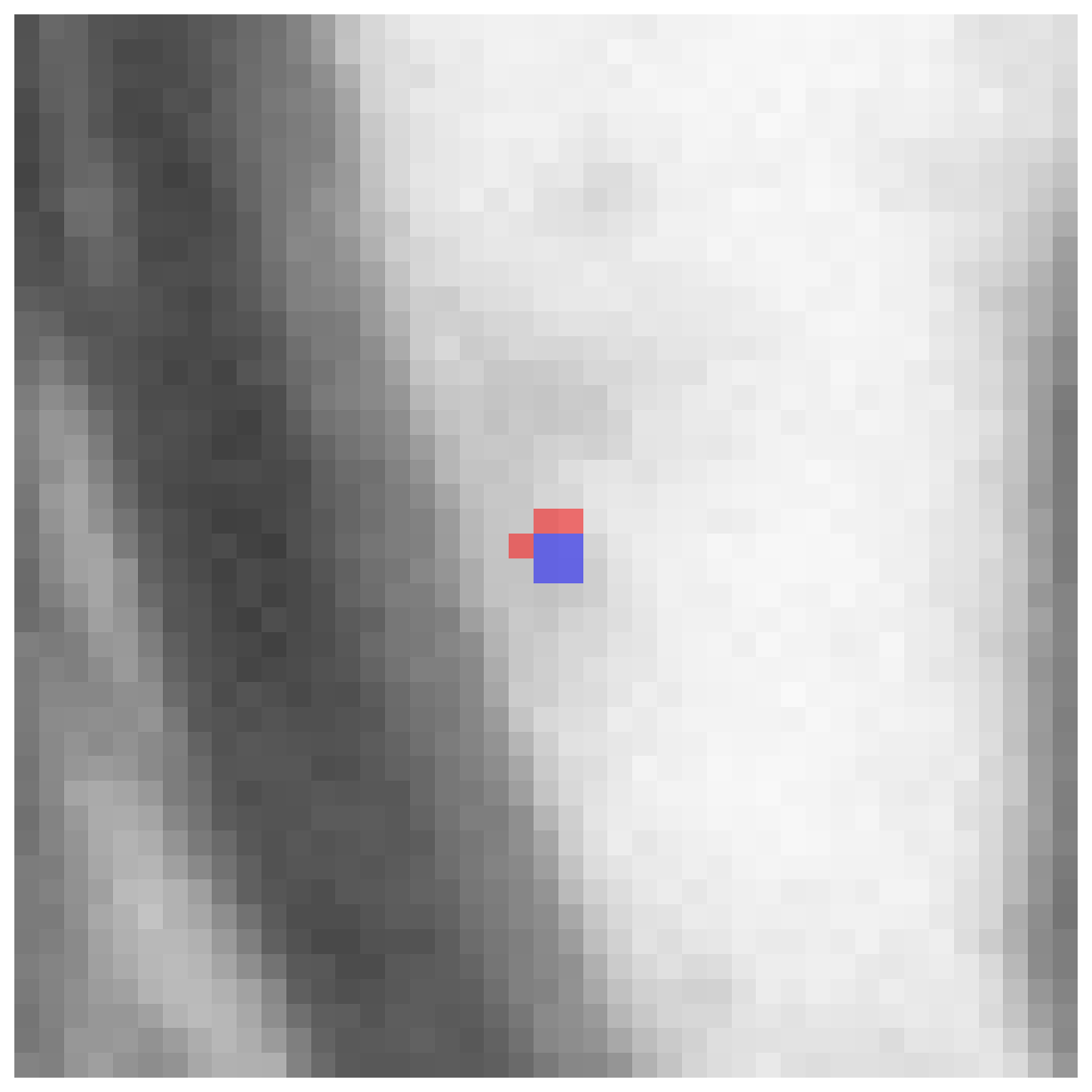

22	invalid	1.000	0.1558	0.0000	0.844	gratio=1.000; no myelin	view

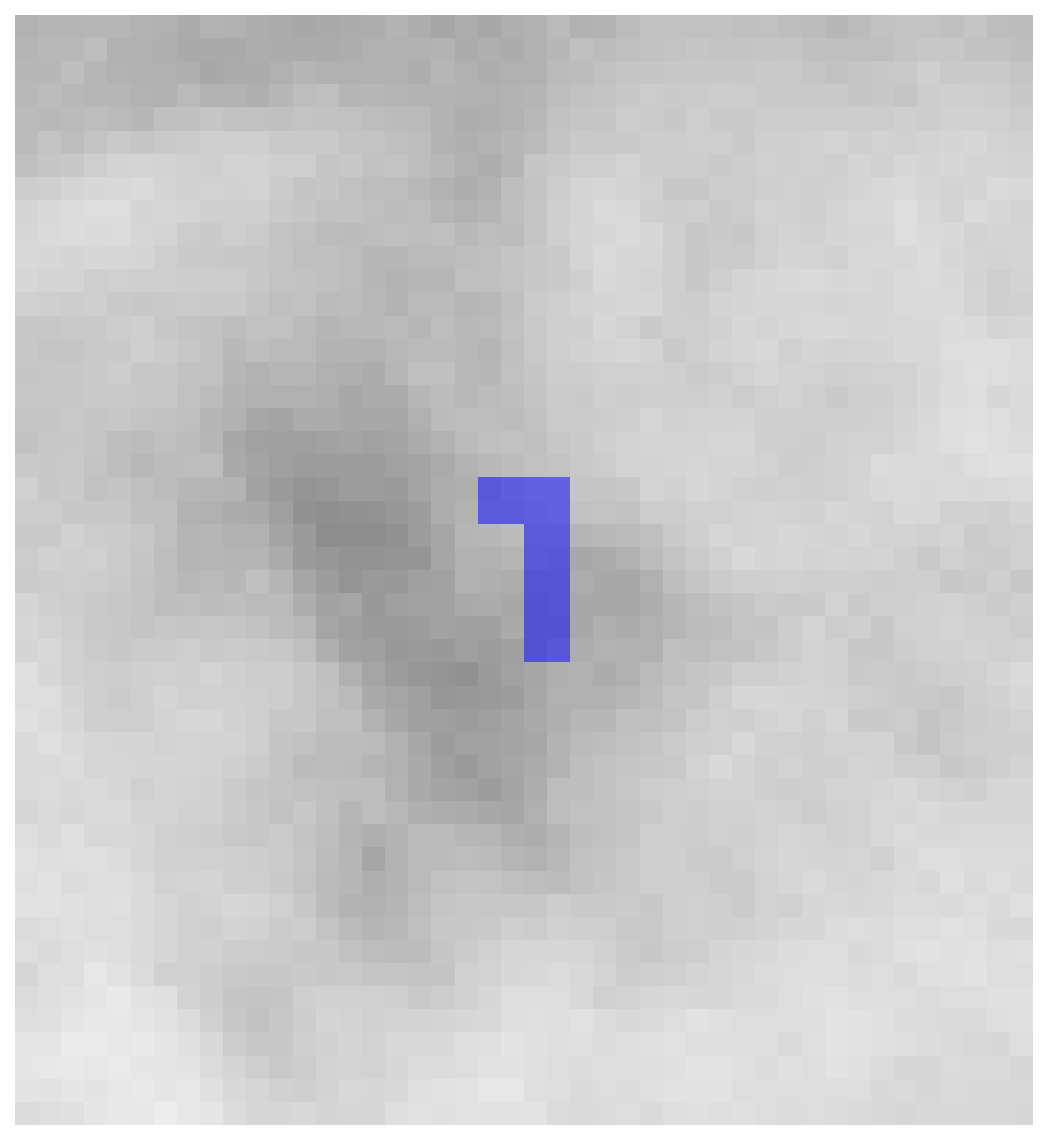

23	invalid	1.000	0.0461	0.0000	0.800	gratio=1.000; no myelin; tiny axon (0.0461 um)	view
28	border	0.874	1.1719	0.0842	0.929	border-touching	view

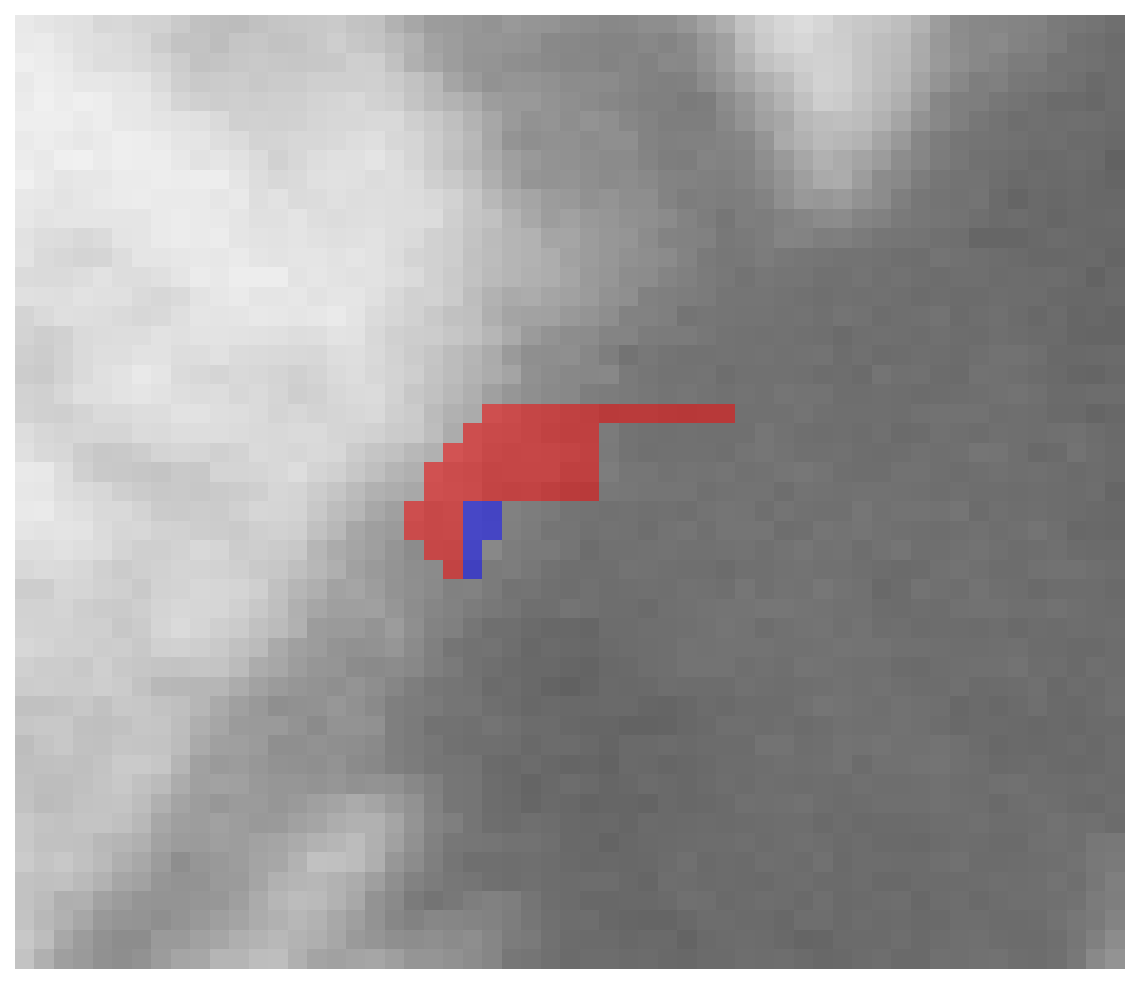

34	artifact	0.314	0.0253	0.0277	0.857	tiny axon (0.0253 um); myelin>>axon (mt/ad=1.09)	view

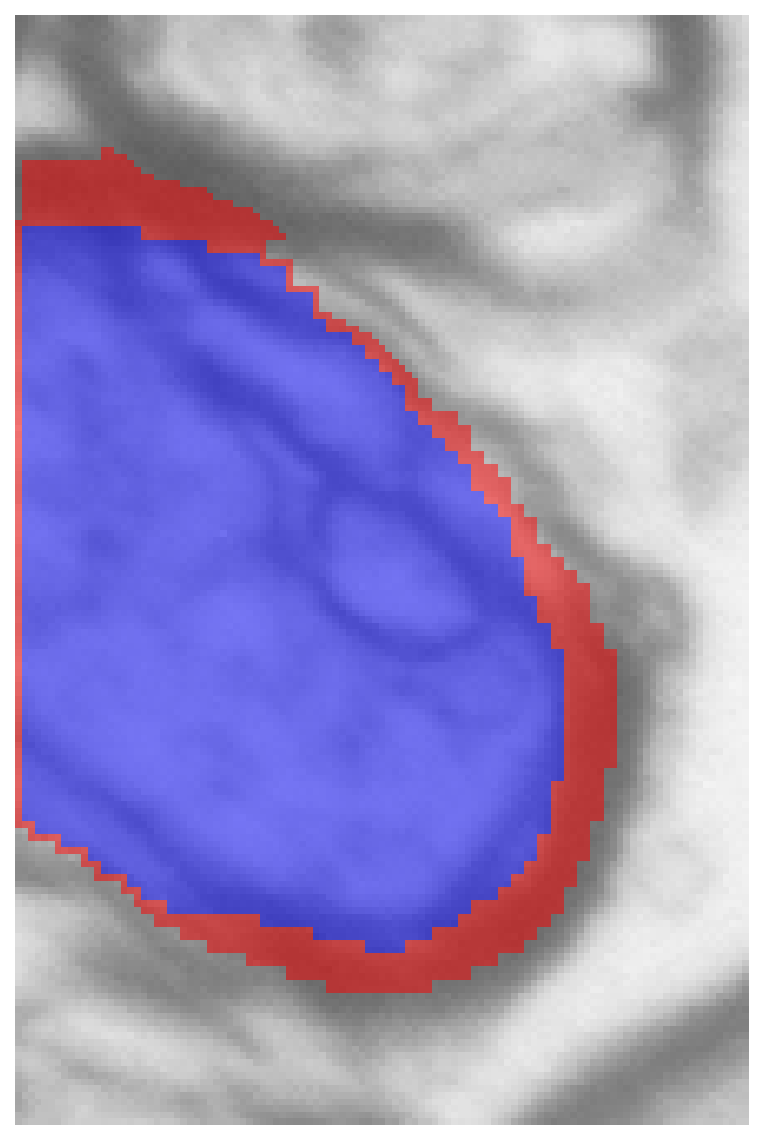

35	border	0.909	0.8600	0.0433	0.974	border-touching	view

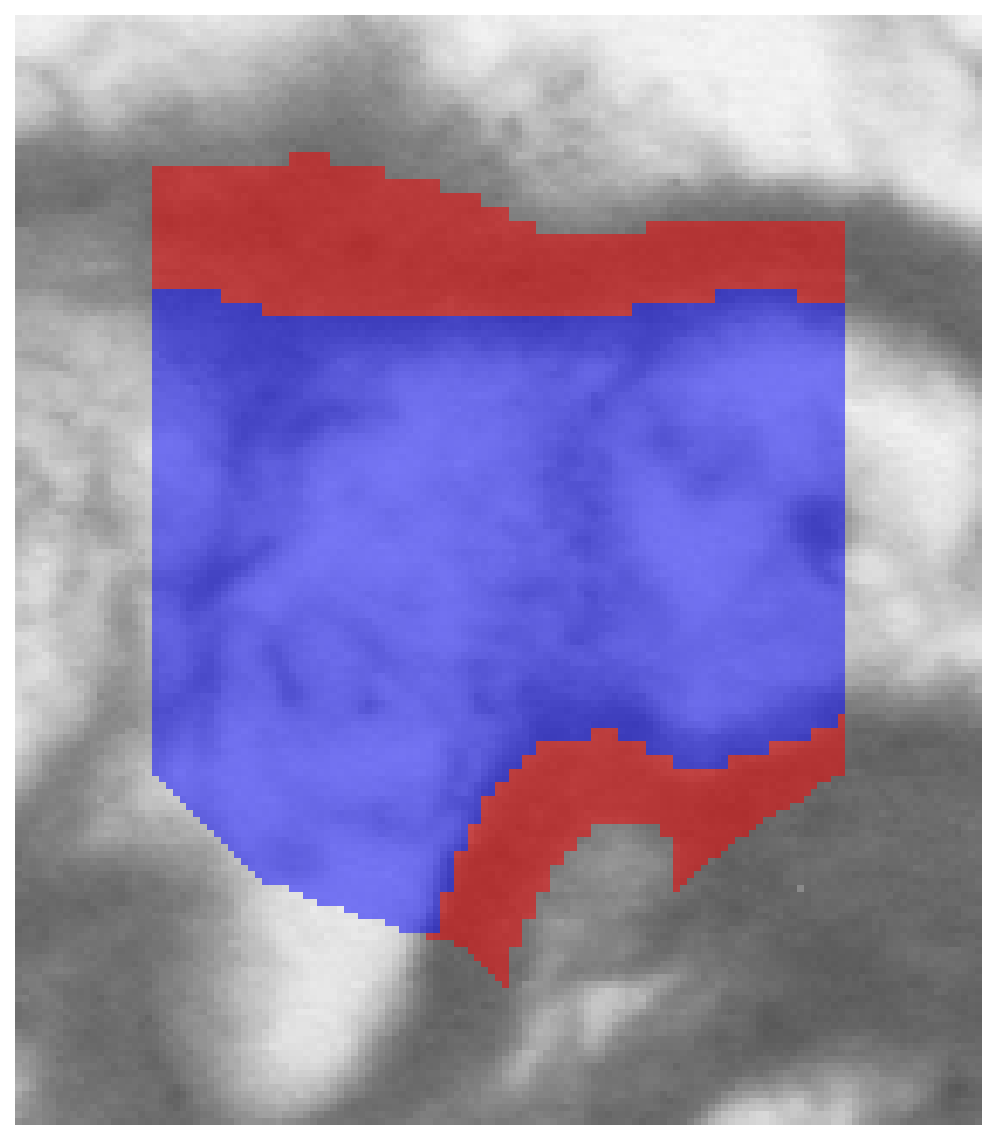

36	invalid	1.540	1.5800	-0.2769	0.461	gratio=1.540; no myelin; low solidity (0.461)	view

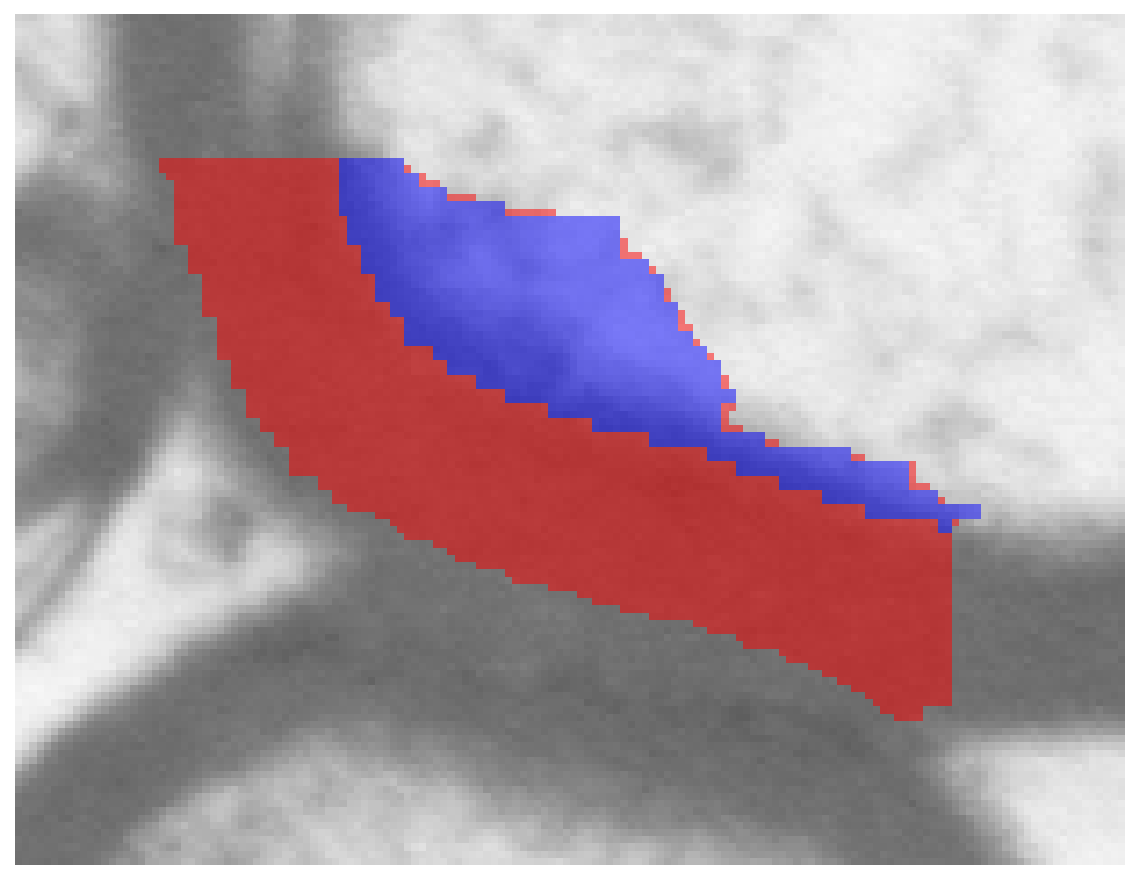

37	merge_error	0.564	0.3872	0.1496	0.720	low solidity (0.720)	view

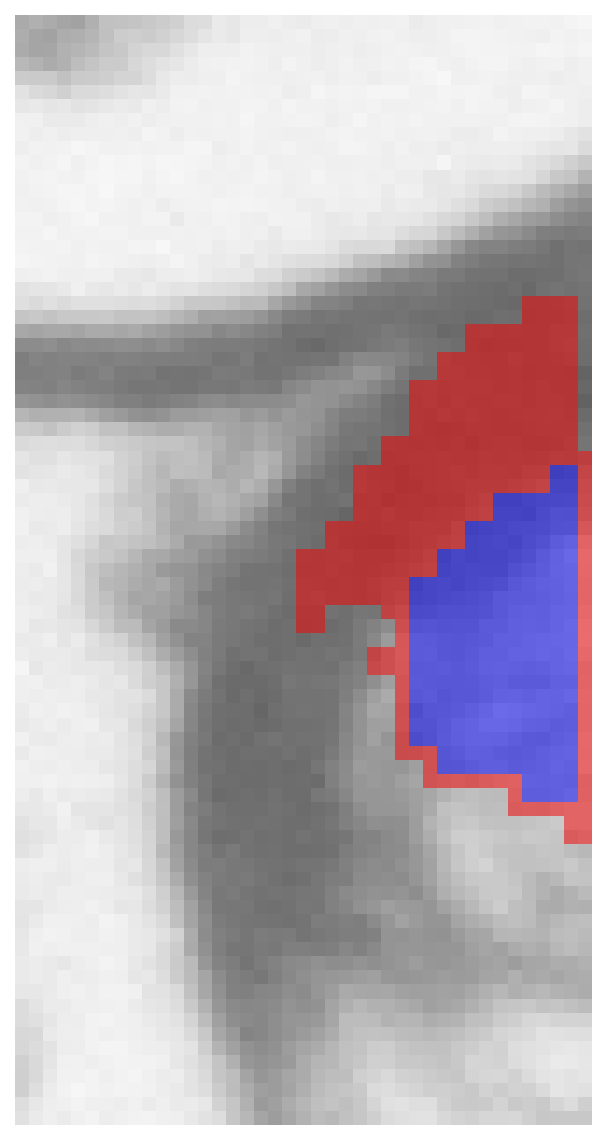

38	border	0.660	0.1544	0.0397	0.945	border-touching	view

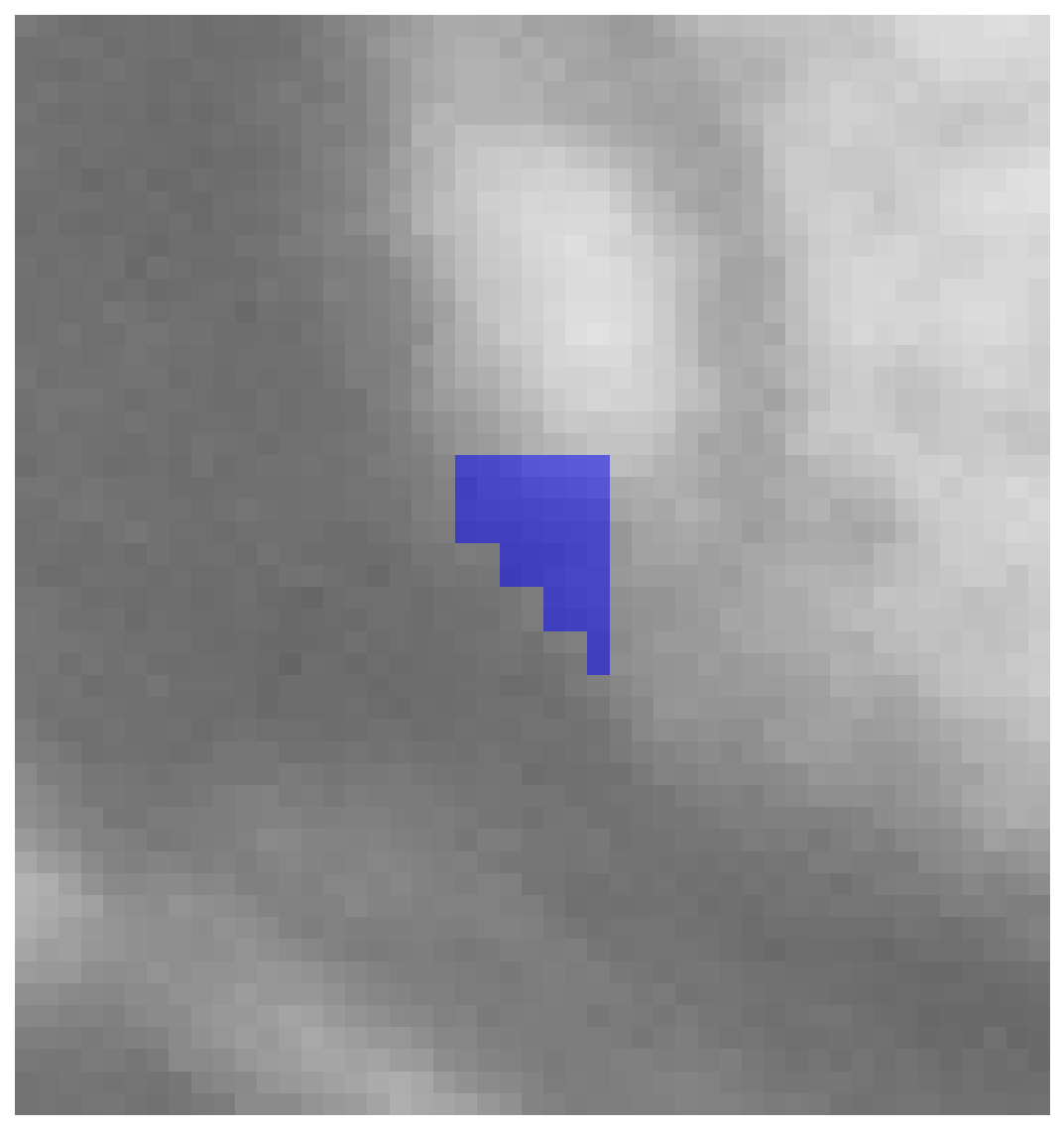

39	invalid	1.000	0.0700	0.0000	0.939	gratio=1.000; no myelin	view

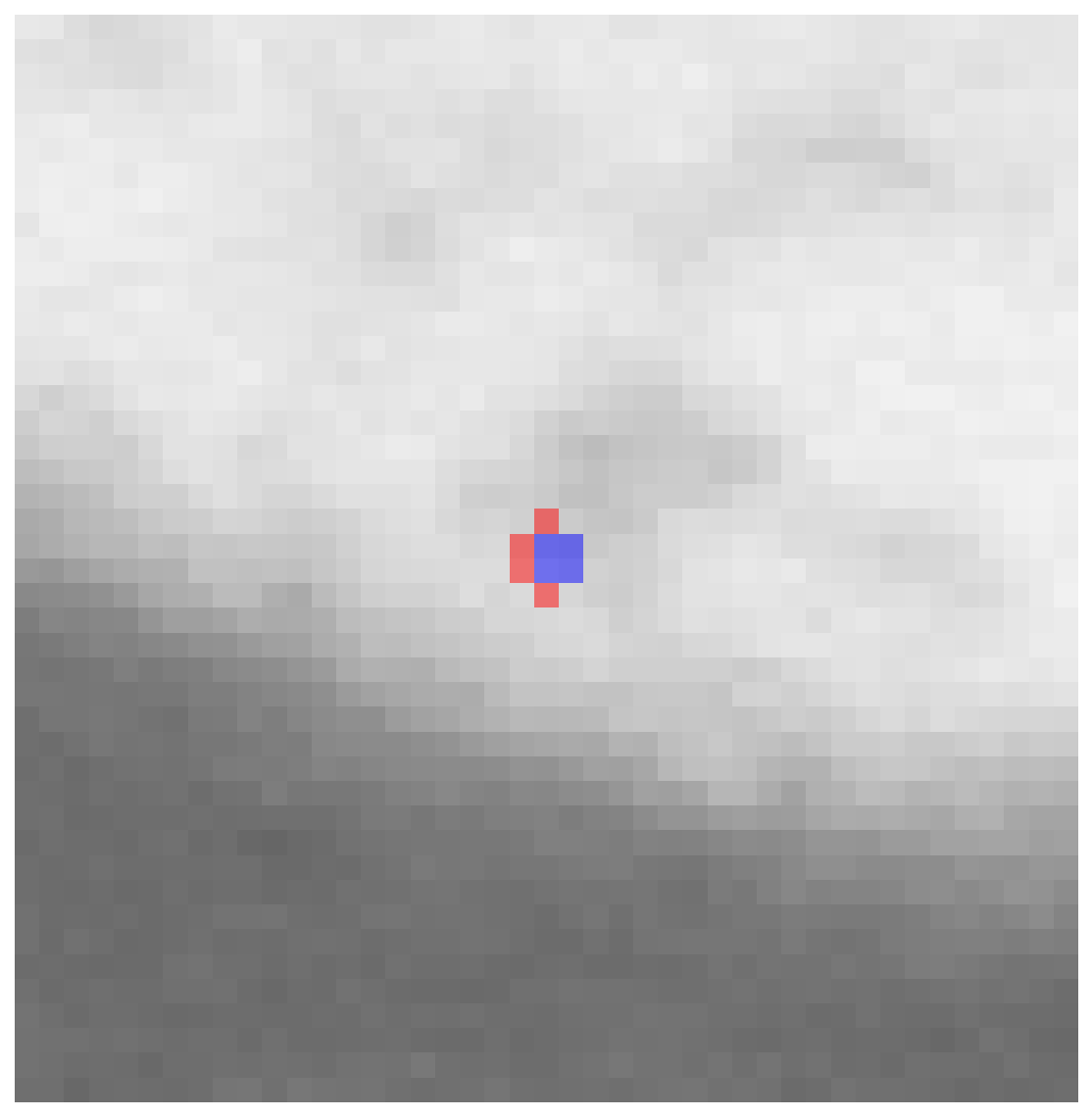

41	artifact	0.707	0.0206	0.0043	1.000	tiny axon (0.0206 um)	view

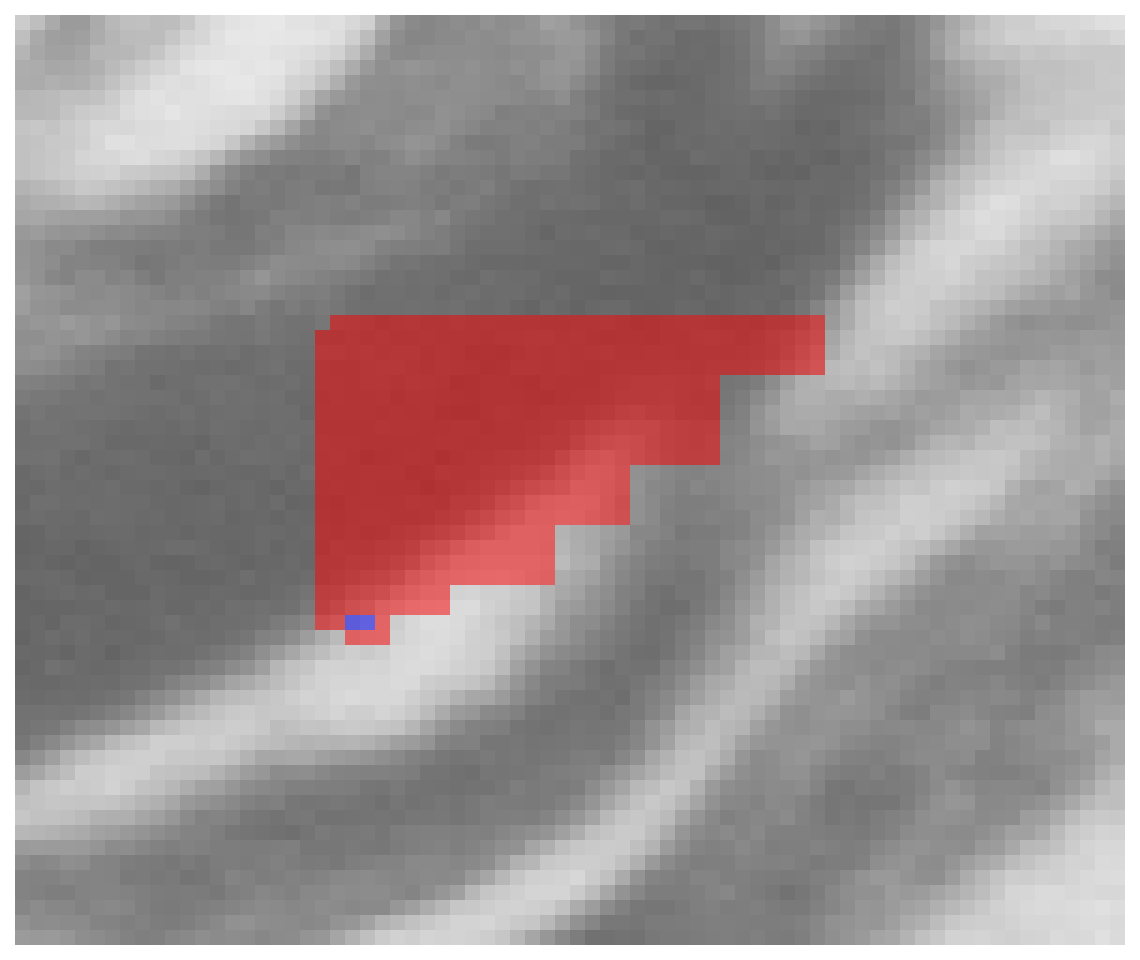

43	artifact	0.065	0.0146	0.1047	1.000	tiny axon (0.0146 um); very low gratio (0.065); myelin>>axon (mt/ad=7.17)	view
45	border	0.914	1.4182	0.0667	0.975	border-touching	view

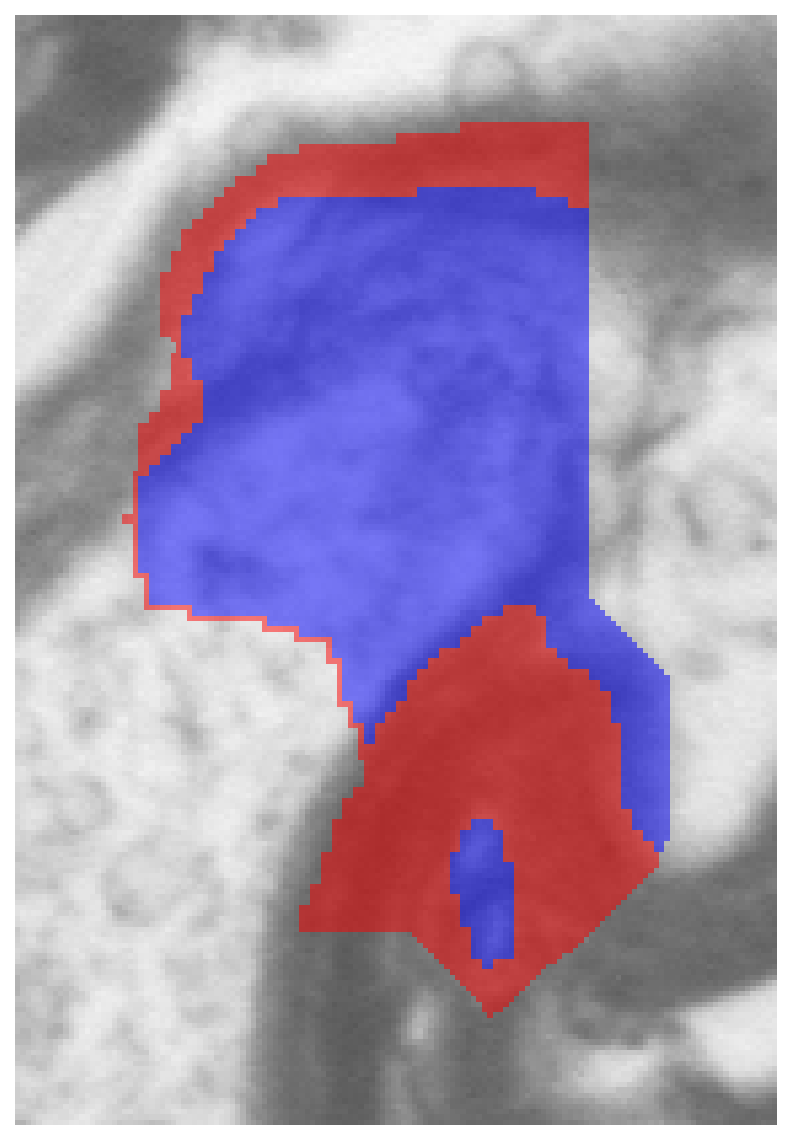

48	myelin_dominant	0.150	0.1612	0.4578	0.904	very low gratio (0.150); myelin>>axon (mt/ad=2.84)	view

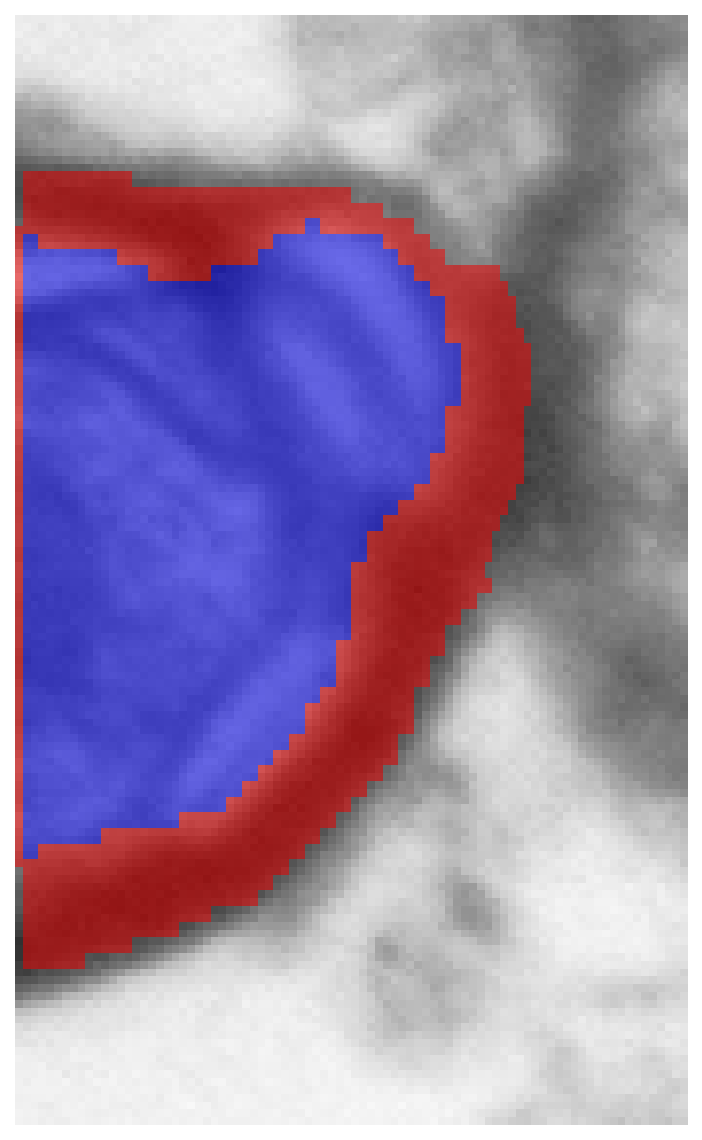

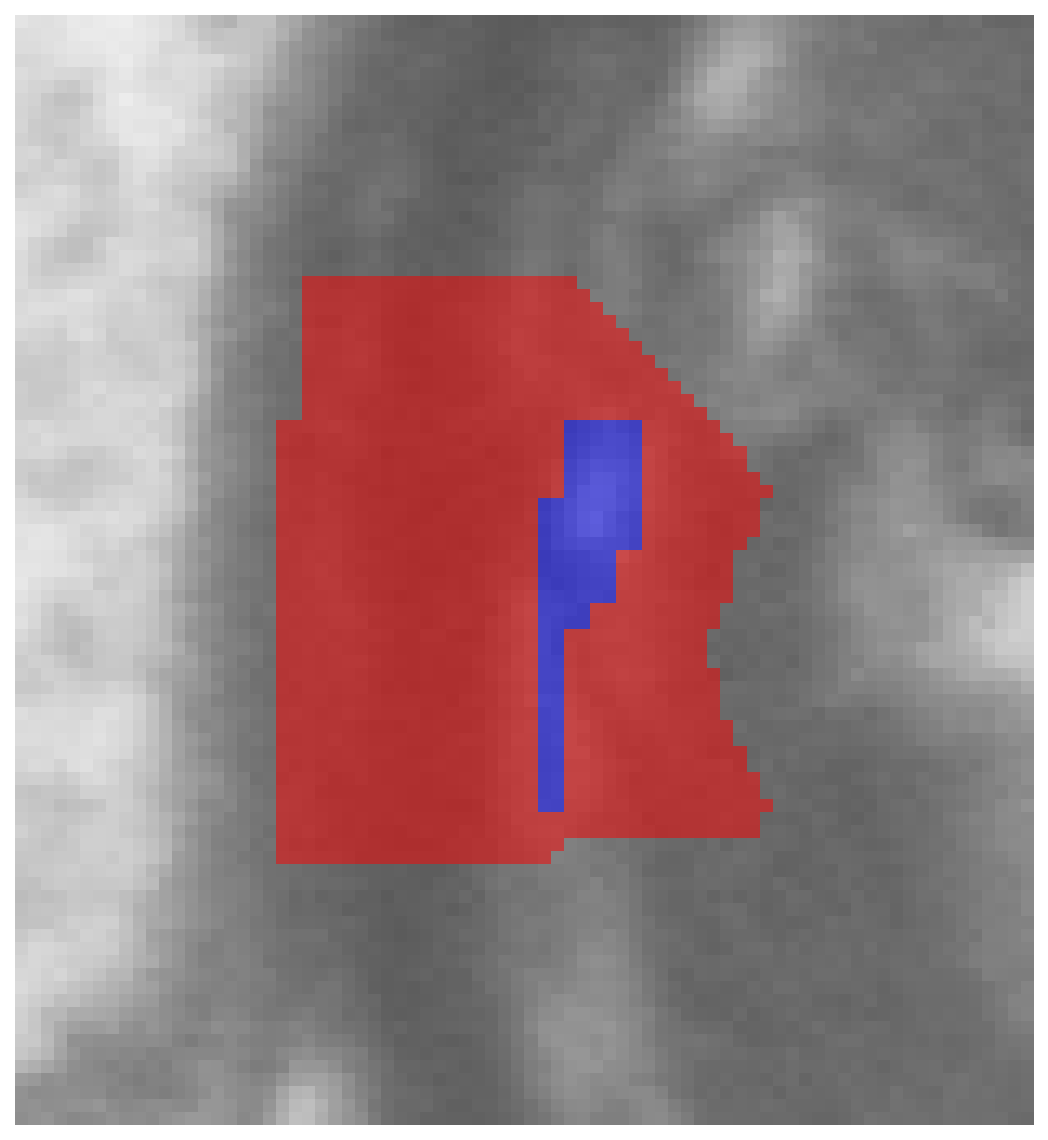

51	myelin_dominant	0.296	0.1167	0.1390	0.749	very low gratio (0.296); low solidity (0.749); myelin>>axon (mt/ad=1.19)	view

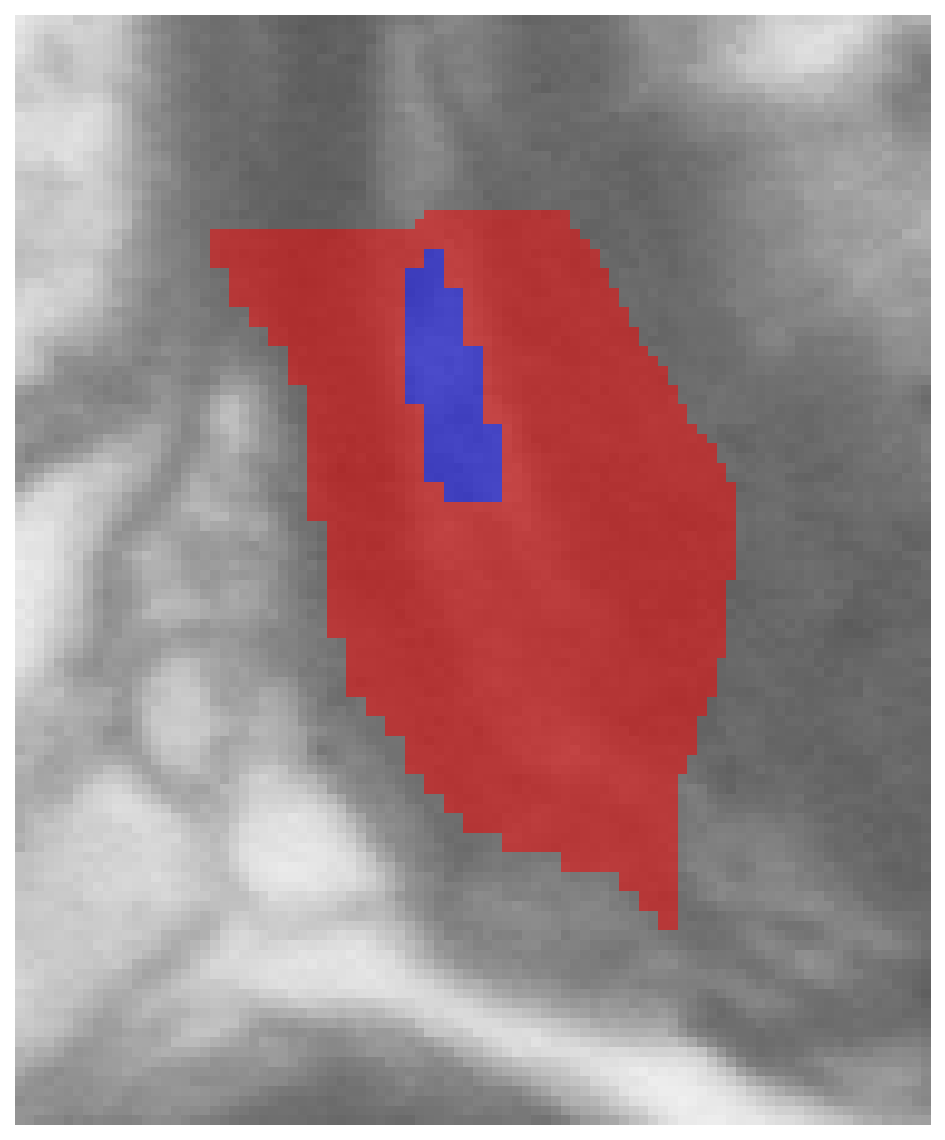

54	myelin_dominant	0.262	0.1337	0.1881	0.862	very low gratio (0.262); myelin>>axon (mt/ad=1.41)	view

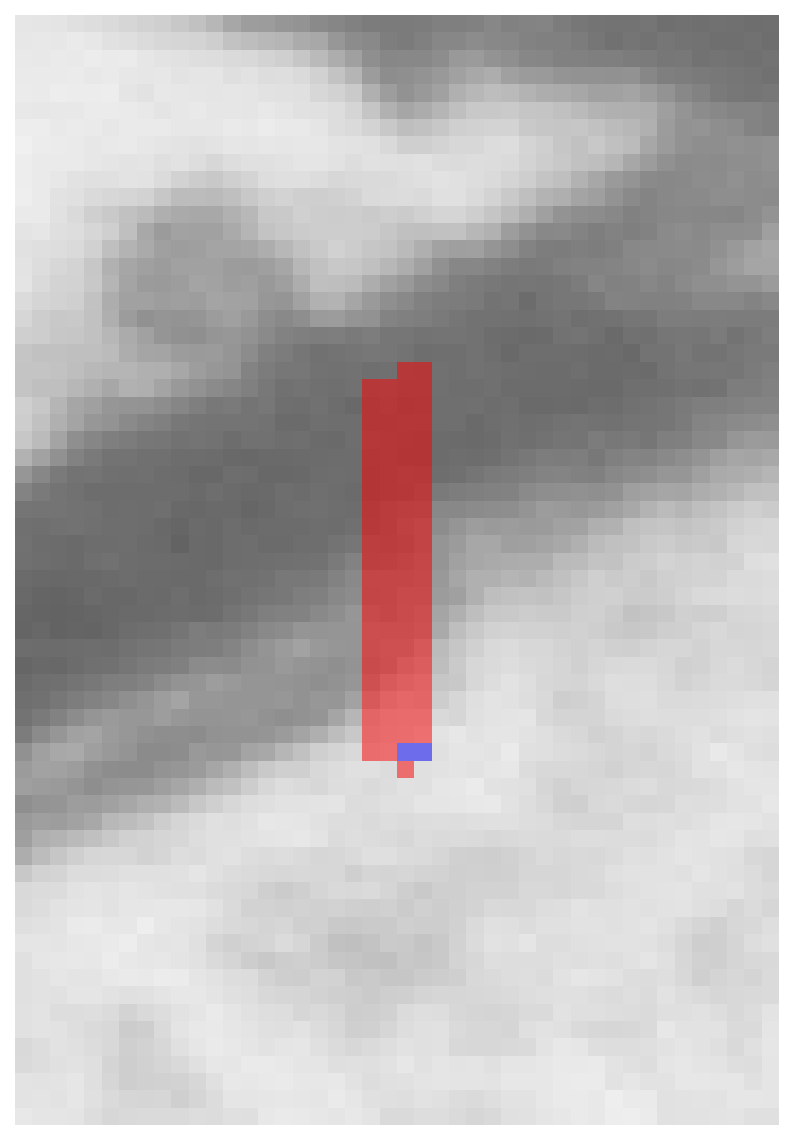

55	artifact	0.148	0.0146	0.0419	1.000	tiny axon (0.0146 um); very low gratio (0.148); myelin>>axon (mt/ad=2.87)	view

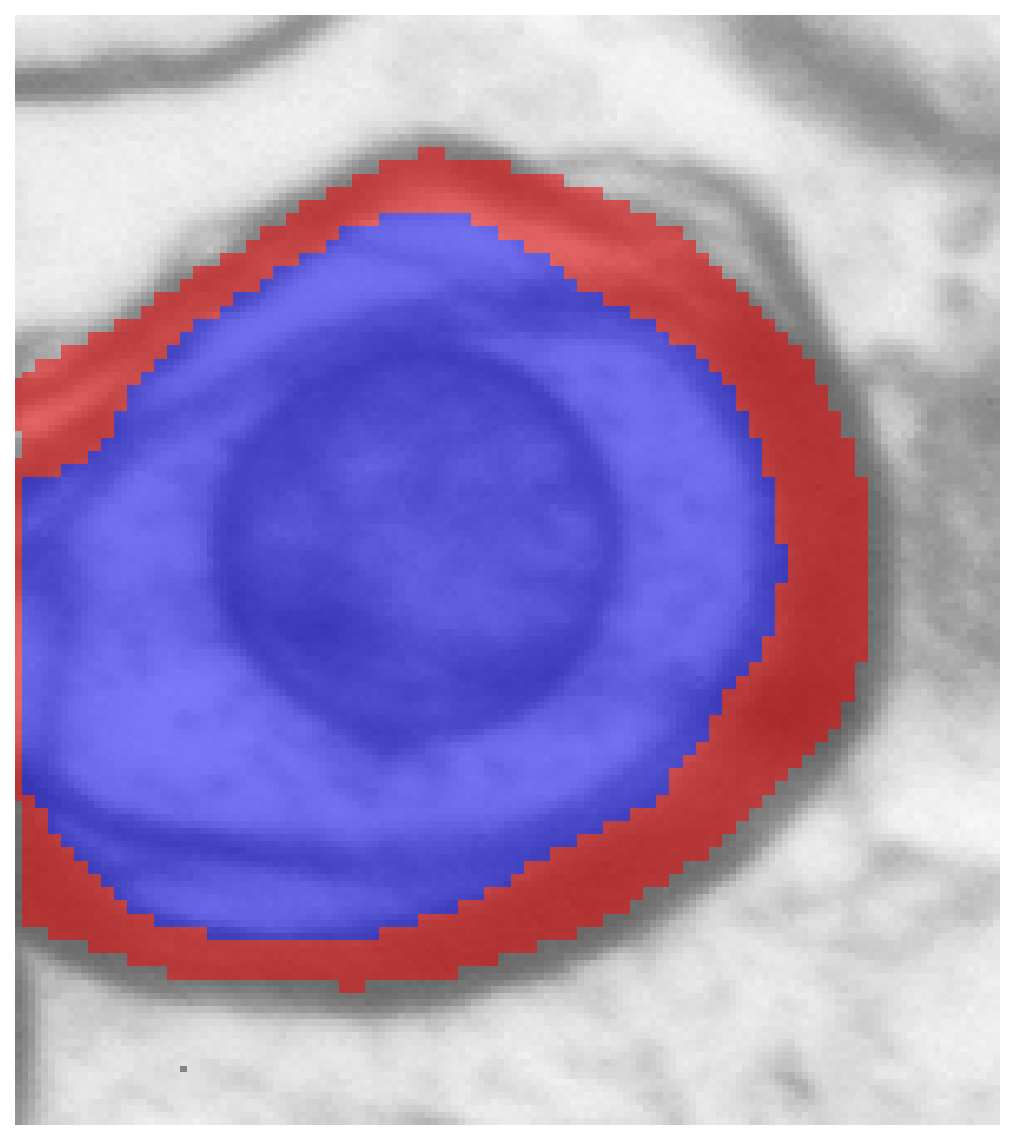

56	border	0.855	1.0052	0.0850	0.972	border-touching	view

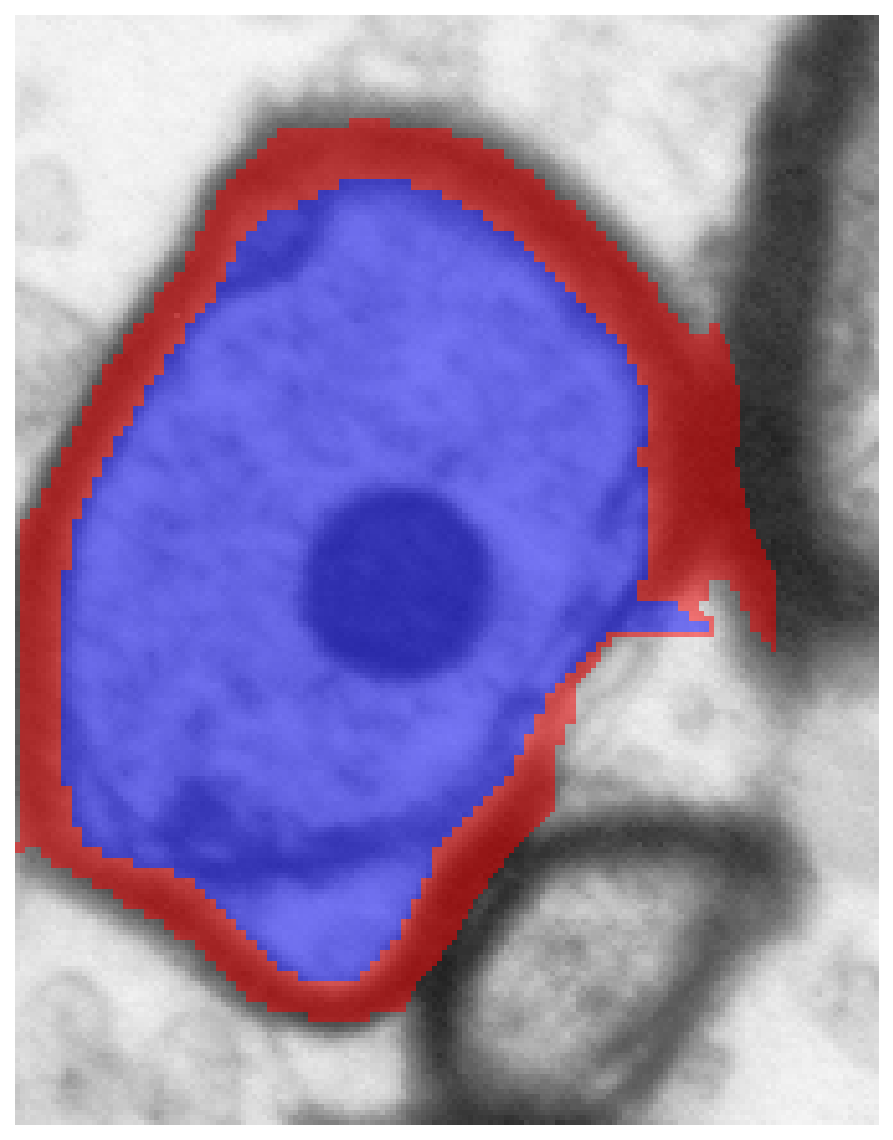

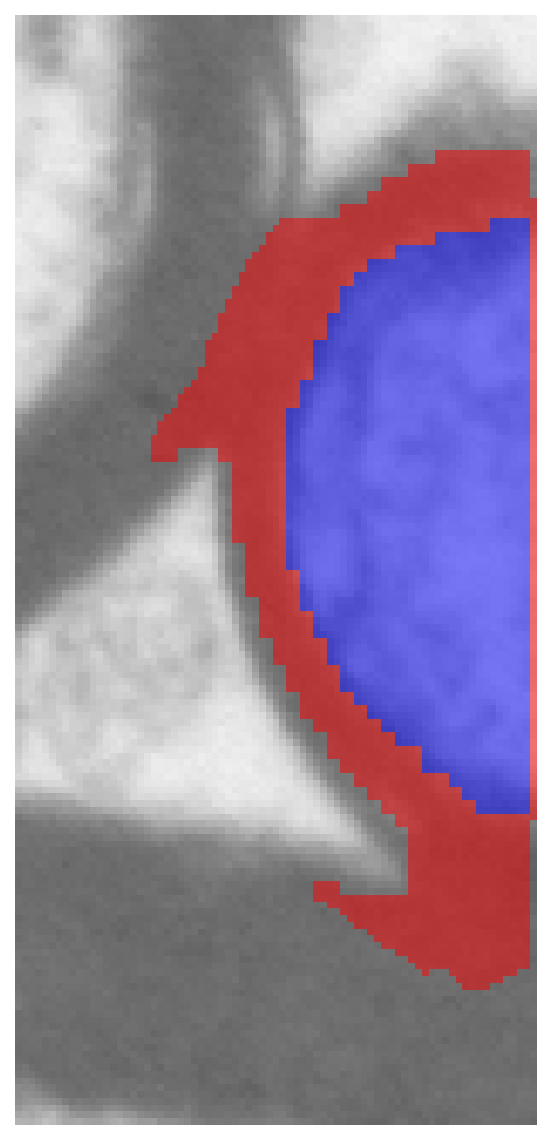

62	border	0.747	0.5134	0.0867	0.971	border-touching	view

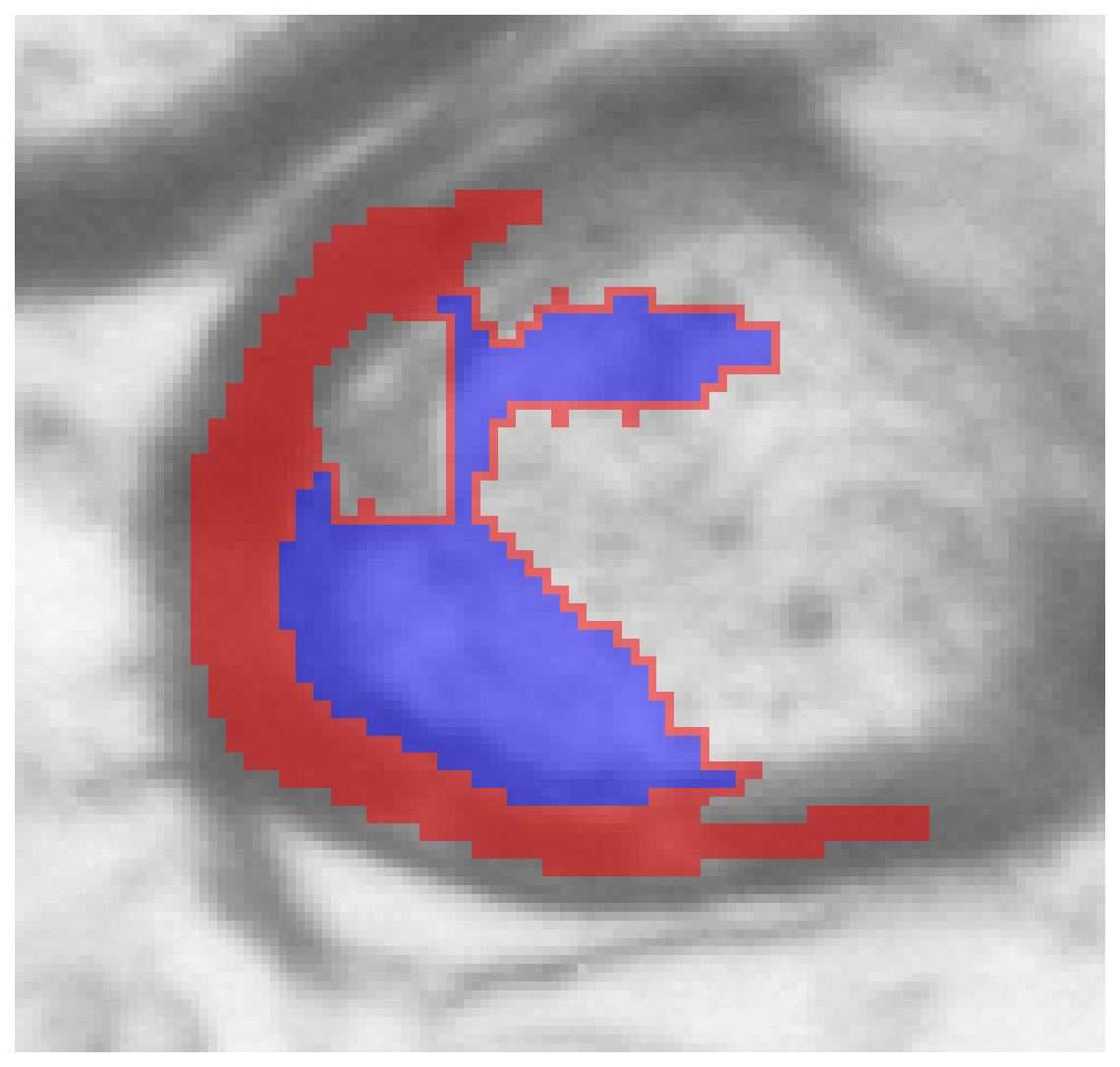

65	merge_error	0.688	0.3855	0.0876	0.519	low solidity (0.519)	view

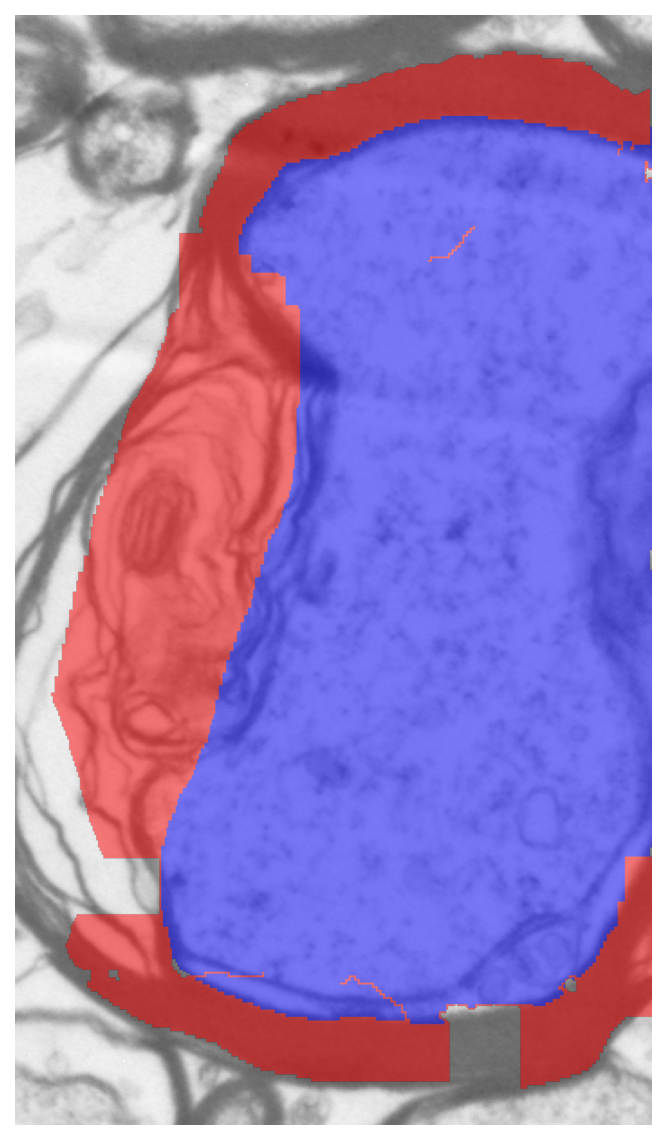

69	border	0.830	3.3998	0.3481	0.903	border-touching	view

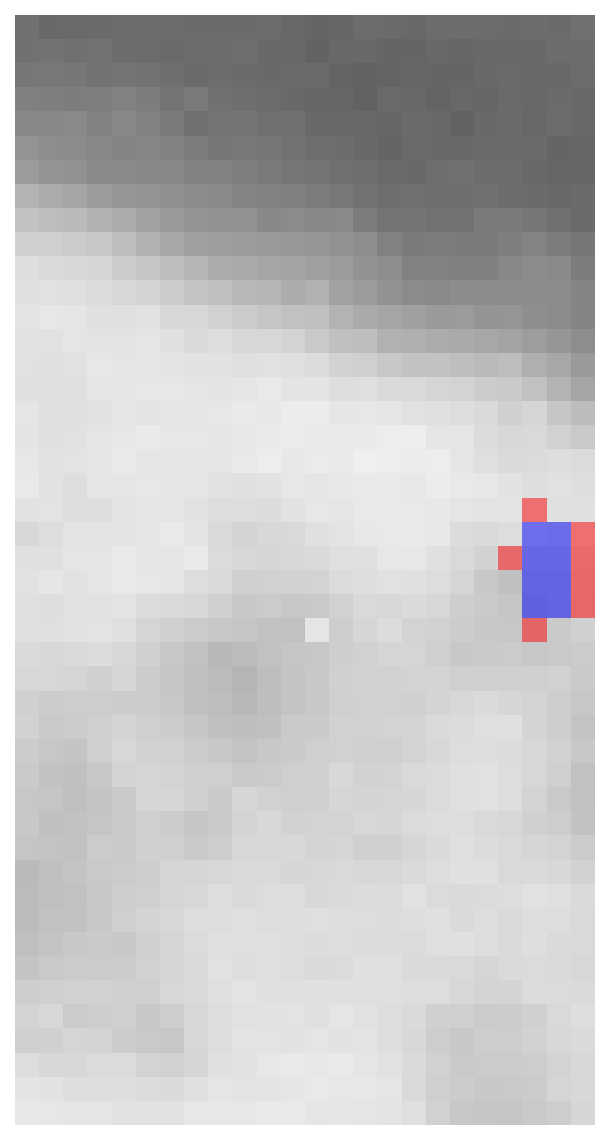

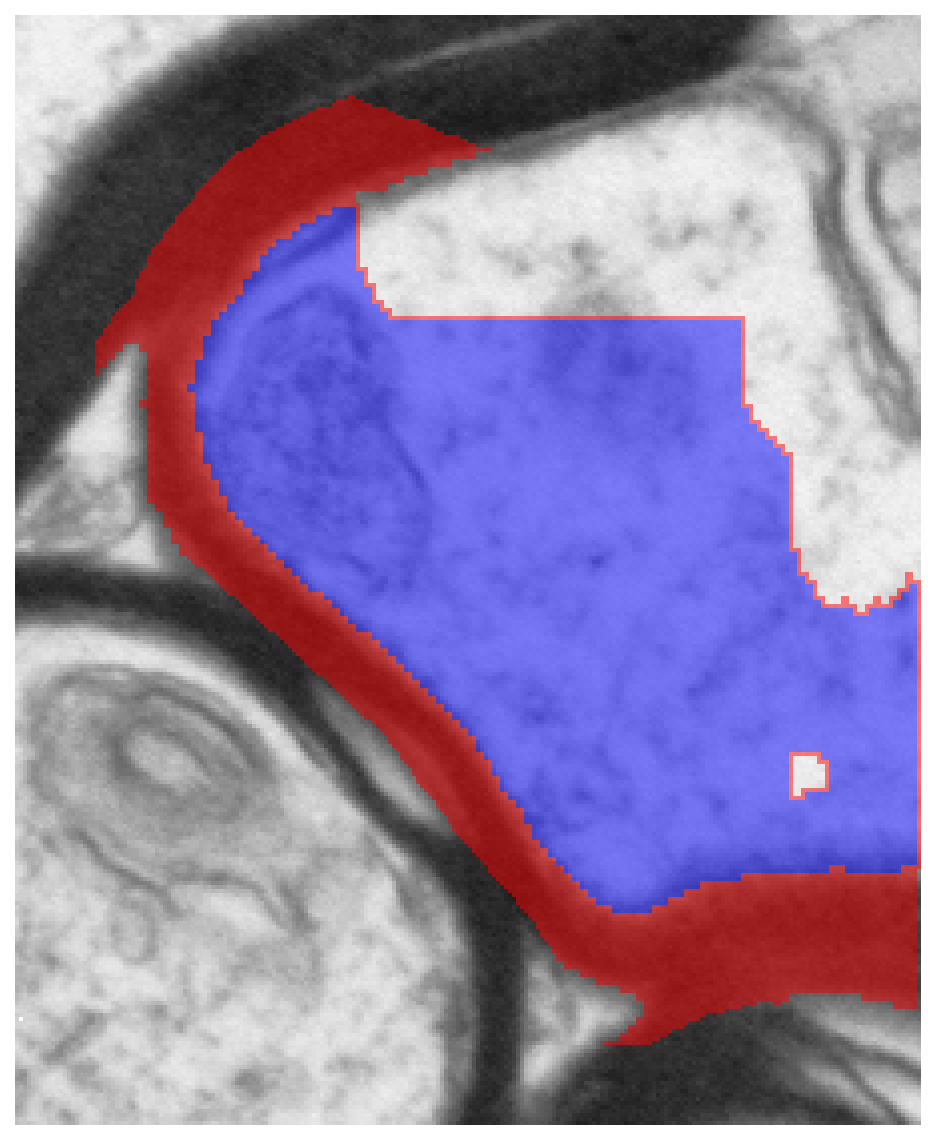

73	border	0.730	0.0292	0.0054	1.000	border-touching; tiny axon (0.0292 um)	view
91	artifact	0.085	0.0438	0.2362	0.947	tiny axon (0.0438 um); very low gratio (0.085); myelin>>axon (mt/ad=5.39)	view

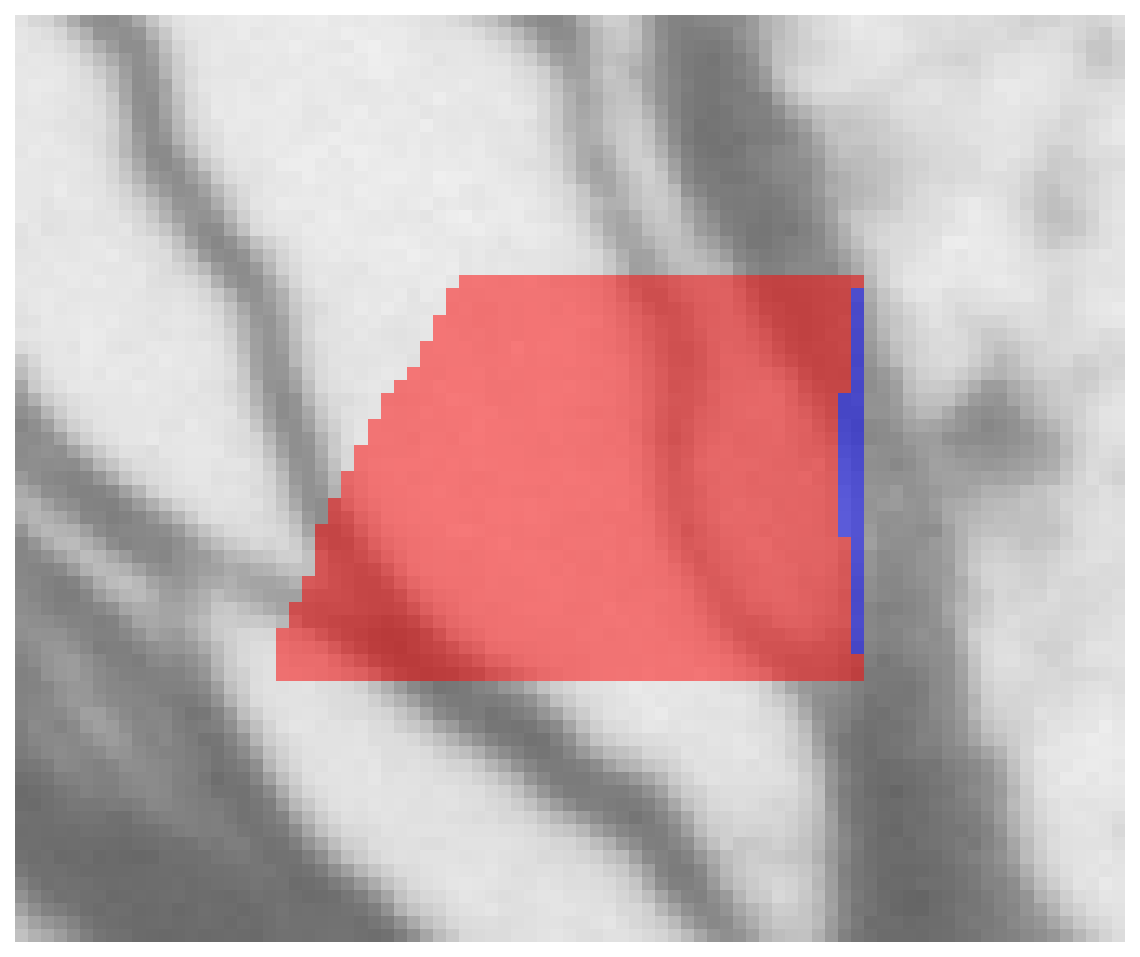

92	myelin_dominant	0.179	0.0644	0.1474	0.830	very low gratio (0.179); myelin>>axon (mt/ad=2.29)	view

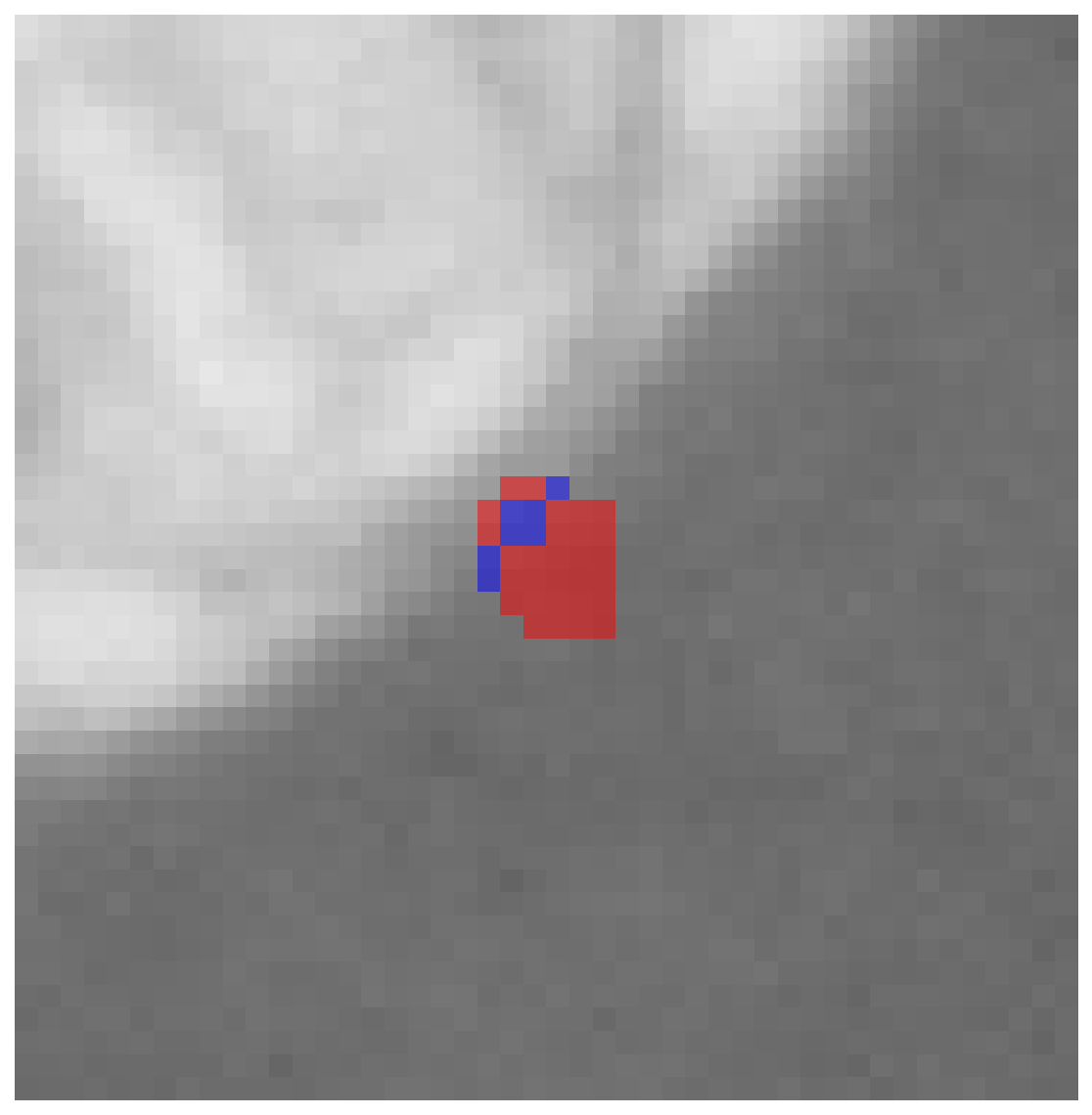

95	artifact	0.577	0.0357	0.0131	0.750	tiny axon (0.0357 um)	view

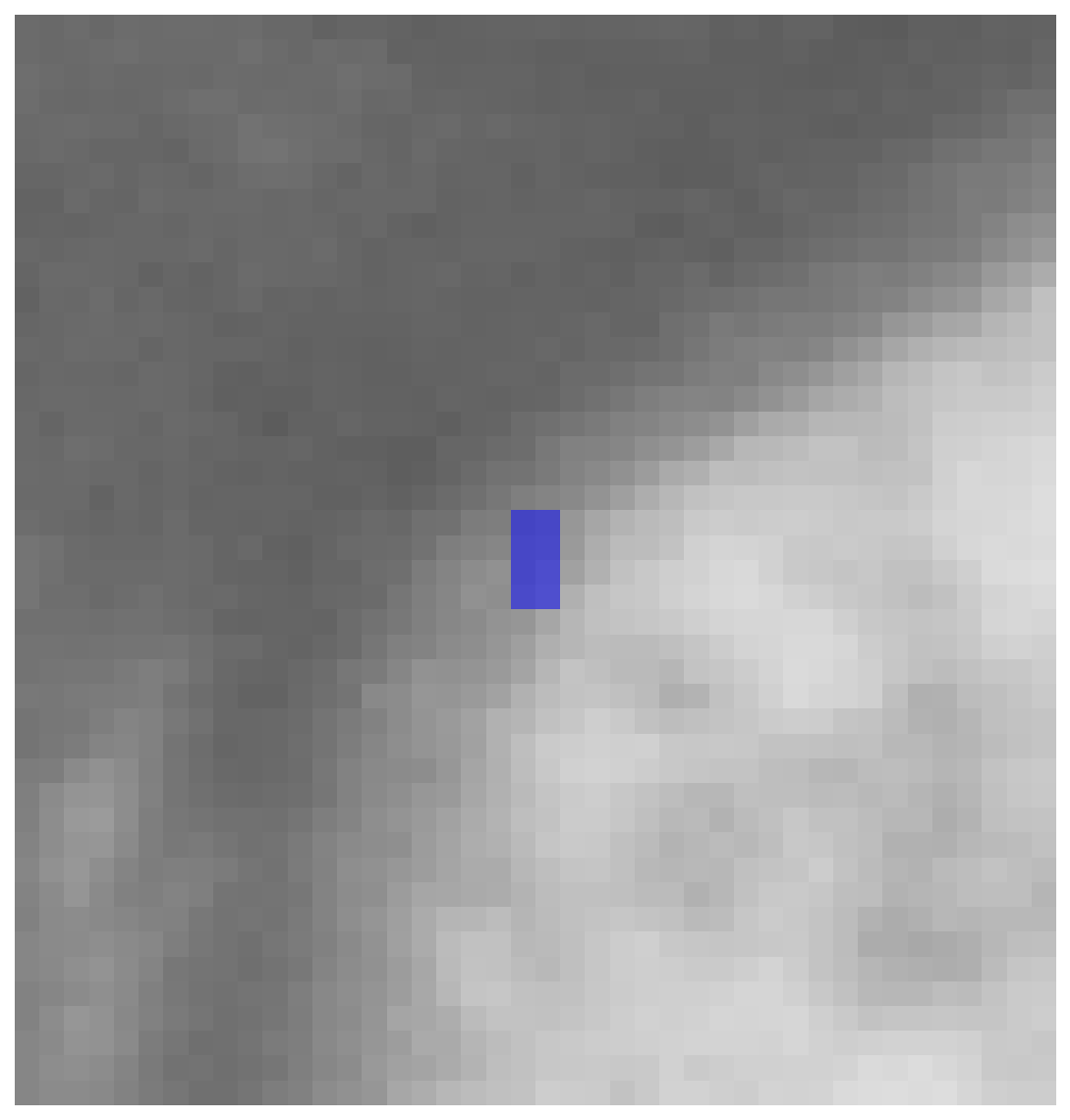

96	invalid	1.000	0.0292	0.0000	1.000	gratio=1.000; no myelin; tiny axon (0.0292 um)	view

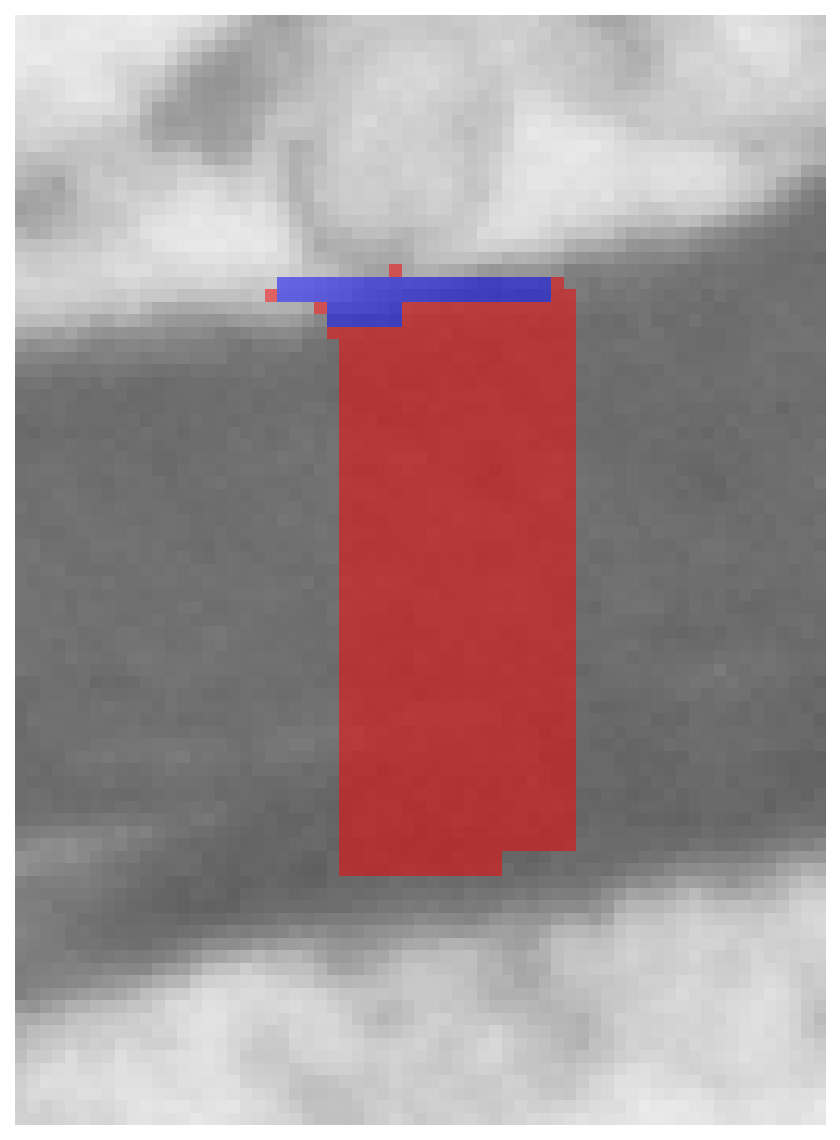

98	myelin_dominant	0.247	0.0772	0.1174	0.778	very low gratio (0.247); myelin>>axon (mt/ad=1.52)	view

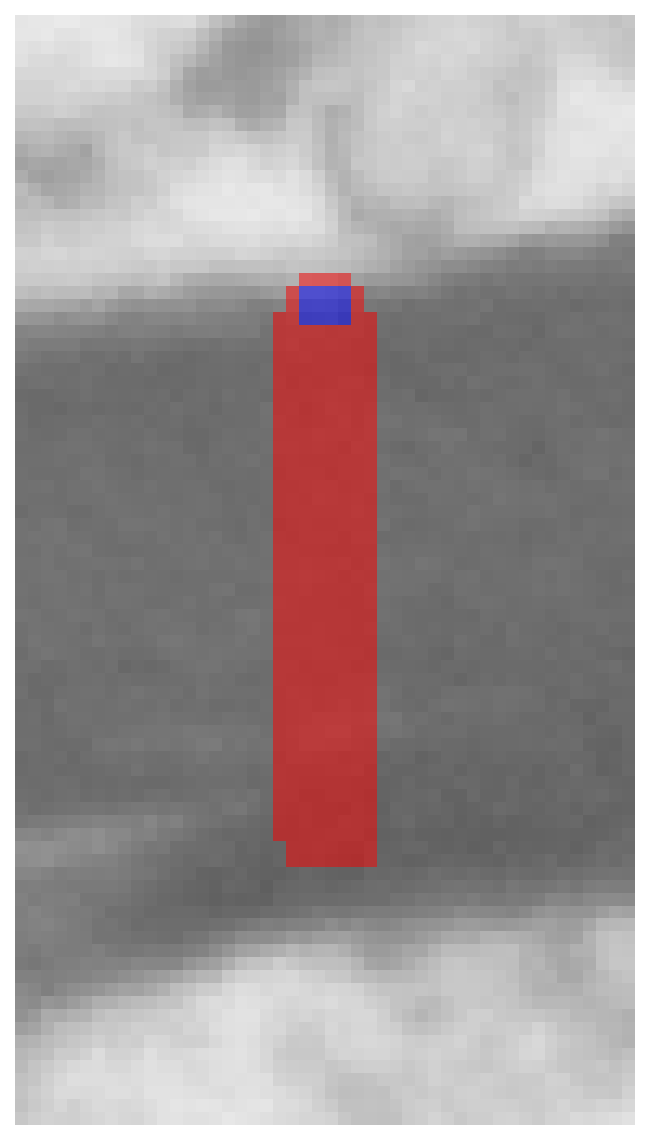

99	artifact	0.183	0.0357	0.0797	1.000	tiny axon (0.0357 um); very low gratio (0.183); myelin>>axon (mt/ad=2.23)	view

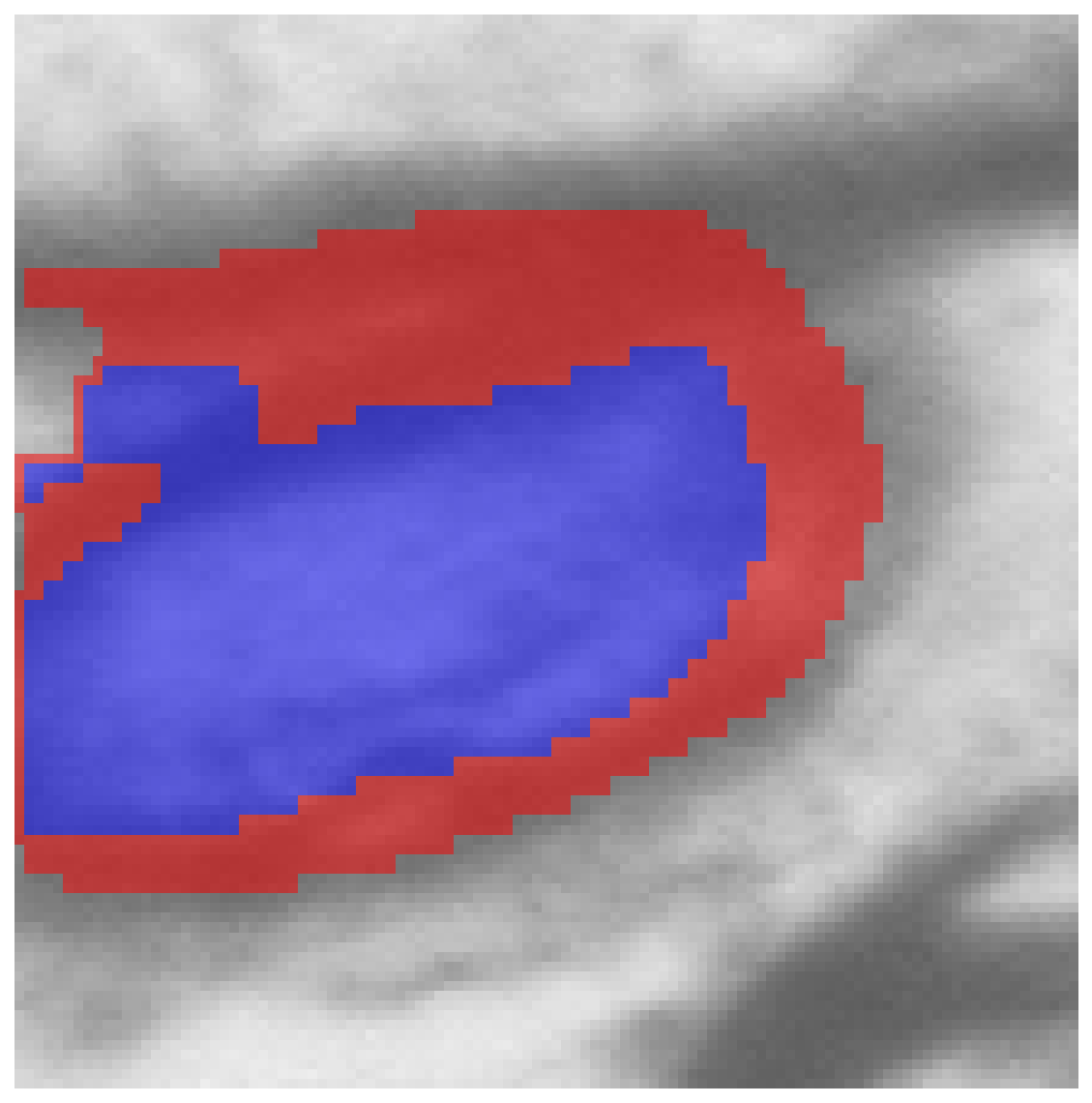

102	border	0.746	0.5444	0.0925	0.871	border-touching	view
104	invalid	1.000	0.0799	0.0000	1.000	gratio=1.000; no myelin	view

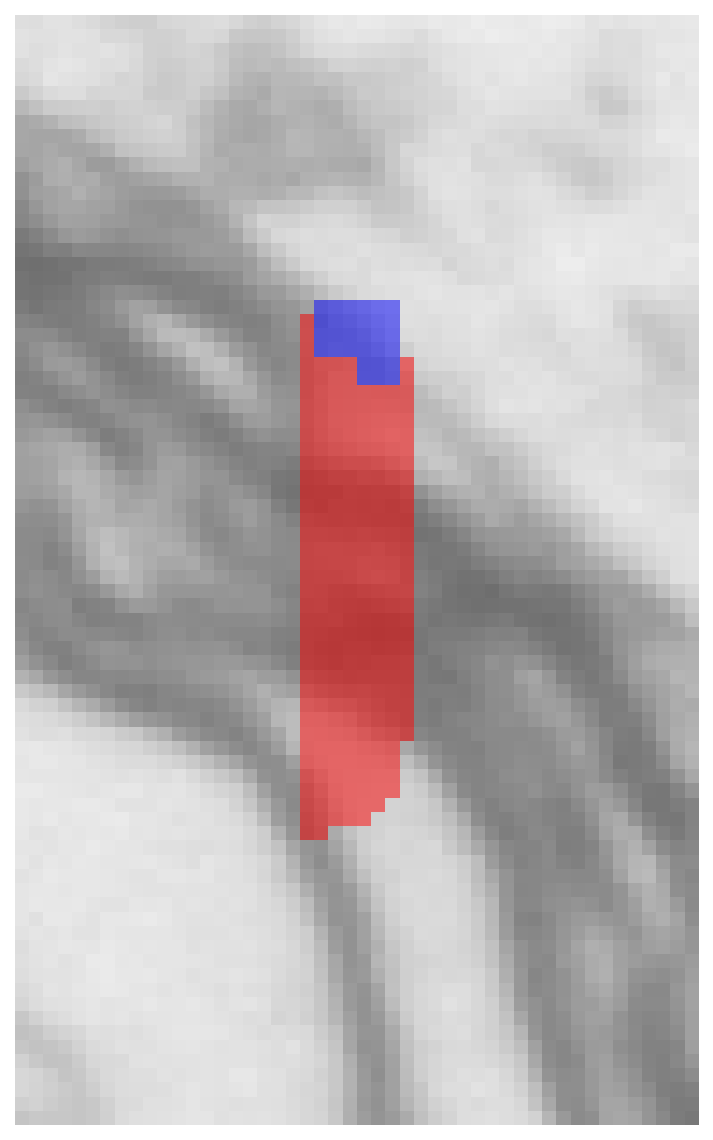

105	myelin_dominant	0.325	0.0565	0.0587	0.938	myelin>>axon (mt/ad=1.04)	view

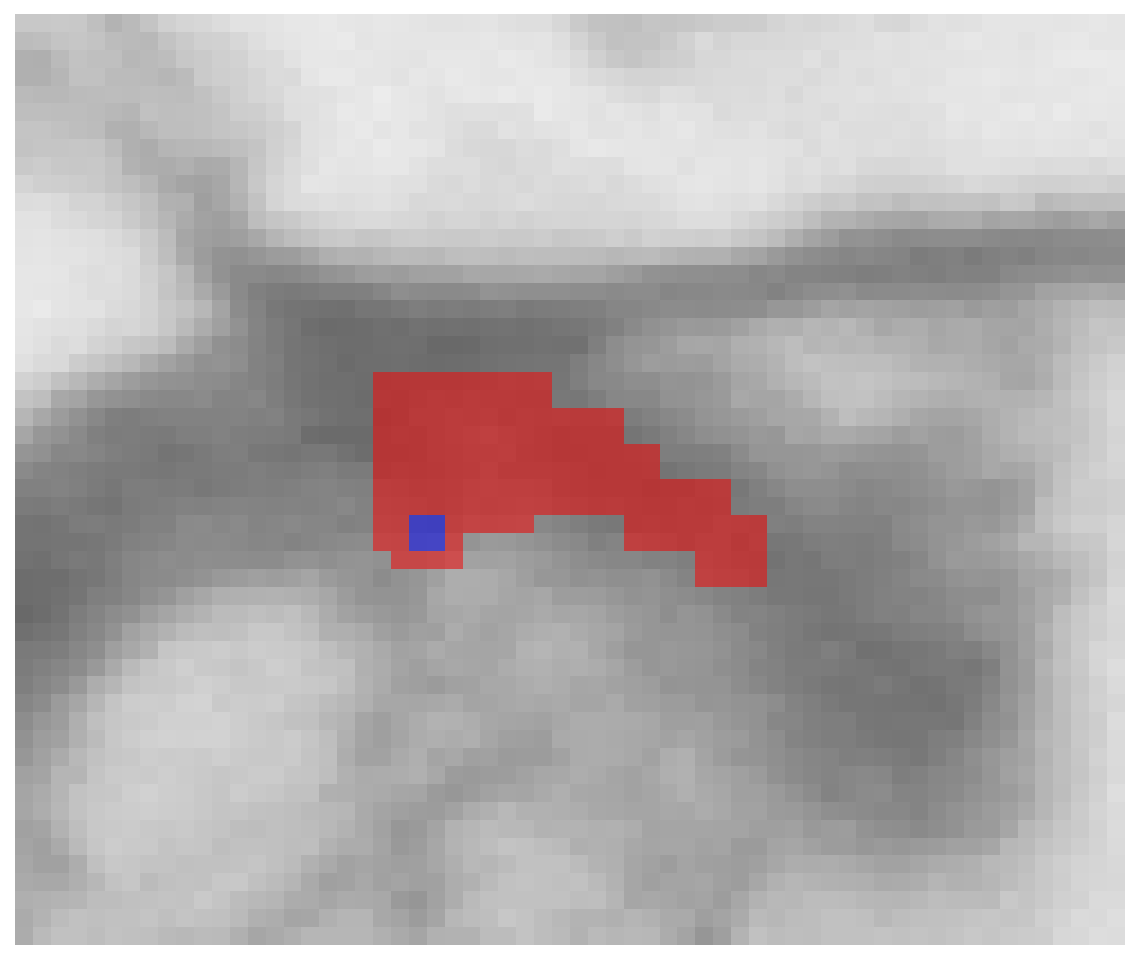

108	artifact	0.157	0.0206	0.0553	1.000	tiny axon (0.0206 um); very low gratio (0.157); myelin>>axon (mt/ad=2.68)	view

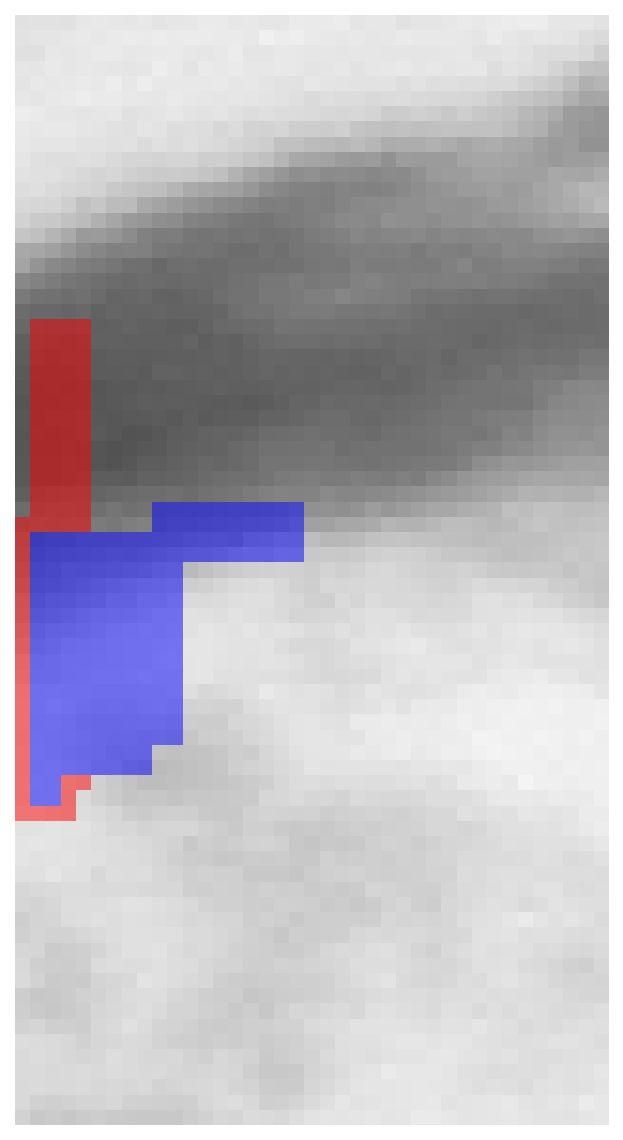

120	border	0.840	0.1445	0.0138	0.772	border-touching	view

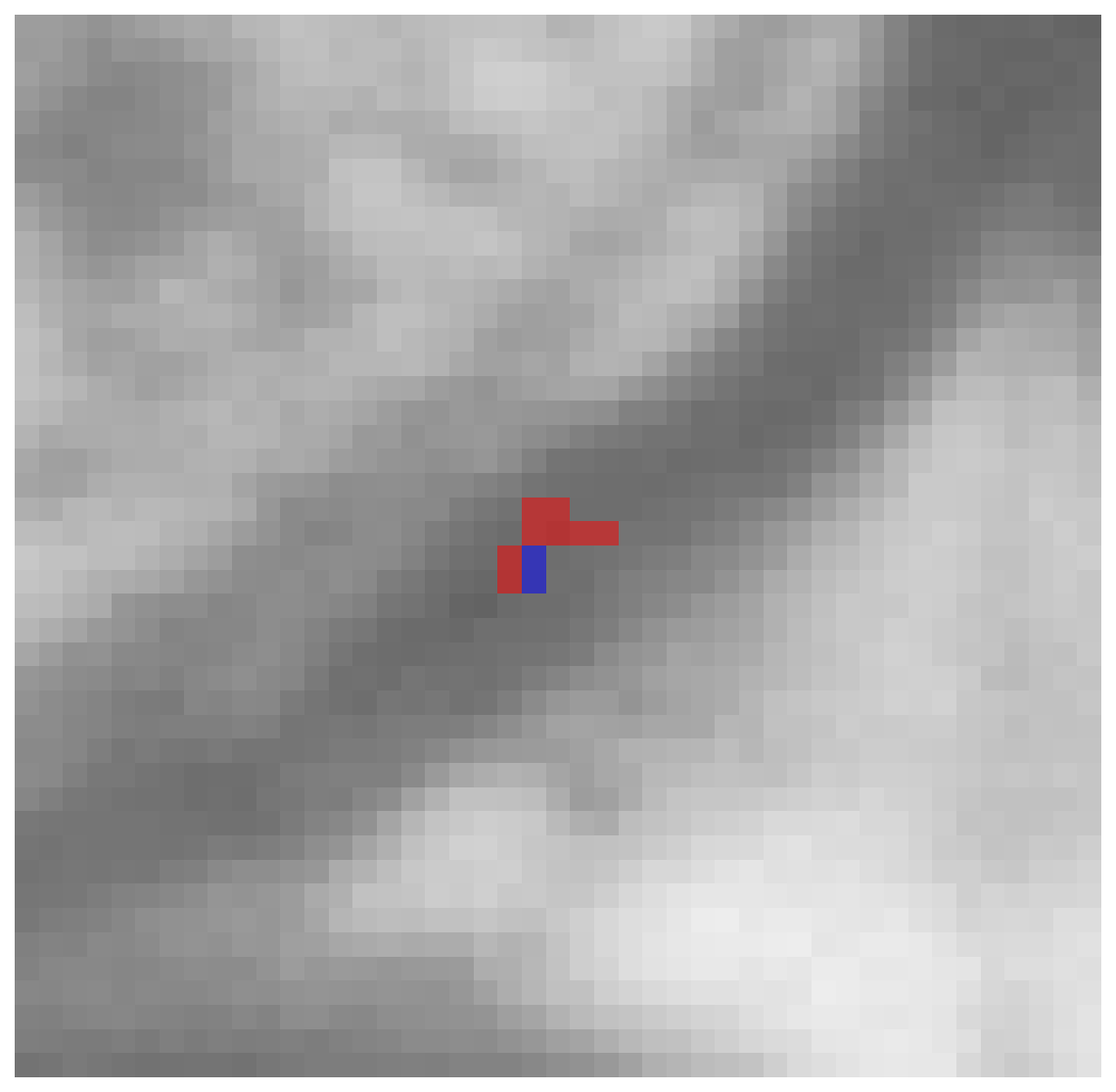

130	artifact	0.447	0.0146	0.0090	1.000	tiny axon (0.0146 um)	view

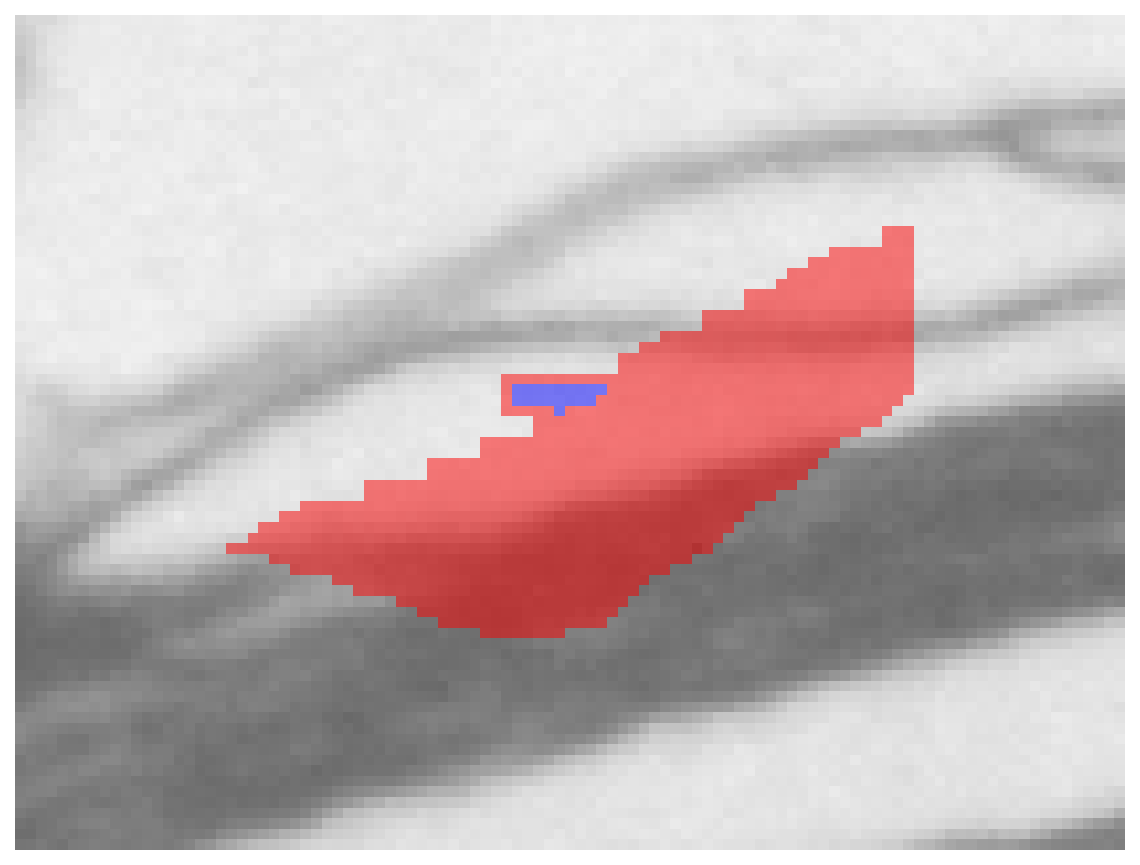

131	artifact	0.129	0.0438	0.1480	0.857	tiny axon (0.0438 um); very low gratio (0.129); myelin>>axon (mt/ad=3.38)	view

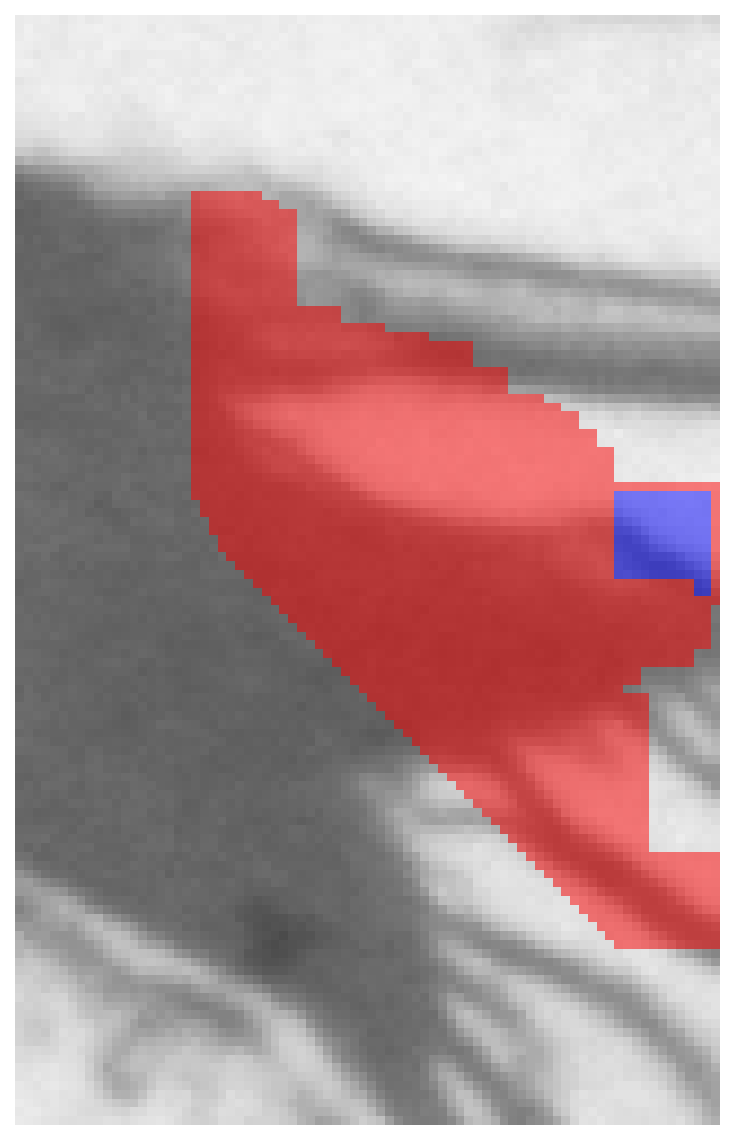

132	border	0.205	0.1102	0.2132	0.934	border-touching; very low gratio (0.205); myelin>>axon (mt/ad=1.94)	view

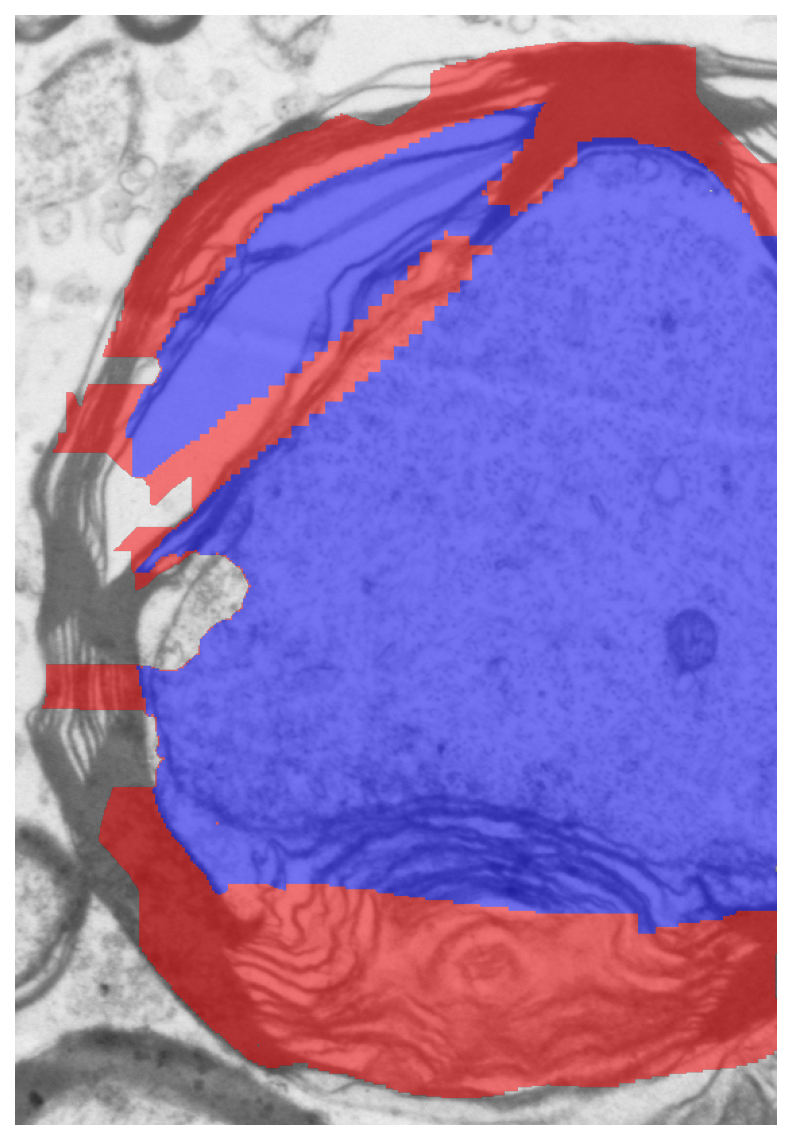

133	border	0.824	4.9492	0.5286	0.894	border-touching	view

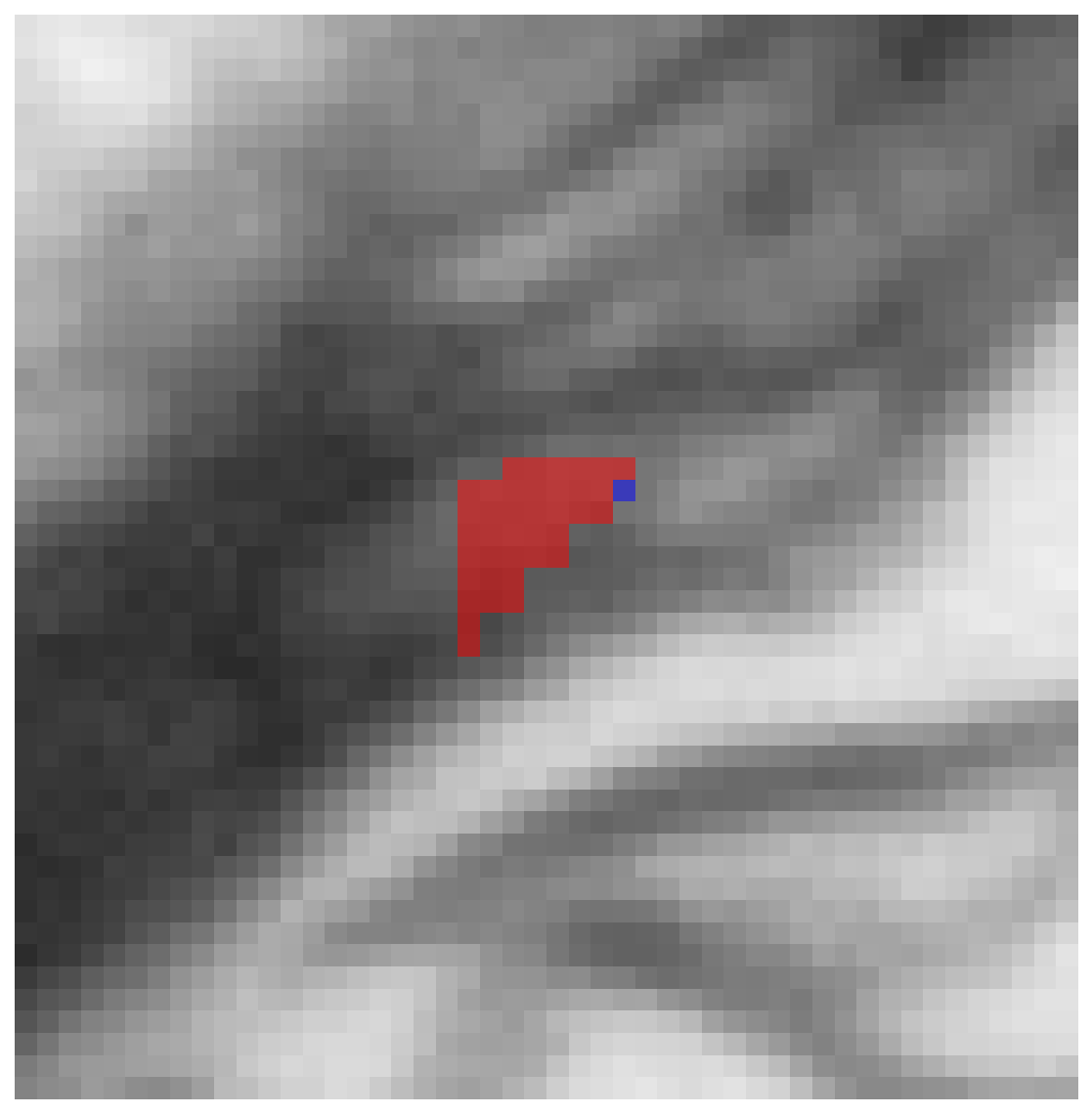

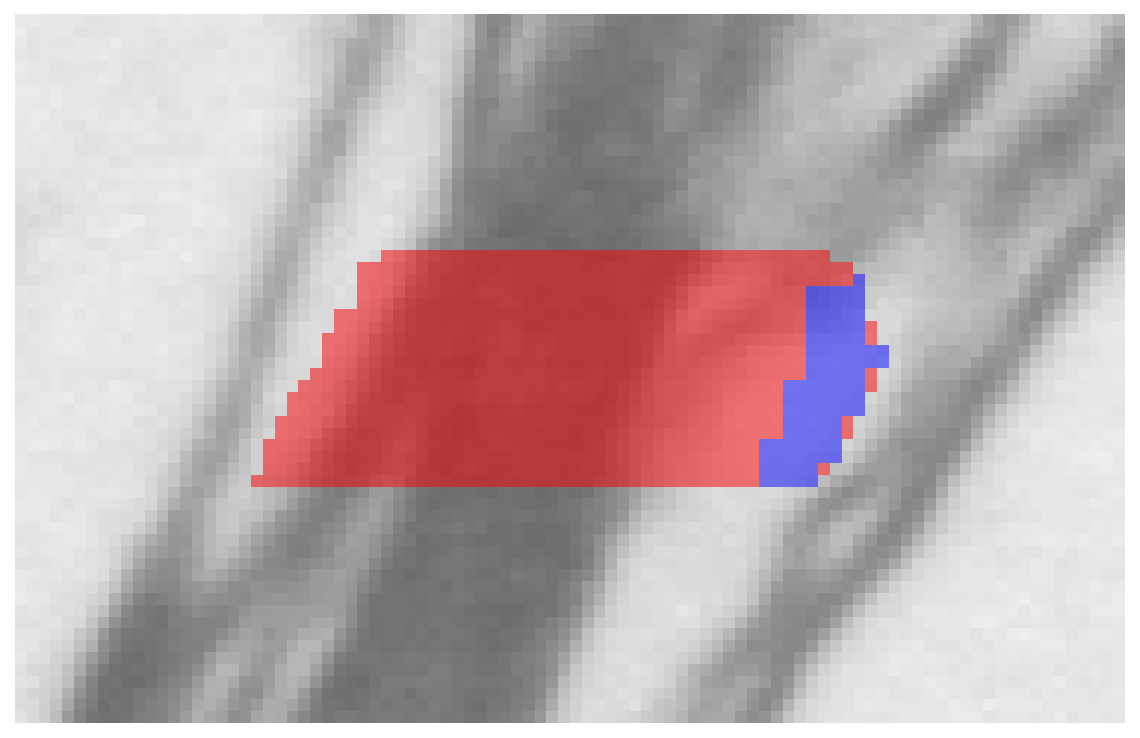

140	myelin_dominant	0.328	0.1032	0.1057	0.769	myelin>>axon (mt/ad=1.02)	view

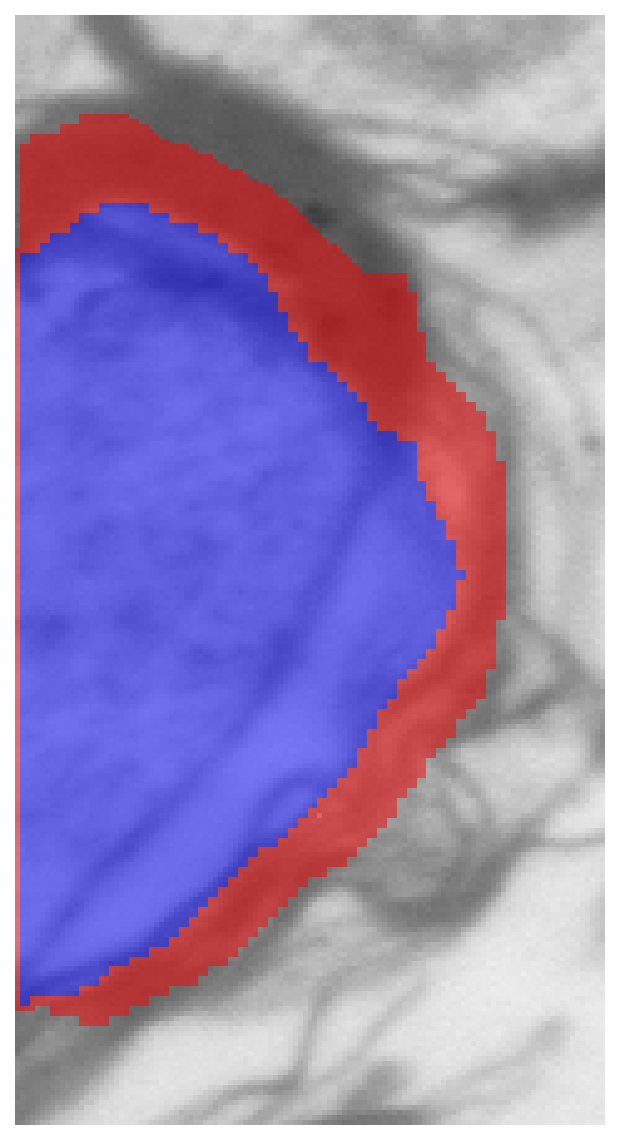

143	border	0.846	1.0191	0.0930	0.968	border-touching	view

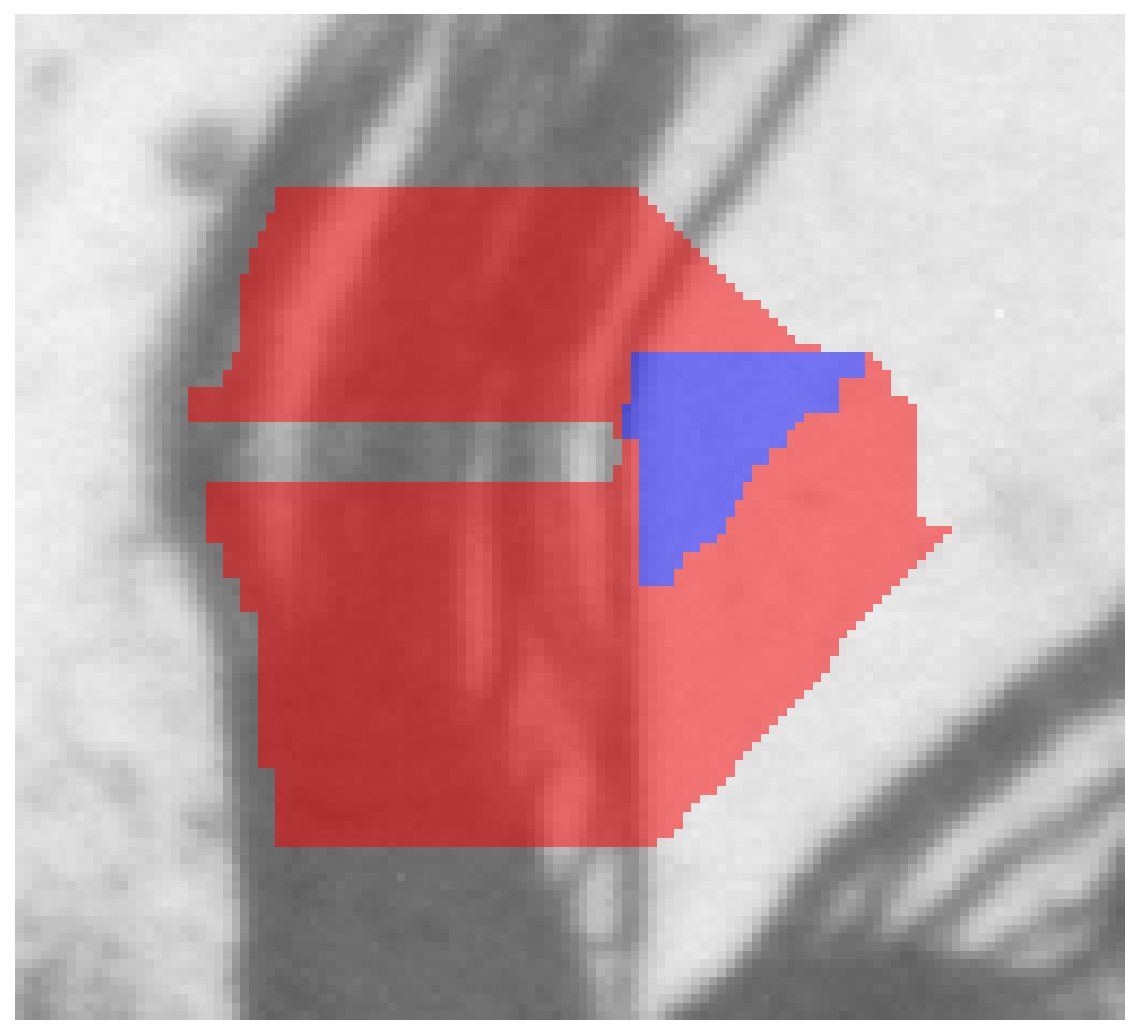

145	myelin_dominant	0.296	0.2092	0.2482	0.871	very low gratio (0.296); myelin>>axon (mt/ad=1.19)	view

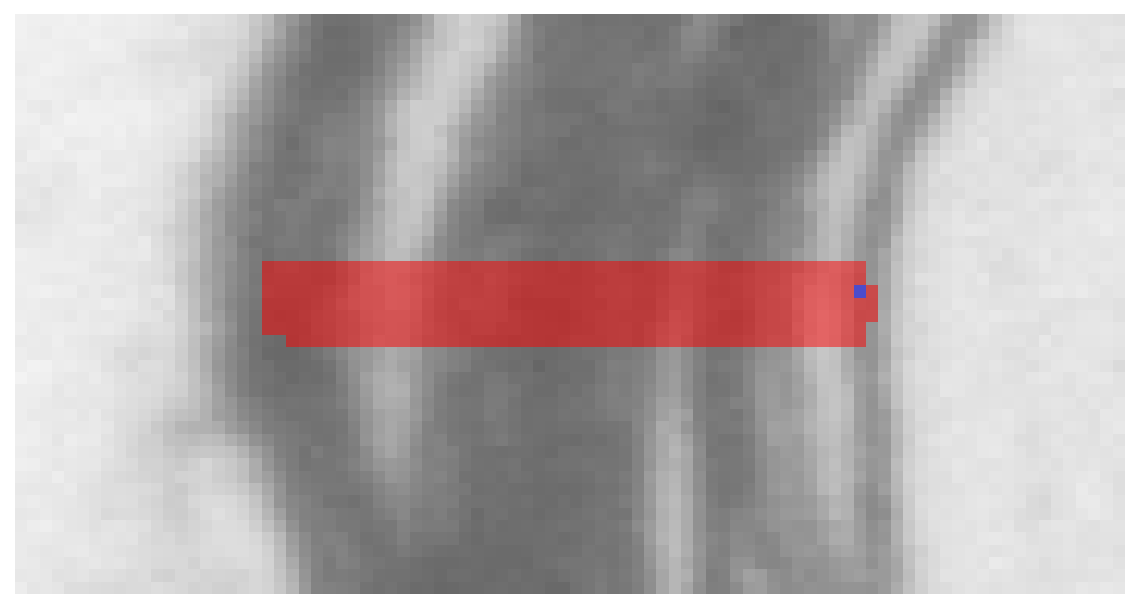

146	artifact	0.054	0.0103	0.0905	1.000	tiny axon (0.0103 um); very low gratio (0.054); myelin>>axon (mt/ad=8.77)	view

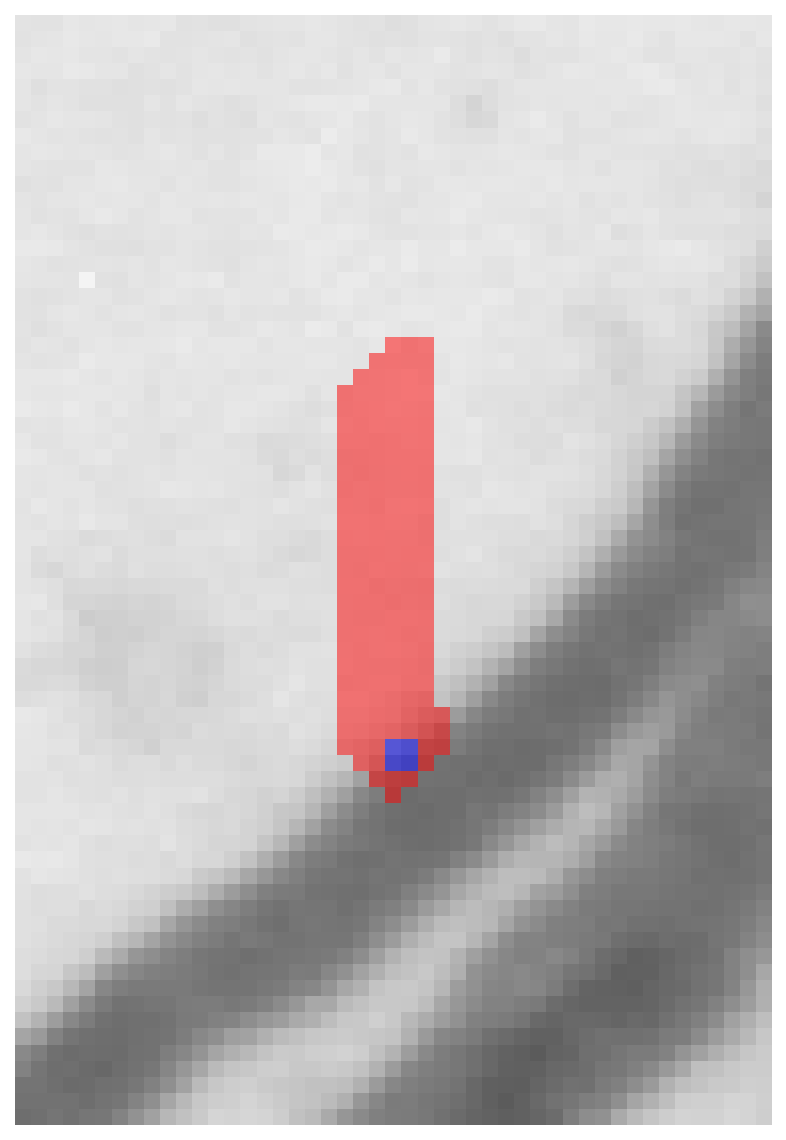

149	artifact	0.157	0.0206	0.0553	1.000	tiny axon (0.0206 um); very low gratio (0.157); myelin>>axon (mt/ad=2.68)	view

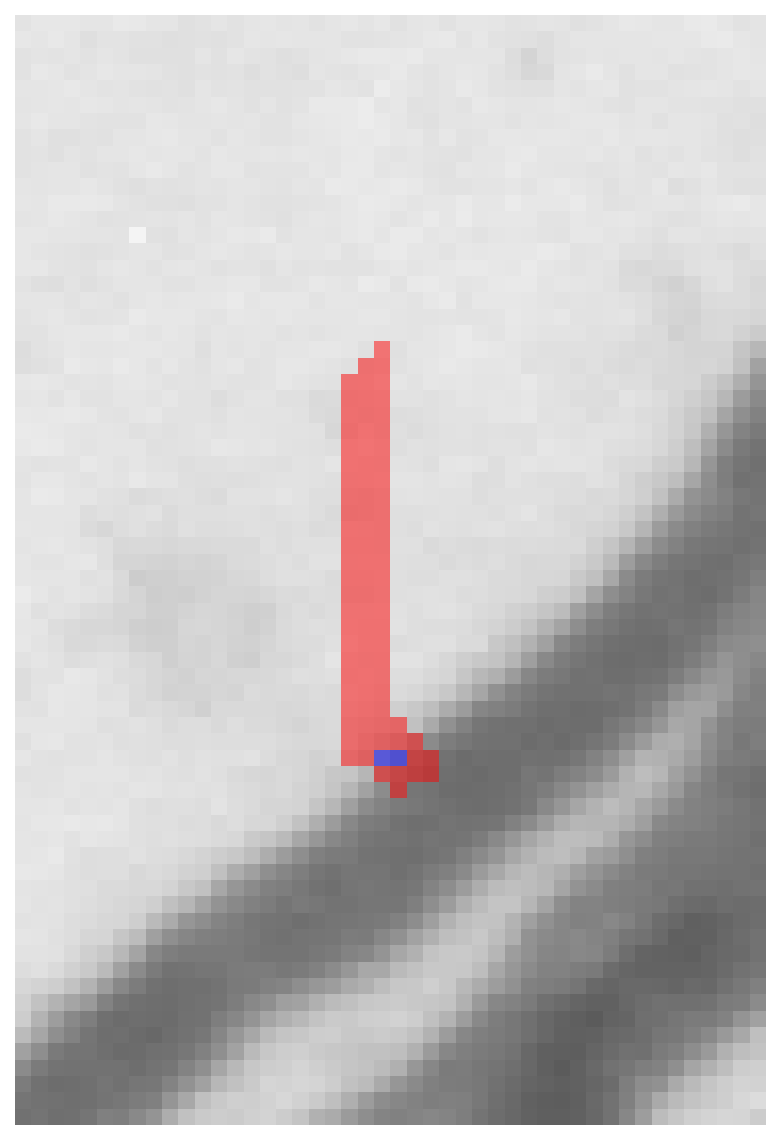

150	artifact	0.152	0.0146	0.0405	1.000	tiny axon (0.0146 um); very low gratio (0.152); myelin>>axon (mt/ad=2.78)	view

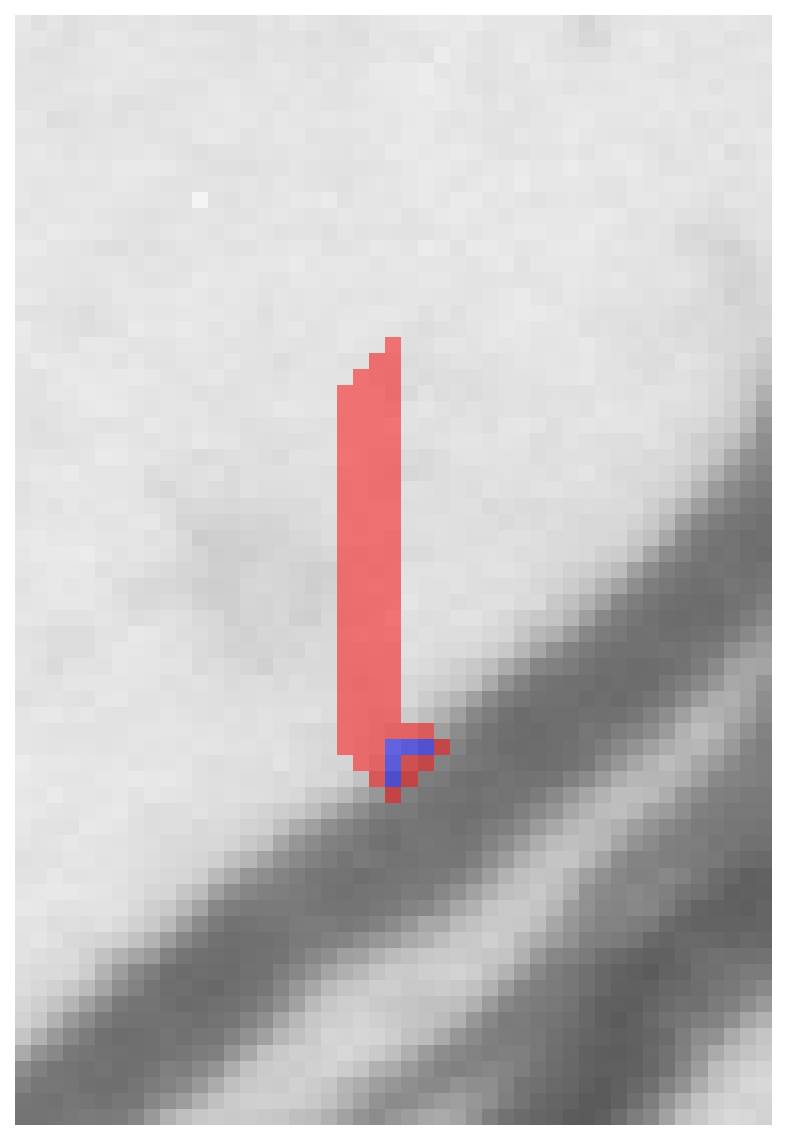

151	artifact	0.211	0.0231	0.0431	0.833	tiny axon (0.0231 um); very low gratio (0.211); myelin>>axon (mt/ad=1.87)	view

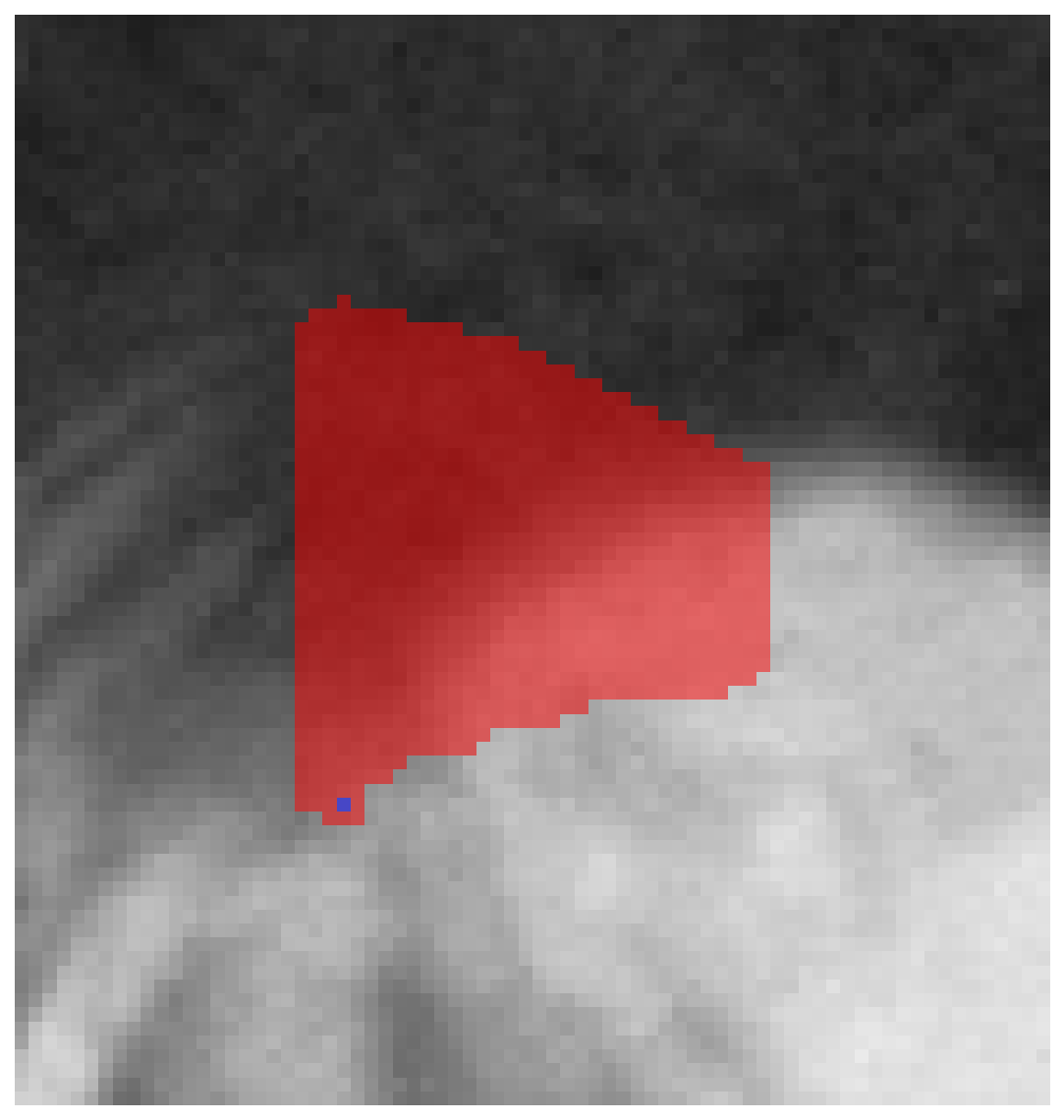

152	artifact	0.106	0.0231	0.0974	0.833	tiny axon (0.0231 um); very low gratio (0.106); myelin>>axon (mt/ad=4.22)	view

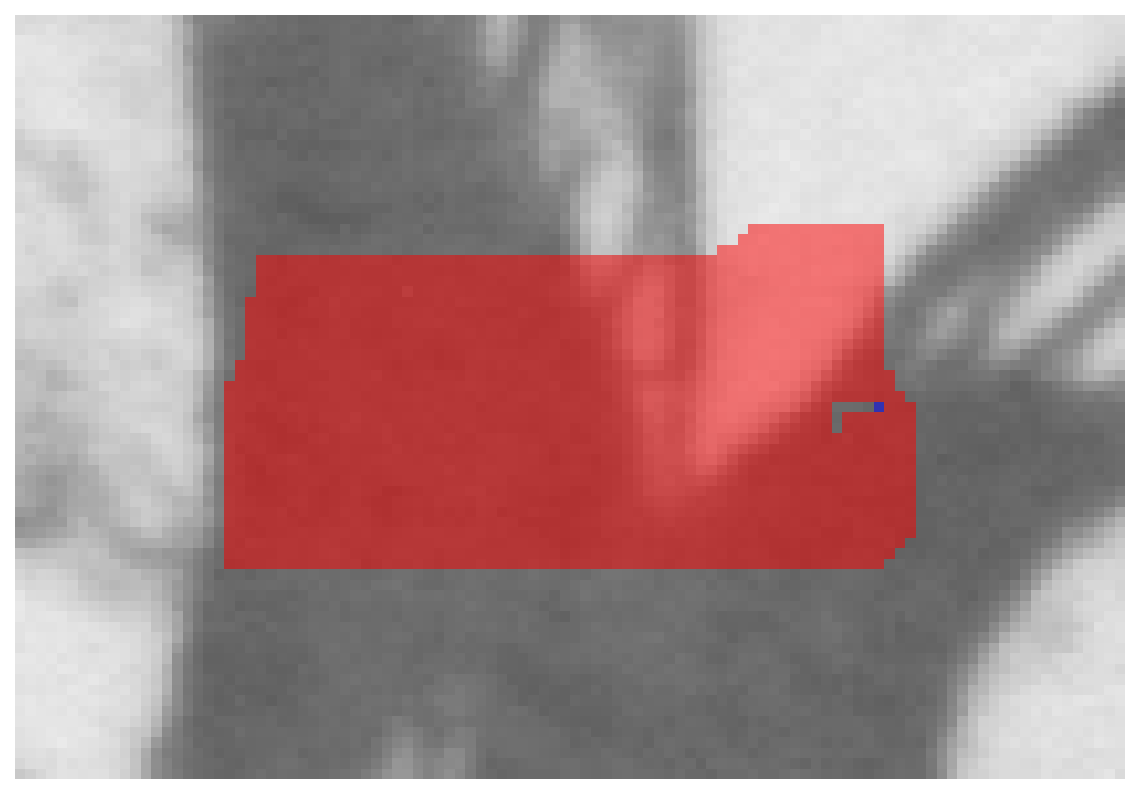

154	artifact	0.023	0.0103	0.2225	1.000	tiny axon (0.0103 um); very low gratio (0.023); myelin>>axon (mt/ad=21.56)	view

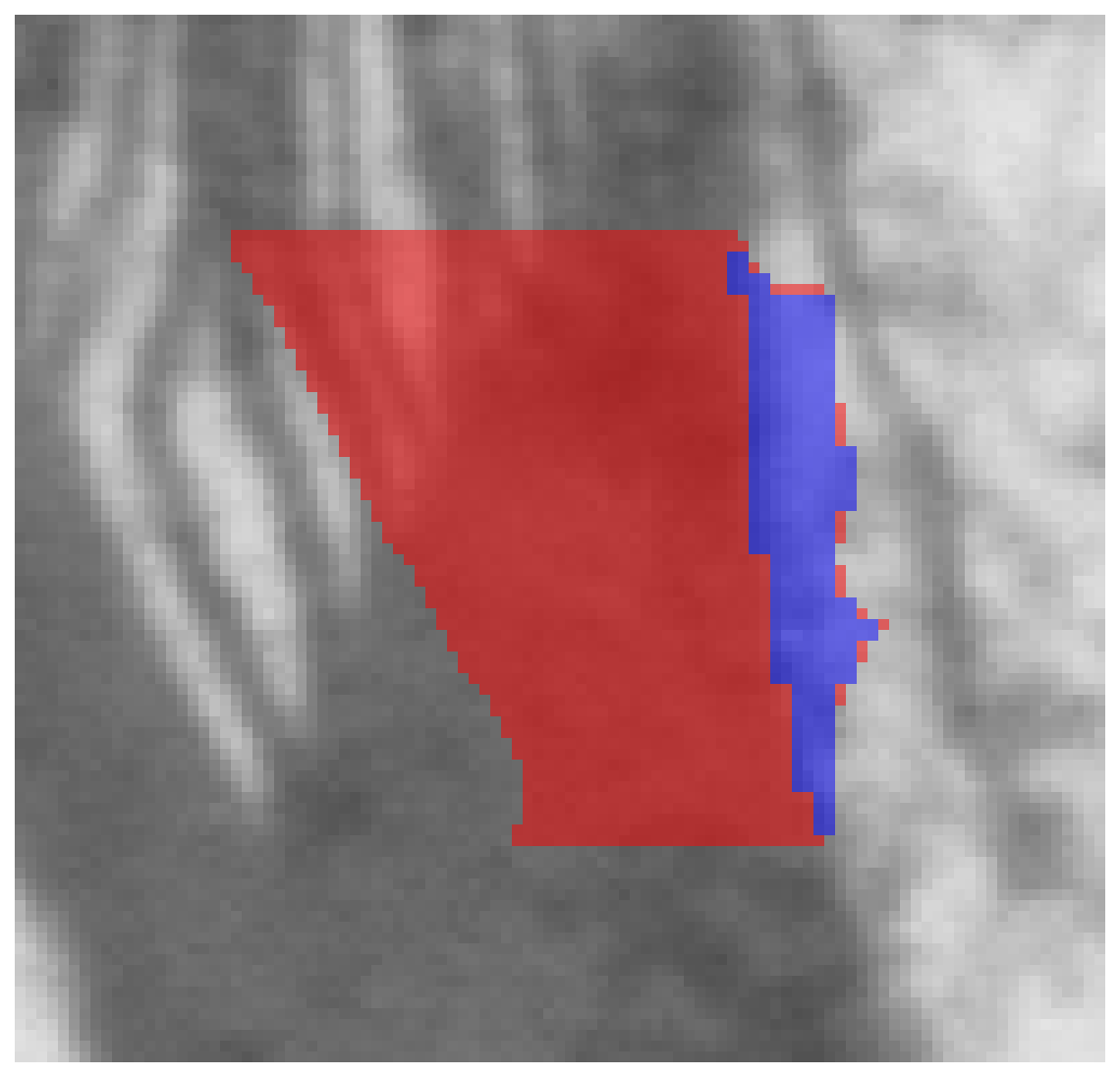

159	merge_error	0.388	0.1947	0.1535	0.730	low solidity (0.730)	view

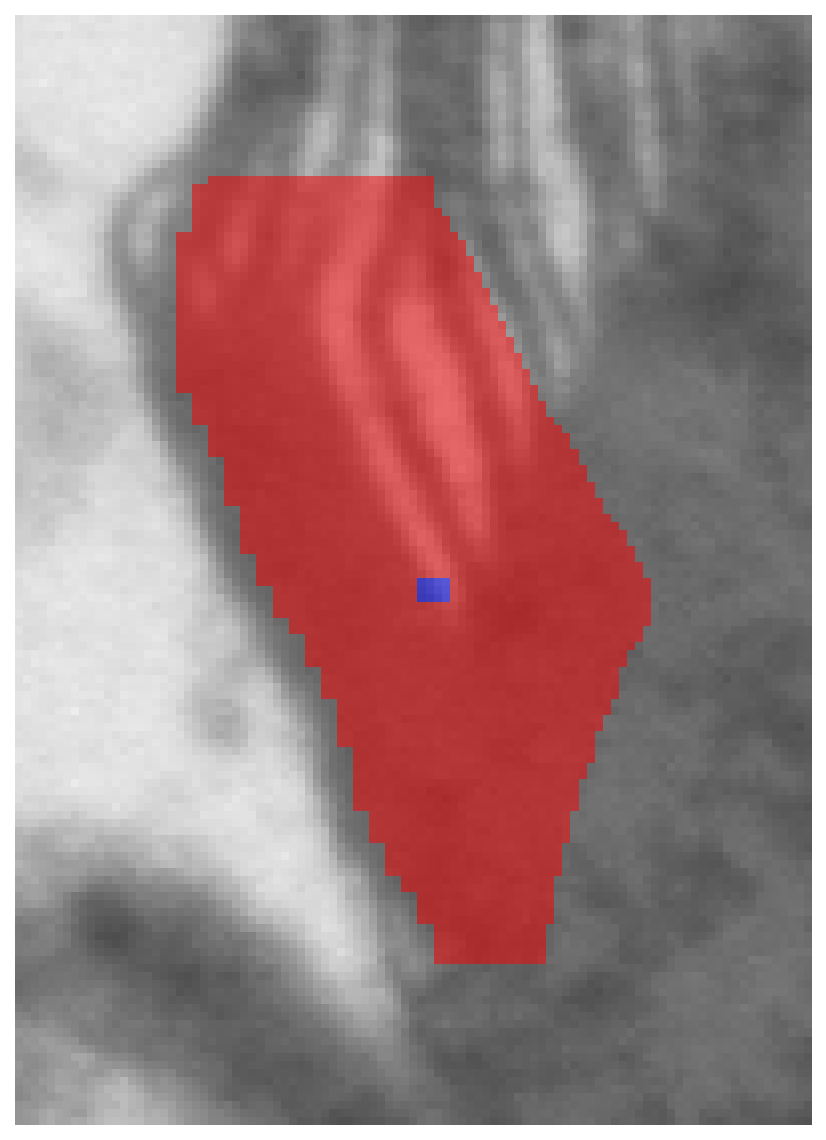

160	artifact	0.059	0.0357	0.2872	1.000	tiny axon (0.0357 um); very low gratio (0.059); myelin>>axon (mt/ad=8.04)	view

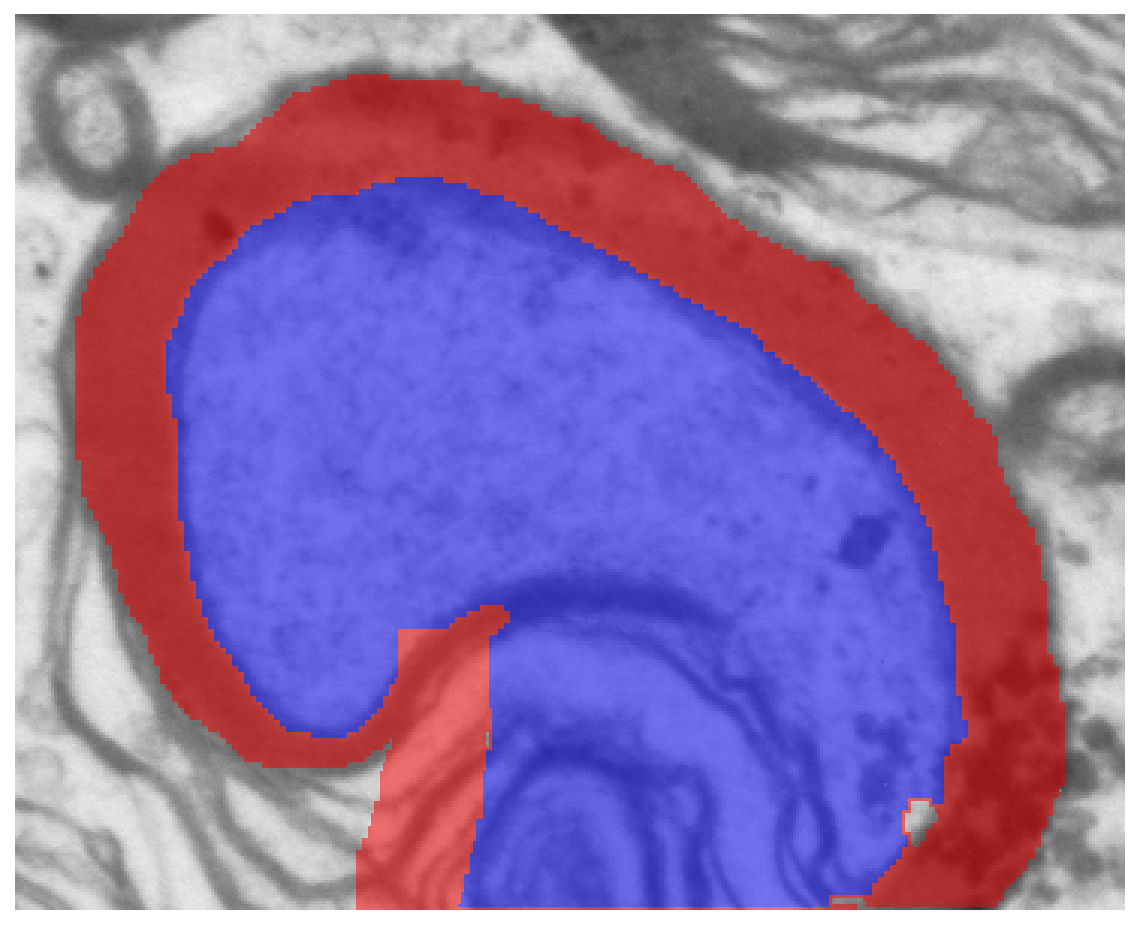

175	border	0.804	2.1734	0.2645	0.917	border-touching	view

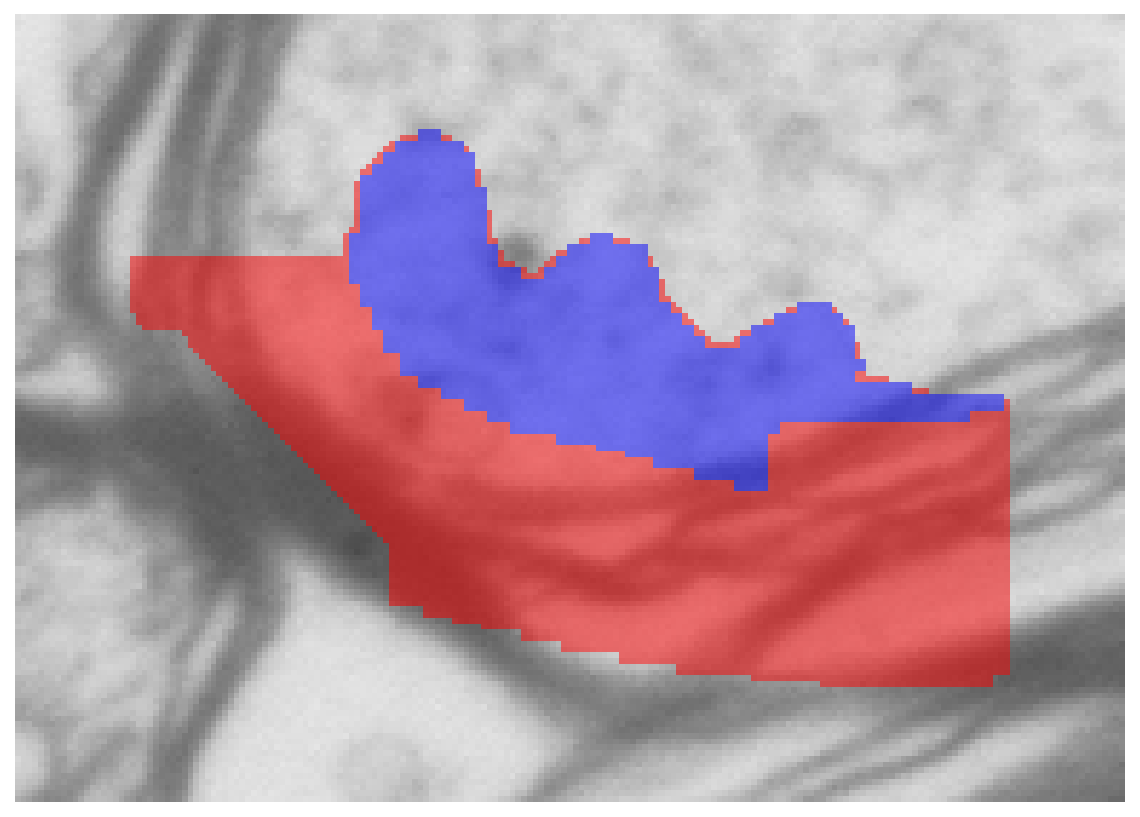

181	merge_error	0.576	0.5455	0.2007	0.714	low solidity (0.714)	view

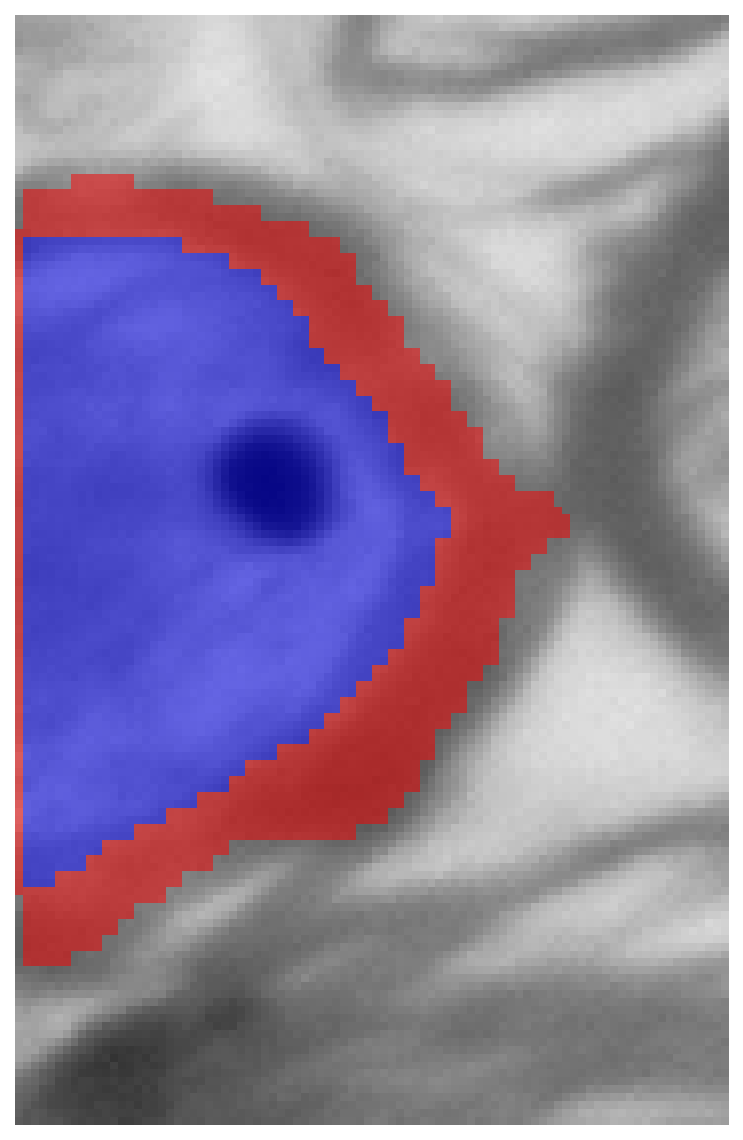

184	border	0.809	0.5719	0.0676	0.969	border-touching	view

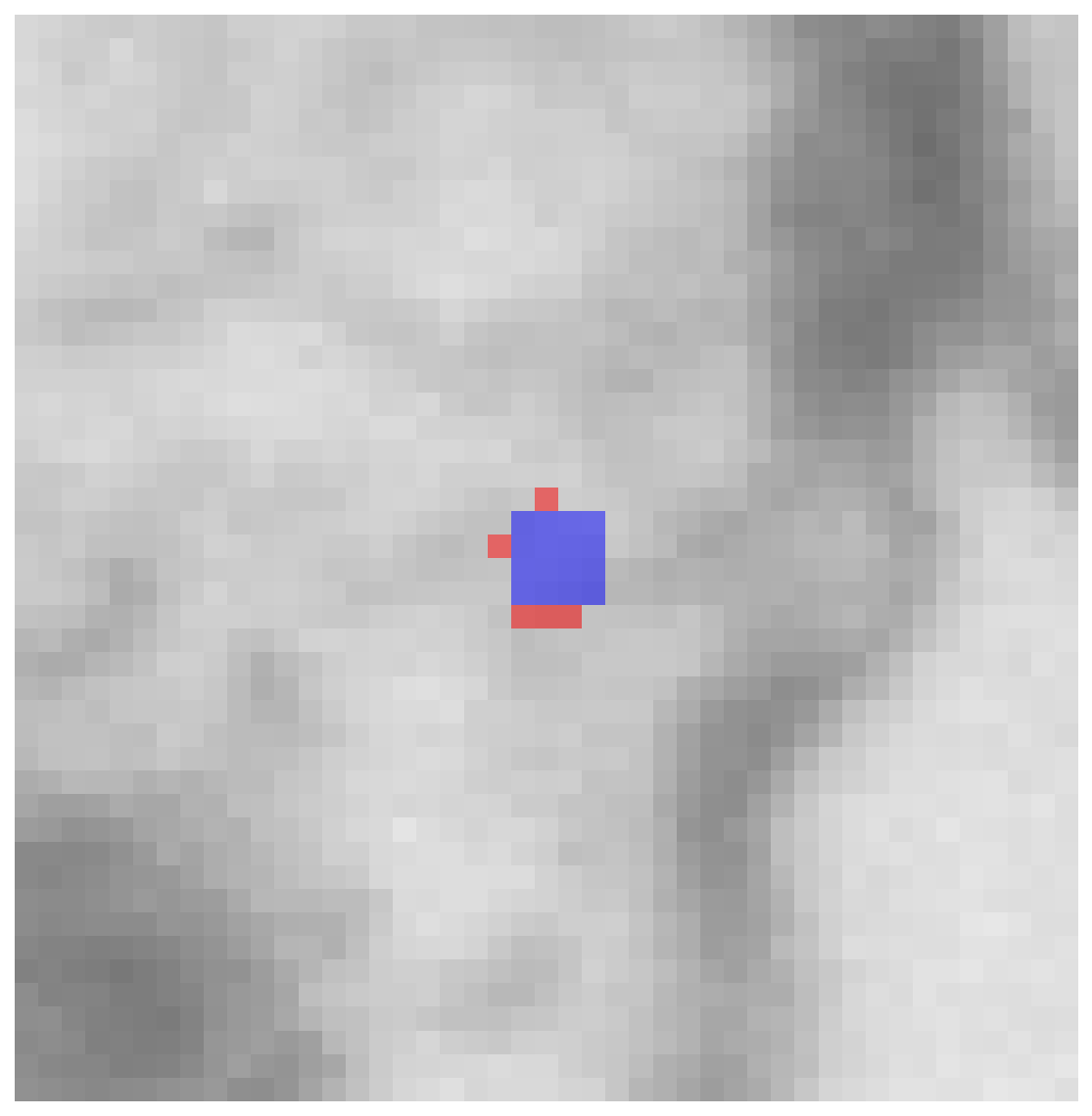

186	artifact	0.873	0.0413	0.0030	1.000	tiny axon (0.0413 um)	view

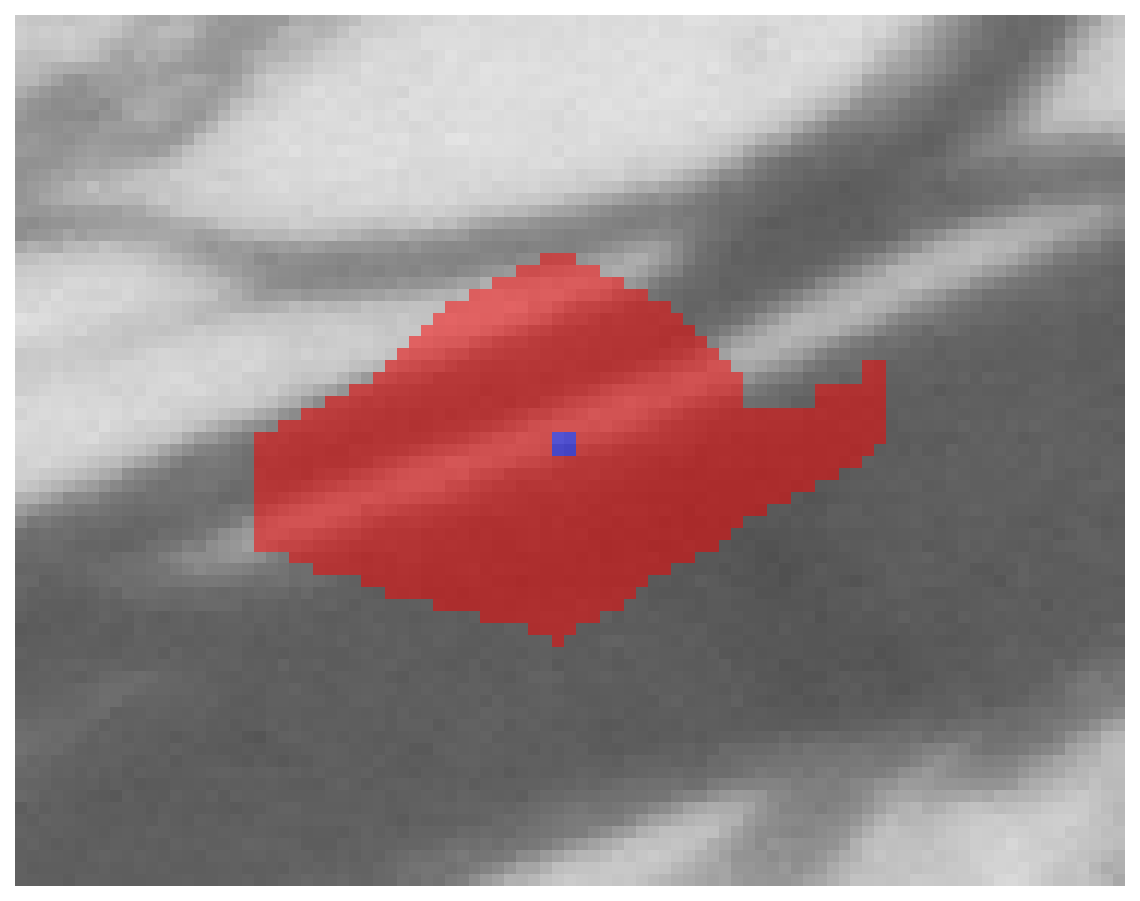

189	artifact	0.063	0.0206	0.1524	1.000	tiny axon (0.0206 um); very low gratio (0.063); myelin>>axon (mt/ad=7.39)	view

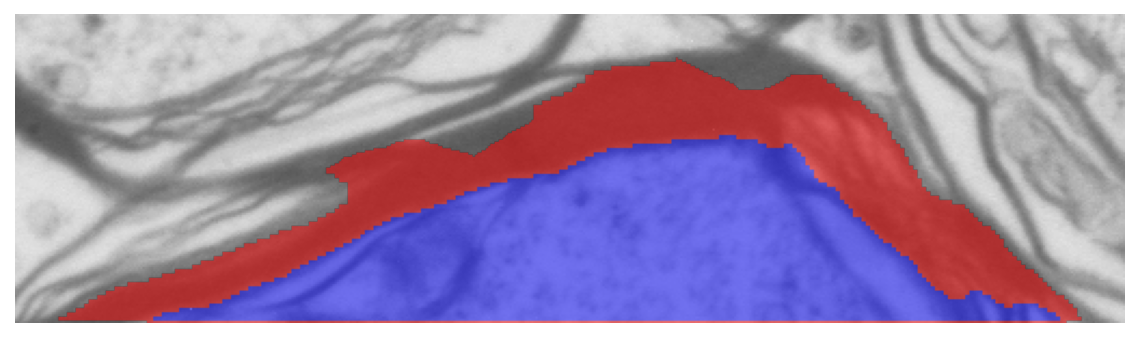

190	border	0.761	1.4331	0.2253	0.893	border-touching	view

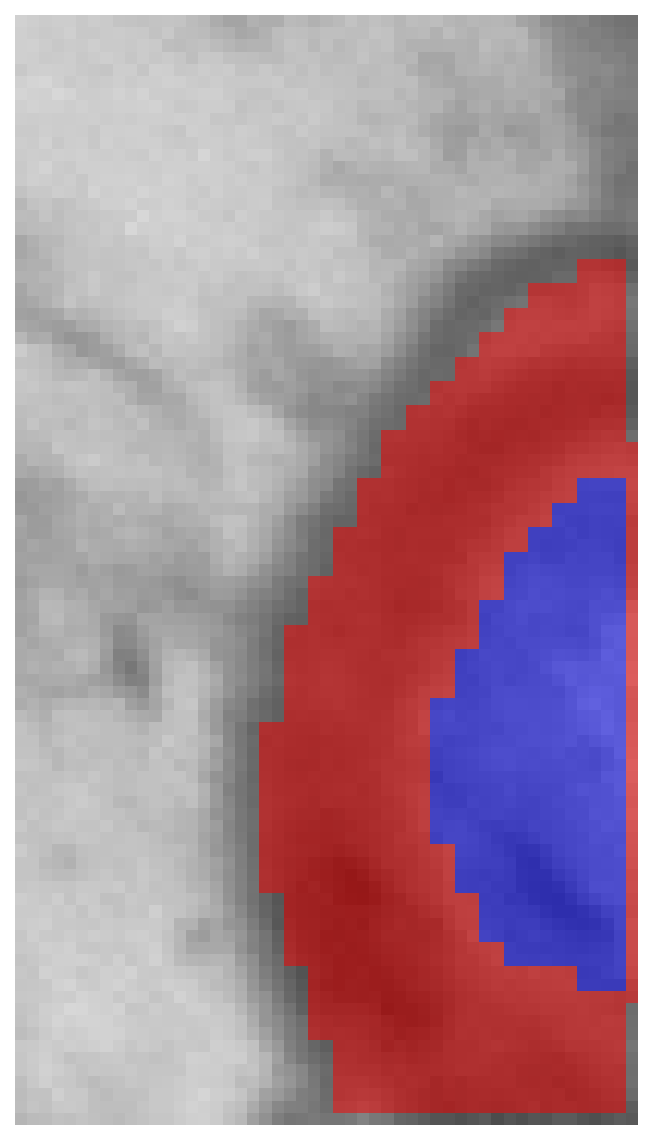

192	border	0.546	0.2316	0.0963	0.946	border-touching	view

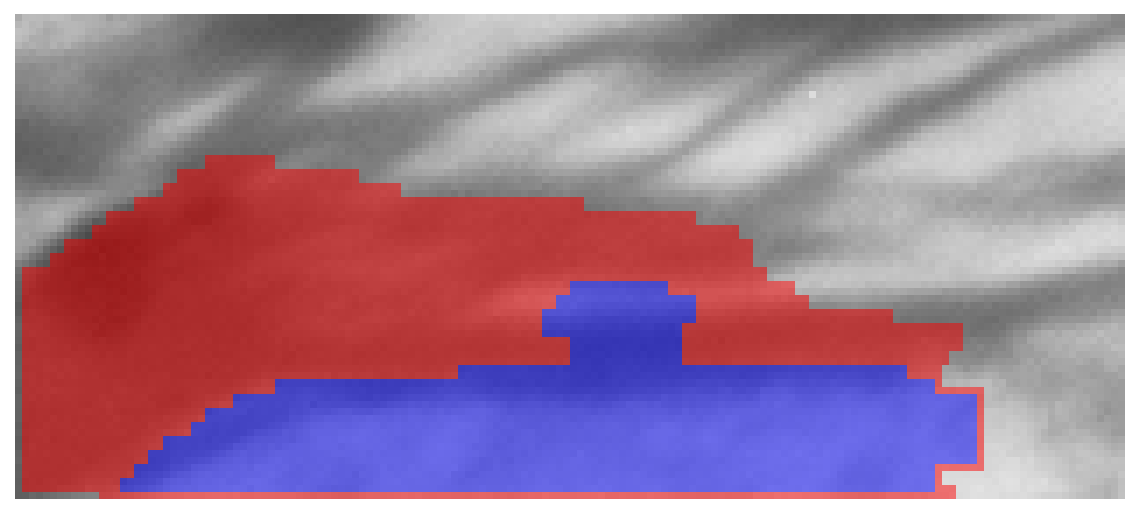

193	border	0.633	0.4746	0.1373	0.827	border-touching	view

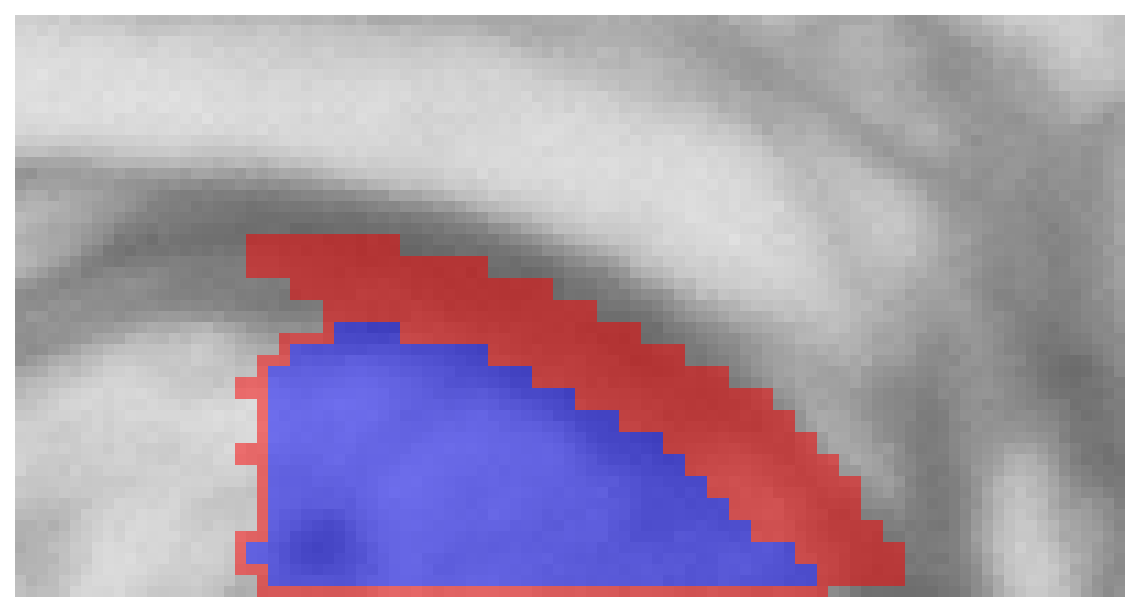

194	border	0.755	0.2947	0.0479	0.928	border-touching	view

Slice 03¶

Segmentation overlay¶

Summary¶

Total axons: 255
Excluded: 75 (29.4%)
Retained: 180

Exclusions by category¶

artifact: 24
border: 40
invalid: 1
merge_error: 4
myelin_dominant: 6

Flagged axons (visual review)¶

Exclusion details¶

Axon ID	Category	G-ratio	Axon diam (um)	Myelin thickness (um)	Solidity	Reasons	Closeup
0	border	0.765	1.5973	0.2452	0.945	border-touching	view
1	border	0.907	0.0546	0.0028	0.824	border-touching	view
2	border	0.933	3.1163	0.1112	0.979	border-touching	view

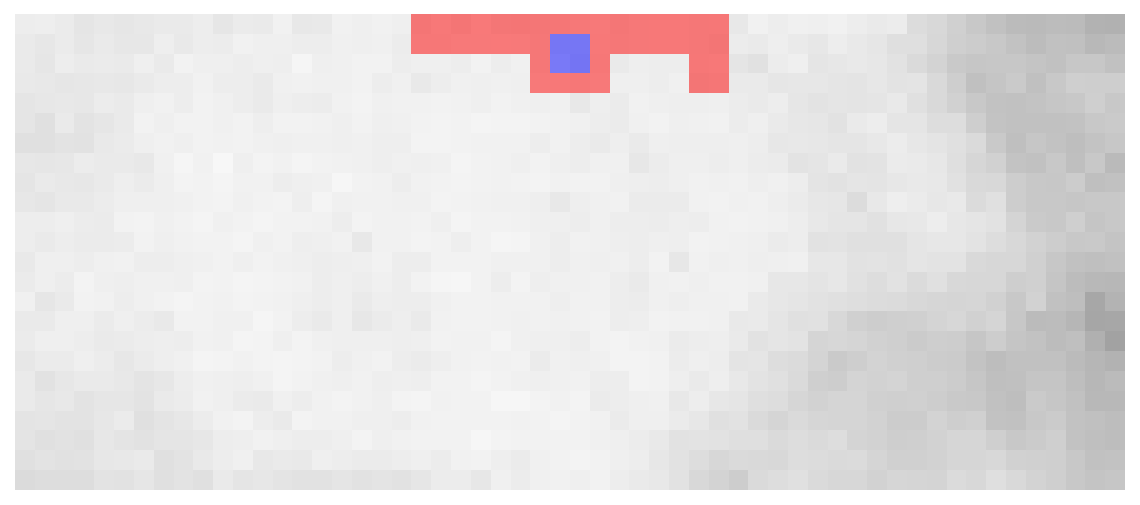

3	border	0.302	0.0206	0.0239	1.000	border-touching; tiny axon (0.0206 um); myelin>>axon (mt/ad=1.16)	view
4	border	0.832	0.9192	0.0929	0.973	border-touching	view
5	border	0.693	0.7760	0.1716	0.960	border-touching	view

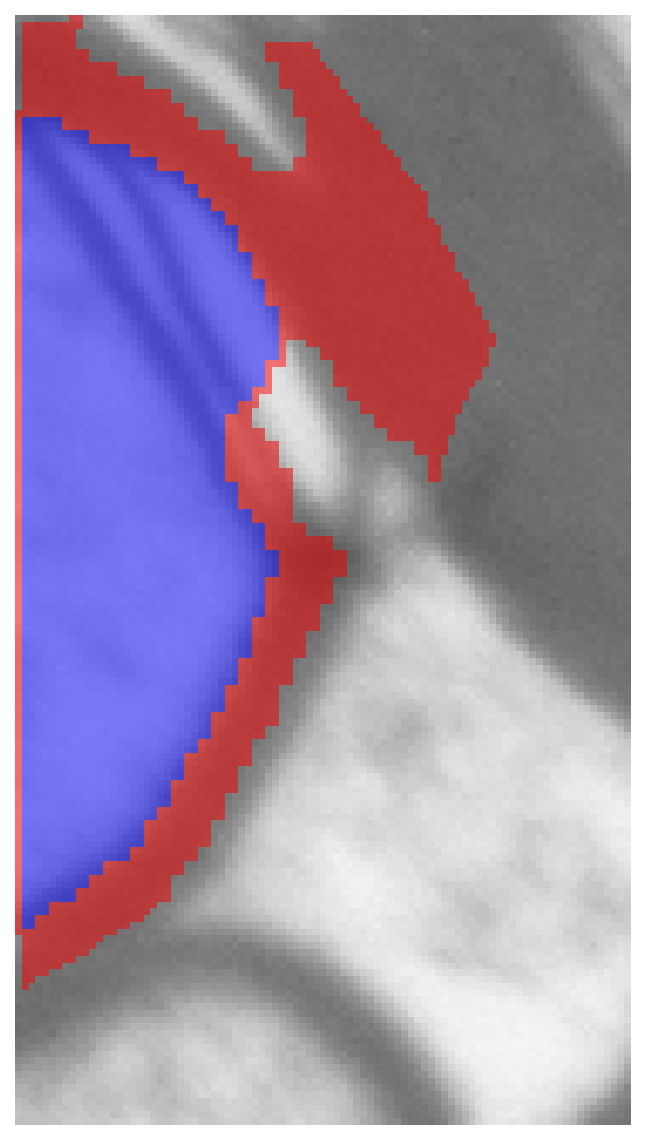

6	border	0.755	0.6397	0.1039	0.963	border-touching	view

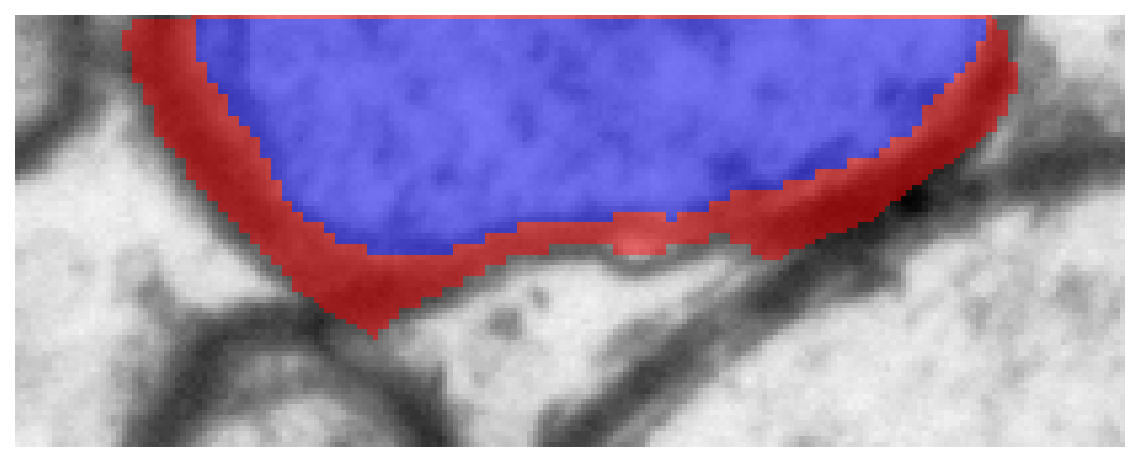

7	border	0.829	0.7089	0.0732	0.955	border-touching	view
8	border	0.566	0.3680	0.1411	0.869	border-touching	view

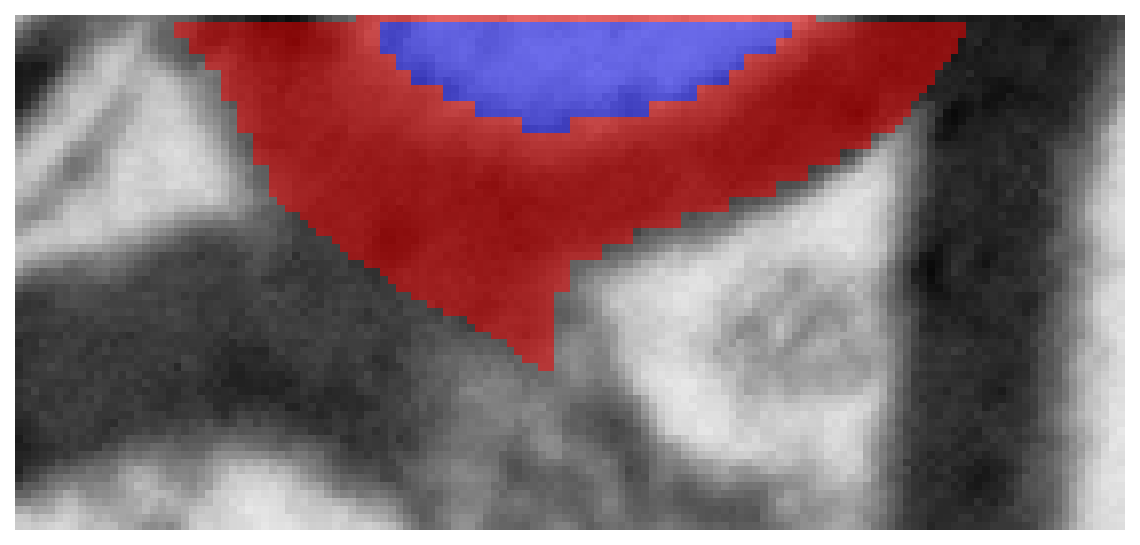

9	border	0.449	0.2289	0.1405	0.925	border-touching	view

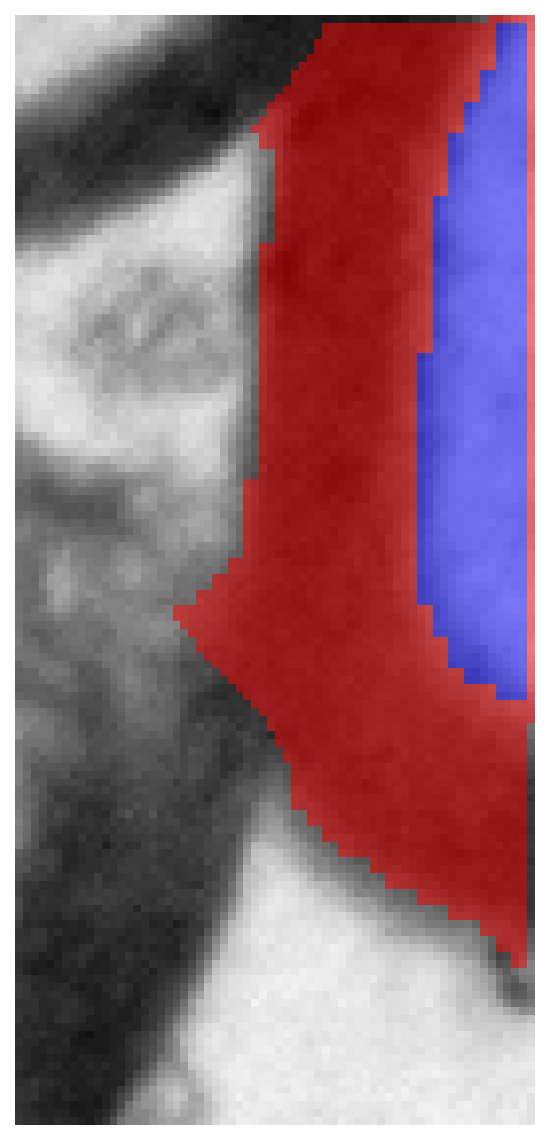

10	border	0.501	0.3197	0.1592	0.945	border-touching	view

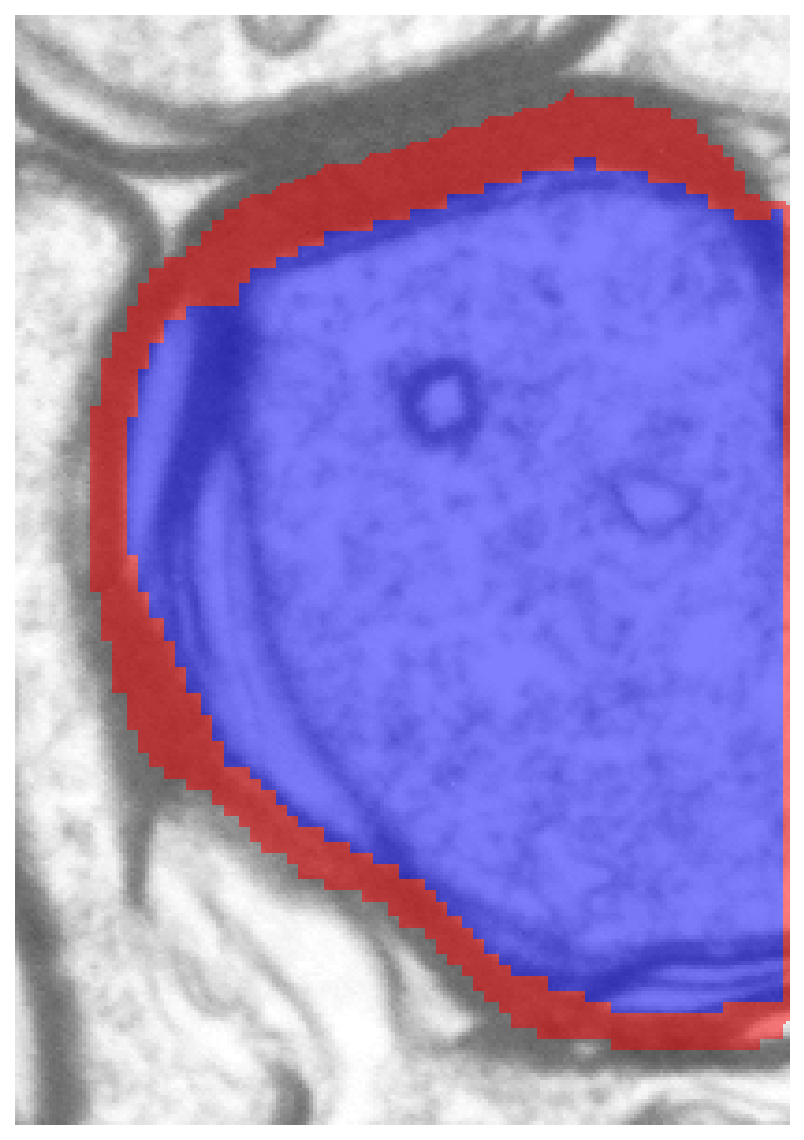

13	border	0.838	1.2175	0.1178	0.927	border-touching	view

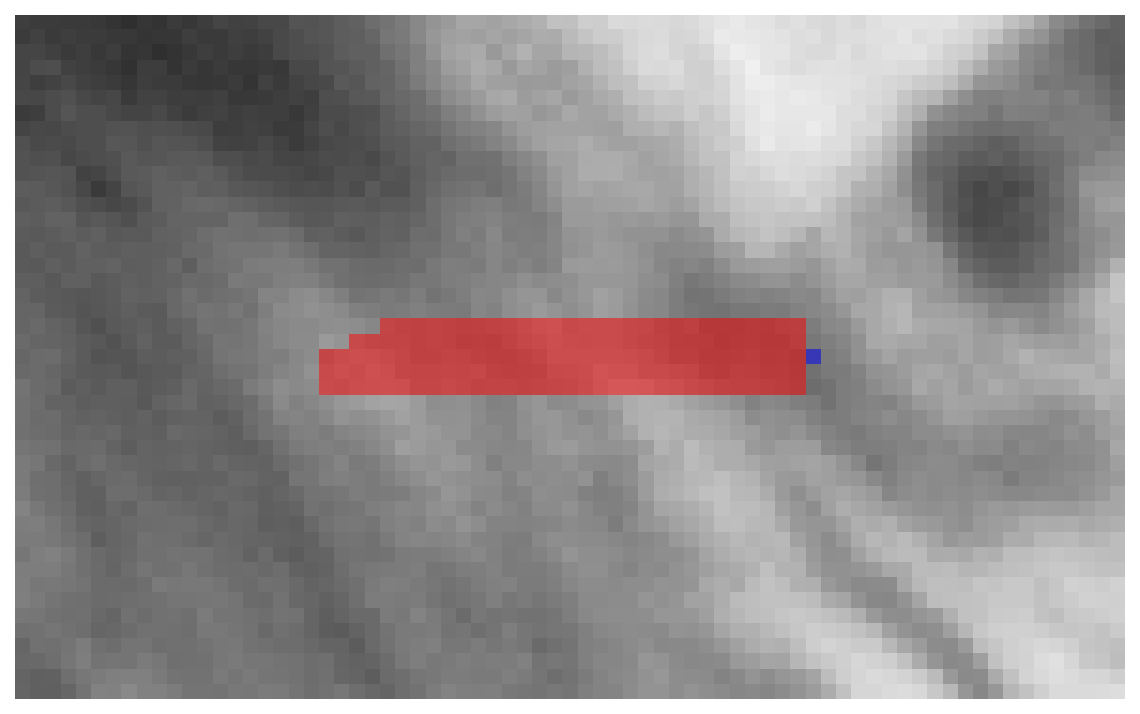

16	artifact	0.341	0.0438	0.0423	0.750	tiny axon (0.0438 um)	view

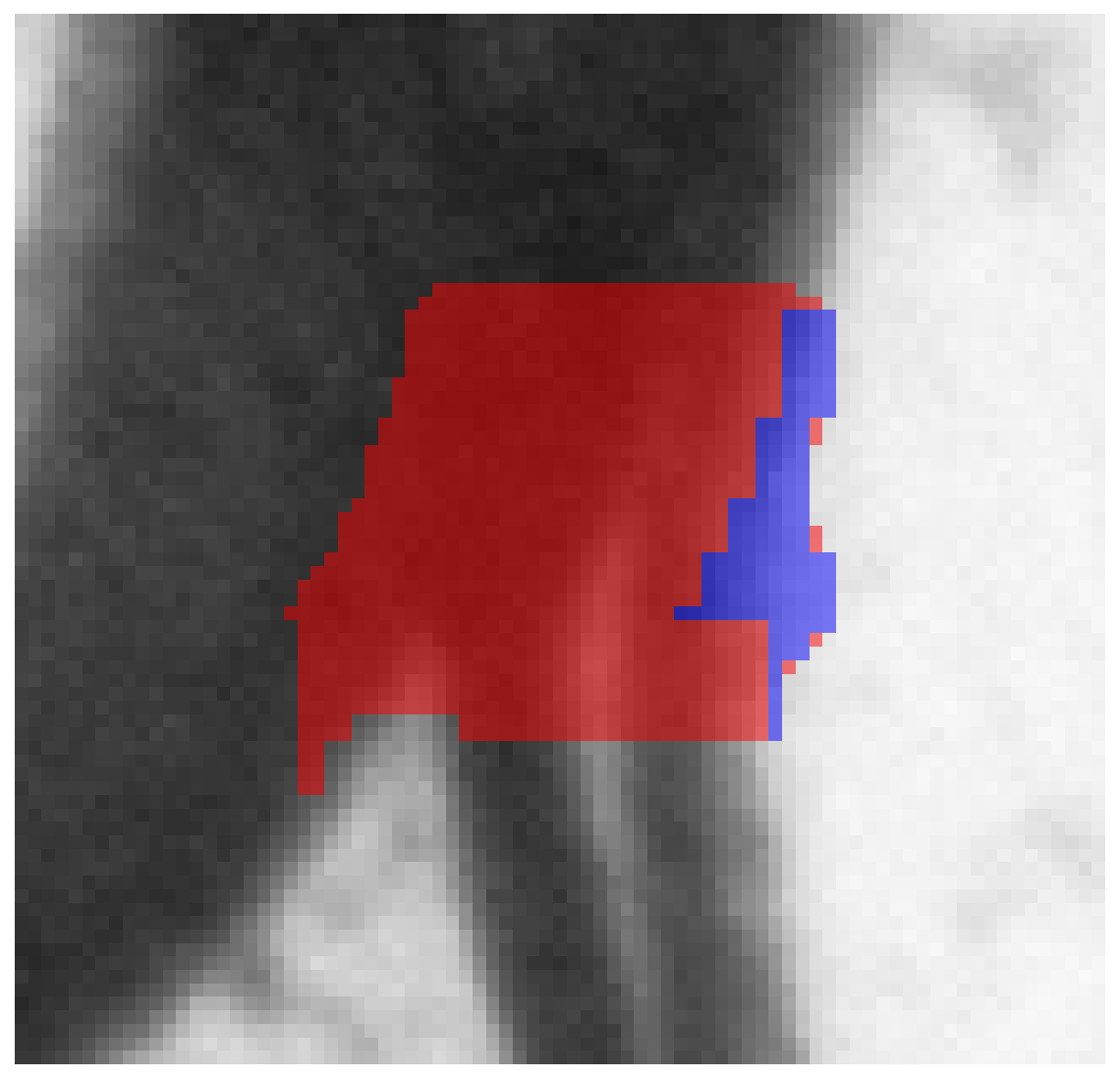

17	merge_error	0.355	0.1259	0.1142	0.618	low solidity (0.618)	view
18	invalid	27.839	2.8436	-1.3707	0.745	gratio=27.839; no myelin; low solidity (0.745)	view
22	artifact	0.756	0.0206	0.0033	1.000	tiny axon (0.0206 um)	view

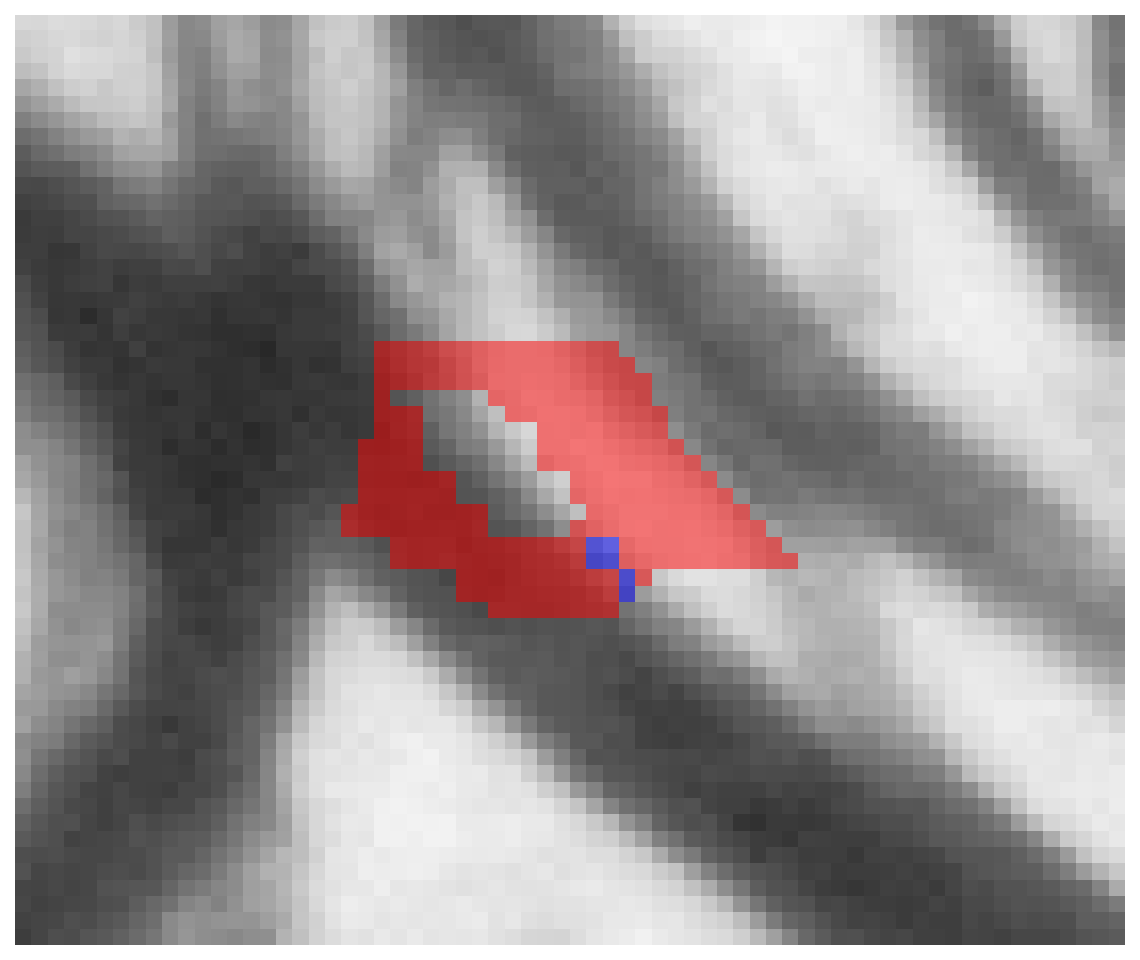

29	artifact	0.152	0.0253	0.0707	0.750	tiny axon (0.0253 um); very low gratio (0.152); myelin>>axon (mt/ad=2.80)	view

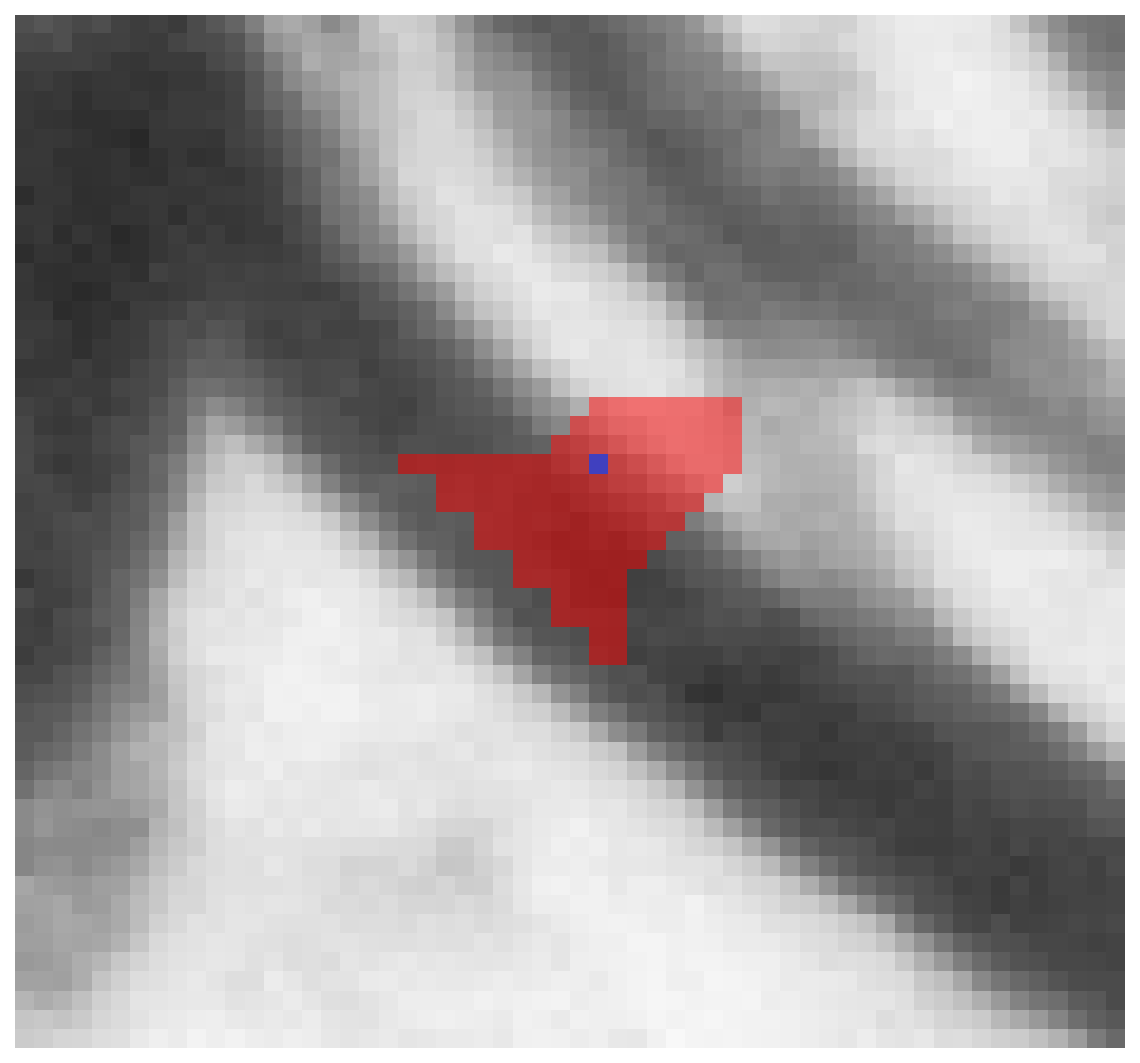

30	artifact	0.091	0.0103	0.0514	1.000	tiny axon (0.0103 um); very low gratio (0.091); myelin>>axon (mt/ad=4.98)	view

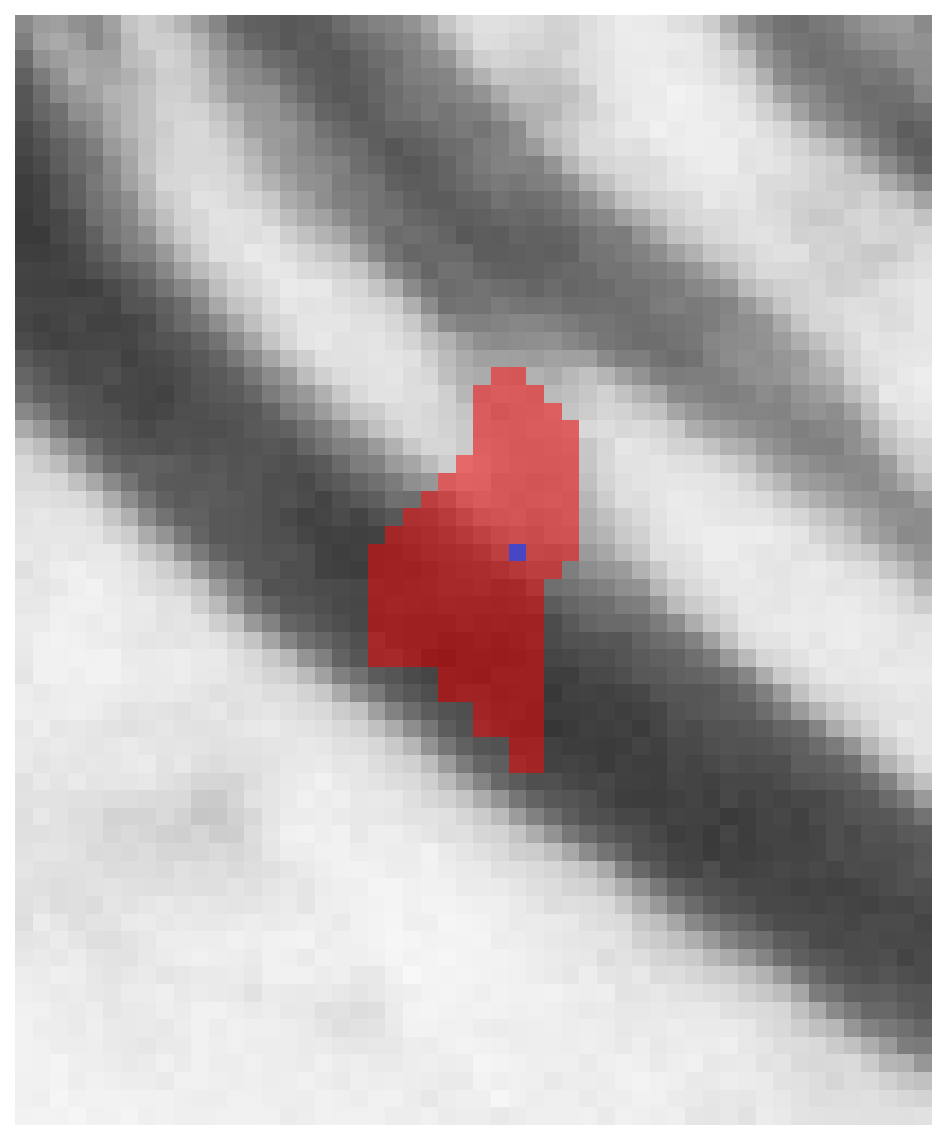

31	artifact	0.078	0.0103	0.0611	1.000	tiny axon (0.0103 um); very low gratio (0.078); myelin>>axon (mt/ad=5.92)	view

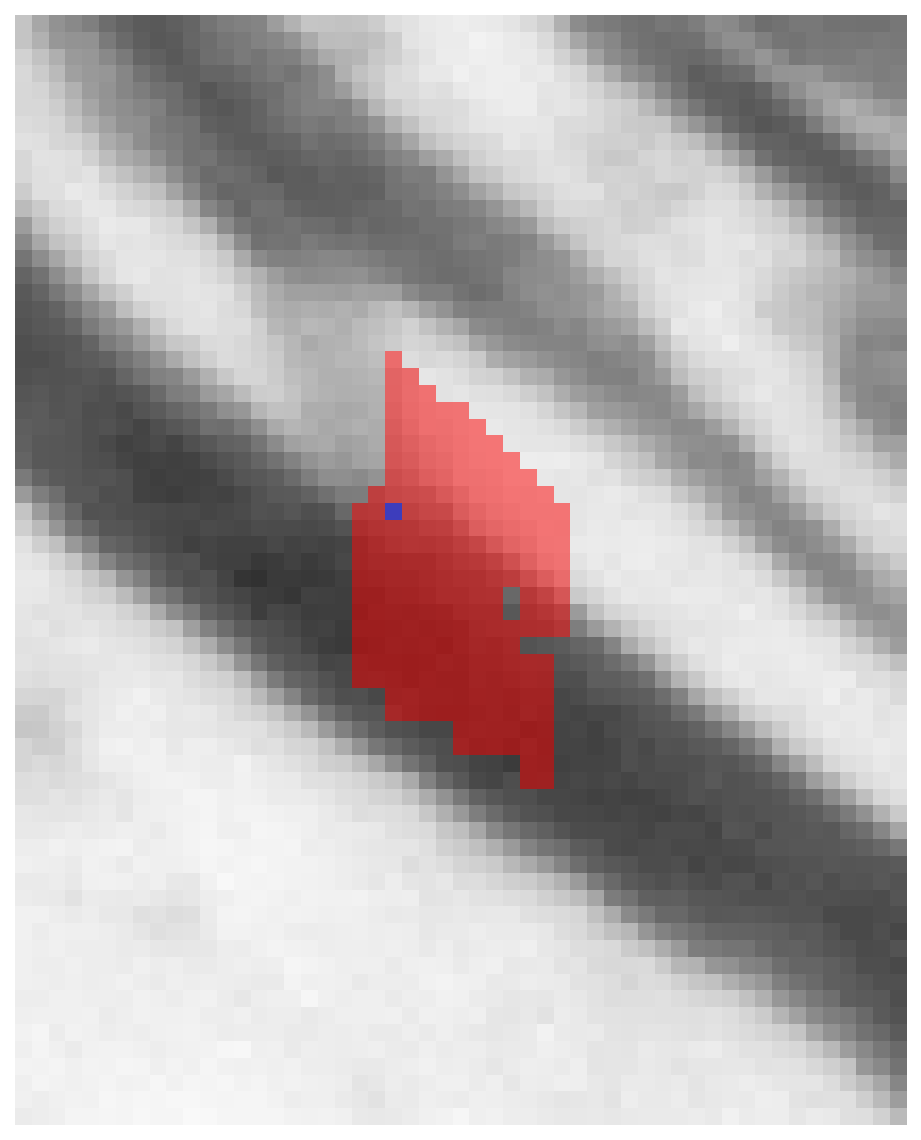

32	artifact	0.067	0.0103	0.0721	1.000	tiny axon (0.0103 um); very low gratio (0.067); myelin>>axon (mt/ad=6.98)	view

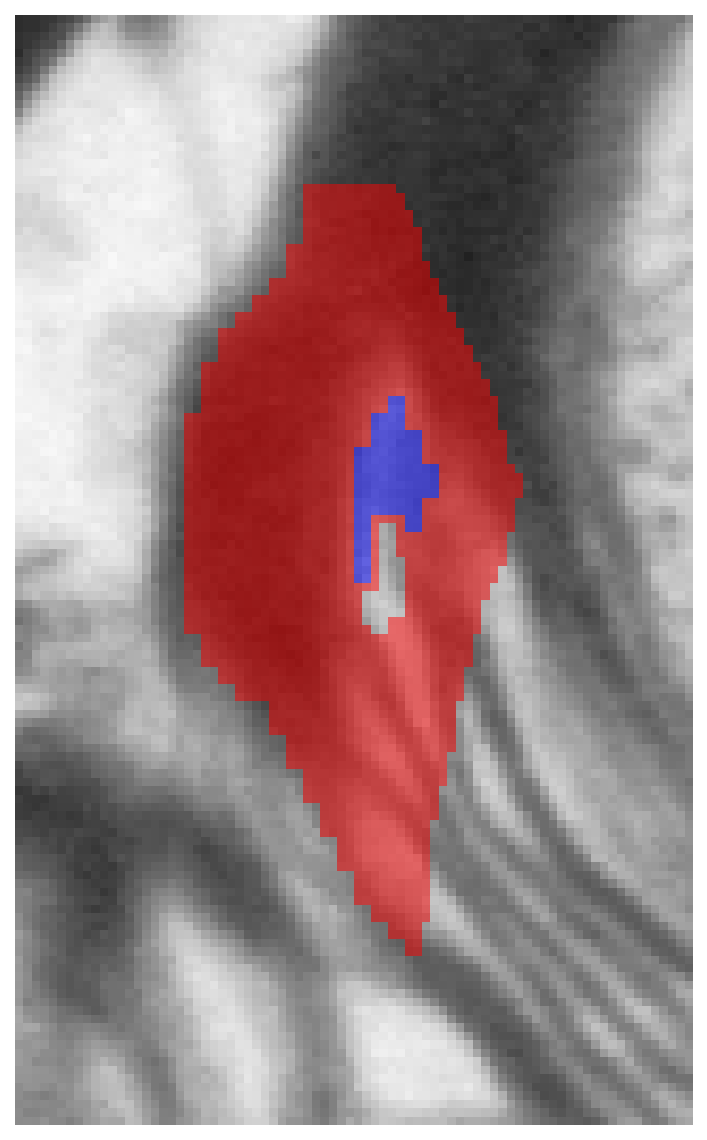

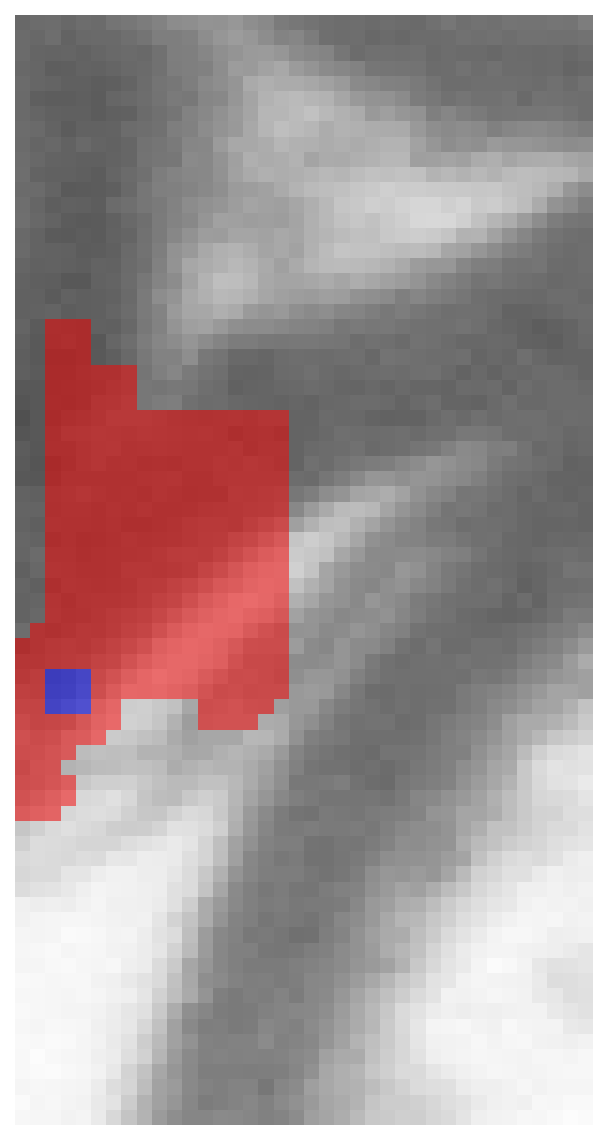

36	myelin_dominant	0.230	0.1111	0.1856	0.744	very low gratio (0.230); low solidity (0.744); myelin>>axon (mt/ad=1.67)	view

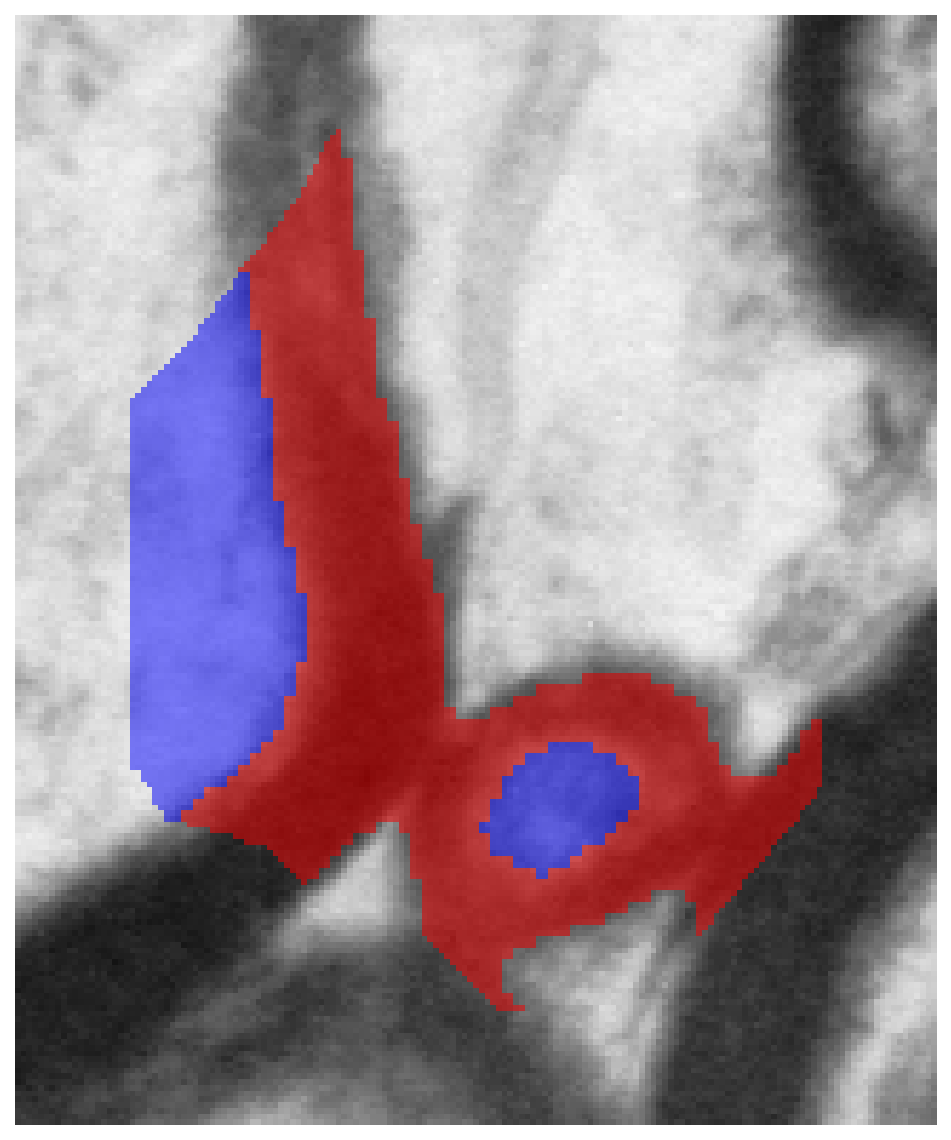

40	myelin_dominant	0.241	0.2135	0.3359	0.905	very low gratio (0.241); myelin>>axon (mt/ad=1.57)	view
42	border	0.639	0.3385	0.0955	0.966	border-touching	view

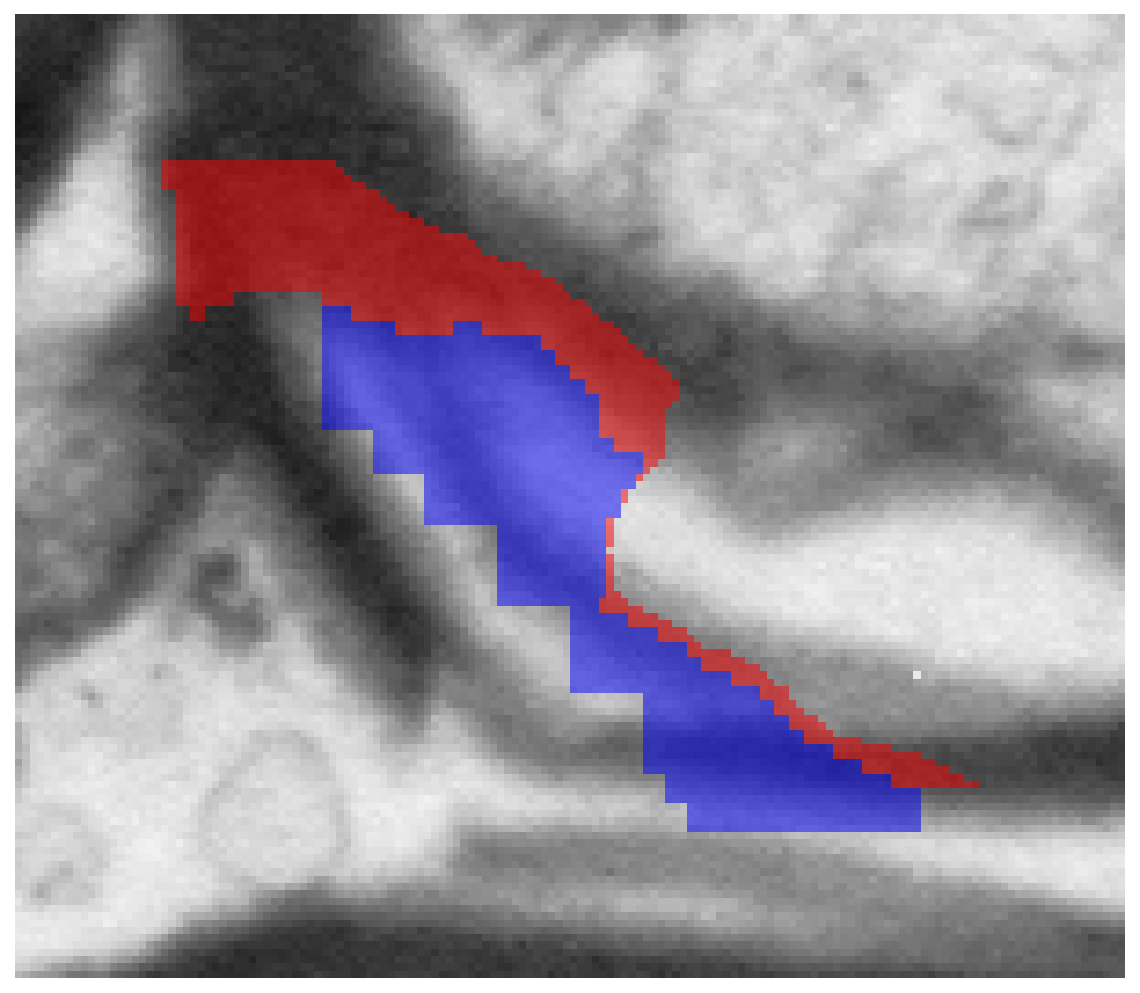

50	merge_error	0.766	0.4308	0.0659	0.656	low solidity (0.656)	view
51	border	0.797	0.5924	0.0756	0.923	border-touching	view
62	border	0.852	1.1523	0.1002	0.910	border-touching	view
70	border	0.918	1.9137	0.0851	0.970	border-touching	view

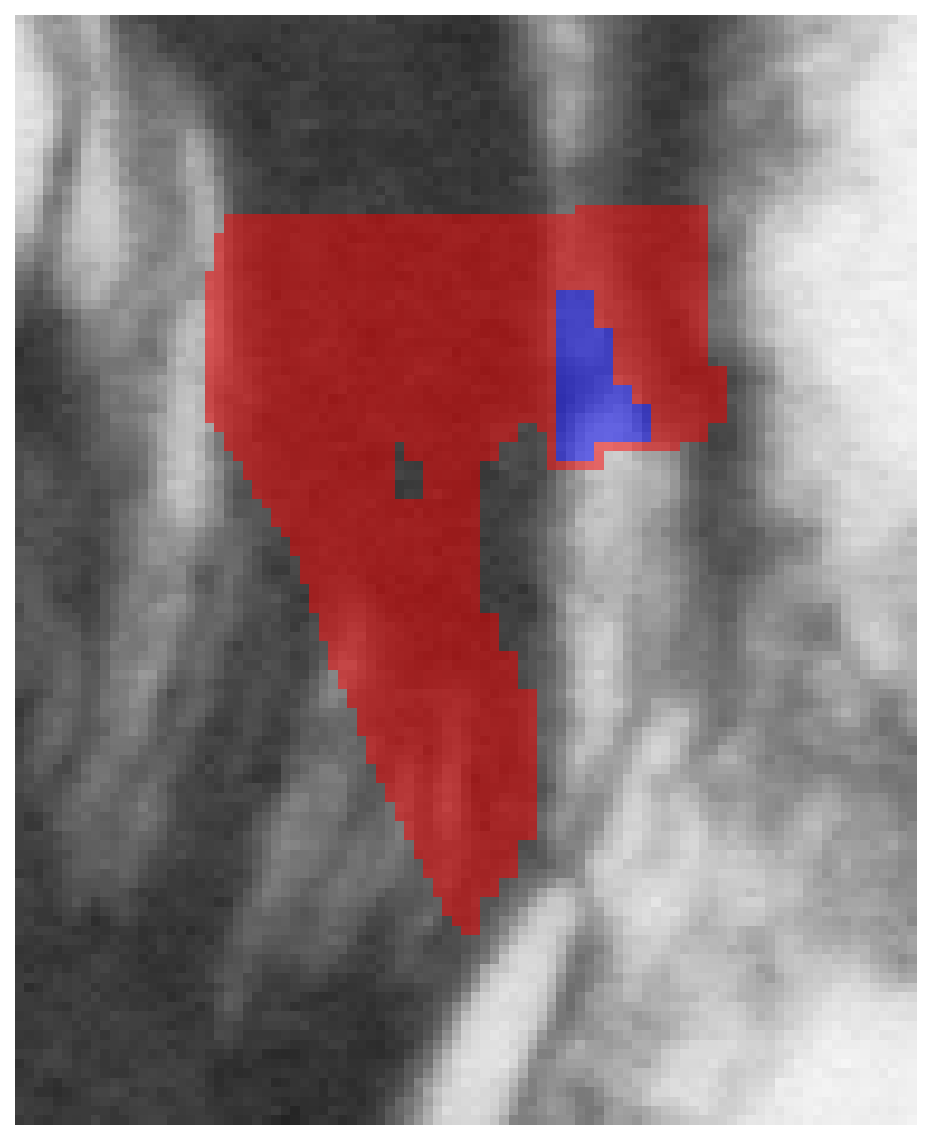

71	myelin_dominant	0.230	0.1111	0.1856	0.847	very low gratio (0.230); myelin>>axon (mt/ad=1.67)	view
73	border	0.834	1.3863	0.1381	0.850	border-touching	view
87	border	0.716	0.9597	0.1908	0.976	border-touching	view

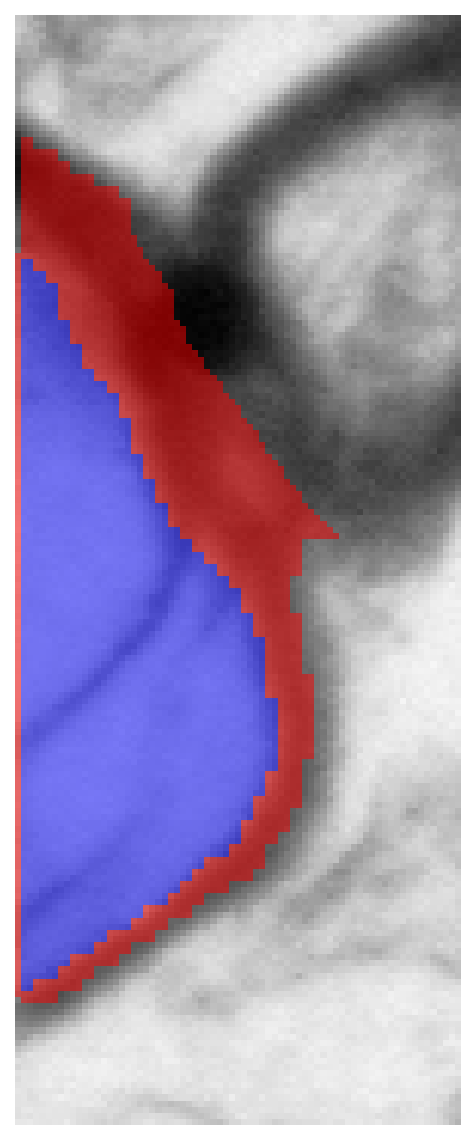

93	border	0.780	0.5659	0.0798	0.936	border-touching	view

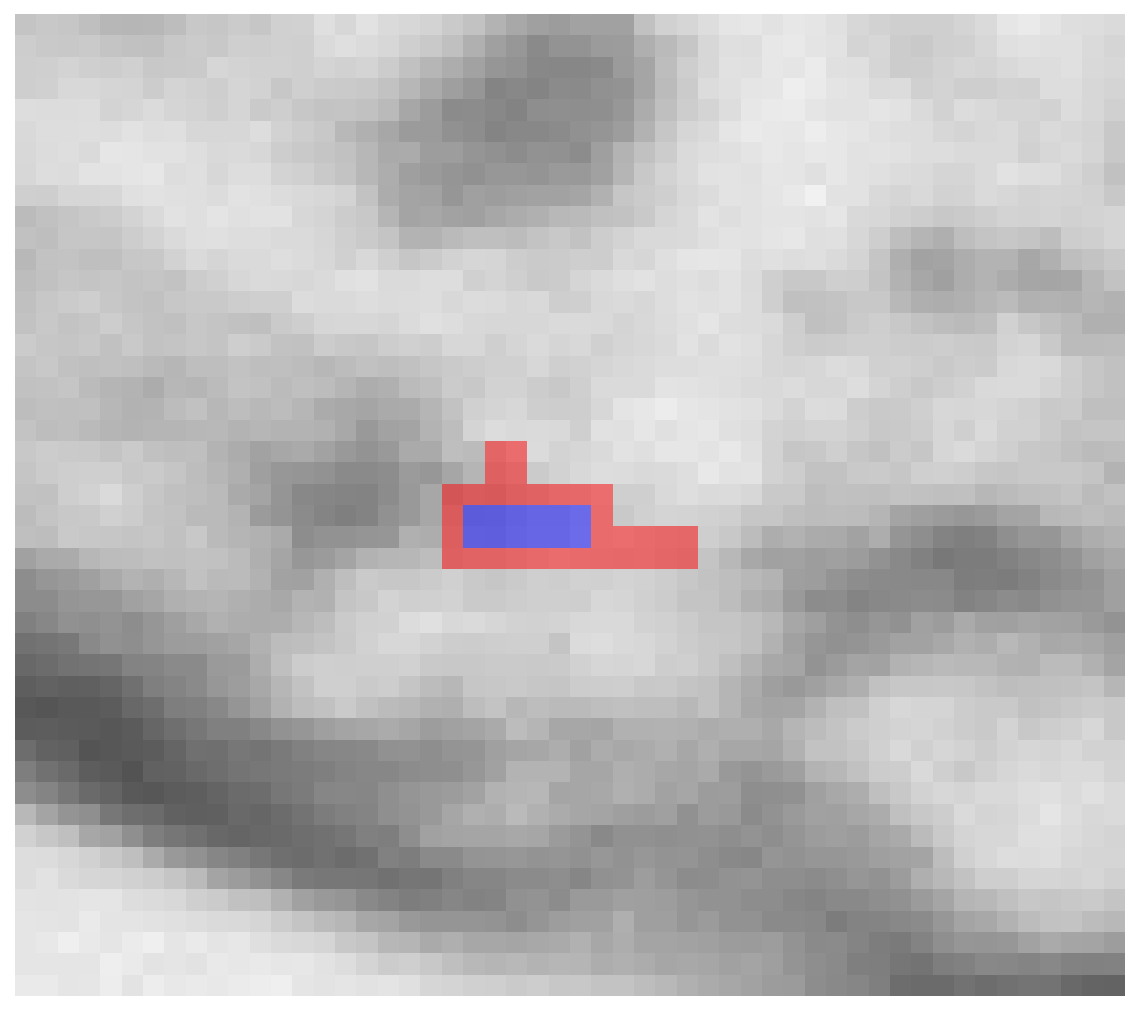

94	artifact	0.522	0.0357	0.0163	1.000	tiny axon (0.0357 um)	view

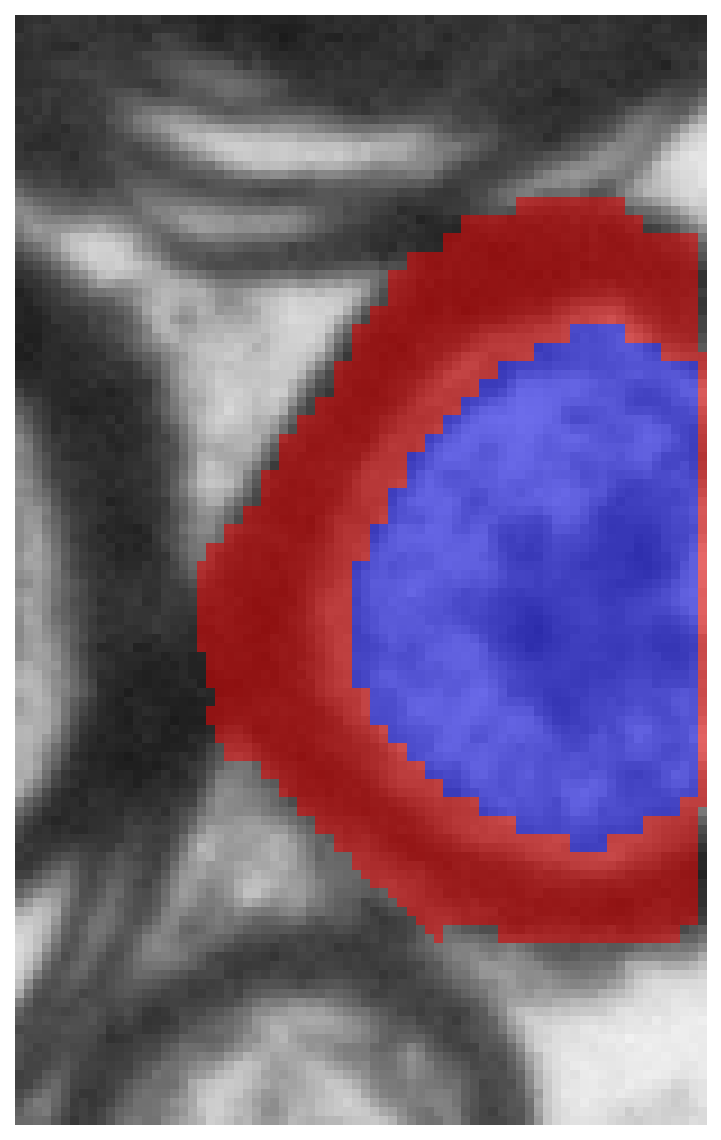

104	border	0.693	0.4269	0.0946	0.965	border-touching	view

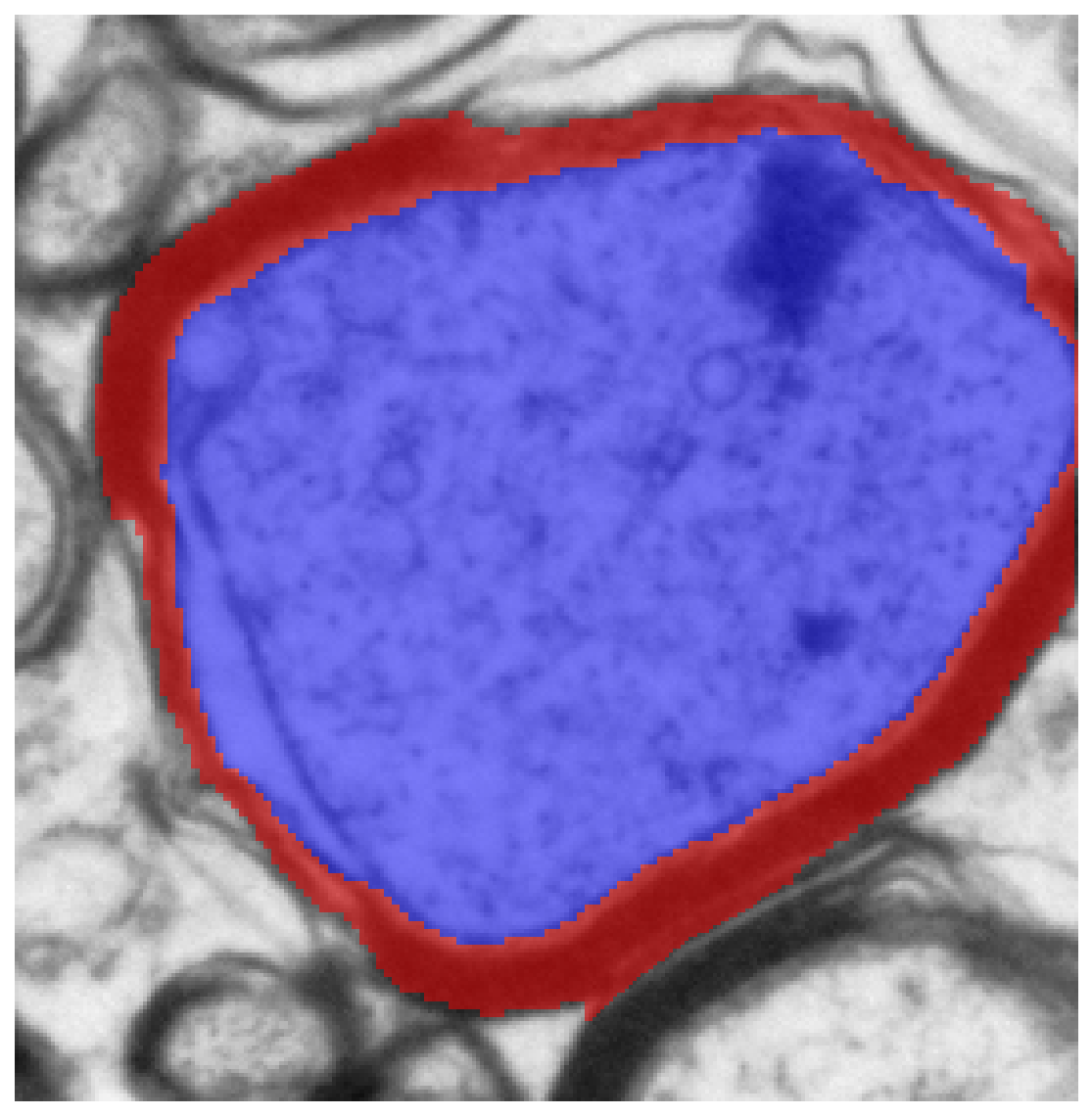

121	border	0.882	1.8800	0.1255	0.976	border-touching	view

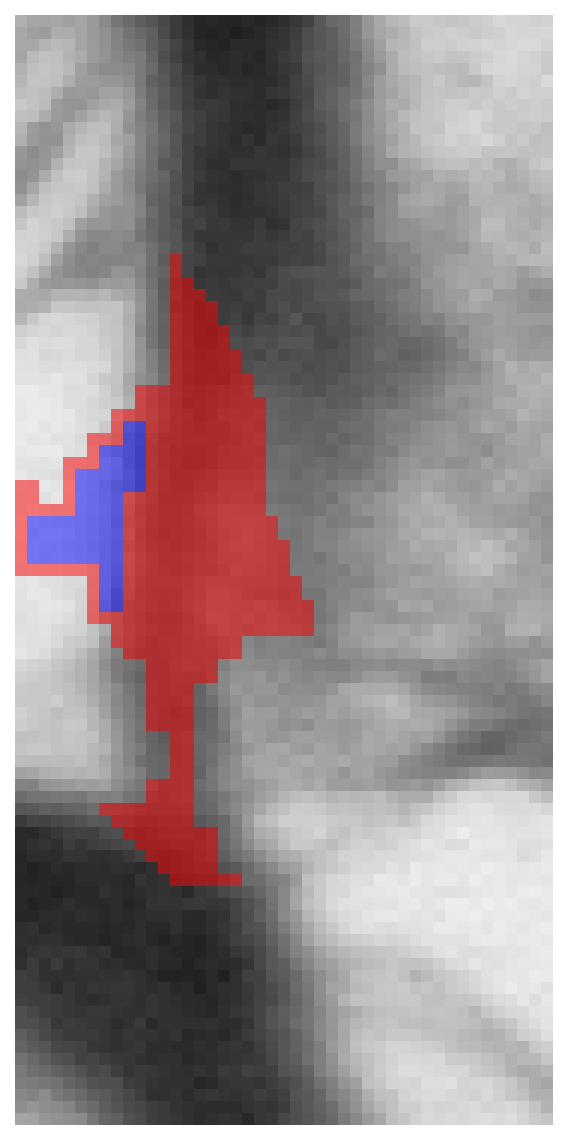

123	border	0.369	0.0876	0.0750	0.727	border-touching; low solidity (0.727)	view

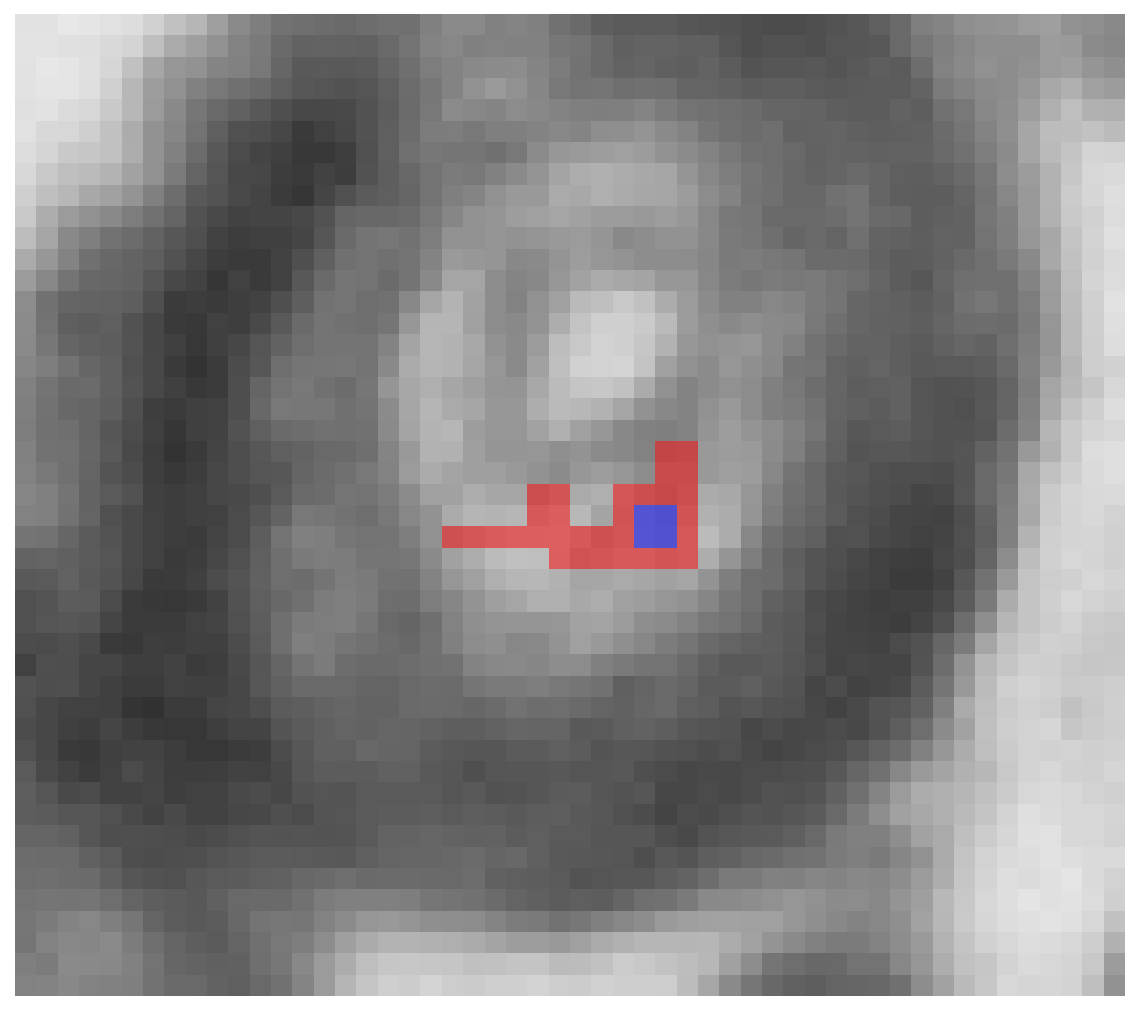

127	artifact	0.338	0.0206	0.0202	1.000	tiny axon (0.0206 um)	view

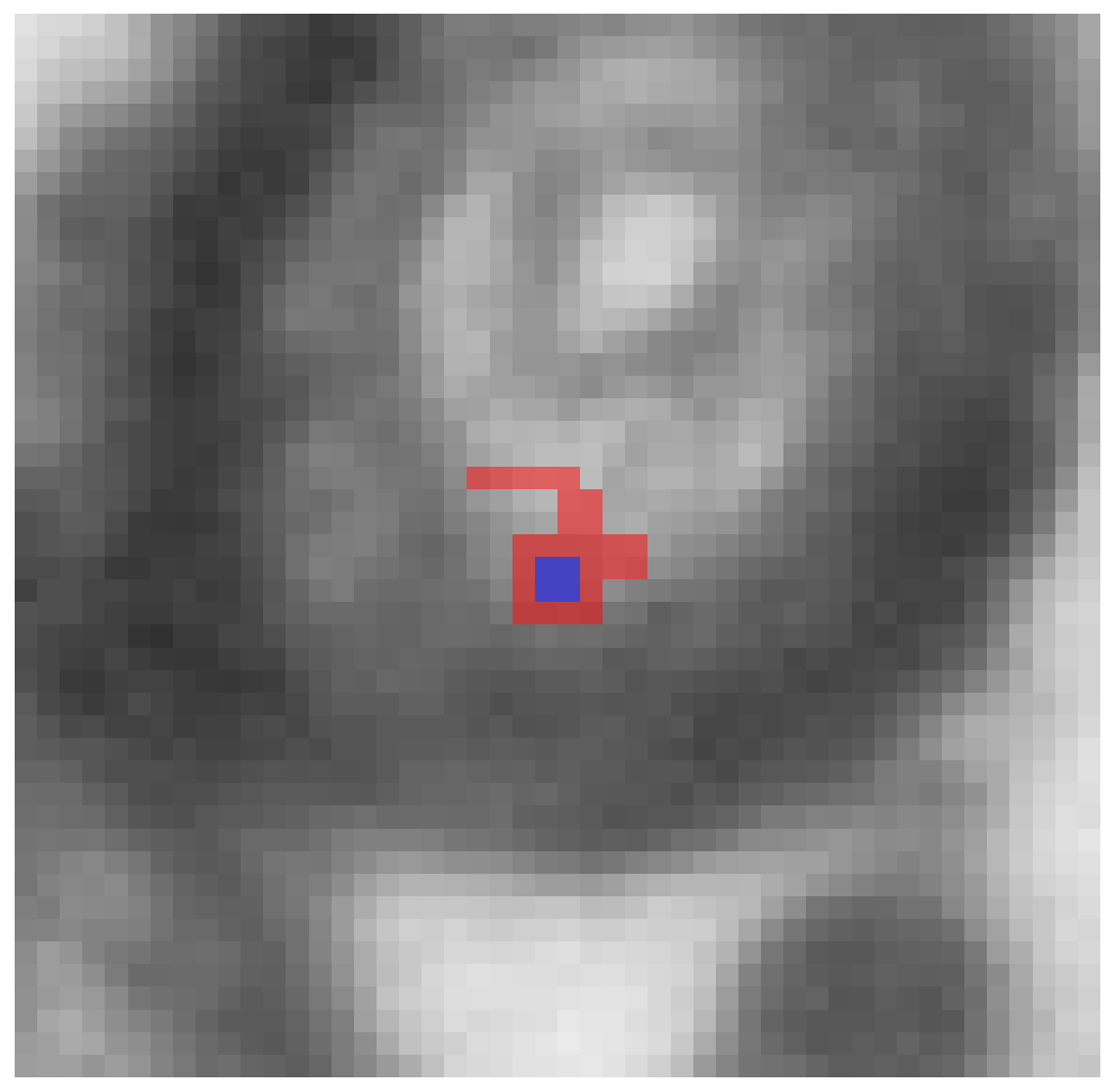

129	artifact	0.371	0.0206	0.0175	1.000	tiny axon (0.0206 um)	view

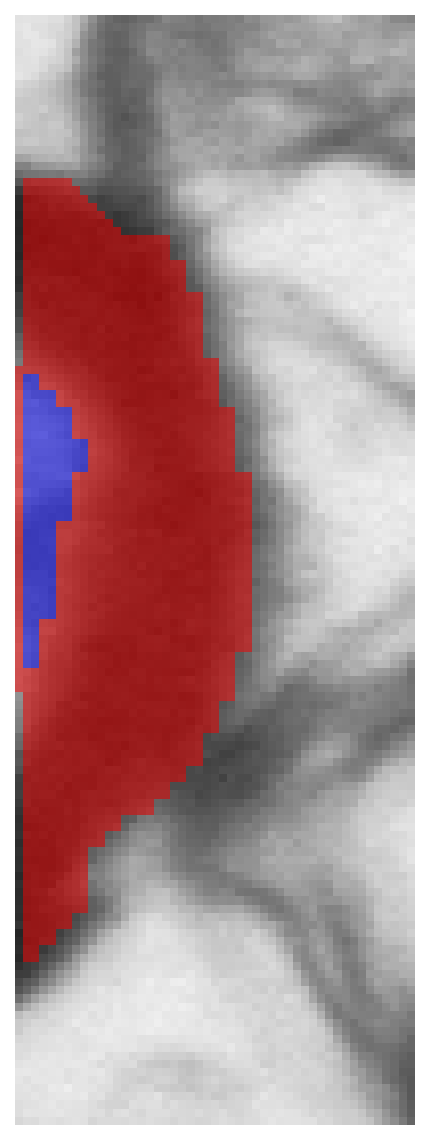

131	border	0.289	0.1321	0.1624	0.832	border-touching; very low gratio (0.289); myelin>>axon (mt/ad=1.23)	view

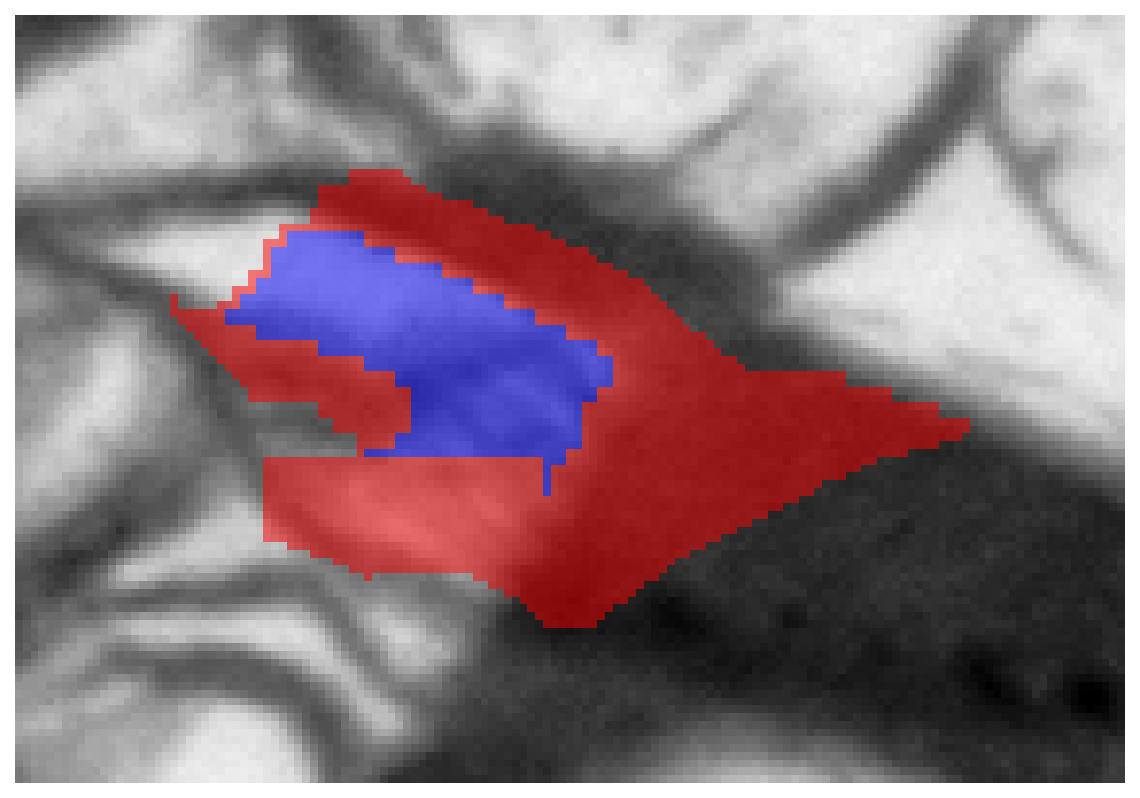

138	merge_error	0.507	0.2898	0.1407	0.744	low solidity (0.744)	view
139	artifact	0.168	0.0179	0.0442	1.000	tiny axon (0.0179 um); very low gratio (0.168); myelin>>axon (mt/ad=2.47)	view
140	artifact	0.160	0.0103	0.0271	1.000	tiny axon (0.0103 um); very low gratio (0.160); myelin>>axon (mt/ad=2.62)	view

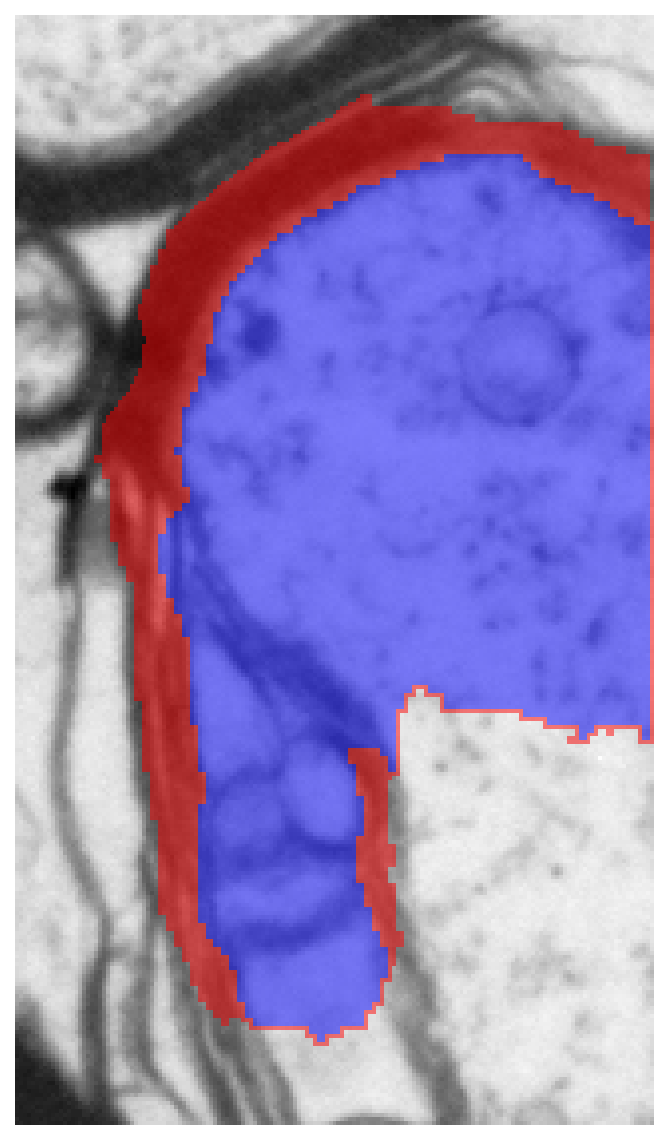

142	border	0.879	1.3956	0.0961	0.839	border-touching	view

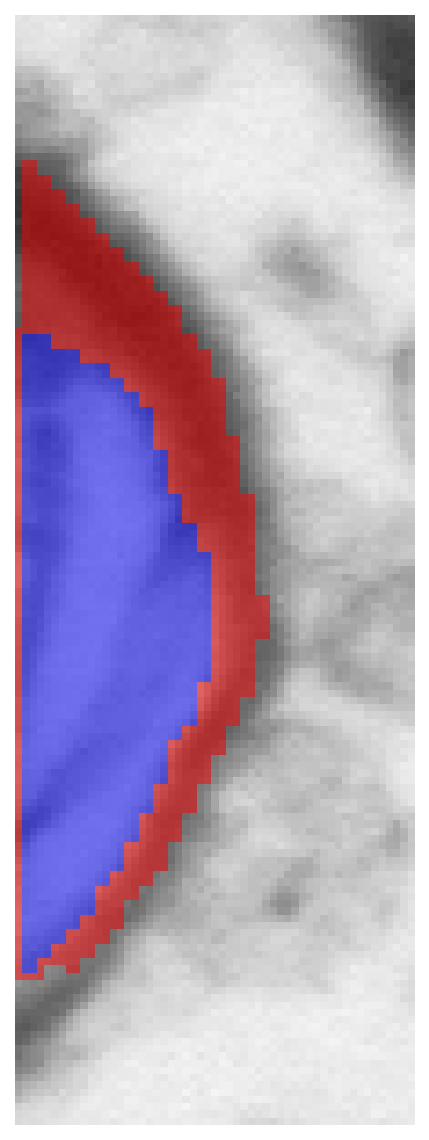

144	border	0.767	0.4117	0.0625	0.956	border-touching	view

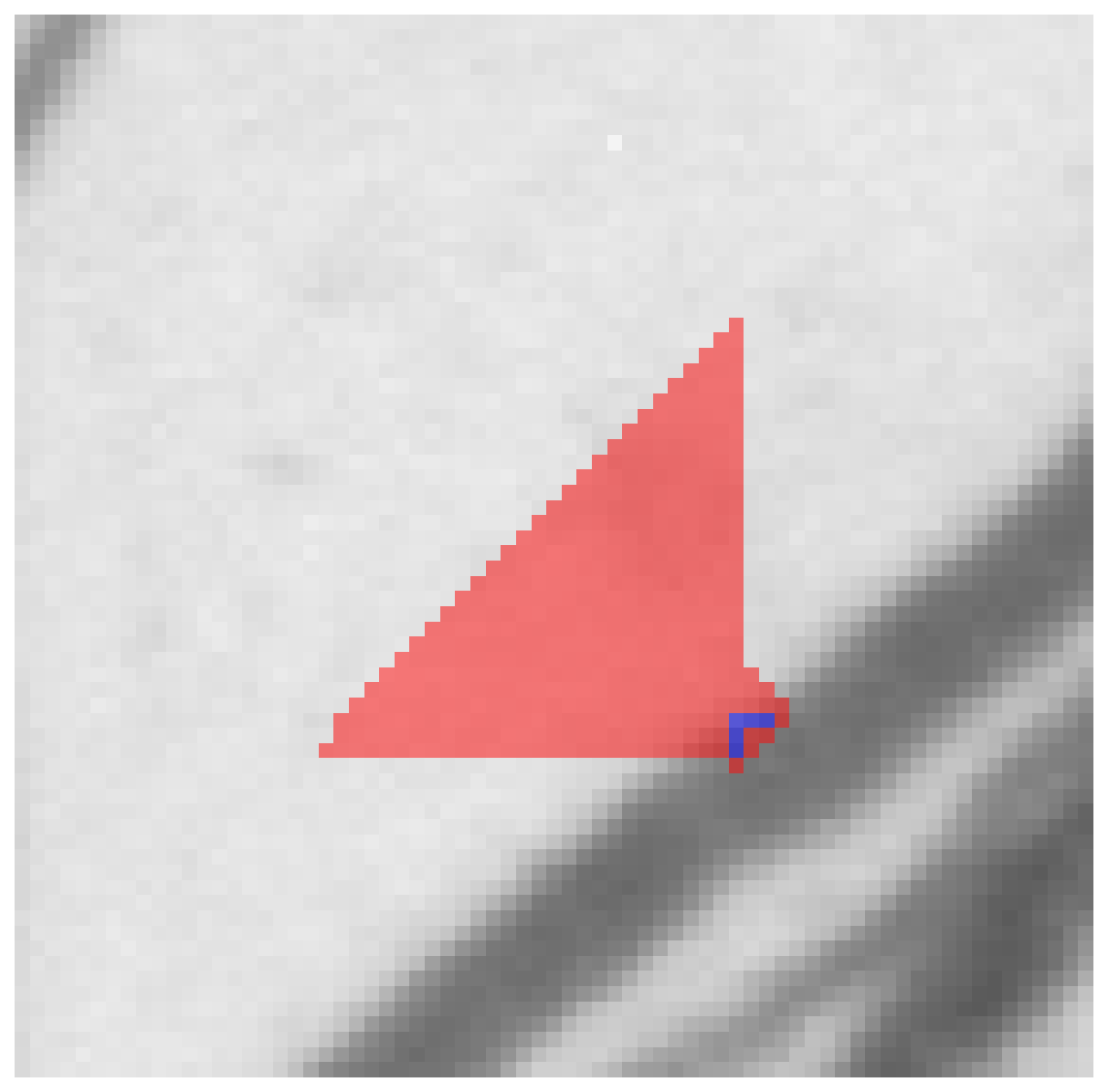

152	artifact	0.033	0.0103	0.1500	1.000	tiny axon (0.0103 um); very low gratio (0.033); myelin>>axon (mt/ad=14.54)	view

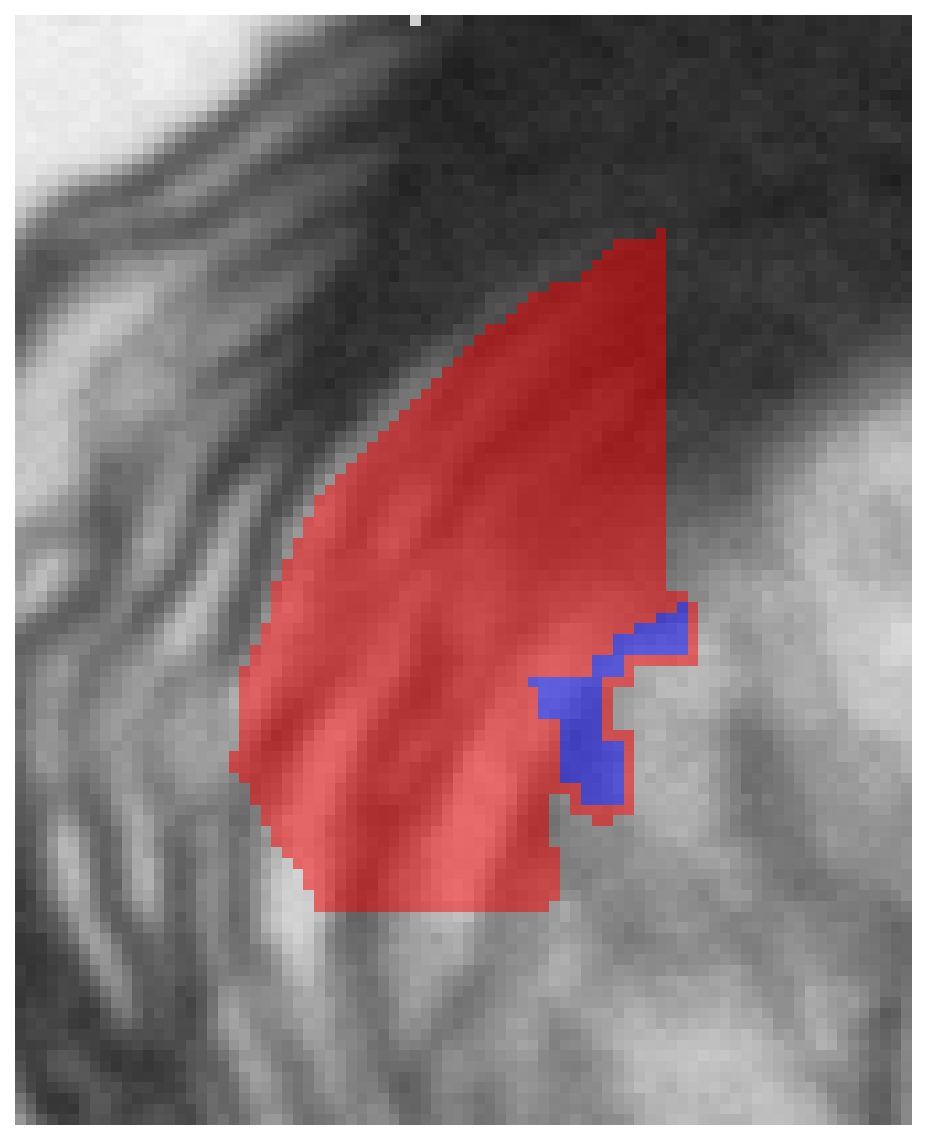

153	myelin_dominant	0.229	0.1000	0.1688	0.563	very low gratio (0.229); low solidity (0.563); myelin>>axon (mt/ad=1.69)	view

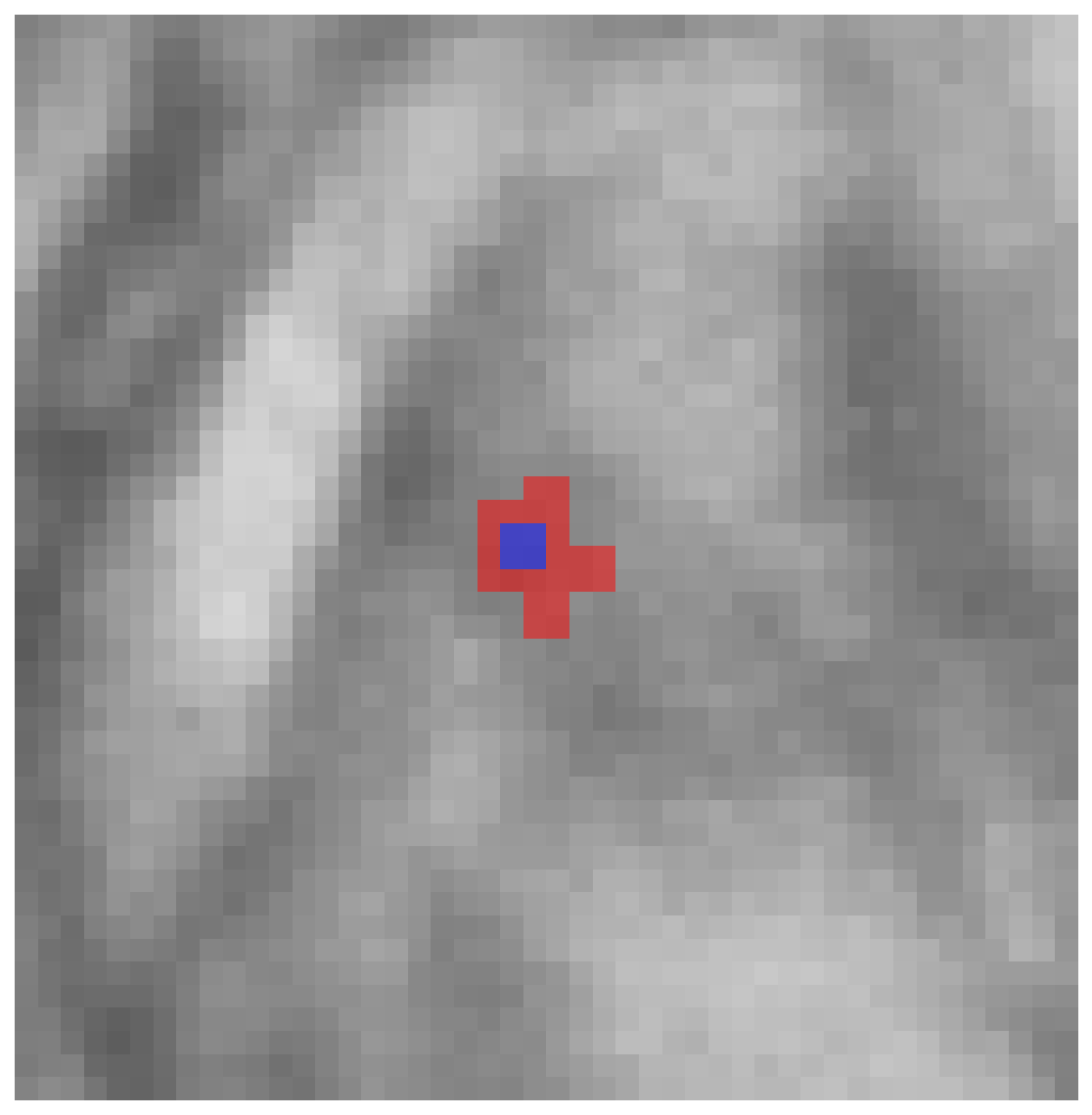

156	artifact	0.392	0.0206	0.0160	1.000	tiny axon (0.0206 um)	view
157	myelin_dominant	0.248	0.0946	0.1431	0.913	very low gratio (0.248); myelin>>axon (mt/ad=1.51)	view

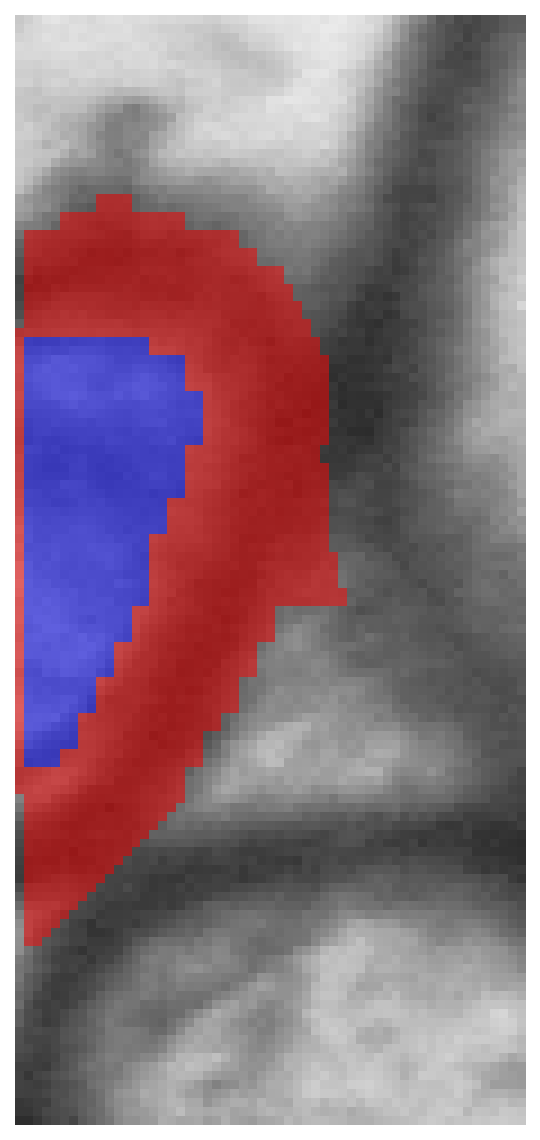

169	border	0.557	0.2643	0.1052	0.937	border-touching	view

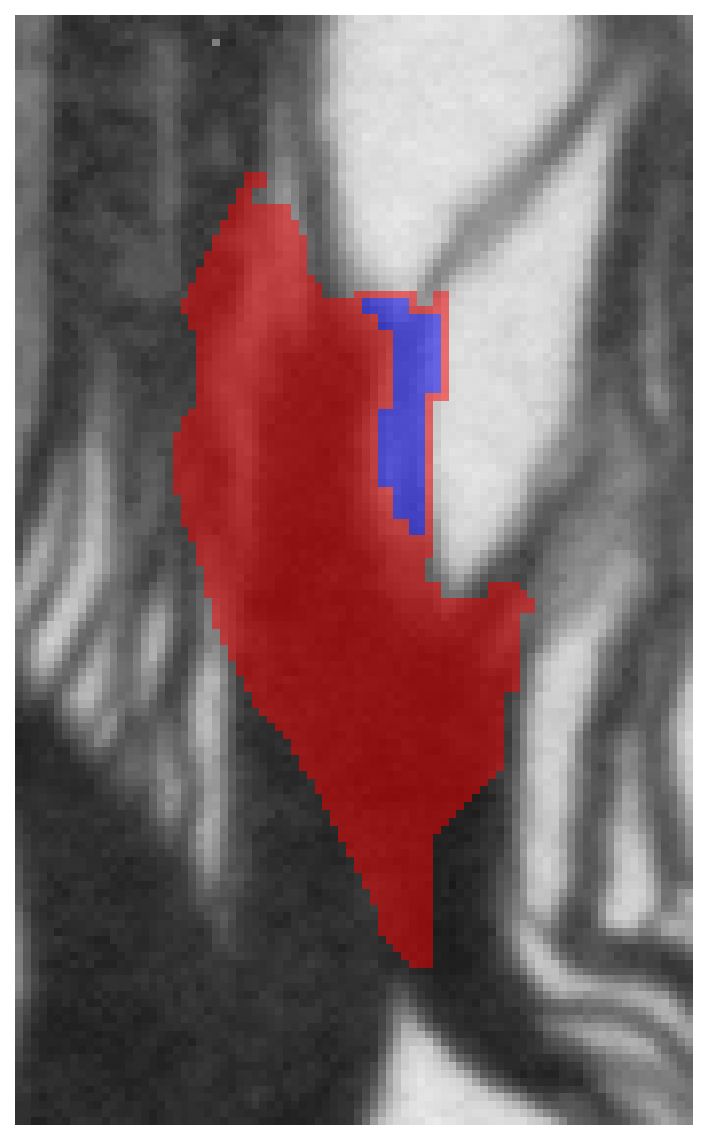

172	myelin_dominant	0.261	0.1321	0.1869	0.710	very low gratio (0.261); low solidity (0.710); myelin>>axon (mt/ad=1.41)	view

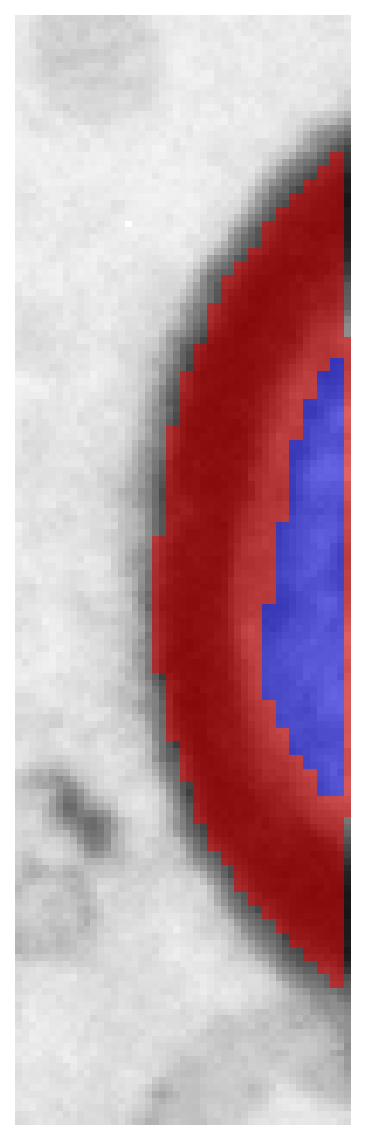

178	border	0.463	0.2398	0.1388	0.918	border-touching	view

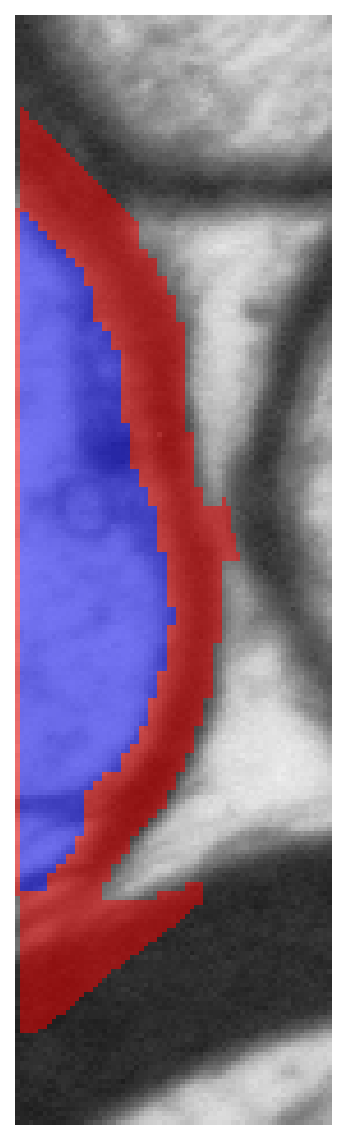

179	border	0.707	0.5869	0.1218	0.938	border-touching	view

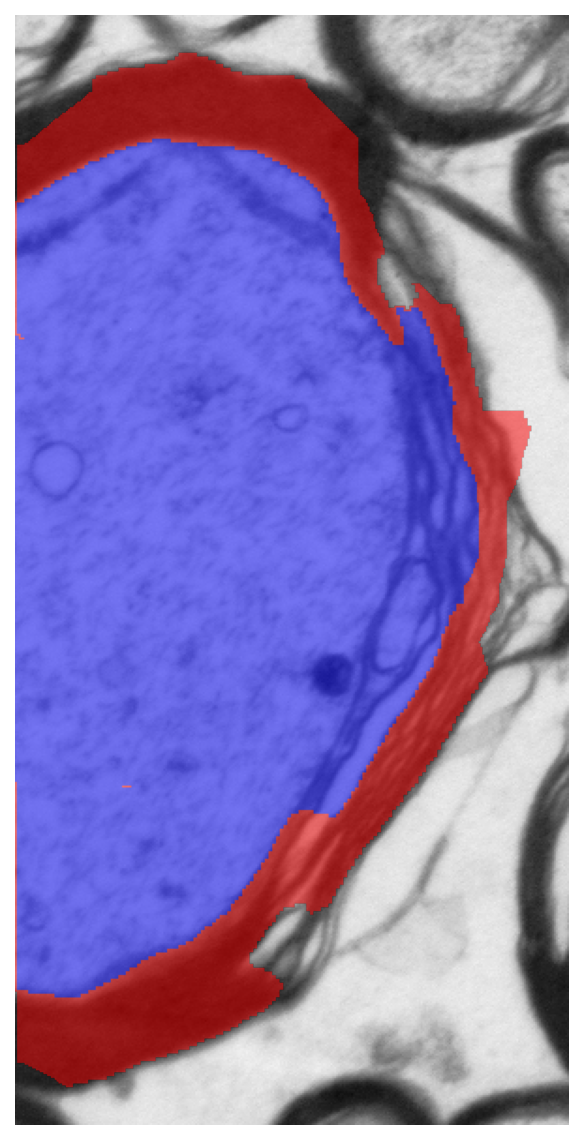

193	border	0.876	2.9856	0.2121	0.969	border-touching	view

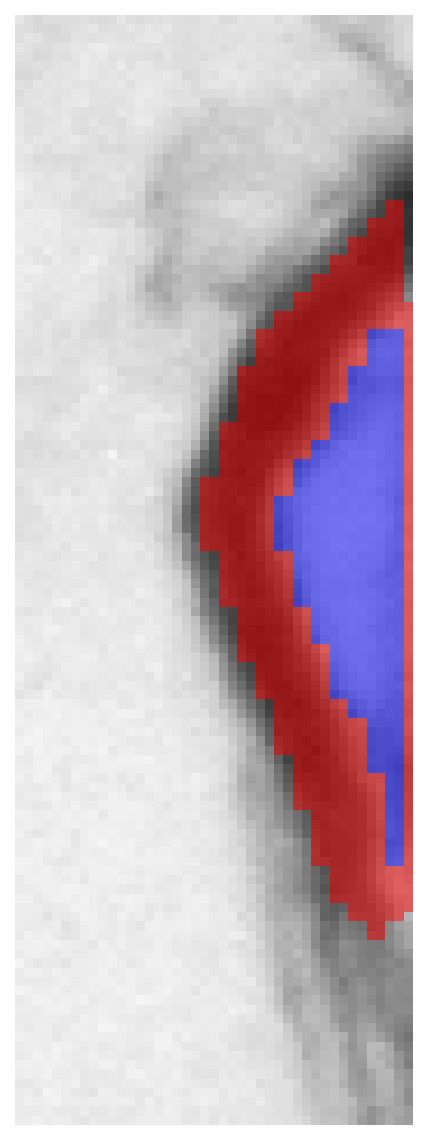

198	border	0.605	0.2164	0.0706	0.858	border-touching	view

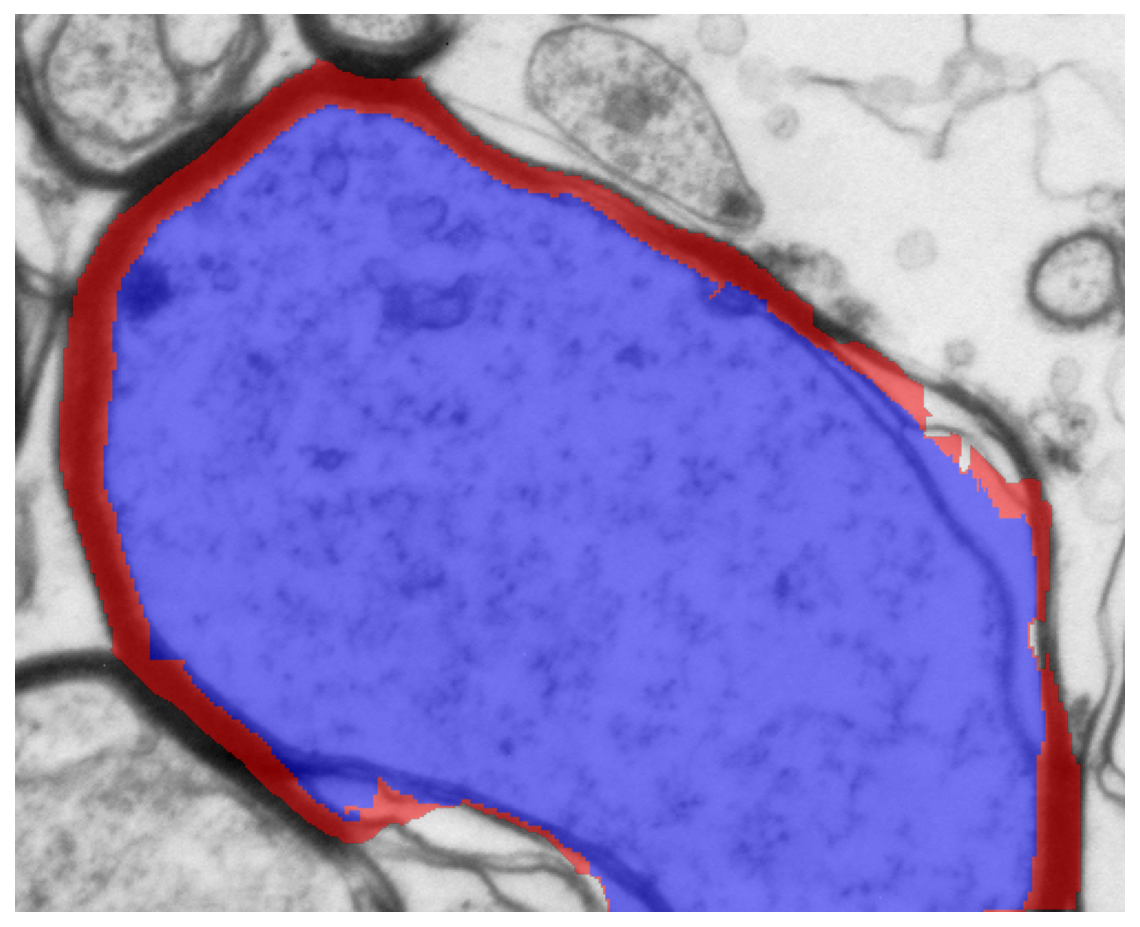

221	border	0.938	3.4035	0.1133	0.956	border-touching	view

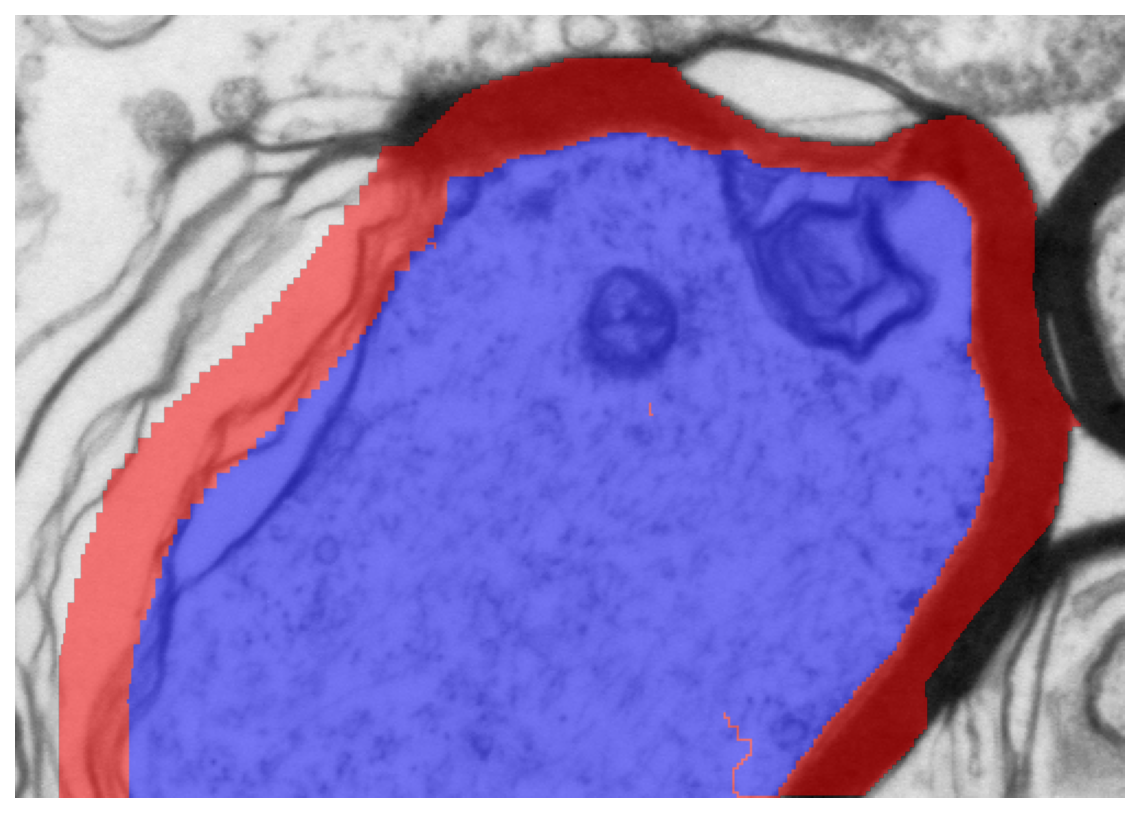

225	border	0.868	3.0869	0.2350	0.965	border-touching	view

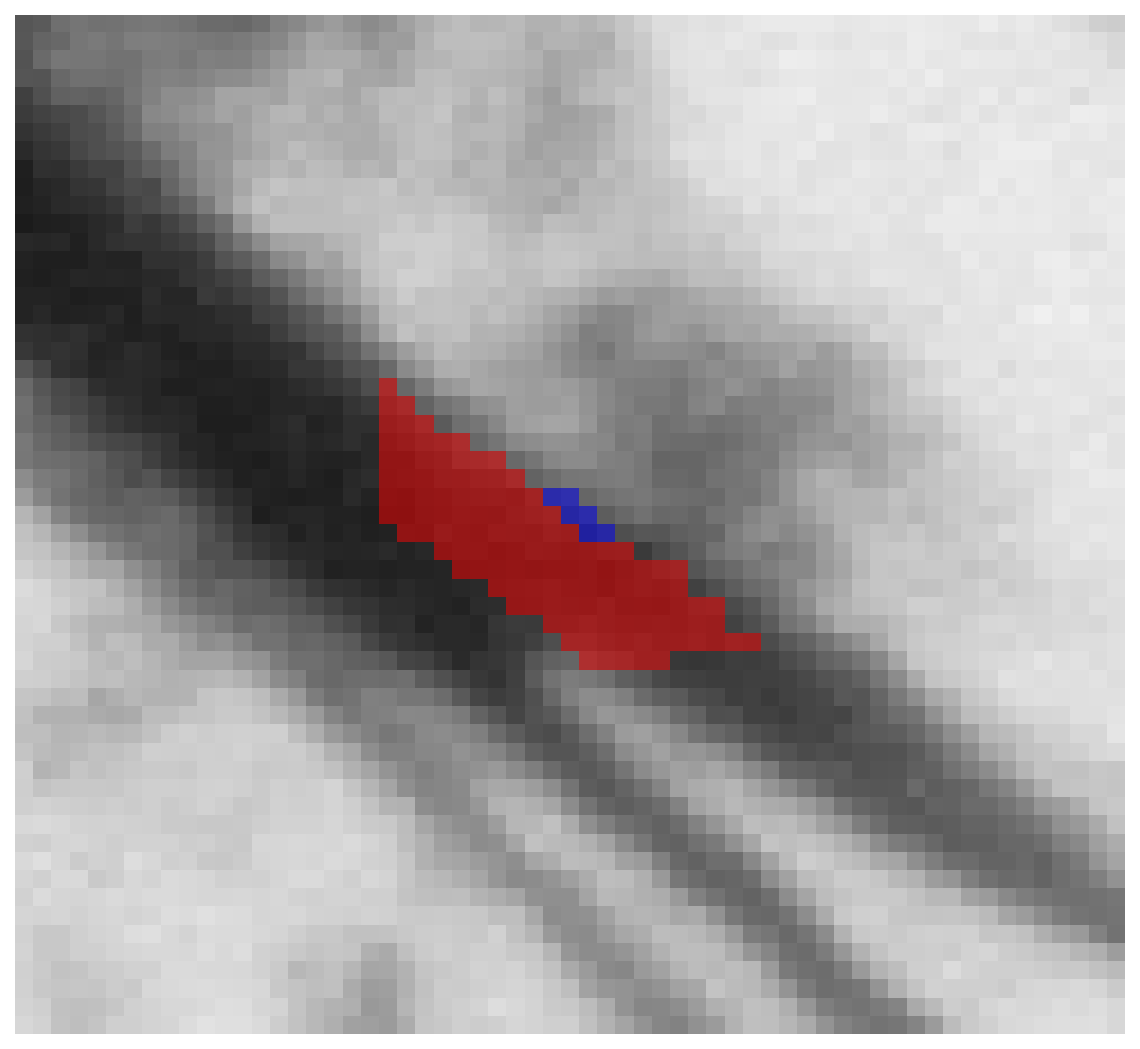

227	artifact	0.212	0.0253	0.0471	1.000	tiny axon (0.0253 um); very low gratio (0.212); myelin>>axon (mt/ad=1.86)	view

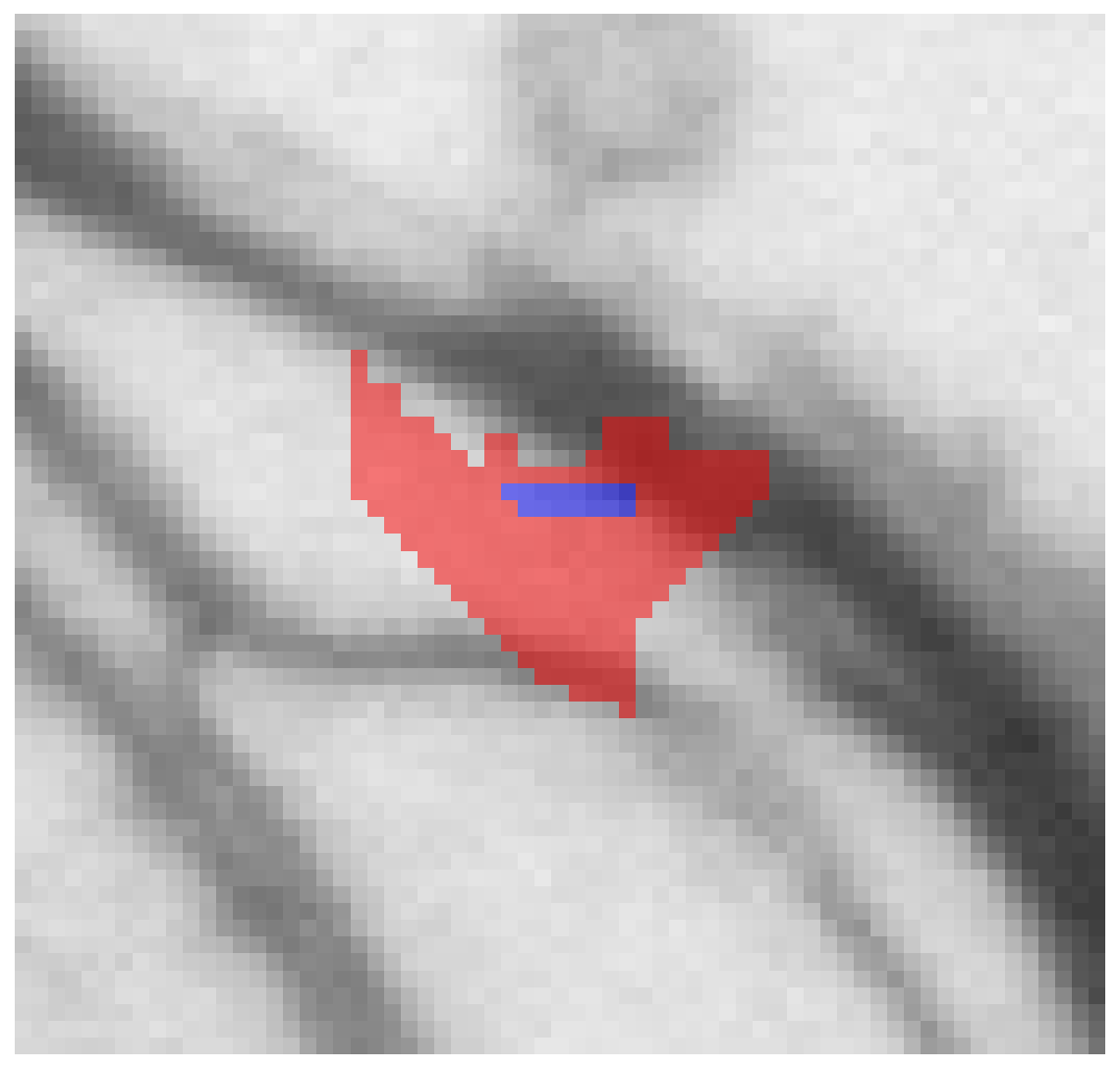

230	artifact	0.243	0.0400	0.0621	1.000	tiny axon (0.0400 um); very low gratio (0.243); myelin>>axon (mt/ad=1.55)	view

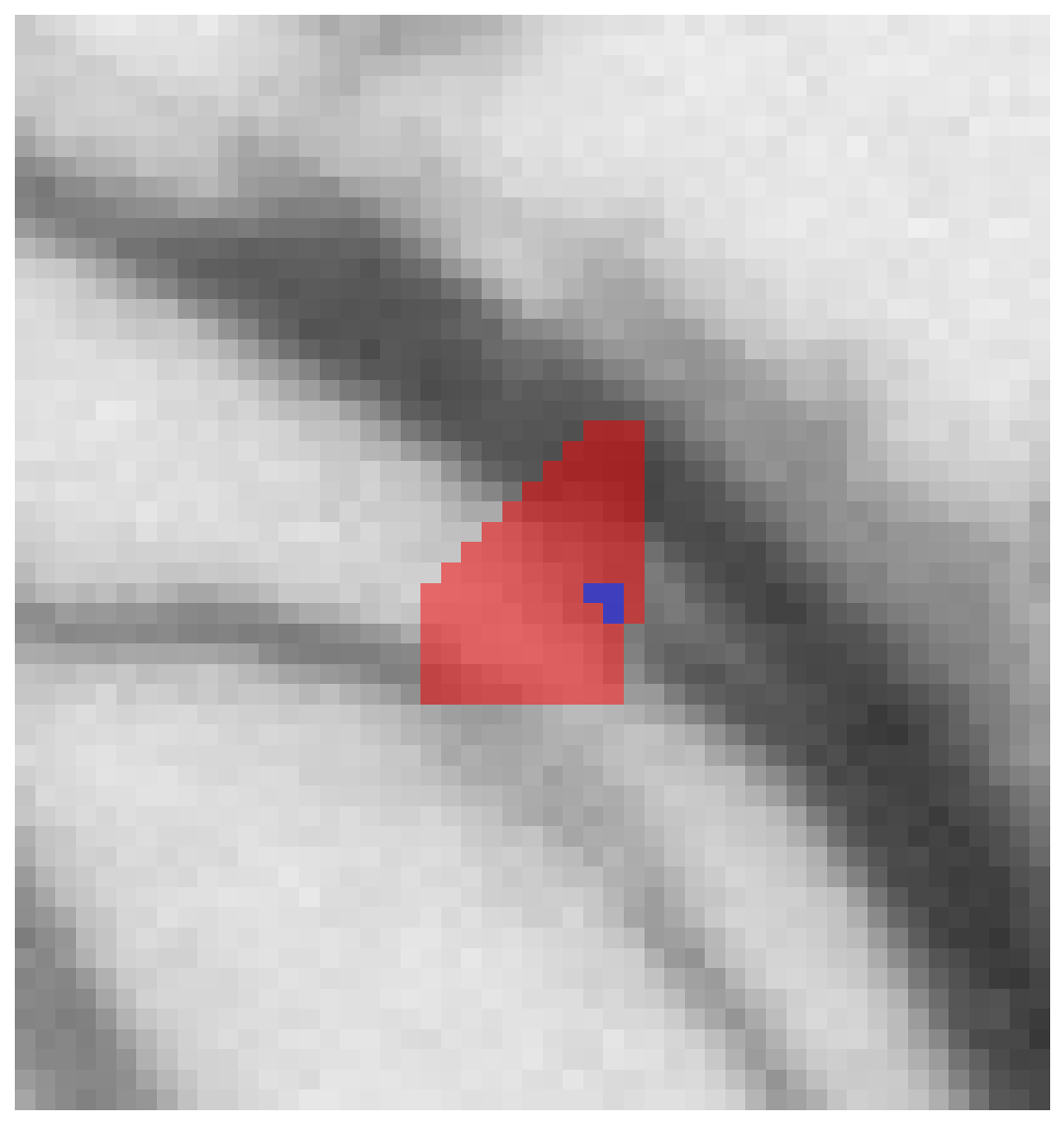

231	artifact	0.162	0.0179	0.0461	1.000	tiny axon (0.0179 um); very low gratio (0.162); myelin>>axon (mt/ad=2.58)	view

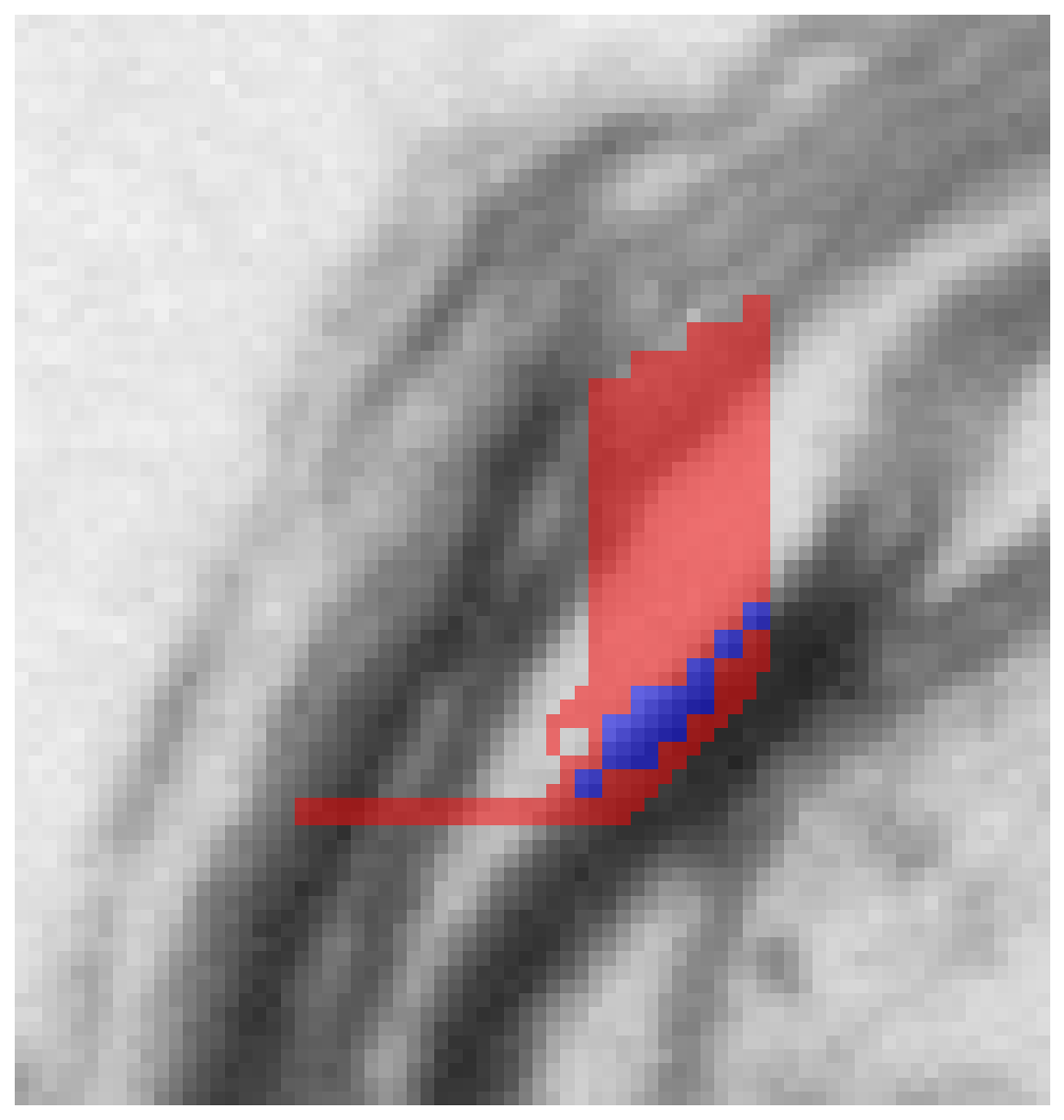

232	merge_error	0.326	0.0715	0.0741	0.640	low solidity (0.640); myelin>>axon (mt/ad=1.04)	view

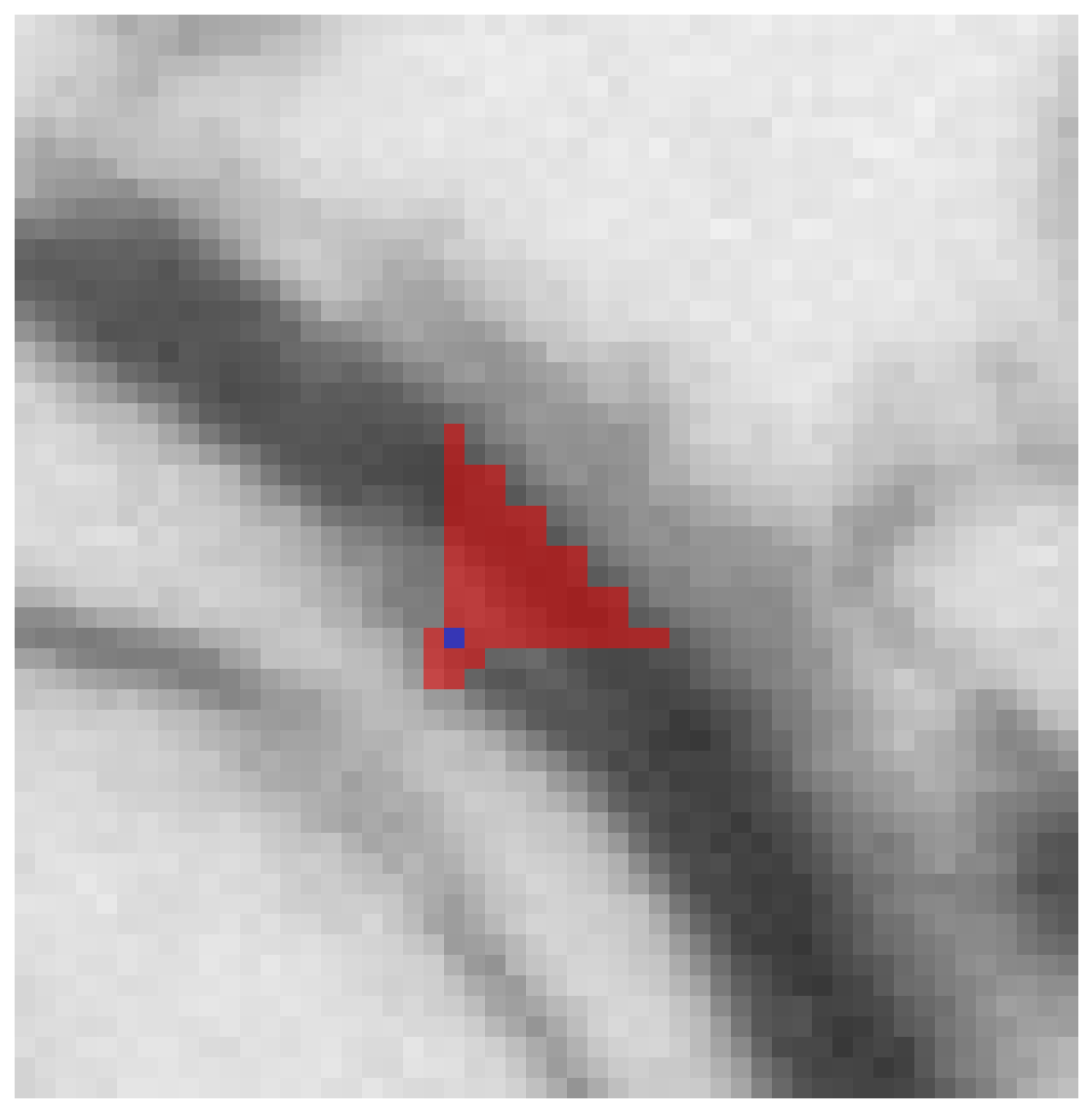

233	artifact	0.122	0.0103	0.0371	1.000	tiny axon (0.0103 um); very low gratio (0.122); myelin>>axon (mt/ad=3.59)	view

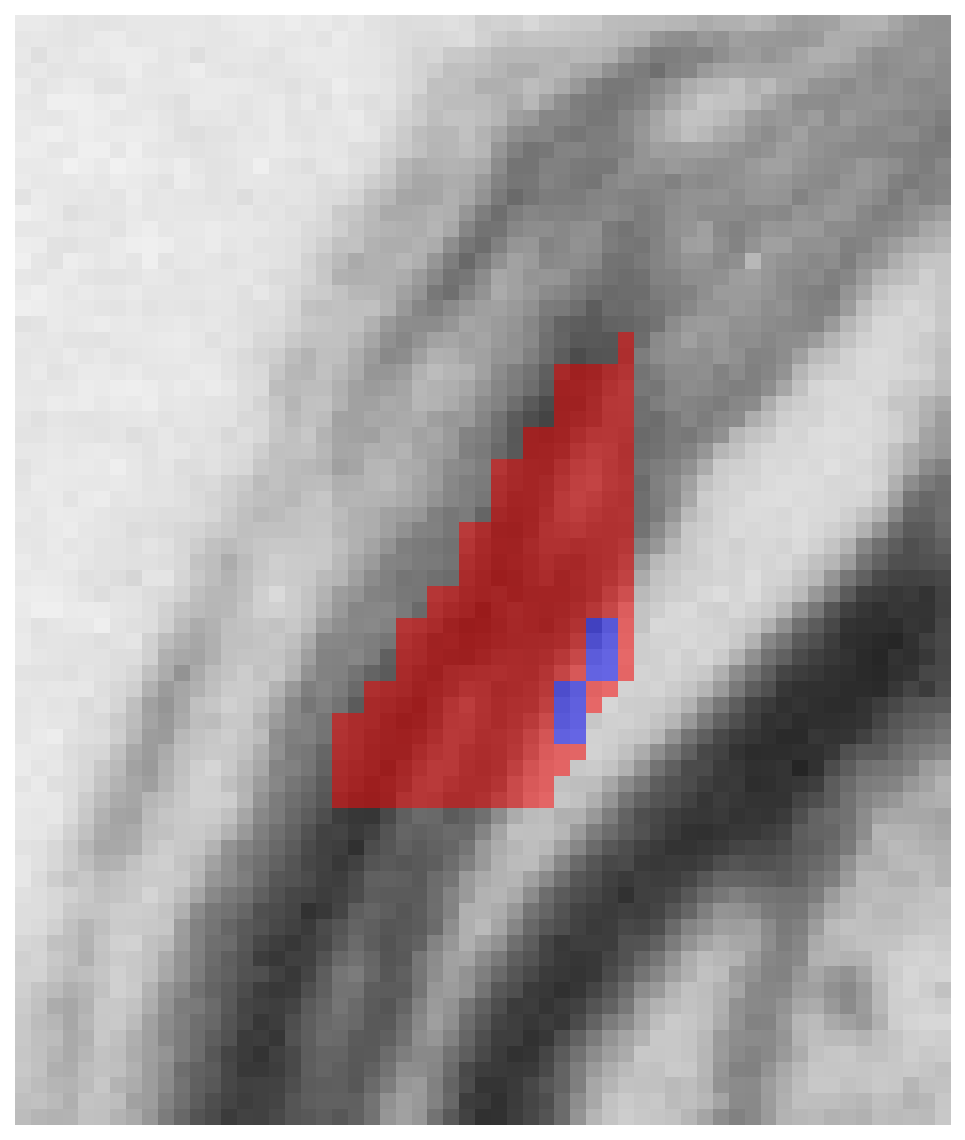

234	artifact	0.222	0.0413	0.0722	0.667	tiny axon (0.0413 um); very low gratio (0.222); low solidity (0.667); myelin>>axon (mt/ad=1.75)	view

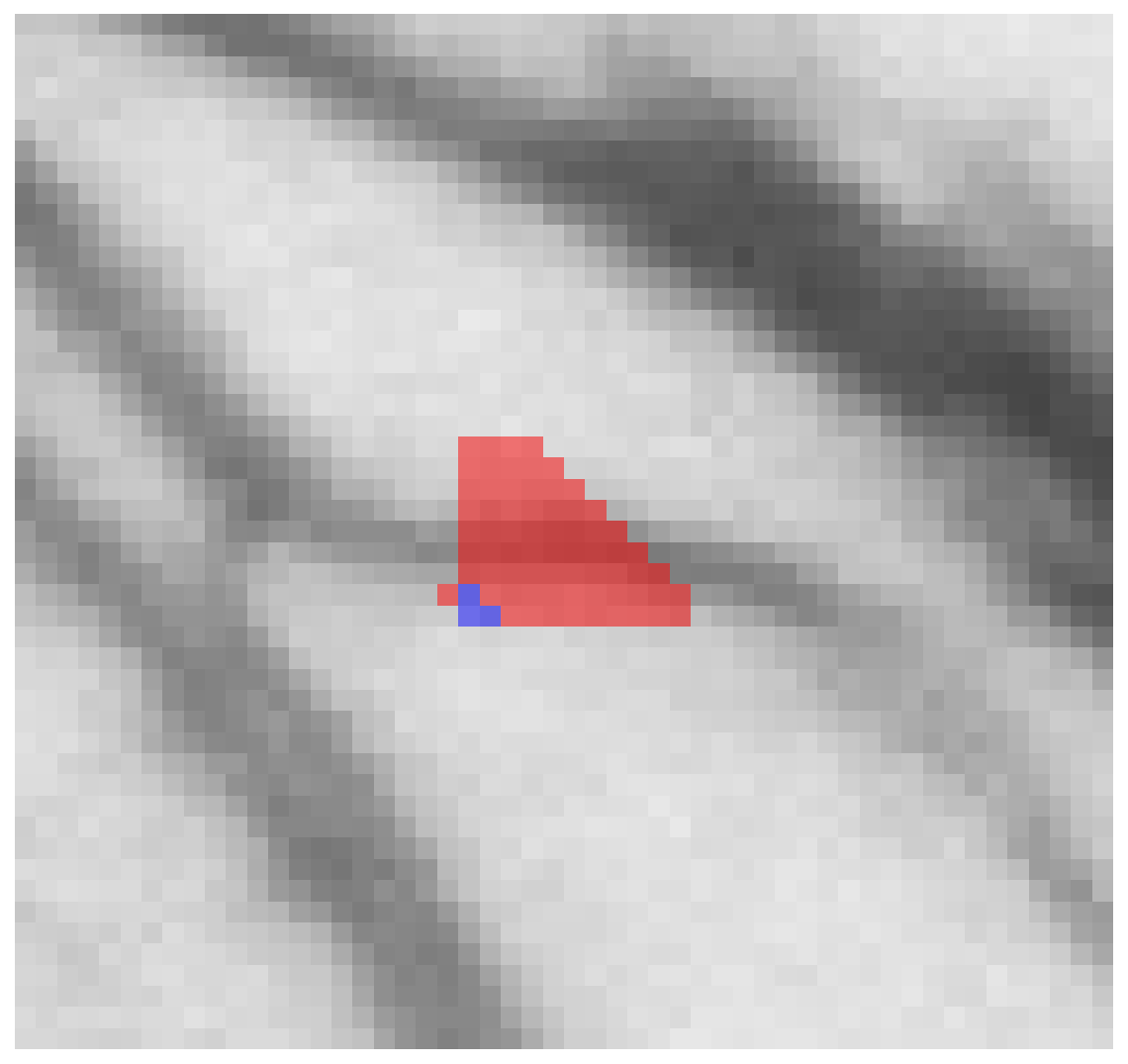

235	artifact	0.204	0.0179	0.0348	1.000	tiny axon (0.0179 um); very low gratio (0.204); myelin>>axon (mt/ad=1.95)	view
236	artifact	0.099	0.0103	0.0472	1.000	tiny axon (0.0103 um); very low gratio (0.099); myelin>>axon (mt/ad=4.57)	view

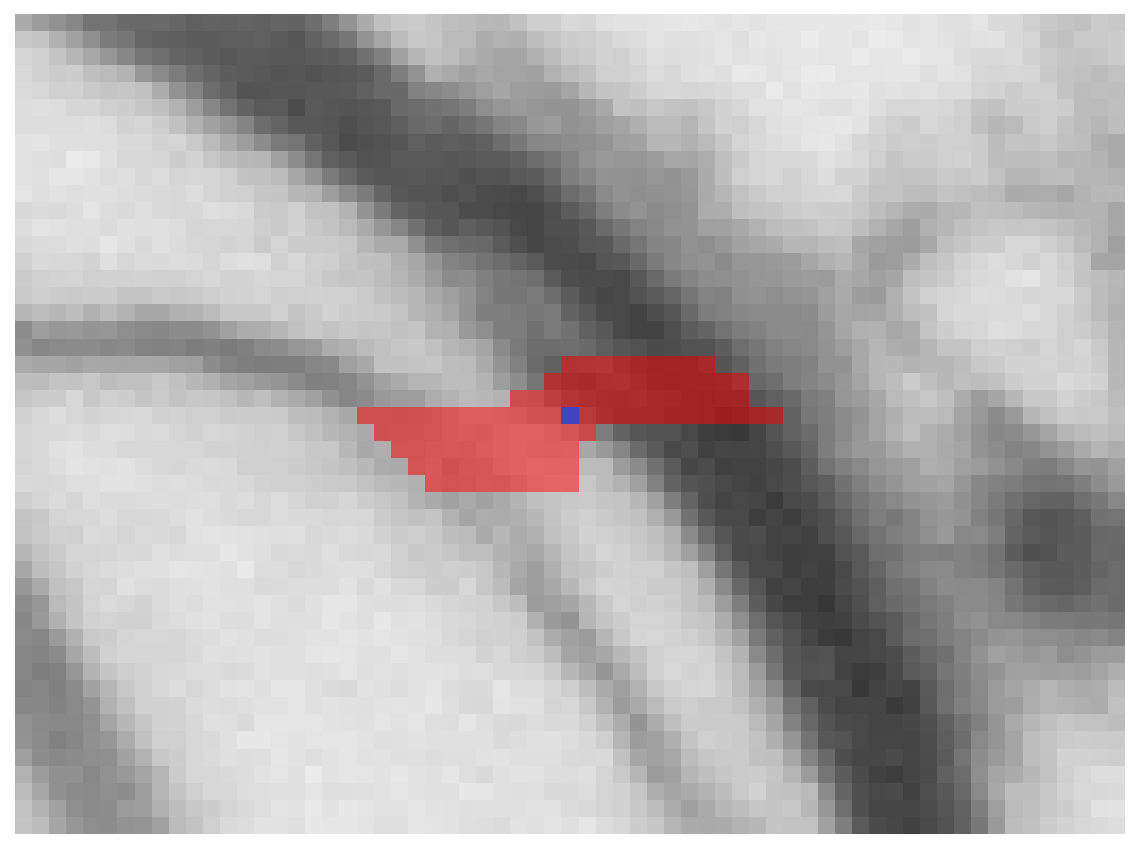

237	artifact	0.378	0.0103	0.0085	1.000	tiny axon (0.0103 um)	view
238	artifact	0.156	0.0146	0.0394	1.000	tiny axon (0.0146 um); very low gratio (0.156); myelin>>axon (mt/ad=2.70)	view

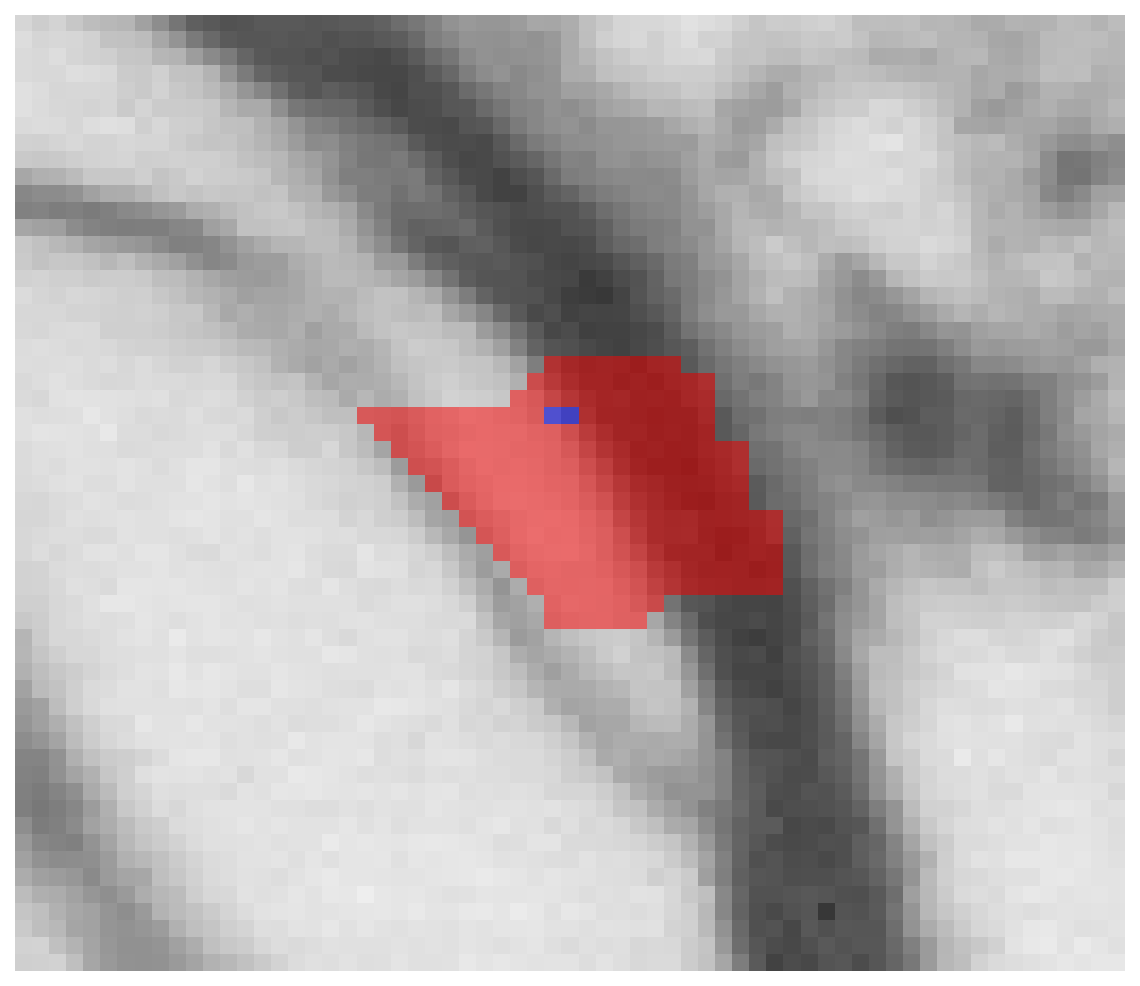

239	artifact	0.090	0.0146	0.0739	1.000	tiny axon (0.0146 um); very low gratio (0.090); myelin>>axon (mt/ad=5.07)	view
240	artifact	0.291	0.0231	0.0281	0.833	tiny axon (0.0231 um); very low gratio (0.291); myelin>>axon (mt/ad=1.22)	view

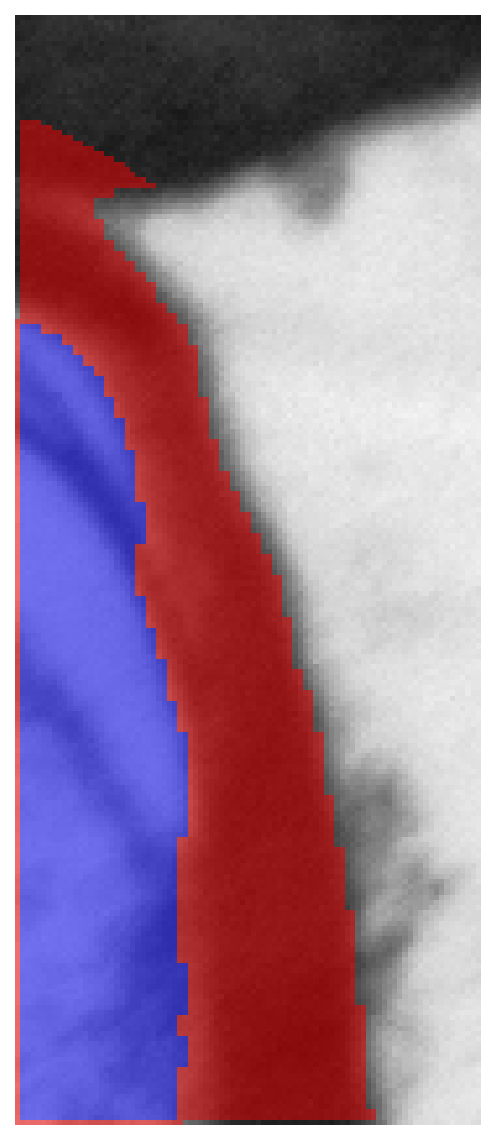

244	border	0.664	0.6509	0.1647	0.951	border-touching	view

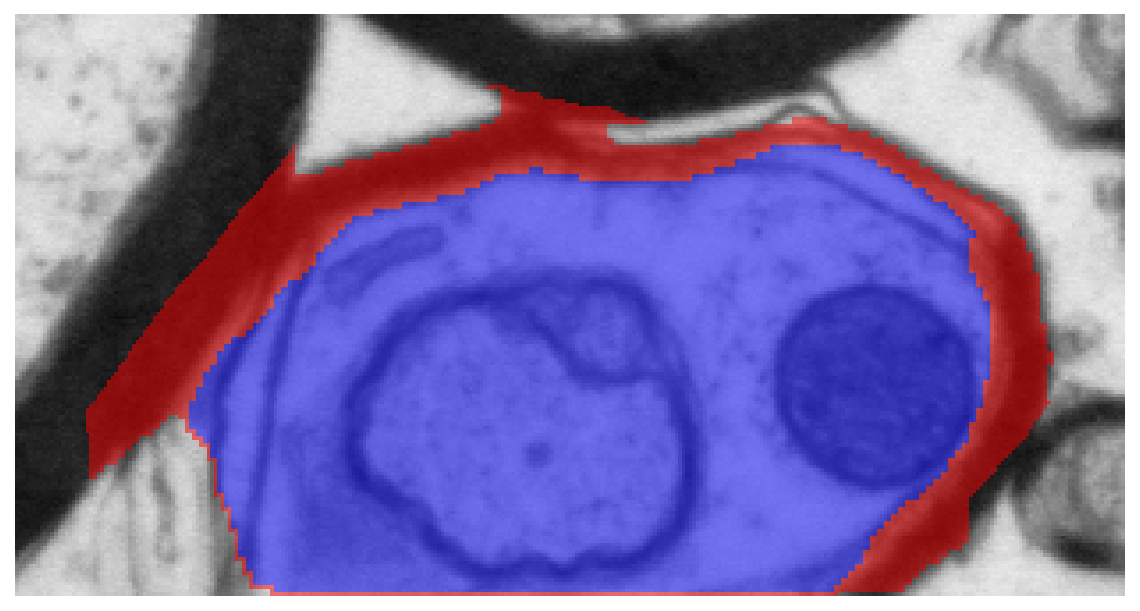

247	border	0.881	1.5596	0.1053	0.969	border-touching	view

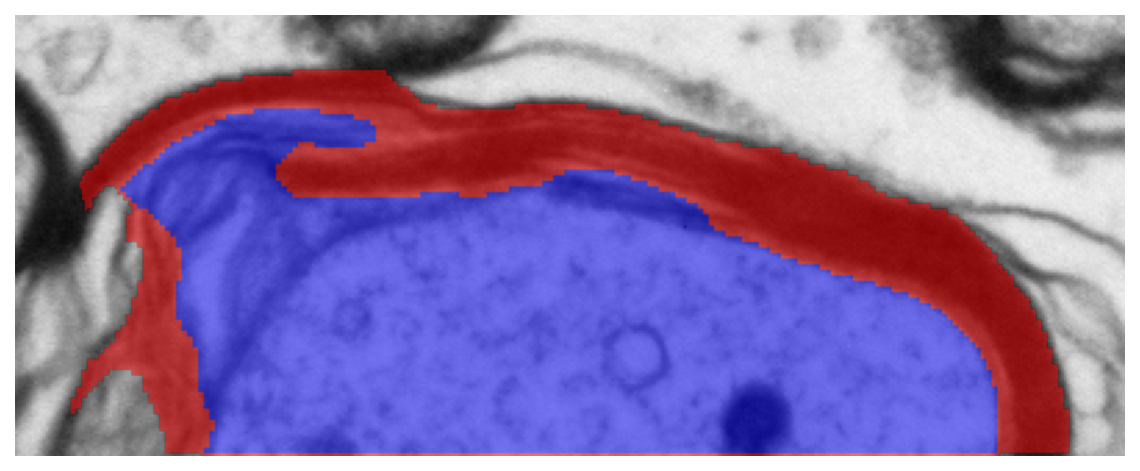

248	border	0.817	1.6582	0.1853	0.891	border-touching	view

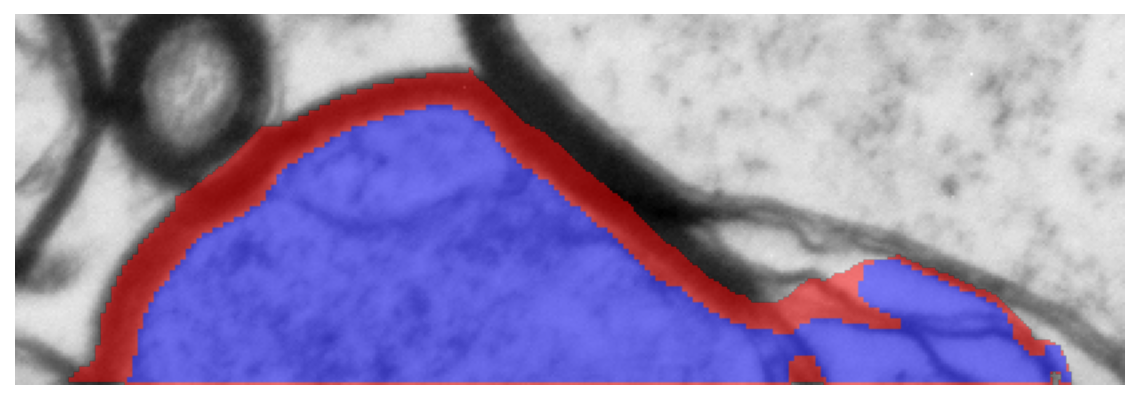

249	border	0.870	1.4081	0.1051	0.786	border-touching	view
251	border	0.729	0.3794	0.0705	0.906	border-touching	view

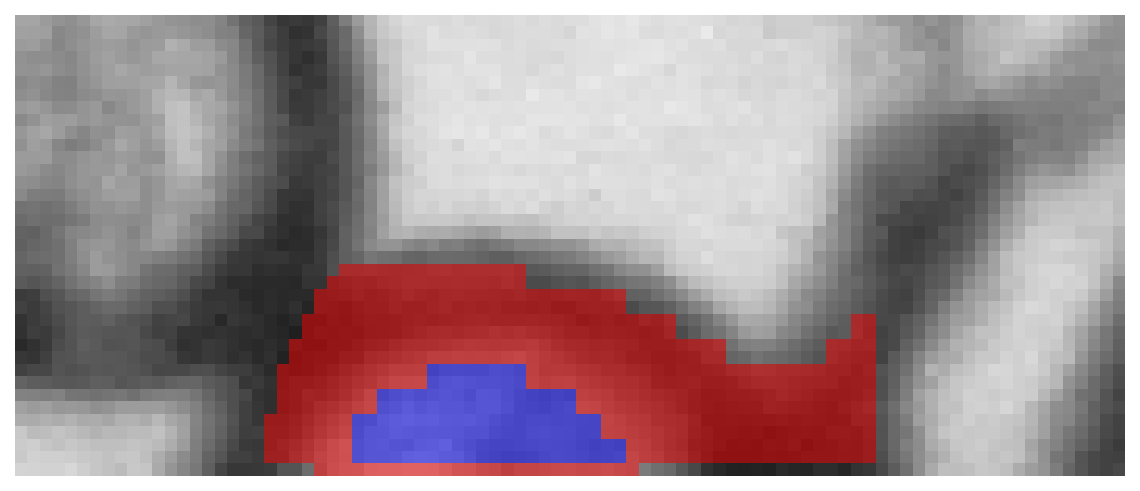

252	border	0.455	0.1185	0.0709	0.923	border-touching	view

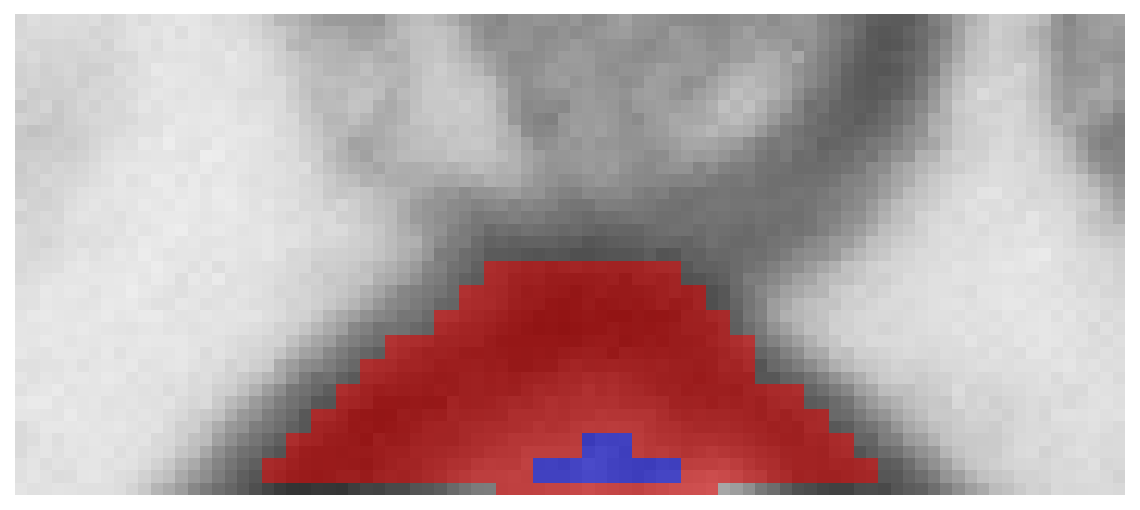

253	border	0.228	0.0584	0.0987	0.800	border-touching; very low gratio (0.228); myelin>>axon (mt/ad=1.69)	view

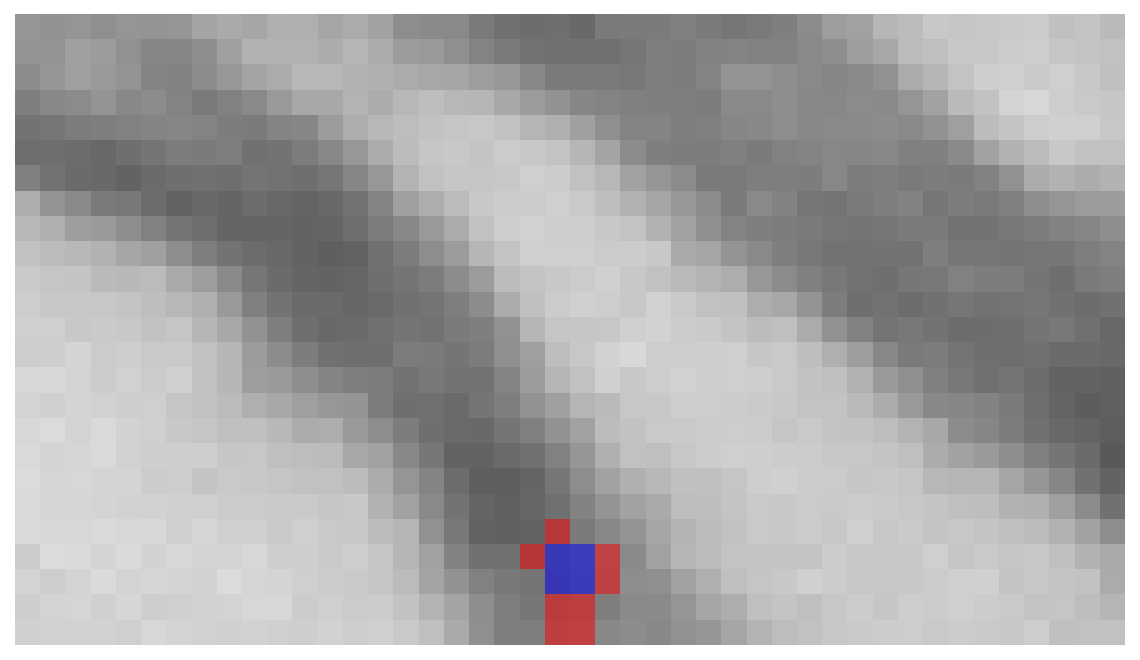

254	border	0.577	0.0206	0.0076	1.000	border-touching; tiny axon (0.0206 um)	view

Slice 05¶

Segmentation overlay¶

Summary¶

Total axons: 89
Excluded: 25 (28.1%)
Retained: 64

Exclusions by category¶

artifact: 2
border: 17
invalid: 1
merge_error: 5

Flagged axons (visual review)¶

Exclusion details¶

Axon ID	Category	G-ratio	Axon diam (um)	Myelin thickness (um)	Solidity	Reasons	Closeup
0	border	0.724	0.4621	0.0880	0.938	border-touching	view
1	border	0.706	0.3878	0.0809	0.932	border-touching	view

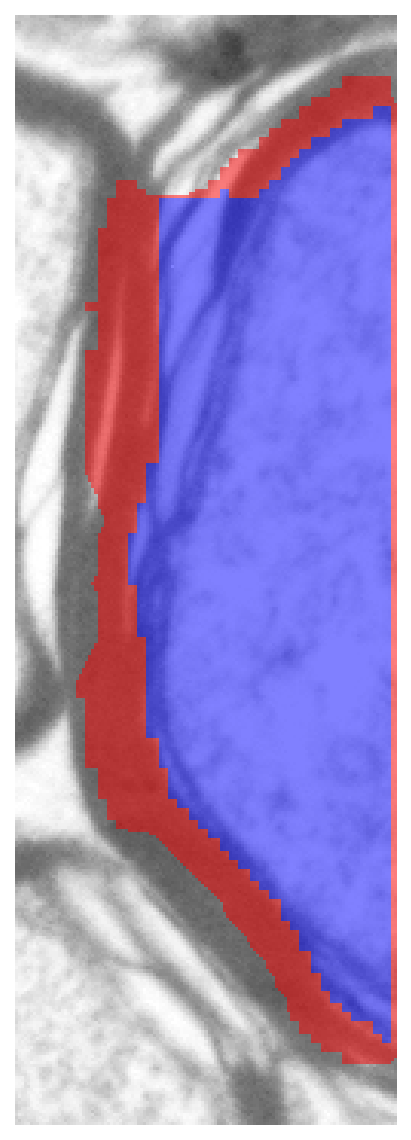

4	border	0.858	1.4298	0.1188	0.936	border-touching	view
5	invalid	1.000	0.0310	0.0000	1.000	gratio=1.000; no myelin; tiny axon (0.0310 um)	view
13	border	0.902	1.8223	0.0985	0.972	border-touching	view

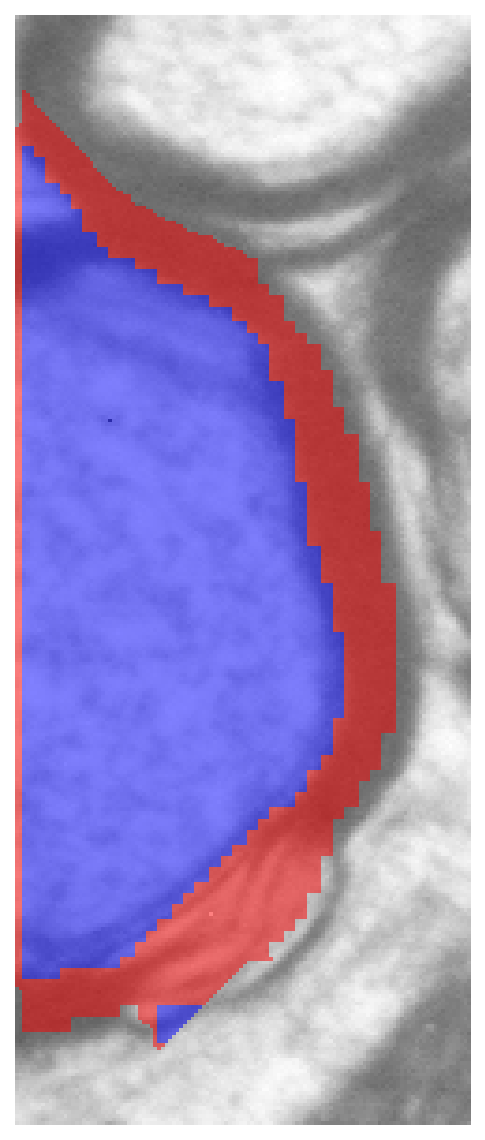

20	border	0.836	1.1831	0.1159	0.949	border-touching	view

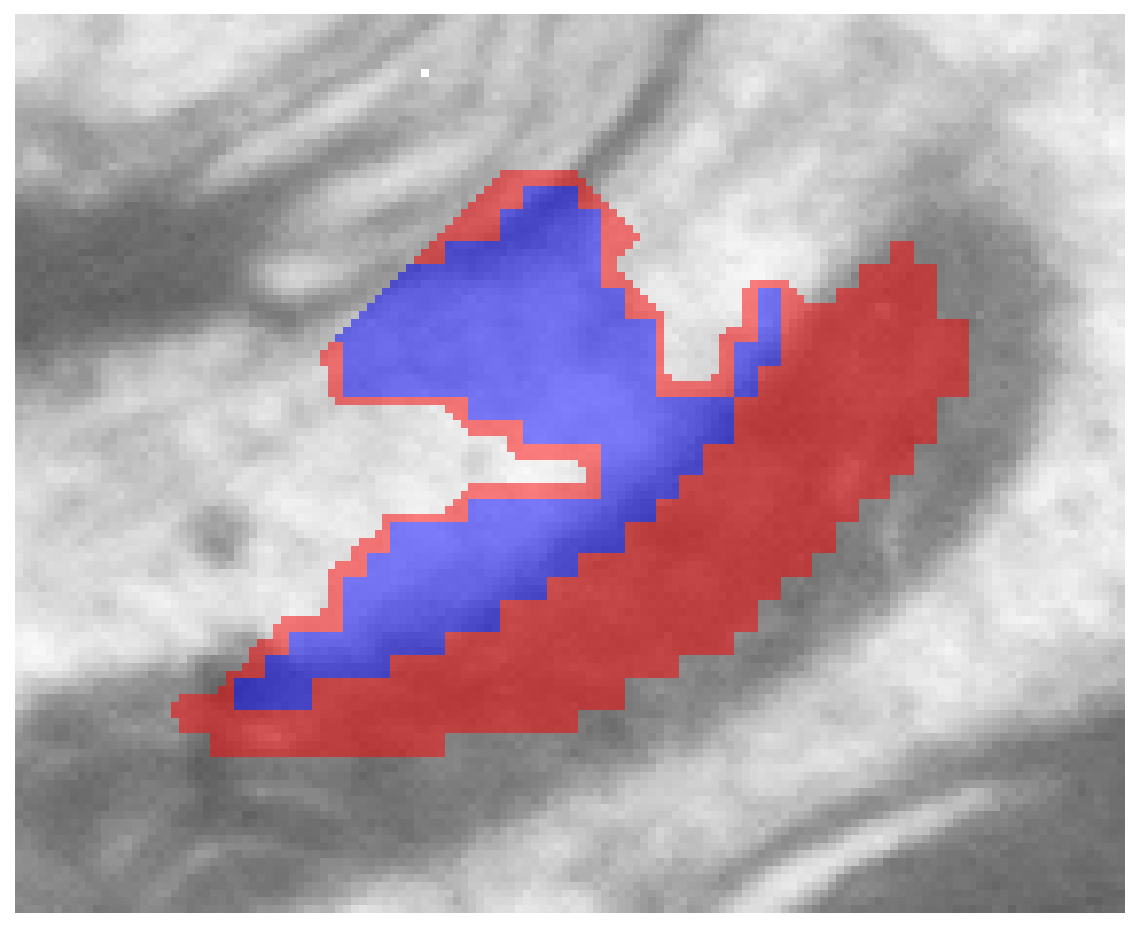

23	merge_error	0.663	0.4268	0.1082	0.566	low solidity (0.566)	view
29	artifact	0.205	0.0413	0.0802	1.000	tiny axon (0.0413 um); very low gratio (0.205); myelin>>axon (mt/ad=1.94)	view
35	border	0.912	2.2760	0.1098	0.870	border-touching	view
36	border	0.152	0.0310	0.0860	1.000	border-touching; tiny axon (0.0310 um); very low gratio (0.152); myelin>>axon (mt/ad=2.78)	view

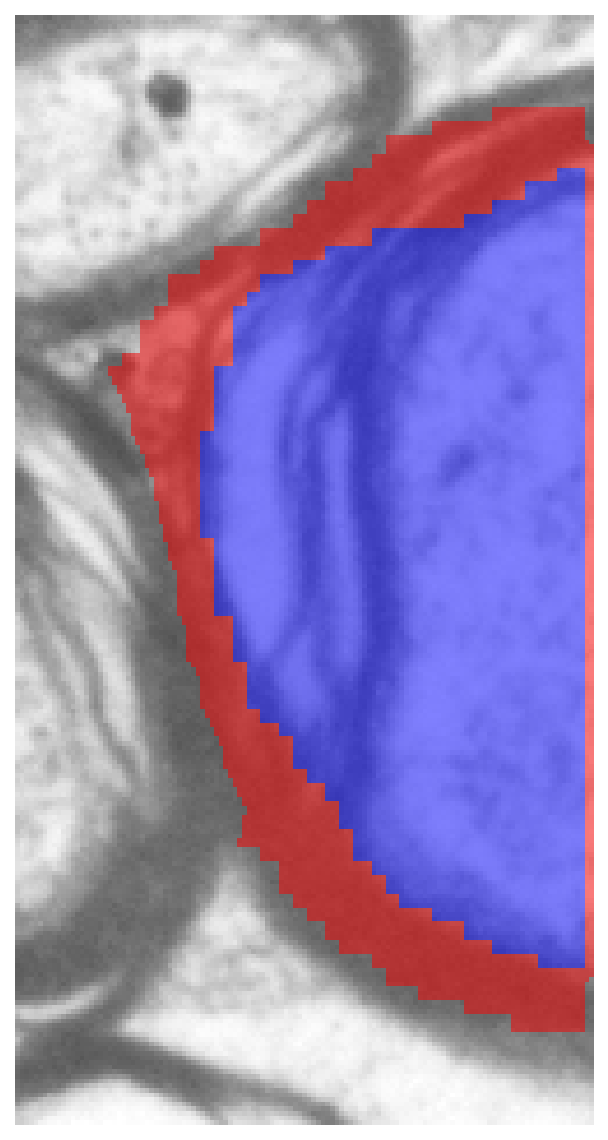

38	border	0.839	1.0702	0.1025	0.961	border-touching	view

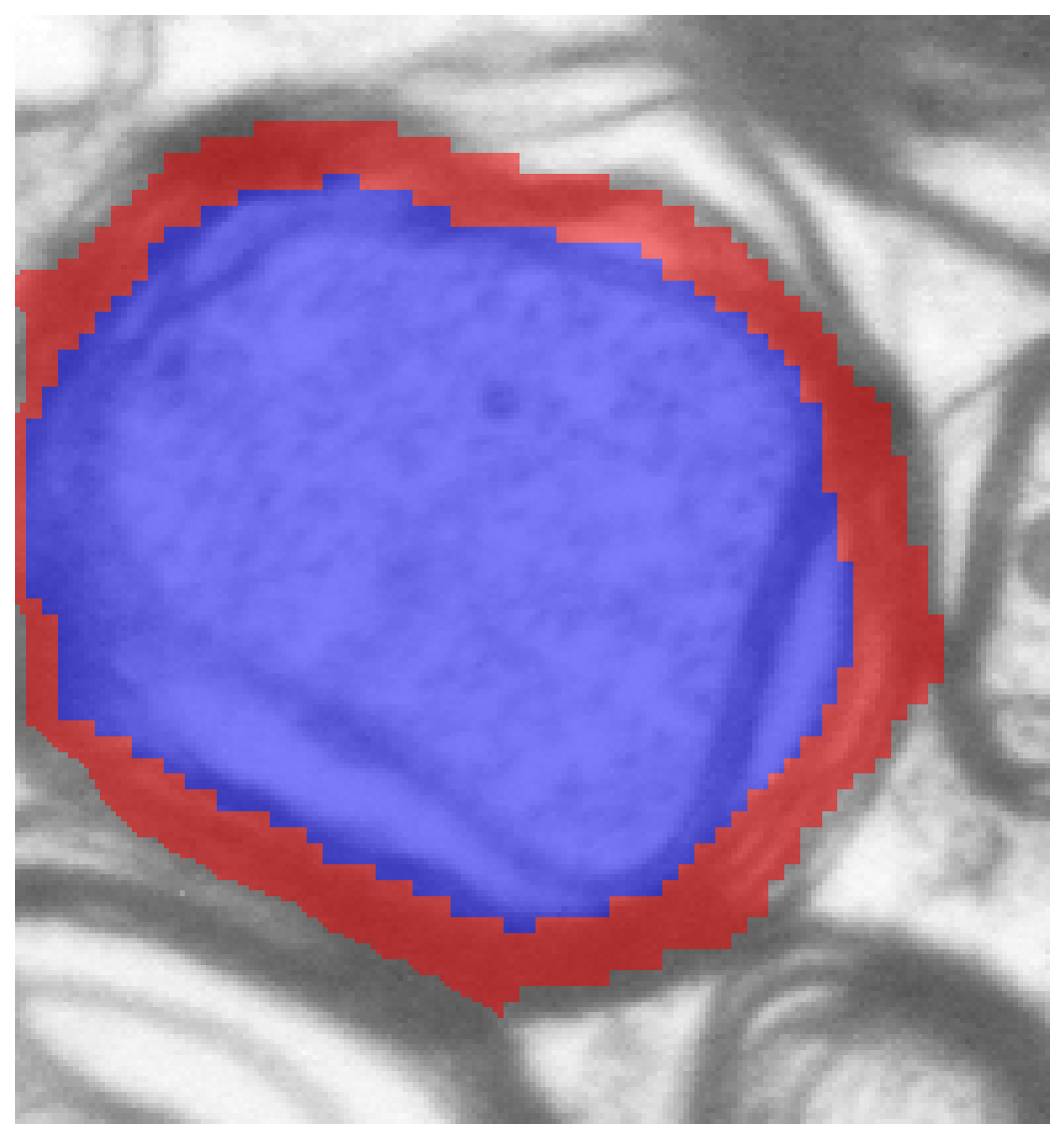

54	border	0.864	1.3213	0.1044	0.959	border-touching	view

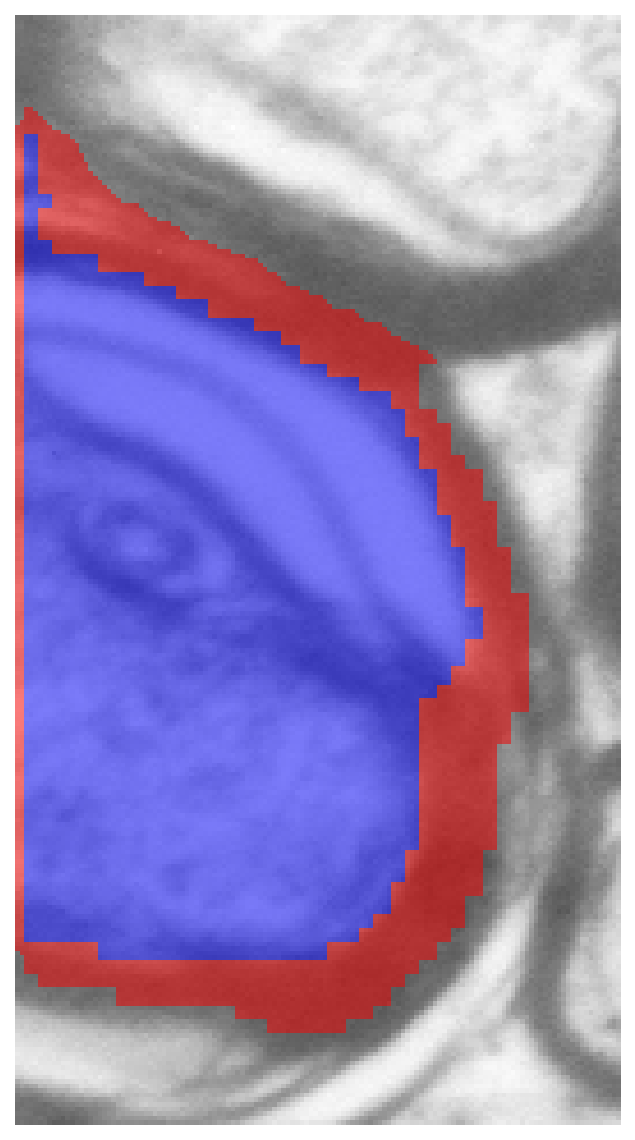

57	border	0.857	1.1413	0.0955	0.912	border-touching	view

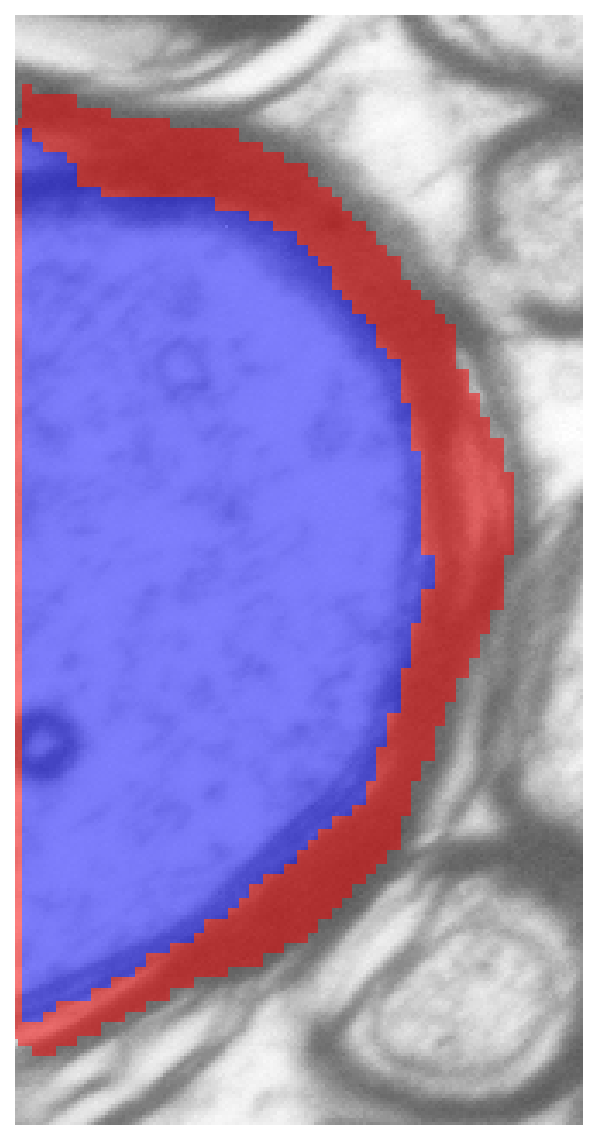

65	border	0.861	1.5434	0.1246	0.963	border-touching	view

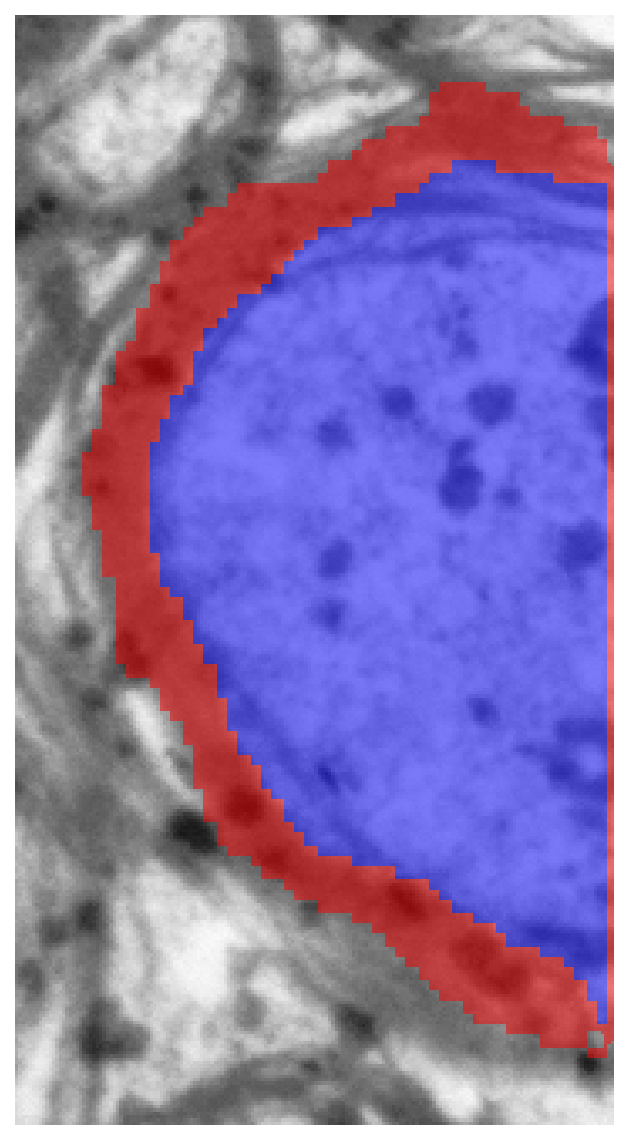

67	border	0.855	1.6140	0.1366	0.951	border-touching	view

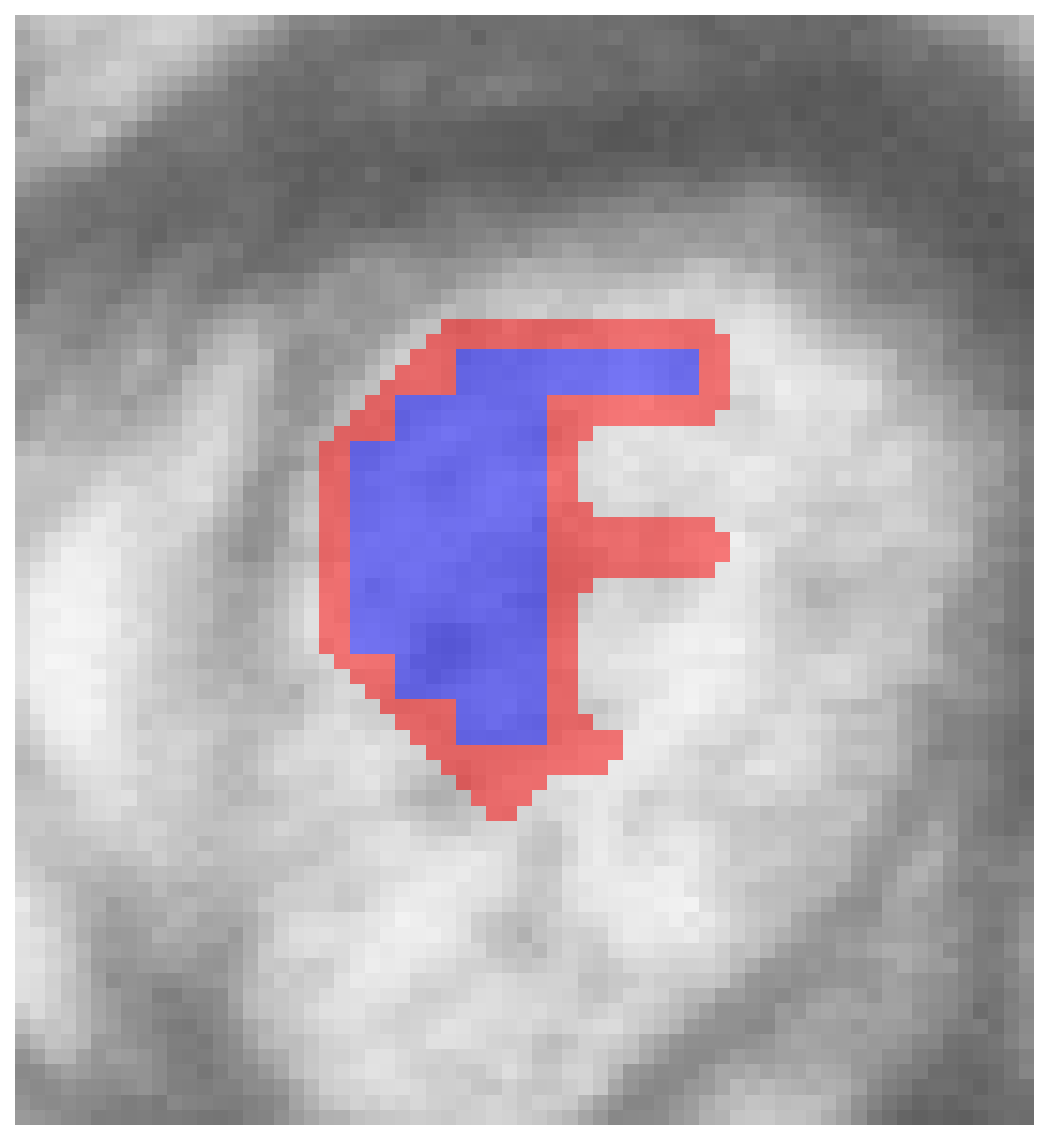

78	merge_error	0.736	0.1811	0.0324	0.710	low solidity (0.710)	view

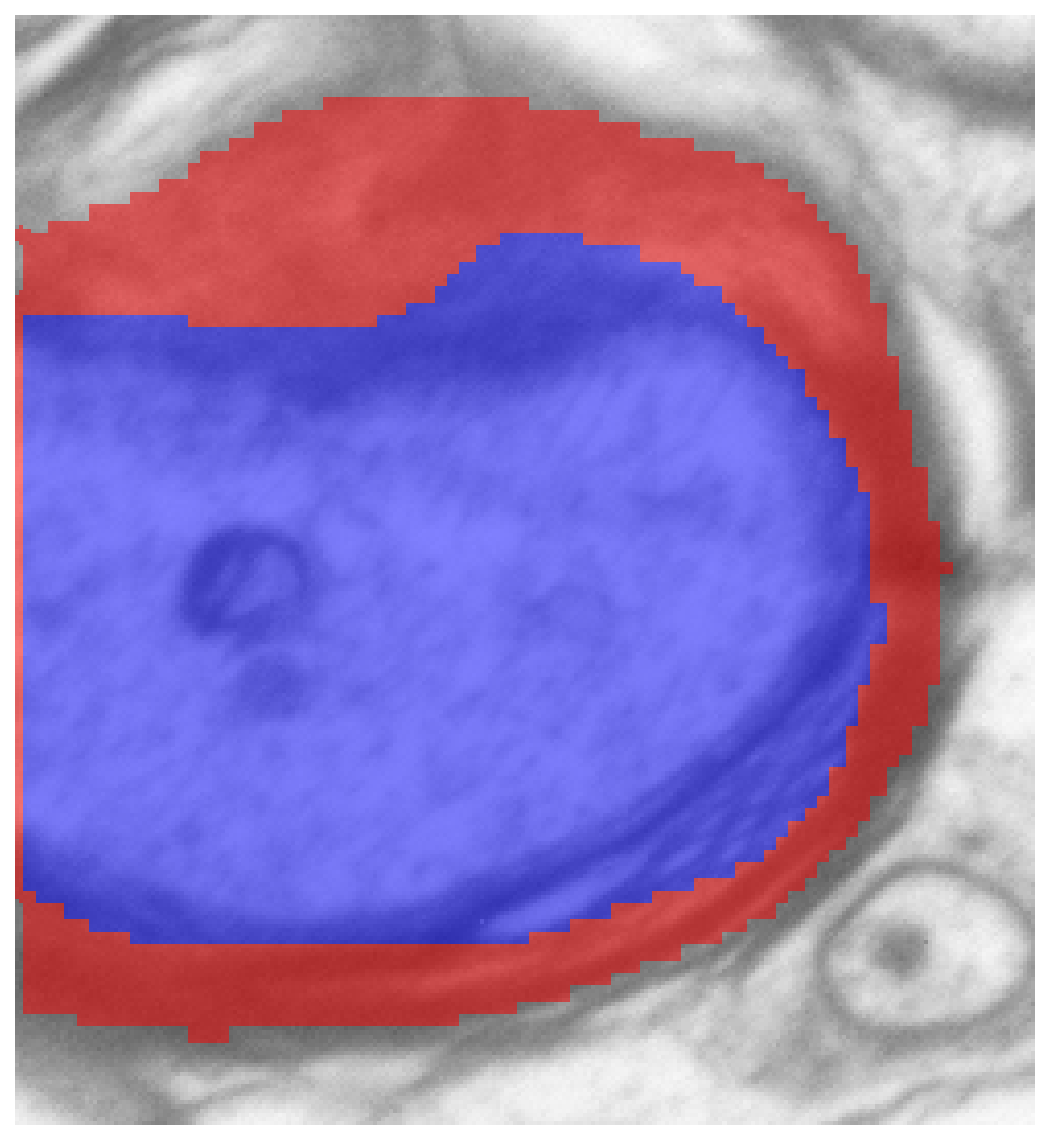

80	border	0.829	1.7904	0.1847	0.953	border-touching	view

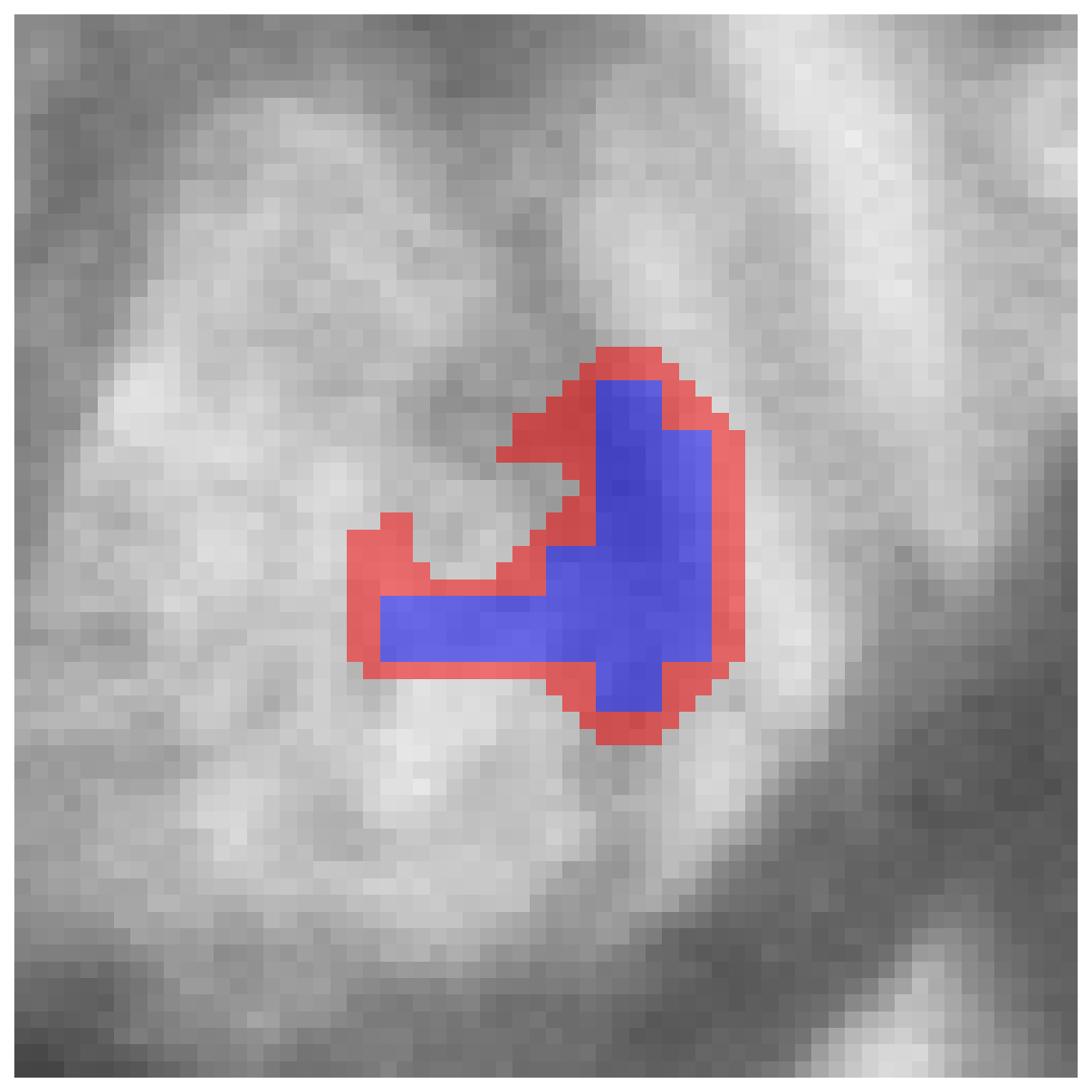

81	merge_error	0.733	0.1396	0.0255	0.663	low solidity (0.663)	view
82	merge_error	0.822	0.2797	0.0303	0.566	low solidity (0.566)	view

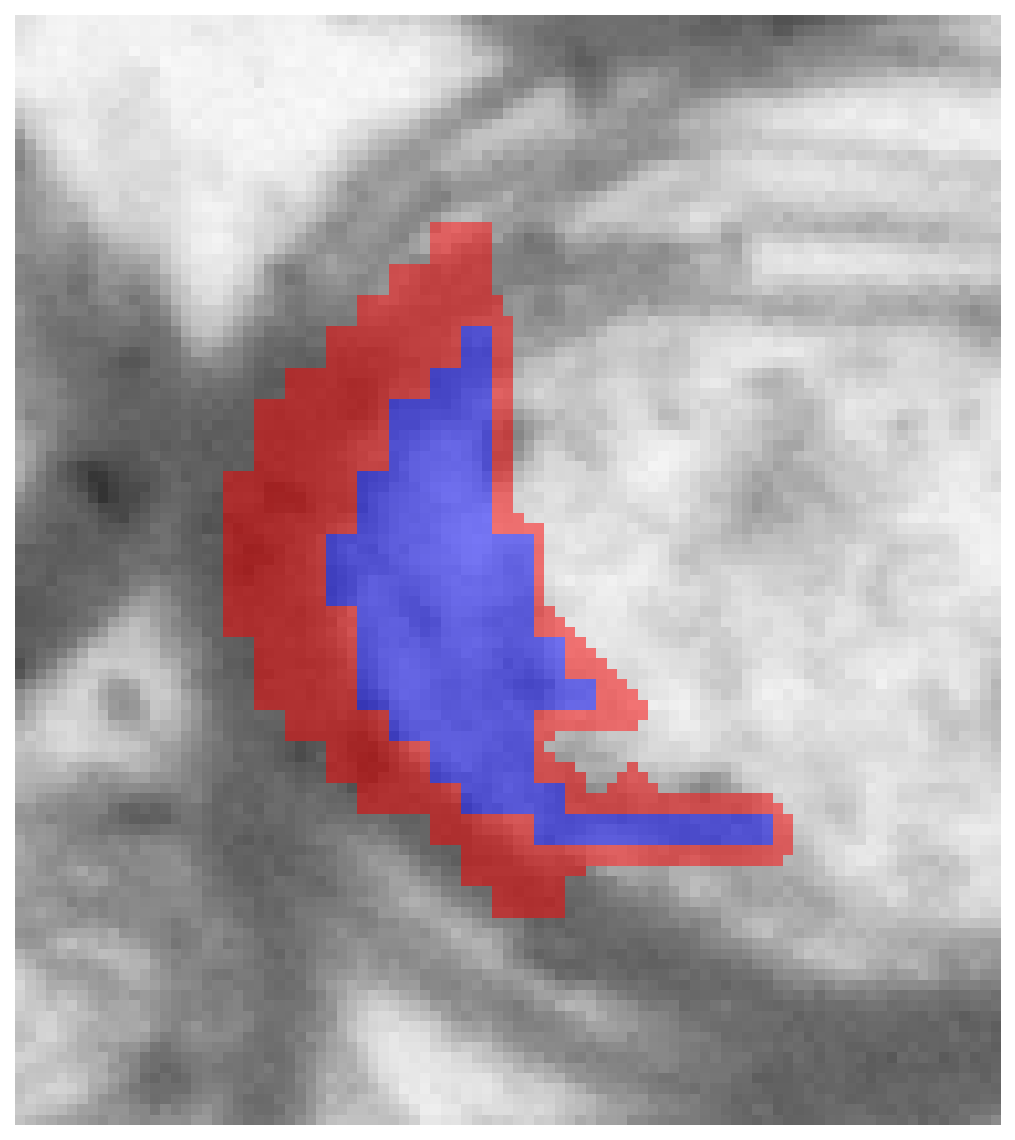

83	merge_error	0.650	0.2728	0.0734	0.565	low solidity (0.565)	view
84	border	0.845	1.4570	0.1336	0.943	border-touching	view

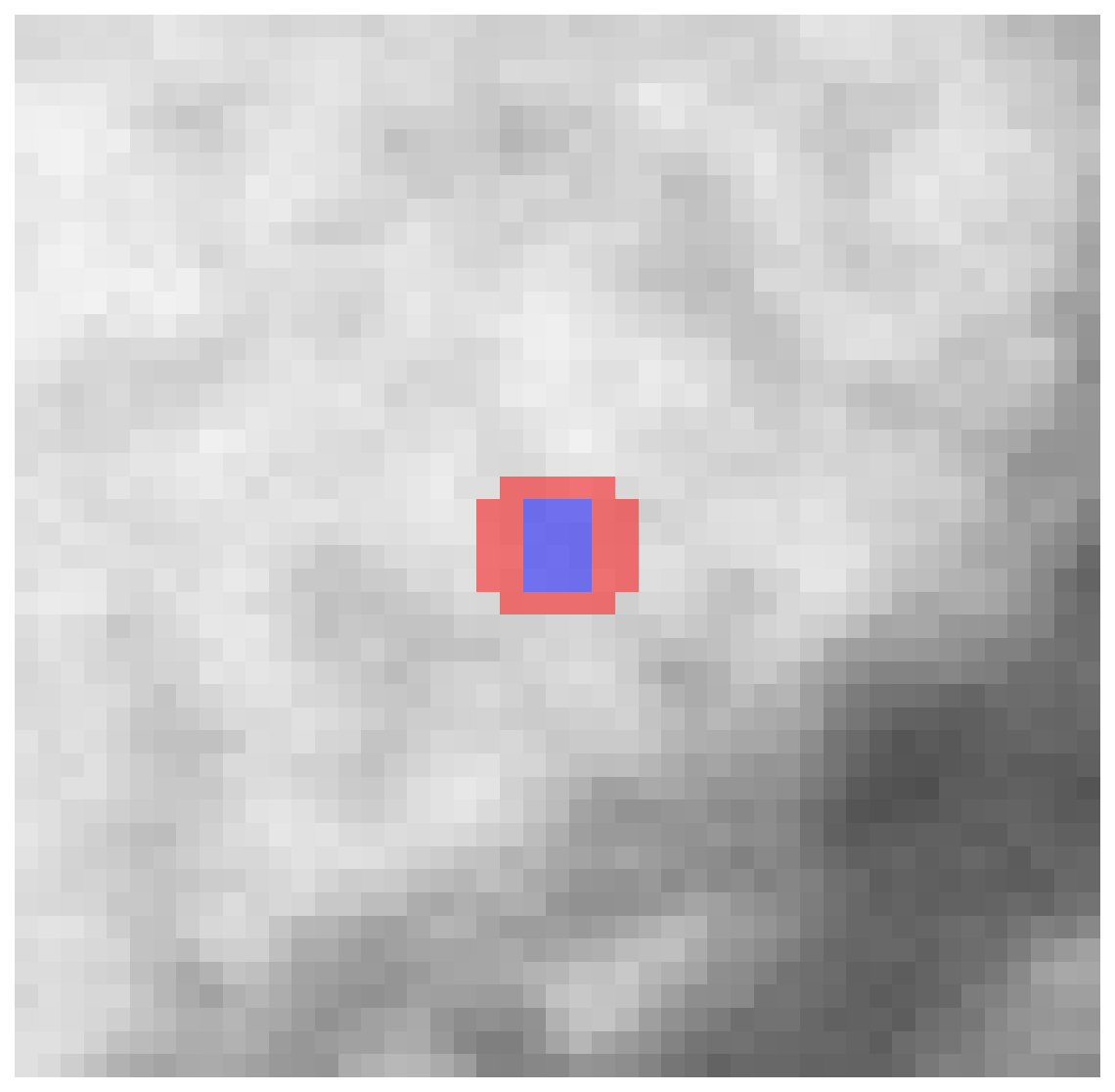

85	artifact	0.562	0.0357	0.0139	1.000	tiny axon (0.0357 um)	view

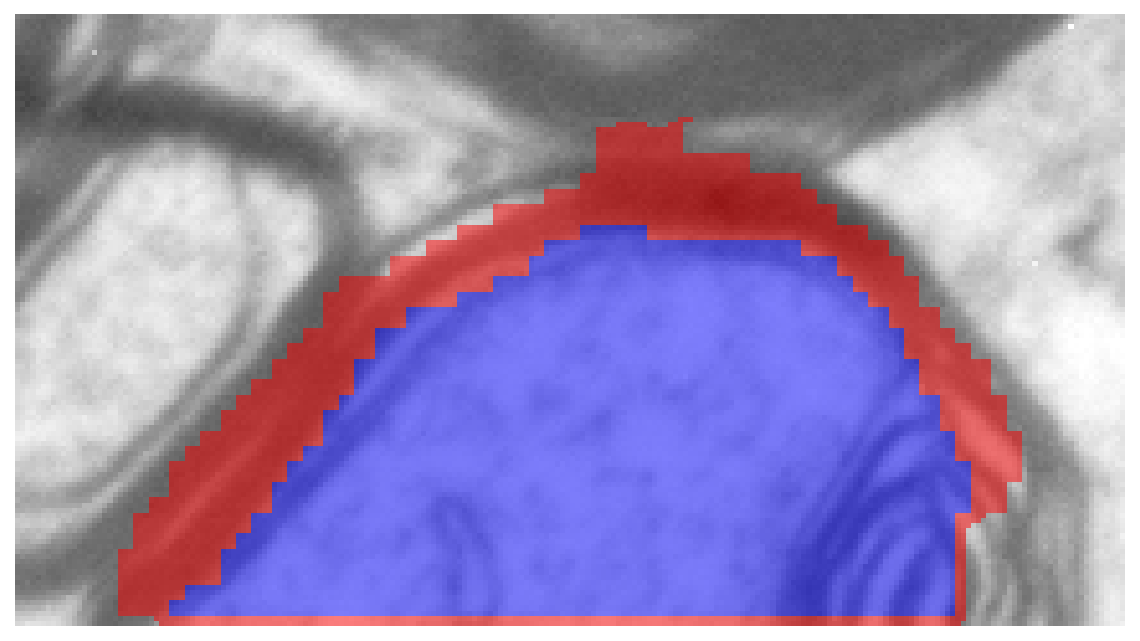

86	border	0.842	0.9485	0.0887	0.951	border-touching	view

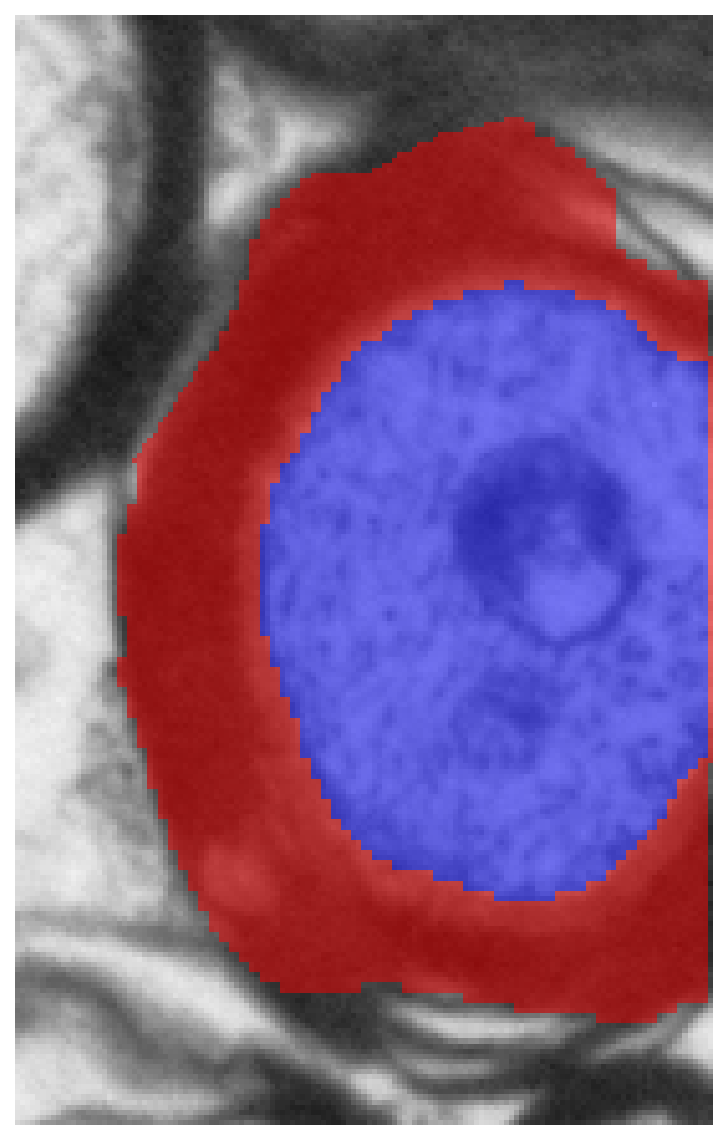

87	border	0.652	0.4178	0.1115	0.949	border-touching	view

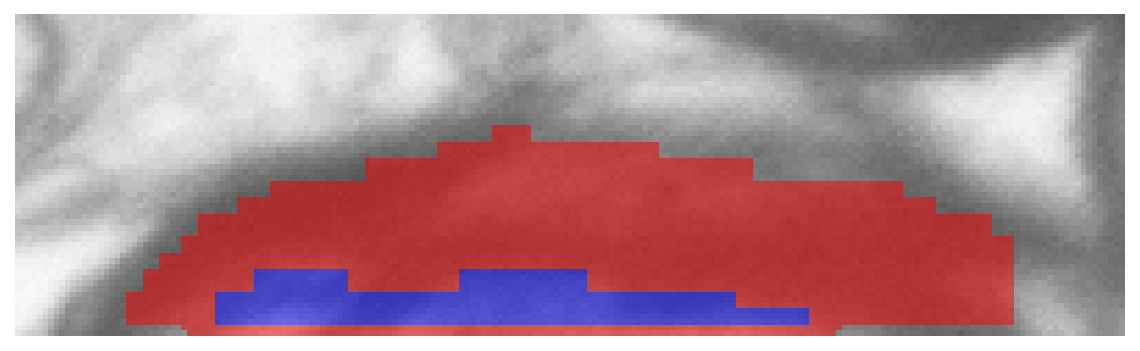

88	border	0.414	0.2850	0.2016	0.825	border-touching	view
